Mishimoto - MMRAD-F2D-08V2

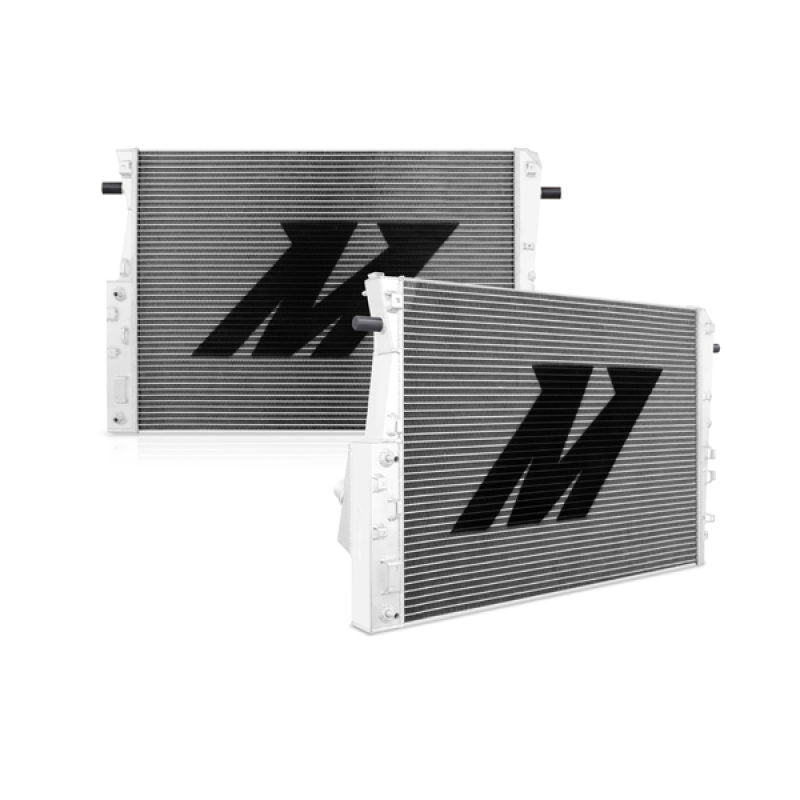

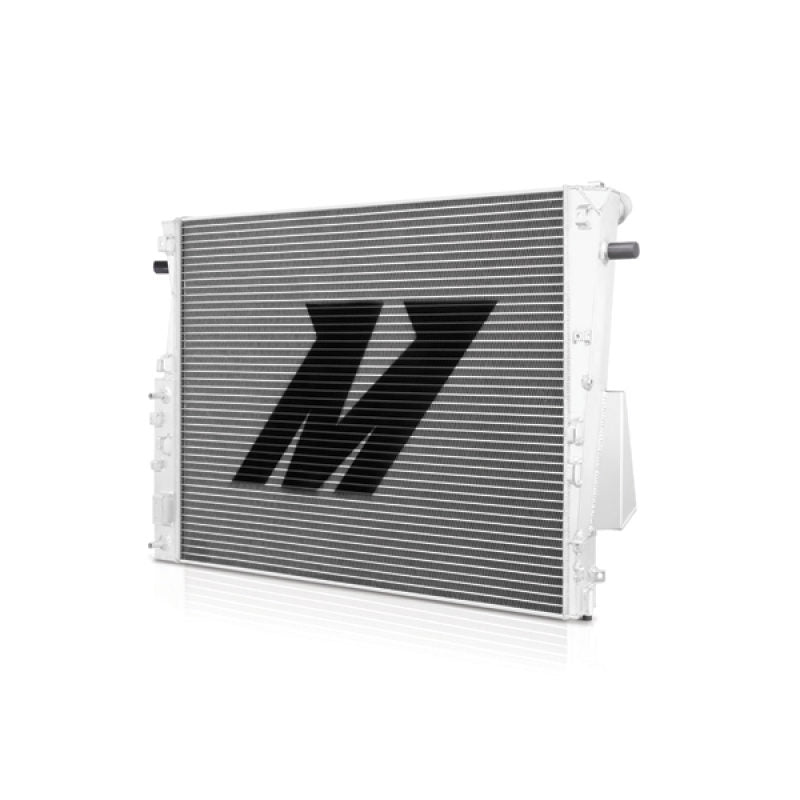

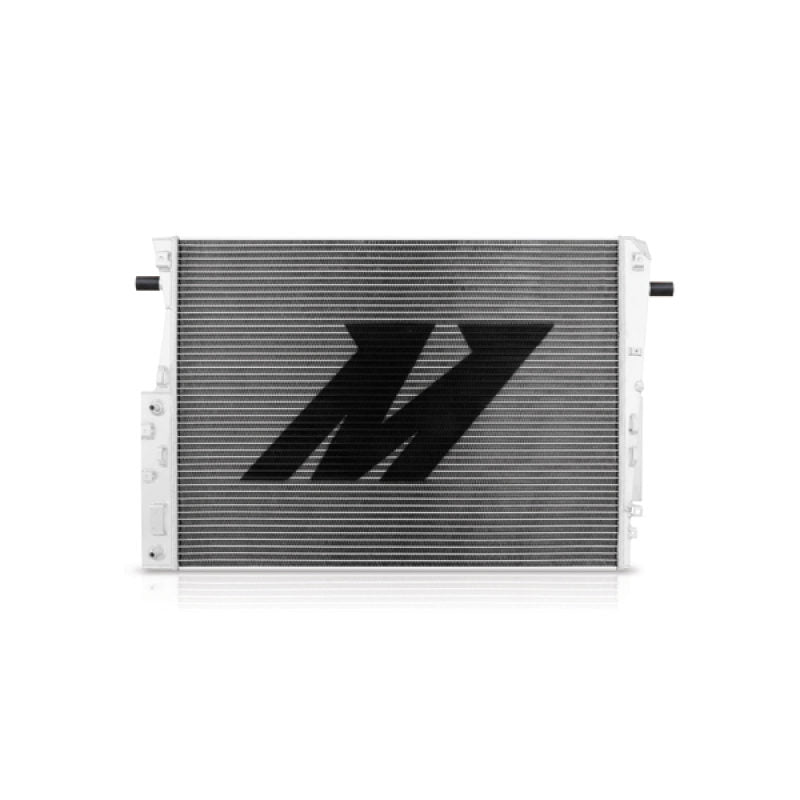

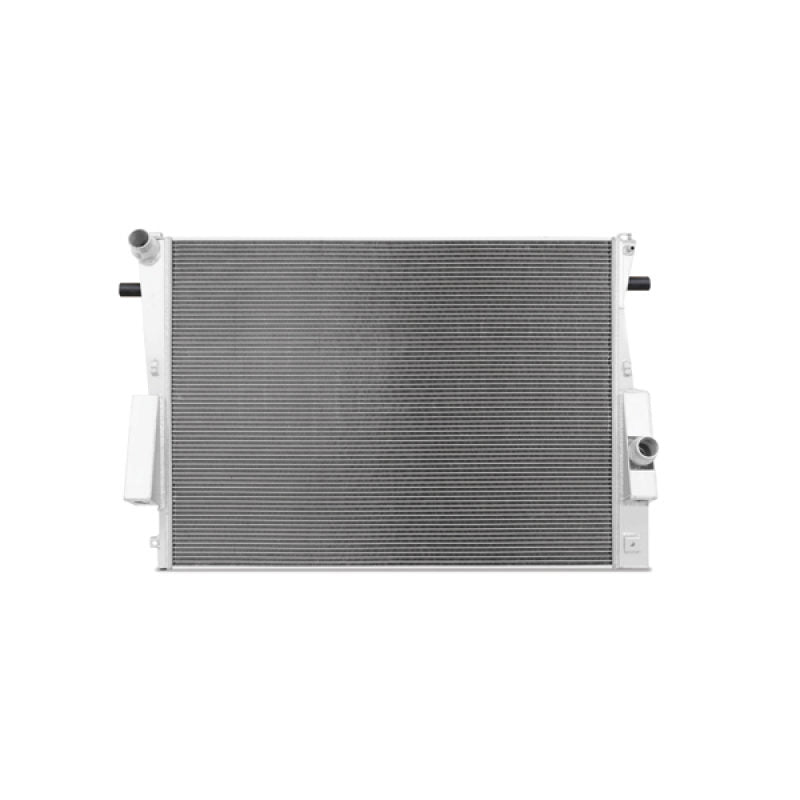

Aluminum Radiator, fits Ford 6.4L Powerstroke 2008-2010
The 2008-2010 6.4L Ford Powerstroke is plagued with radiator and cooling issues with no effective solution available—until now. Upgrade your truck with the Mishimoto 6.4L Powerstroke aluminum radiator to put an end to puddles of coolant under your truck. Mishimoto radiators are constructed from high-quality aircraft-grade aluminum with a 100-percent brazed aluminum core. Our 6.4L radiator features strong TIG-welded aluminum end tanks for superior durability and longevity that will keep your Powerstroke on the road and out of the shop. The Mishimoto performance radiator retains factory fitment for an easy installation process and includes a magnetic drain plug to catch any debris in your cooling system. As with all our products, this radiator is protected by the Mishimoto Lifetime Warranty.
- Version 2 product design
- Direct fit for the 6.4L Powerstroke
- Co-molded aluminum/rubber mounting pegs to reduce the truck's torque transfer to the radiator
- Internally strutted tubes in the top and bottom 8 rows for increased strength against high pressure
- Strengthened top and bottom core support plates prevent core torquing and bending
TechSpec Overall Height (in): 28.7
TechSpec Overall Length (in): 45.7
TechSpec Overall Width (ins): 8.9
TechSpec Core Length (in): 27.48
TechSpec Core Height (in): 37.01
TechSpec Fluid Capacity (gal): 8.36
TechSpec Rows: 2
TechSpec Inlet (in): N/A
TechSpec Outlet (in): N/A
TechSpec Core Thickness (in): 2.76
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 13022
TechSpec Material: Aluminum
TechSpec Applications: 2008-2010 Ford F-250 w/ 6.4L Powerstroke--2008-2010 Ford F-350 w/ 6.4L Powerstroke--2008-2010 Ford F-450 w/ 6.4L Powerstroke--2008-2010 Ford F-550 w/ 6.4L Powerstroke
TechSpec Engine Codes: N/A
TechSpec Chassis Codes: N/A
TechSpec Note: N/A
TechSpec Includes: Mishimoto Radiator--Magnetic Drain Plug w/ Dowty Oil Seal--(2) Rubber Mounting Pegs--(8) M6 x 1.0 x 14mm Bolts--Mishimoto Lifetime Warranty
SellingPoint01: Enhanced second generation product design
SellingPoint02: Direct fit for the 2008-2010 Ford 6.4L Powerstroke
SellingPoint03: Dual-molded aluminum/rubber mounting pegs to reduce torque transfer to the radiator
SellingPoint04: Internally strutted tubes for increased strength against high pressure and temperature
SellingPoint05: Strengthened top and bottom core support plates prevent core torquing and bending
SellingPoint06: Inlet and outlet have CNC-machined OEM-style quick-disconnects
SellingPoint07: 100-percent brazed aluminum core
SellingPoint08: TIG-welded to perfection
SellingPoint09: Includes magnetic drain plug
SellingPoint10: US Patent Numbers D717,702, ZL 201430130878.8
SellingPoint11: Mishimoto Lifetime Warranty
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Install Difficulty: 3
