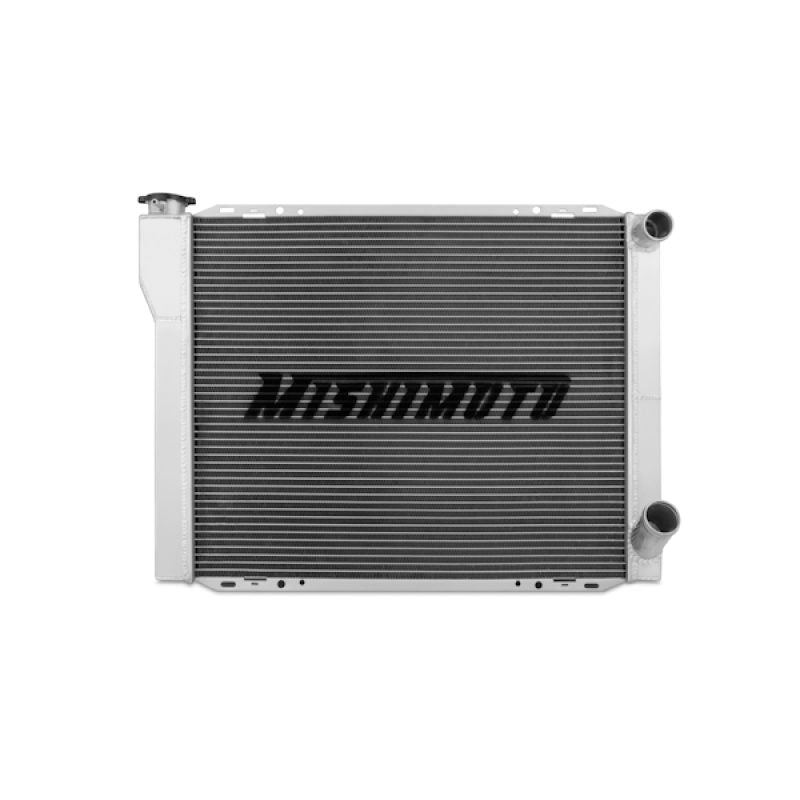

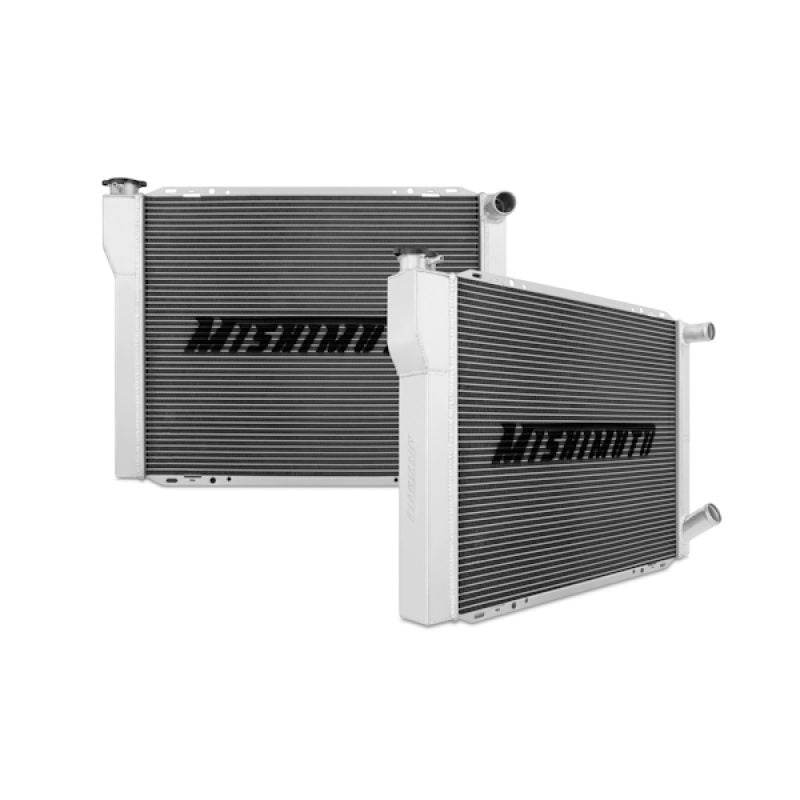

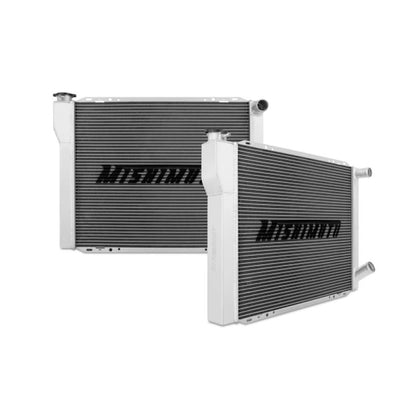

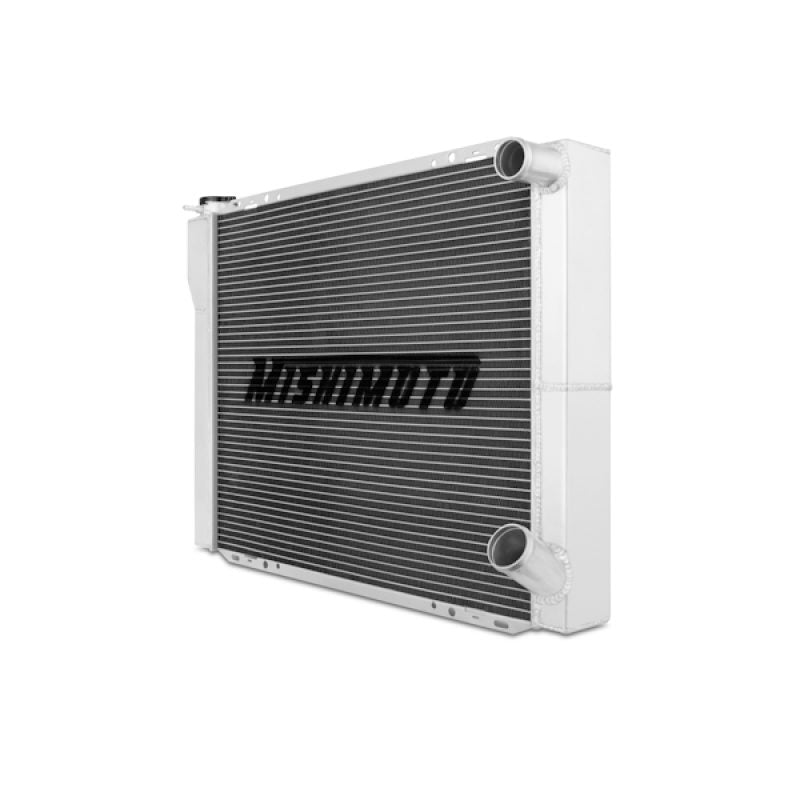

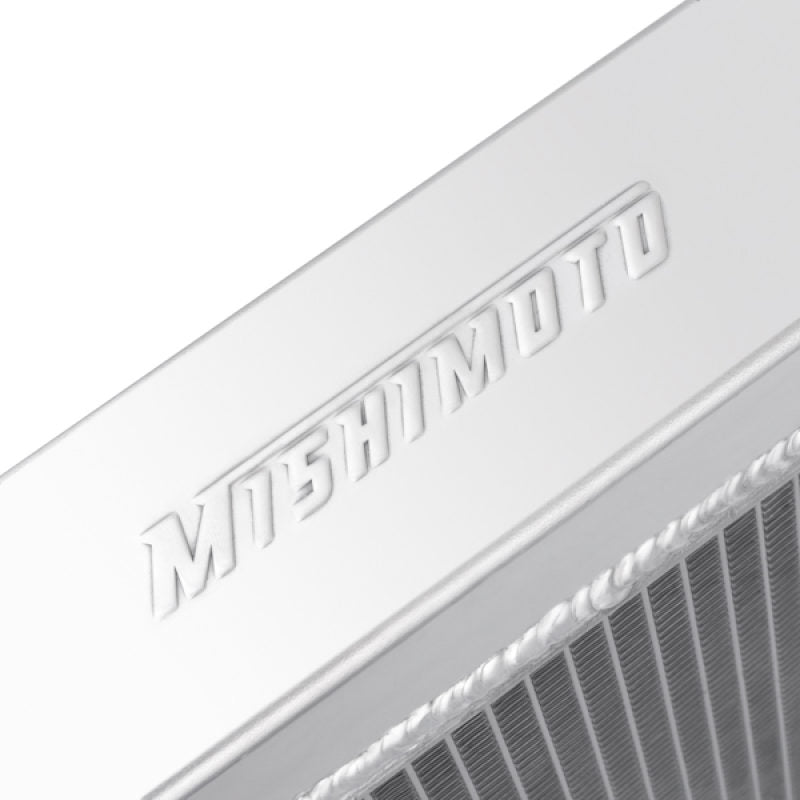

Mishimoto MMRAD-DBP-26 - Universal Dual Pass Race Radiator 27x19x3 Inches Aluminum Radiator
Aluminum radiator engineered for efficient heat dissipation and optimal engine cooling. Precision-fit design ensures easy installation, corrosion resistance, and reliable performance across varied driving conditions.
Mishimoto'sports 27in x 19in x 3in Dual Pass Race Radiator.Perfect for any vehicle competing in motorsports.Made with aircraft quality aluminum and specifically engineered to maximize cooling efficiency, boost engine functions and protect your car from overheating.
TechSpec Overall Height (in): 20
TechSpec Overall Length (in): 27
TechSpec Overall Width (in): 3
TechSpec Core Length (in): 22.24
TechSpec Core Height (in): 18.43
TechSpec Fluid Capacity (gal): N/A
TechSpec Rows: 2
TechSpec Inlet (in): 1.5
TechSpec Outlet (in): 1.77
TechSpec Core Thickness (in): 2.2
TechSpec Drain Plug Thread Size: N/A
TechSpec DPI: N/A
TechSpec Material: Aluminum
TechSpec Applications: N/A
TechSpec Engine Codes: N/A
TechSpec Chassis Codes: N/A
TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Mishimoto Lifetime Warranty
SellingPoint01: Universal fitment for projects requiring exceptional fluid cooling
SellingPoint02: Unique dual pass design is precision engineered to provide substantial heat transfer
SellingPoint03: Full aluminum construction with brazed core for optimal durability and pressure tolerance

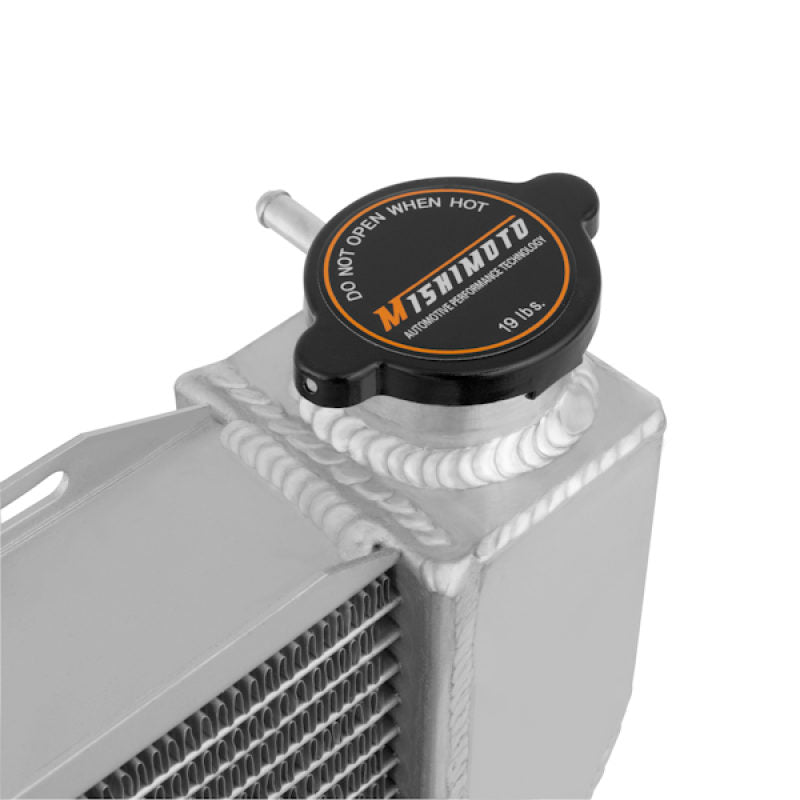

SellingPoint04: 1.3 Bar High-Pressure Radiator Cap raises the coolant boiling point, providing a safer and more efficient system
SellingPoint05: Efficient, two-row core measuring 55mm thick, provides substantial fluid capacity and superior fluid temperature reduction
SellingPoint06: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system

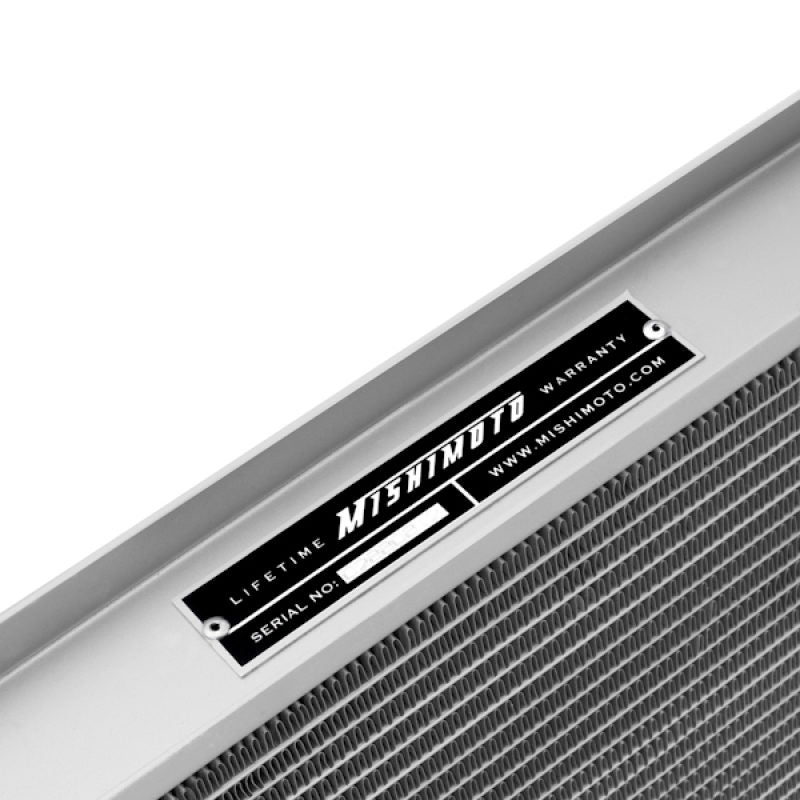

SellingPoint07: Mishimoto Lifetime Warranty
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Install Difficulty: 3
Core Finish: Uncoated
Core Height: 18.43
Core Length: 22.24
Core Material: Aluminum
Core Row Quantity: 2
Core Thickness: 2.2
Down Flow Or Cross Flow Type: Cross Flow
Drain Plug Included: Yes
Drain Plug Thread Size: M12 - 1.5
Fluid Capacity: 0
Inlet Diameter: 1.5
Inlet Location: Top Right
Outlet Diameter: 1.77
Outlet Location: Bottom Right
Overall Height: 20
Overall Length: 27
Overall Width: 3
Radiator Cap Included: Yes
Transmission Oil Cooler Fitting Type: N/A
Transmission Oil Cooler Included: No
