Mishimoto - MMRAD-CTR-23

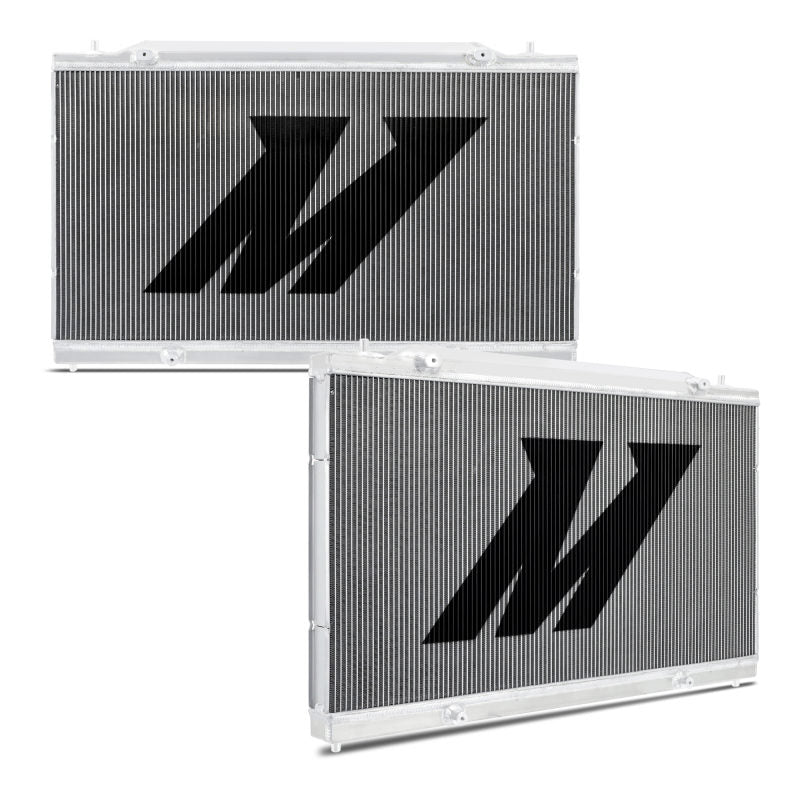

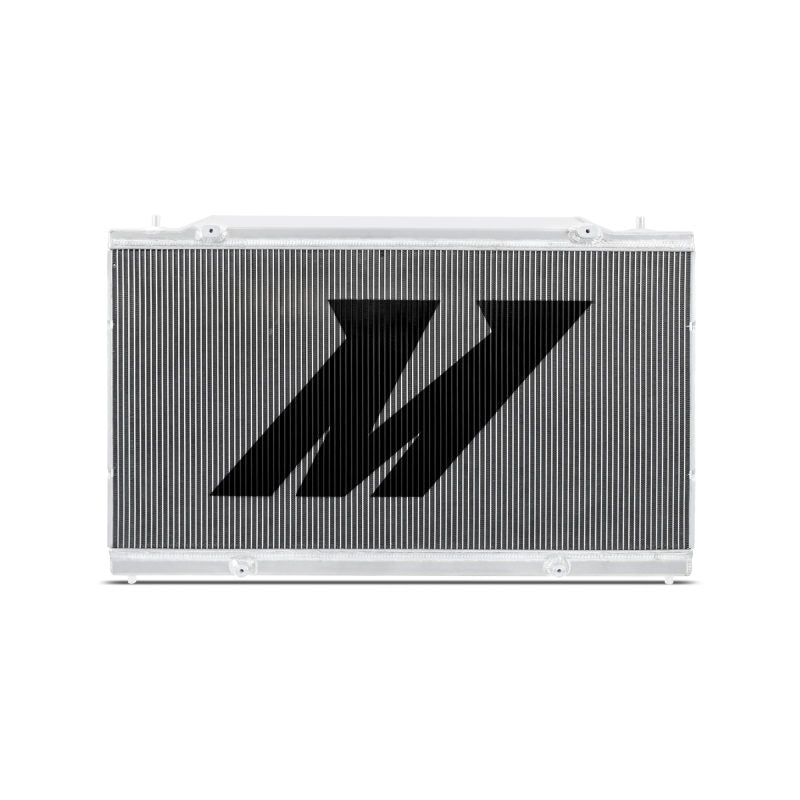

Performance Aluminum Radiator, fits Honda Civic Type-R 2023+
Upgrade the cooling system of your 2023+ Honda Civic Type-R with the Mishimoto Performance Radiator, engineered to utilize every millimeter possible for maximum efficiency and durability with a 17% heat rejection lowering temps on average between five to ten degrees. The all-aluminum construction features precision TIG-welded end tanks and a robust 40mm thick strutted tube core that’s designed to resist chassis flex during intense driving. With a 49% increase in core volume, a 31% larger external fin area, and a 31% boost in internal tube area, this radiator ensures efficient heat transfer and dissipation to keep your engine cool in the most demanding of conditions.
--
Designed as a direct-fit upgrade, this radiator offers plug-and-play installation without the need for bumper removal. Radiator include foam seals to fan shroud for optimal airflow and is also fully compatible with stock hoses making it an easy addition to your Civic. The included magnetic drain plug helps protect your cooling system by capturing metallic debris, and this radiator comes backed by the Mishimoto Lifetime Warranty.
SellingPoint01: Direct fit for the 2023+ Honda Civic Type-R

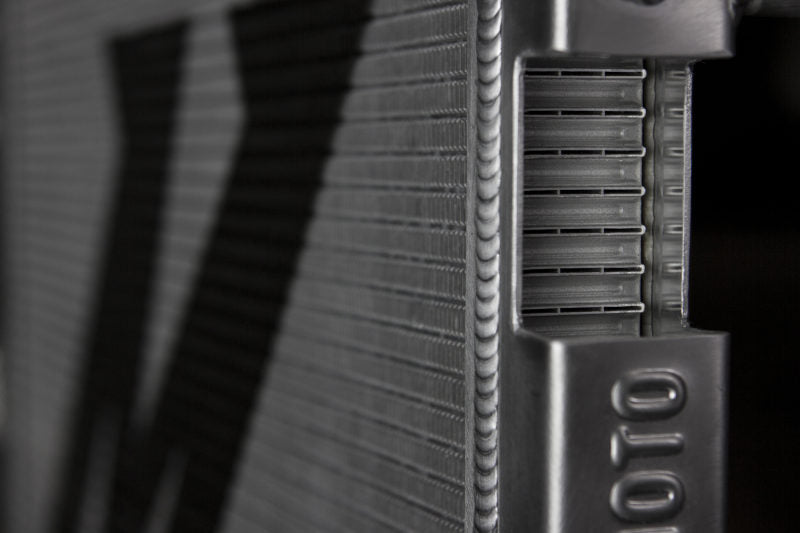

SellingPoint02: All-aluminum design with precision TIG-welded end tanks

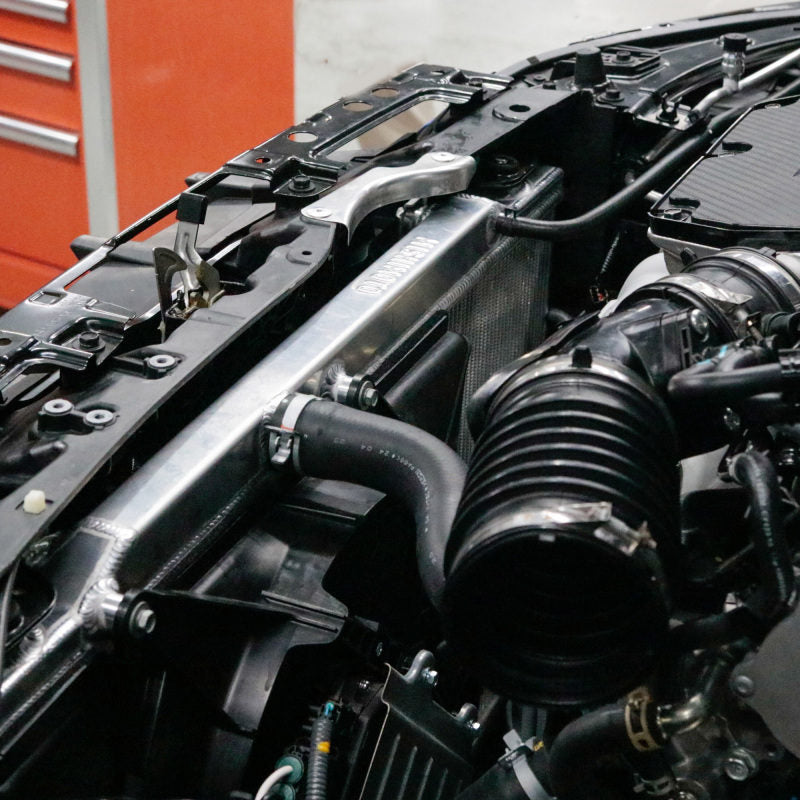

SellingPoint03: Plug-and-play installation without need for bumper removal
SellingPoint04: 17% increase in heat rejection, creating on average a 5 – 10 degree drop in outlet temperatures

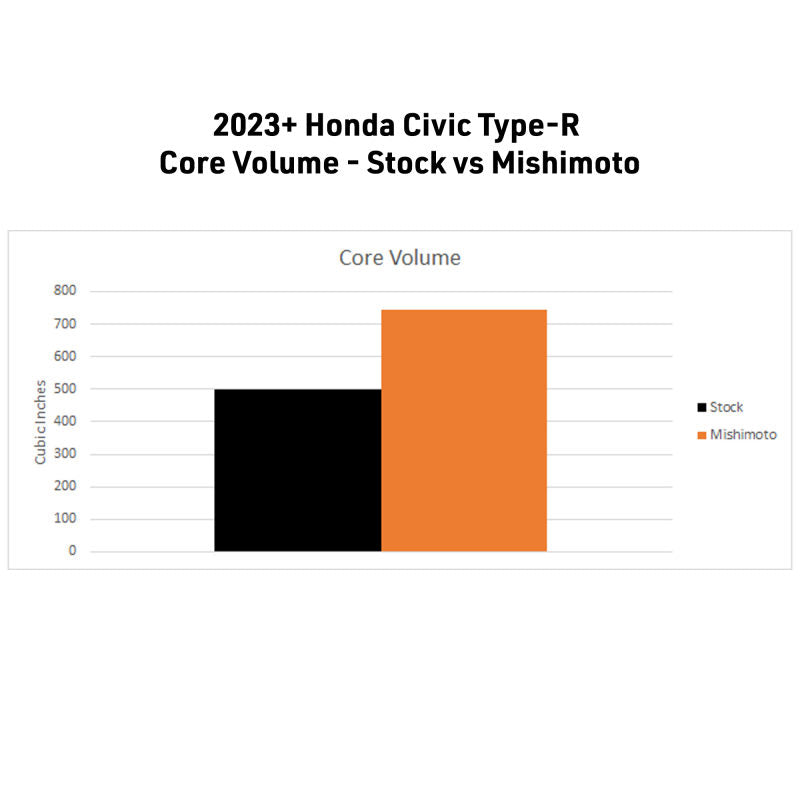

SellingPoint05: 49% increase in core volume for improved cooling capacity

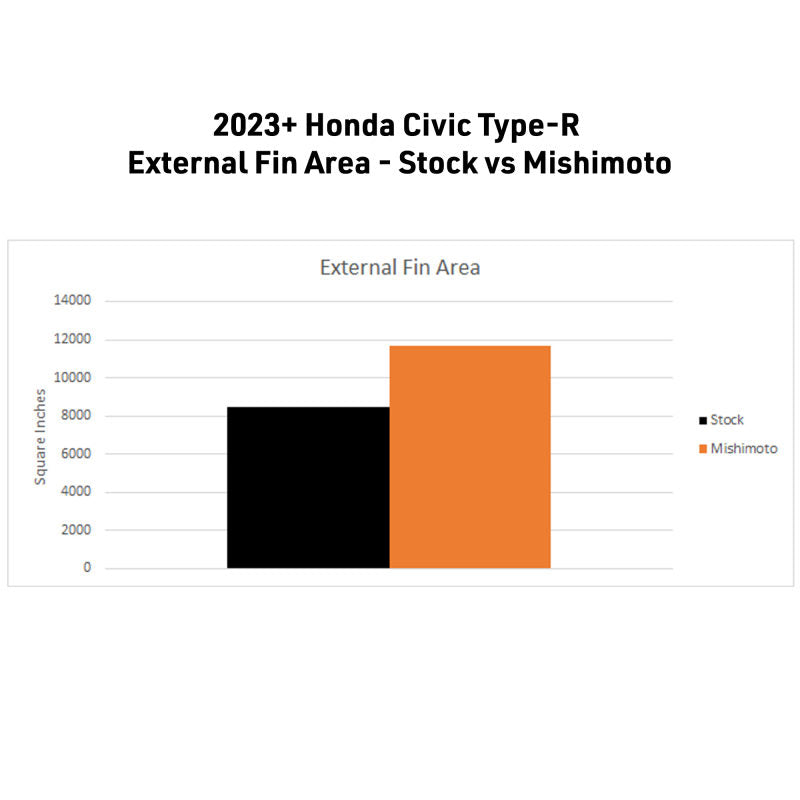

SellingPoint06: 31% increase in external fin area to efficiently transfer heat from coolant
SellingPoint07: 31% increase in internal tube area for improved heat dissipation
SellingPoint08: Sturdy 40mm thick strutted tube single row core resists chassis flex

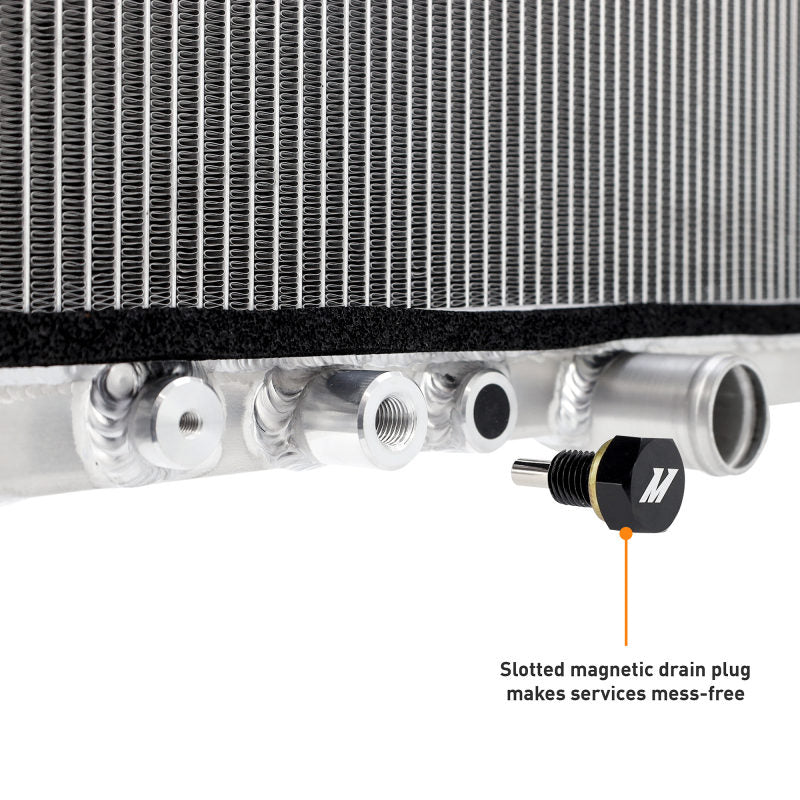

SellingPoint09: Includes Mishimoto Magnetic Drain Plug to capture metallic debris within cooling system

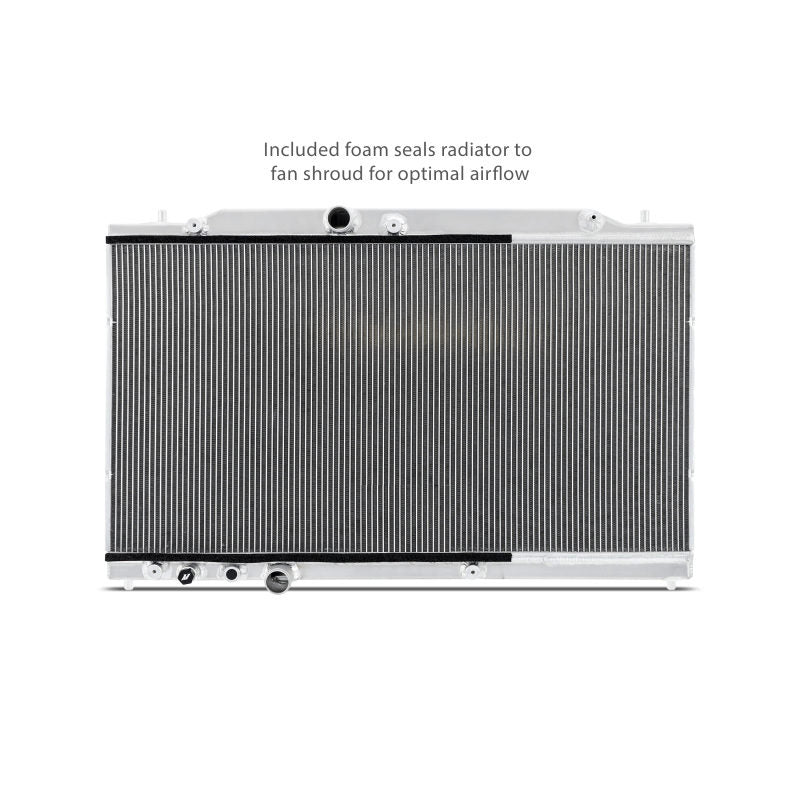

SellingPoint10: Included foam seals radiator to fan shroud for optimal airflow

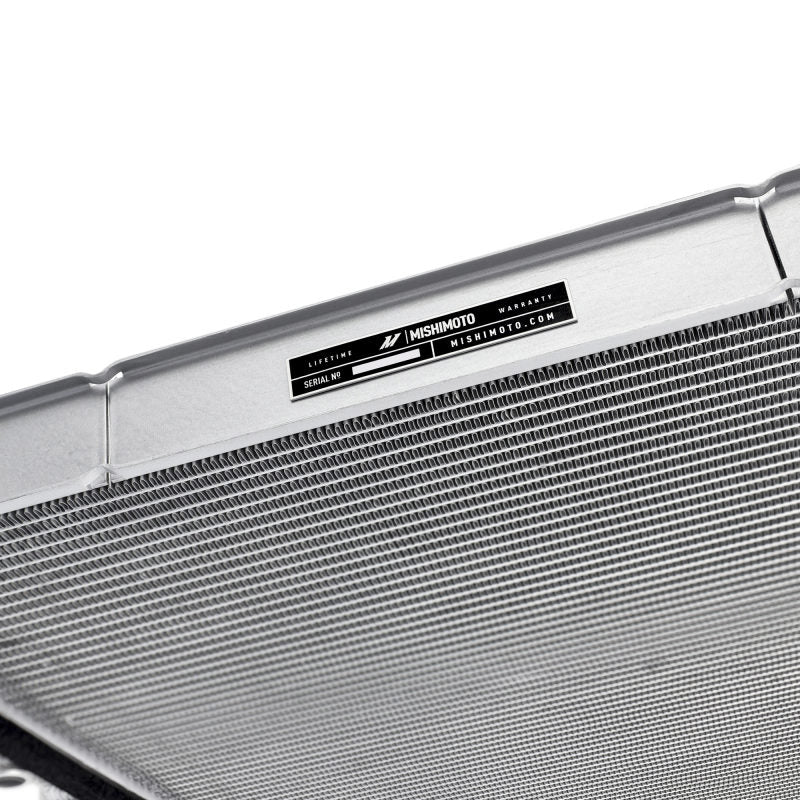

SellingPoint11: Mishimoto Lifetime Warranty
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Overall Height (in): 19.8
TechSpec Overall Length (in): 30.4
TechSpec Overall Width (ins): 4.5
TechSpec Core Length (in): 29.8
TechSpec Inlet (in): 1.26
TechSpec Outlet (in): 1.26
TechSpec Core Thickness (in): 1.5
TechSpec Drain Plug Thread Size: M12 X 1.5
TechSpec Rows: 103
TechSpec Fluid Capacity (gal): 0.87
TechSpec Core Height (in): 15.8
TechSpec DPI: 7221
TechSpec Material: Aluminum
TechSpec Applications: N/A
TechSpec Engine Codes: K20C1
TechSpec Chassis Codes: FL5--DE5
TechSpec Note: N/A
TechSpec Includes: (1) Mishimoto Performance Radiator--Mishimoto Lifetime Warranty
Install Difficulty: 3
