Mishimoto MMRAD-4RUN-03 - 03-09 Toyota 4-Runner / GX470 4.7L Performance Aluminum Radiator

Mishimoto MMRAD-4RUN-03 - 03-09 Toyota 4-Runner / GX470 4.7L Performance Aluminum Radiator

Mishimoto | MMRAD-4RUN-03
SKU: MMRAD-4RUN-03
$649.95 USD
$715.00 USD $649.95 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

Mishimoto MMRAD-4RUN-03 - 03-09 Toyota 4-Runner / GX470 4.7L Performance Aluminum Radiator

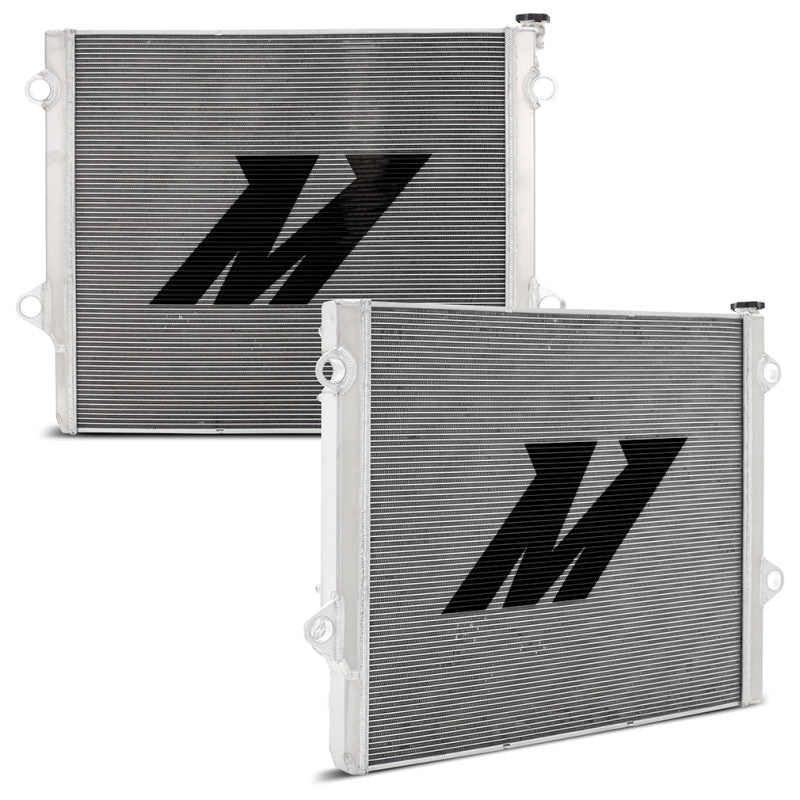

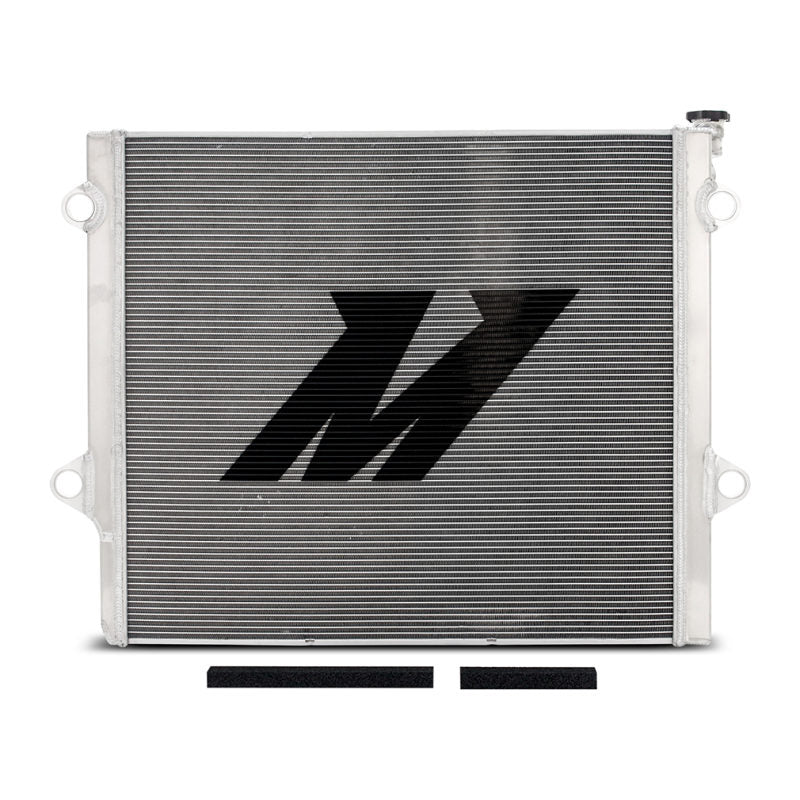

Performance Aluminum Radiator, fits Toyota 4Runner V8 2003-2009

Aluminum radiator engineered for efficient heat dissipation and optimal engine cooling. Precision-fit design ensures easy installation, corrosion resistance, and reliable performance across varied driving conditions.

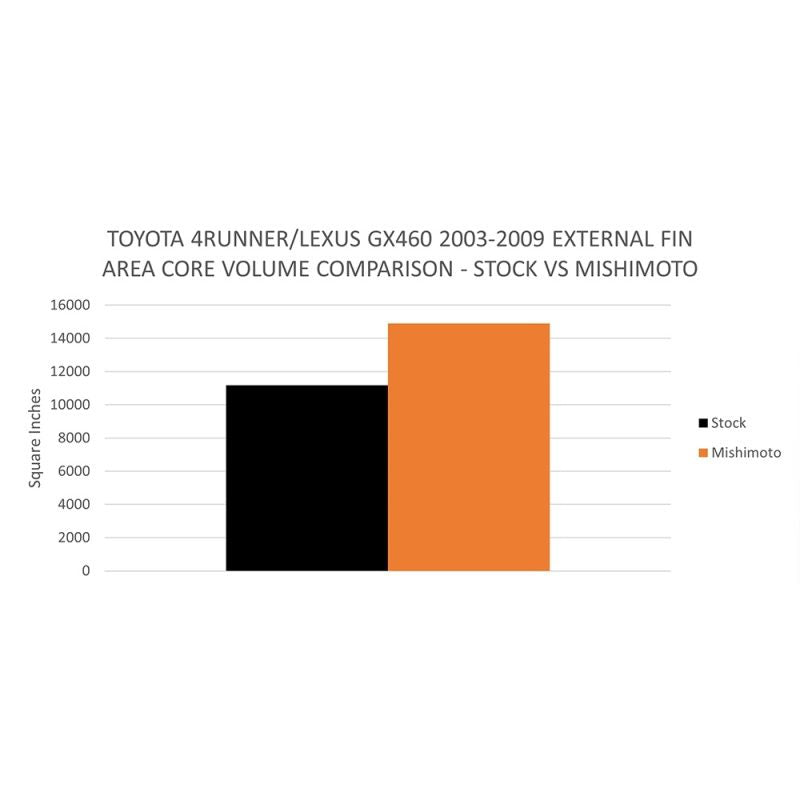

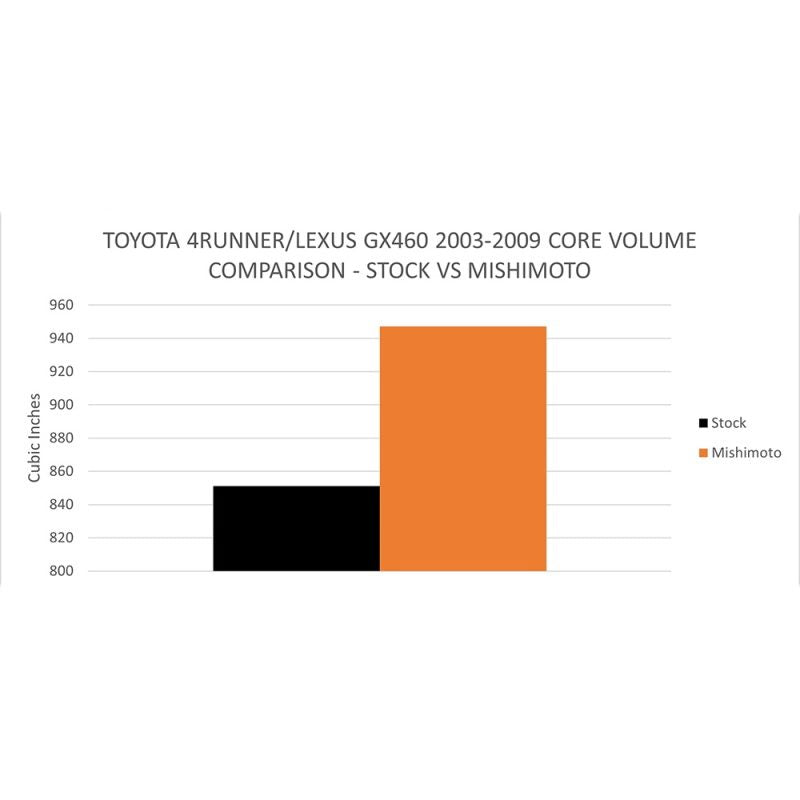

The 2003-2009 Toyota 4Runner V8 is known for its ruggedness, reliability, and off-road capability, but as they grow older the stock parts are starting to show their age. Over time, the factory radiator can develop issues such as leaks, corrosion, or clogging. Upgrading to a new Mishimoto performance aluminum radiator can prevent these problems before they occur, saving you from potential breakdowns on the trail. For those who use their 2003-2009 Toyota 4Runner for off-roading, this radiator can handle the additional strain and heat generated during these activities, providing better reliability and performance in rugged conditions. Our direct-fit radiator features a 40mm thick core for increased cooling capacity. Constructed entirely from aluminum with durable, TIG-welded end tanks, it includes an efficient in-tank liquid-to-liquid stacked plate transmission cooler for optimal transmission fluid temperature control. The radiator also comes with a magnetic drain plug to capture metallic debris in your cooling system and is backed by the Mishimoto Lifetime Warranty for peace of mind.

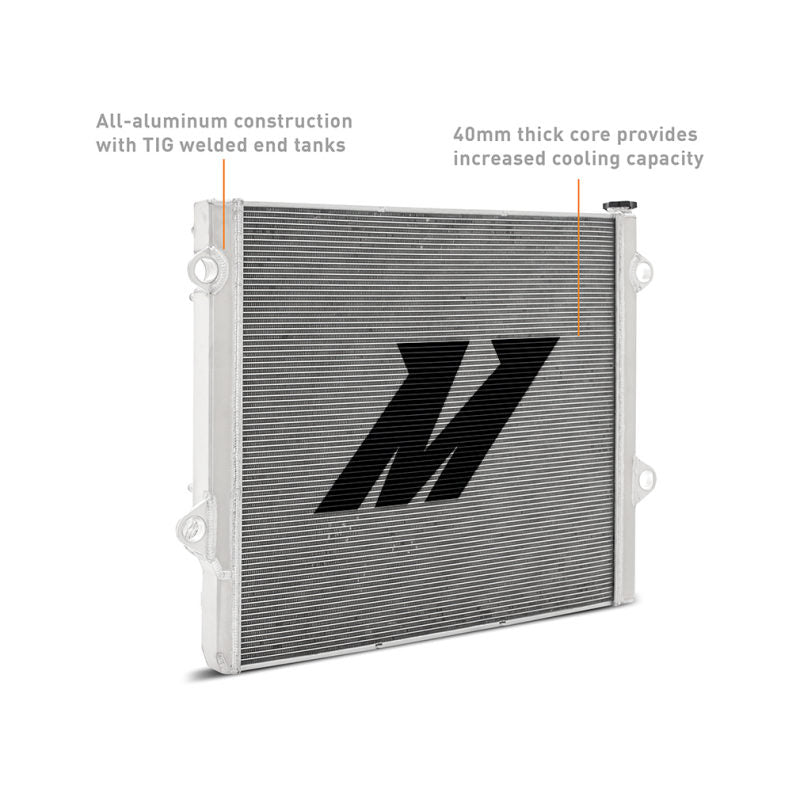

  • 40mm thick core provides increased cooling capacity

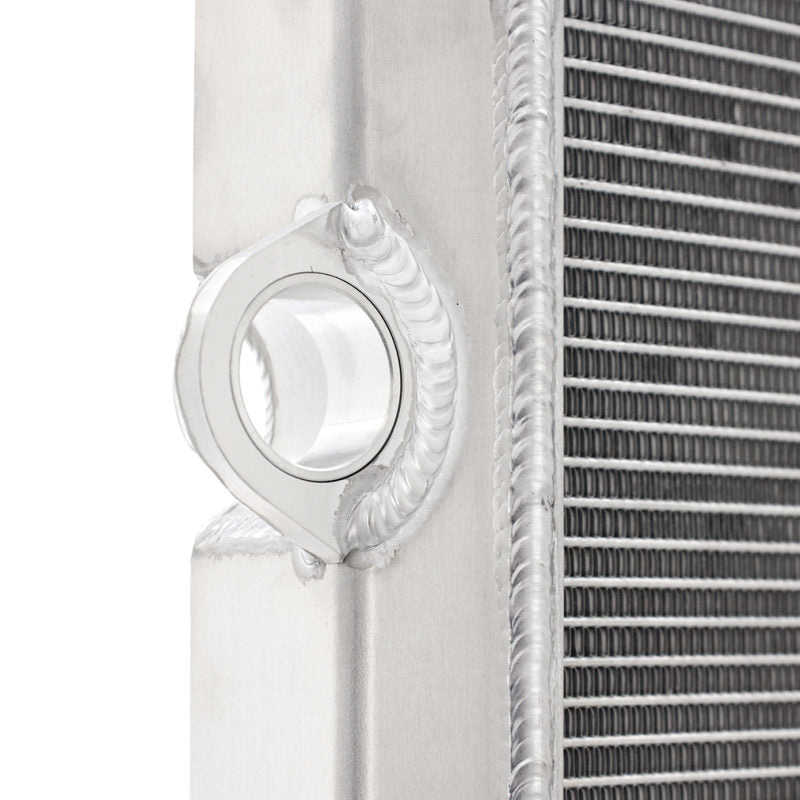

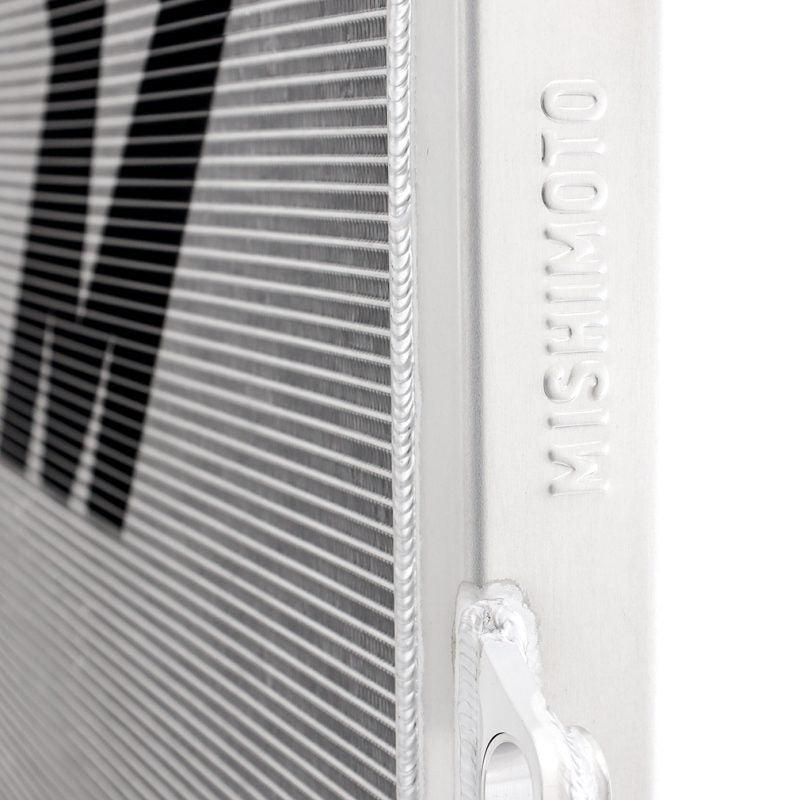

  • Full aluminum construction with durable, TIG-welded end tanks

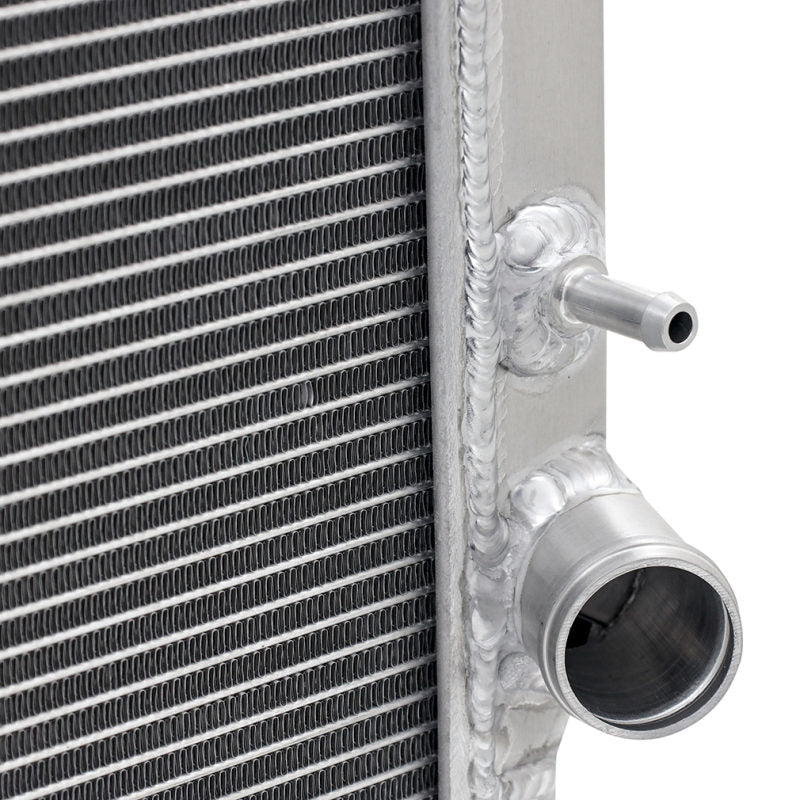

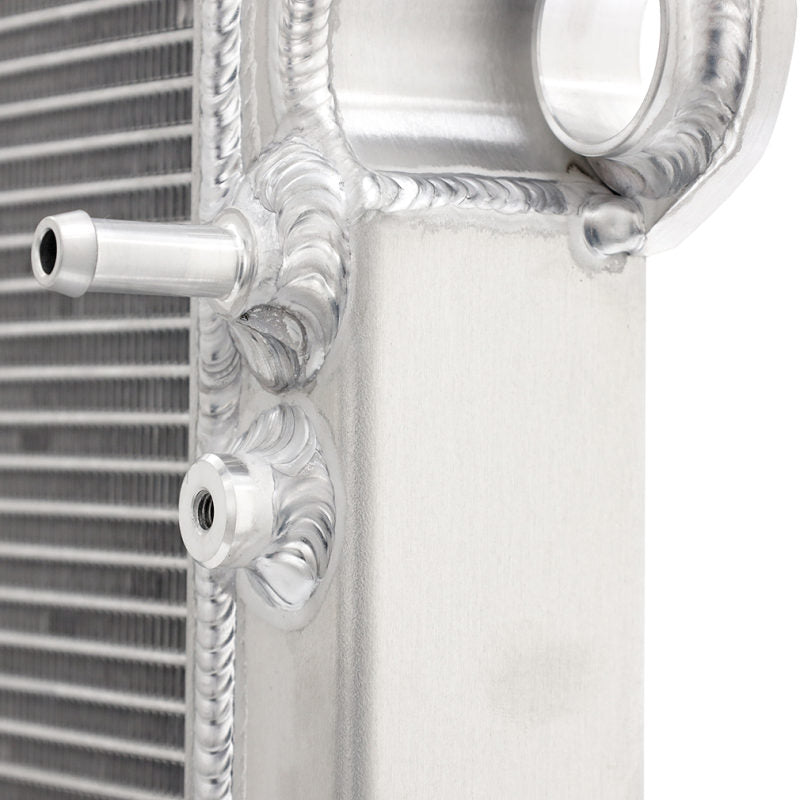

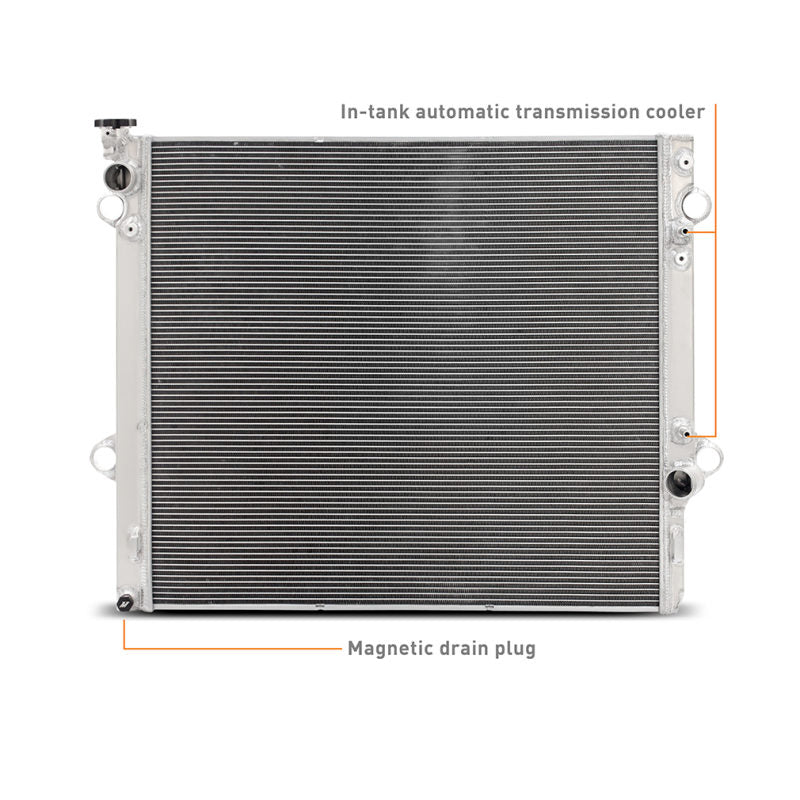

  • Efficient in-tank liquid-to-liquid stacked plate transmission cooler provides optimal control of transmission fluid temperatures
TechSpec Core Length (in): 25.59
TechSpec Core Height (in): 23.5
TechSpec Fluid Capacity (gal): 4.1
TechSpec Rows: 1
TechSpec Inlet (in): 1.5
TechSpec Outlet (in): 1.5
TechSpec Core Thickness (in): 1.57
TechSpec Drain Plug Thread Size: M12x1.5
TechSpec DPI: 2581
TechSpec Material: Aluminium
TechSpec Applications: 2003-2009 Toyota 4-Runner V8 4.7L--2003-2009 Lexus GX470
TechSpec Engine Codes: 2UZ-FE
TechSpec Chassis Codes: N210
TechSpec Note: N/A
TechSpec Includes: (1) Aluminum Radiator-- (1) 1.3 Bar Radiator Cap-- (3) M6 X 1.0 X 12 Hex Head Bolts-- (6) M6 Clip Nuts-- (1) M5 X 0.8 X 14 Hex Head Bolt-- Mishimoto Lifetime Warranty
Install Difficulty: 3
Core Finish: Uncoated
Core Height: 23.5
Core Length: 25.59
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness: 1.57
Down Flow Or Cross Flow Type: Cross Flow
Drain Plug Included: Yes
Drain Plug Thread Size: M12 - 1.5
Fluid Capacity: 4.1
Inlet Diameter: 1.5
Inlet Location: Top Left
Outlet Diameter: 1.5
Outlet Location: Bottom Right
Overall Height: 25.11
Overall Length: 32.66
Overall Width: 4.04
Radiator Cap Included: Yes
Transmission Oil Cooler Fitting Type: N/A
Transmission Oil Cooler Included: Yes
SellingPoint01: Direct Fit for Toyota 4Runner/Lexus GX470 4.7L V8, 2003-2009
SellingPoint02: 40mm thick core provides increased cooling capacity
SellingPoint03: Full aluminum construction with durable, TIG-welded end tanks
SellingPoint04: Efficient in-tank liquid-to-liquid stacked plate transmission cooler provides optimal control of transmission fluid temperatures
SellingPoint05: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint06: Includes adhesive-backed EPDM foam ensuring an efficient airflow seal between the radiator and radiator support
SellingPoint07: Mishimoto Lifetime Warranty
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Overall Height (in): 25.11
TechSpec Overall Length (in): 32.66
TechSpec Overall Width (in): 4.04
