Mishimoto MMOC-WRX-01TBK - 02-05 Subaru WRX/STi Thermostatic Oil Cooler Kit - Black

Name: Mishimoto MMOC-WRX-01TBK - 02-05 Subaru WRX/STi Thermostatic Oil Cooler Kit - Black
Brand: Mishimoto
SKU: MMOC-WRX-01TBK
Price: 534.95 USD
Availability: InStock

Mishimoto MMOC-WRX-01TBK - 02-05 Subaru WRX/STi Thermostatic Oil Cooler Kit - Black

Mishimoto | MMOC-WRX-01TBK
SKU: MMOC-WRX-01TBK

$534.95 USD

~~$588.00 USD~~ $534.95 USD

Sale Sold out

Shipping calculated at checkout.

5 in stock

Mishimoto MMOC-WRX-01TBK - 02-05 Subaru WRX/STi Thermostatic Oil Cooler Kit - Black

Oil Cooler Kit, Black, Thermostatic, fits Subaru WRX/STI 2001-2005

High-performance engine oil cooler designed to regulate oil temperature and protect critical engine components. Efficient heat dissipation improves durability, maintains lubrication, and ensures reliable performance.

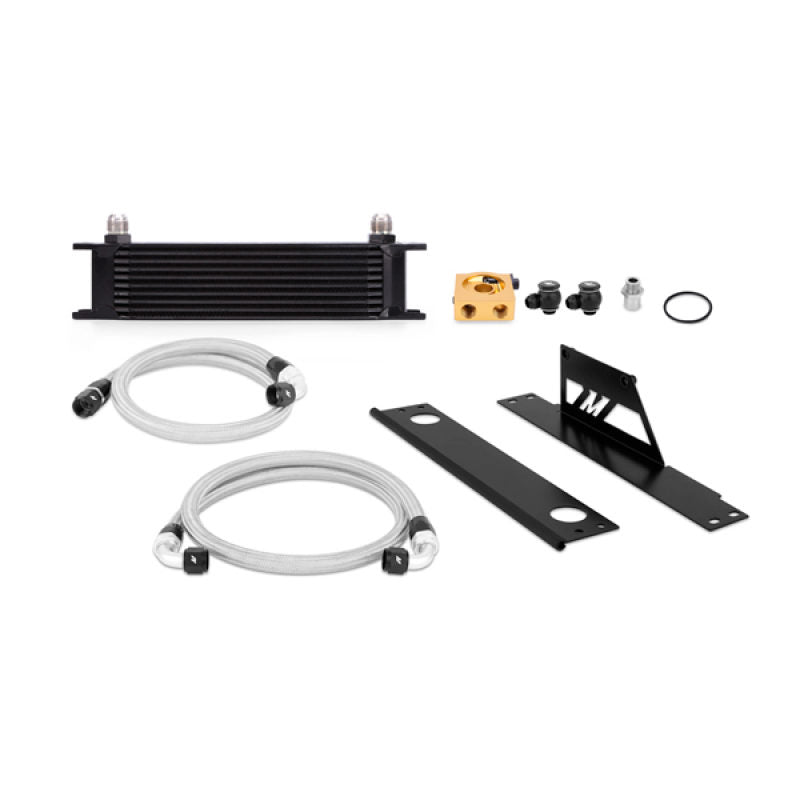

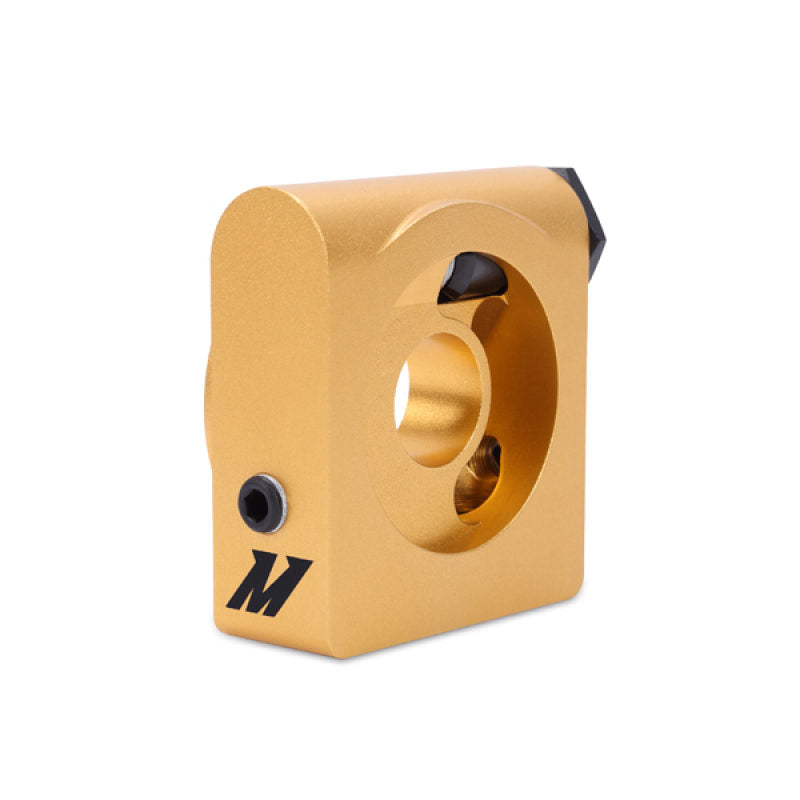

Whether you have a rally-inspired WRX or a built STI, maintaining ideal oil temperatures is necessary for both optimal performance and engine longevity. Treat your flat-four to a dose of reliability with the Mishimoto Subaru WRX/STI Direct-Fit Oil Cooler Kit. This kit includes precision engineered application-specific mounting brackets, premade stainless steel braided oil lines, a billet oil sandwich plate, an efficient 10-row stacked-plate Mishimoto oil cooler, and all necessary hardware. This kit provides .5 qt of additional oil capacity and reduces temperatures by more than 20 degrees Fahrenheit while providing minimal pressure loss. This kit is available with the Mishimoto standard Oil Sandwich Plate or the Mishimoto Oil Sandwich Plate with Rear-Mounted Thermostat for additional oil temperature control and optimal performance in any environment. For additional customization this kit is available with your choice of either a Sleek Silver or Stealth Black cooler. This kit is the perfect complement to the Mishimoto Subaru WRX/STI Performance Aluminum Radiator, Performance Aluminum Fan Shroud Kit, and Silicone Radiator Hose Kit for the ultimate cooling solution for your Subaru. As with all our products, this kit includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.

Provides Dramatic Temperature Drop
2 psi pressure loss
Thermostatic option available

Base Height: 0

Color: Black

Core Color: Black

Core Height: 2.76

Core Row Quantity: 0

Core Thickness: 1.97

Core Type: Bar-and-Plate

Core Width: 11

Finish: Anodized

Fluid Capacity: 0

Grade Type: Performance

Inlet Fitting Gender: Male

Inlet Fitting Type: AN Flare

Inlet Outside Diameter: 0

Outlet Fitting Gender: Male

Outlet Fitting Type: AN Flare

Outlet Outside Diameter: 0

Width: 0

TechSpec Rows: 10

TechSpec Core Construction: N/A

TechSpec Core Length (in): 11

TechSpec Core Height (in): 2.76

TechSpec Core Thickness (in): 1.97

TechSpec Engine Codes: EJ205--EJ255

TechSpec Chassis Codes: GD

TechSpec Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb

TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation.

TechSpec Overall Height (in): N/A

TechSpec Overall Length (in): N/A

TechSpec Overall Width (in): N/A

TechSpec Inlet: N/A

TechSpec Outlet: N/A

TechSpec Includes: Application-Specific Mounting Brackets--10-Row Oil Cooler--3-ft Stainless Steel Braided Hose w/ -10AN Fittings--4-ft 4-in Stainless Steel Braided Hose w/ -10AN Fittings--Oil Sandwich Plate--Stainless Steel Sandwich Plate Adapter, M20--Banjo Fitting w/ Bolt M20 x -10AN, Black--Black Rubber Seal--Mounting Hardware Set--Mishimoto Lifetime Warranty

TechSpec Applications: 2001-2005 Subaru WRX--2004-2005 Subaru STI

TechSpec Fluid Capacity (qts): N/A

TechSpec Note: Requires trimming of exhaust heat shield for proper installation. Will not fit on vehicles equipped with front mount intercoolers. Fits automatic and manual applications.

SellingPoint01: Provides Dramatic Temperature Drop

SellingPoint02: 2 psi pressure loss

SellingPoint03: Direct fit for the Subaru WRX/STI 2001-2005

SellingPoint04: Thermostatic option available

SellingPoint05: Stealth black and sleek silver cooler options

SellingPoint06: Lifetime Warranty
