Mishimoto - MMOC-SQ5-14

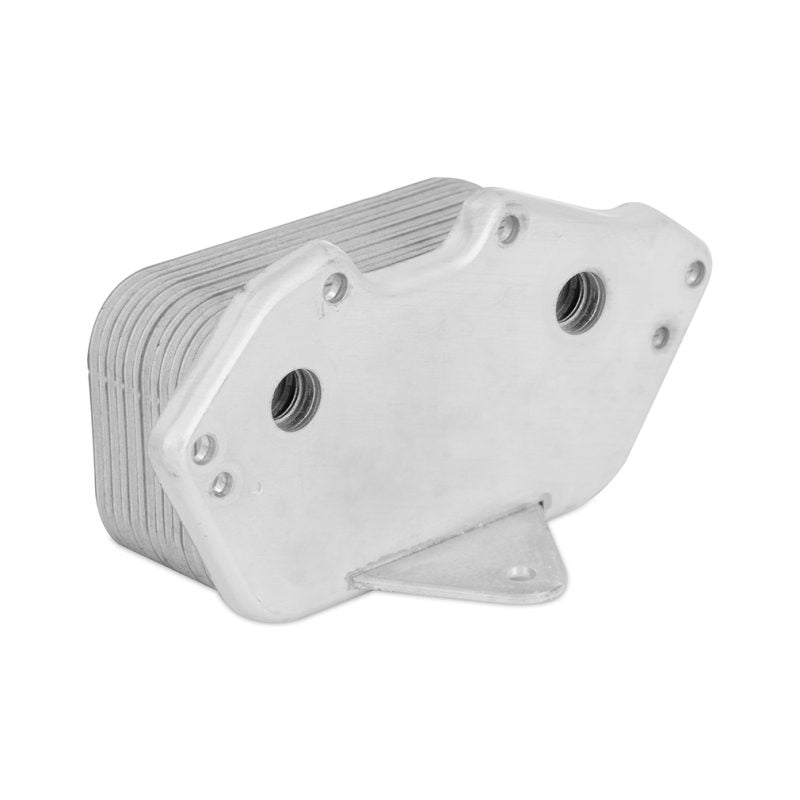

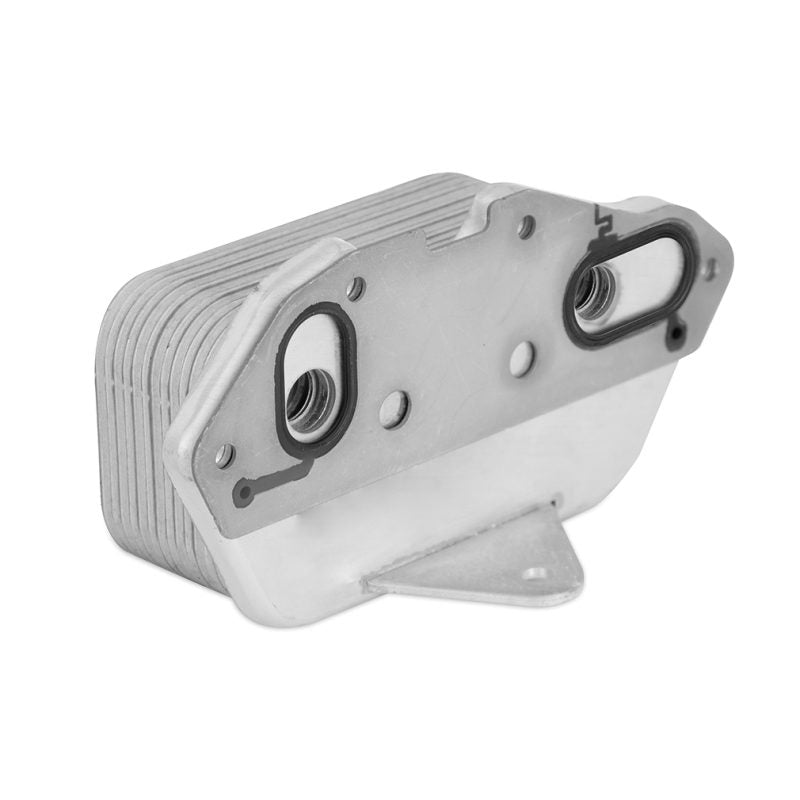

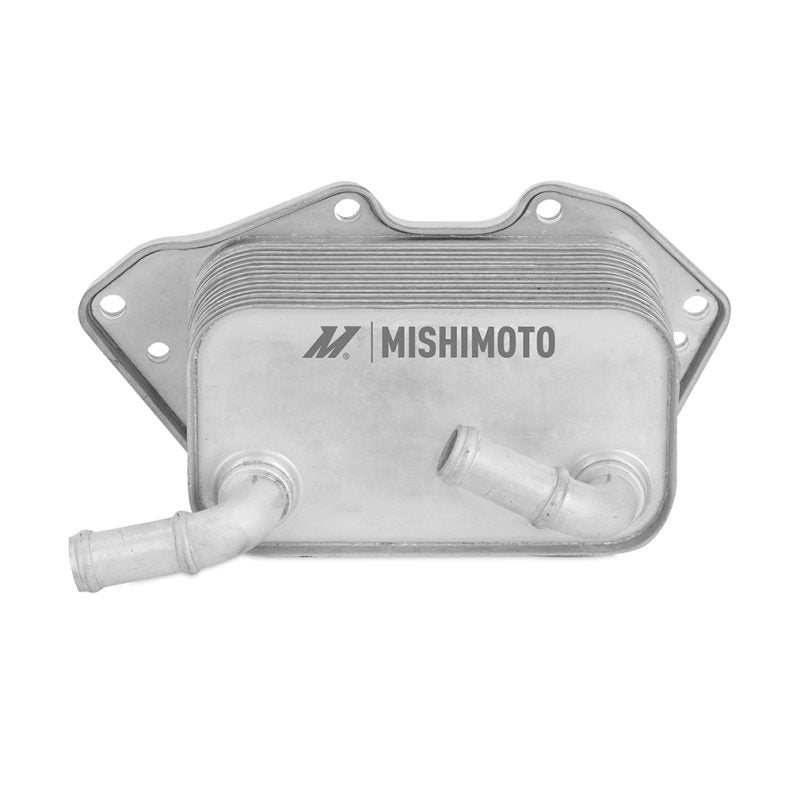

Replacement Oil Cooler, fits Audi SQ5 2014-2016
The factory transmission oil cooler on 2014-2016 Audi SQ5 vehicles is a liquid-to-liquid cooling unit, utilizing the engine's cooling system to cool the transmission fluid during warm outside temperatures and warm the fluid during cold outside temperatures. Though these designs are tried and true, they eventually wear out and fail, leading to leaking coolant into your transmission fluid. Mixing coolant into your transmission fluid can have catastrophic results, and can cost thousands of dollars in rebuilding or replacing the transmission.
The Mishimoto Replacement Transmission Oil Cooler is a direct fit to the OEM, making it easy-to- install and is equivalent to the OEM Specifications of performance. This product requires no modifications and is backed by Mishshmoto’s Lifetime warranty. Replace your transmission cooler and prevent premature failure.
SellingPoint01: Direct fit for 2014-2016 Audi SQ5
SellingPoint02: Equivalent to OEM specifications for fit and function
SellingPoint06: Utilizes all factory lines and hardware
SellingPoint03: Replaces leaking or failing factory transmission oil cooler
SellingPoint04: Durable, corrosion-resistant aluminum construction
SellingPoint05: Includes bracket for easy installation
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint07: No modification required for installation
SellingPoint08: Includes Mishimoto Lifetime Warranty
SellingPoint09: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Attribute Set Name: N/A
TechSpec Rows: N/A
TechSpec Core Construction: Stacked Plate
TechSpec Core Length (in): 5.35
TechSpec Core Height (in): 2.15
TechSpec Core Thickness (in): 2.38
TechSpec Engine Codes: BKH--CAKA--CCBA-CTUB--CCAA-CAJA--CGFA--CTUC--CGXB--CTUD--CJWC--CJWE--CJWB--CCBA--CJXC--
TechSpec Chassis Codes: B7--B8--C6--C7--D4--4L--8R
TechSpec Installation Notes: N/A
TechSpec Caution: N/A
TechSpec Overall Height (in): 4.98
TechSpec Overall Length (in): 7.62
TechSpec Overall Width (in): 3.88
TechSpec Inlet: 16mm
TechSpec Outlet: 16mm

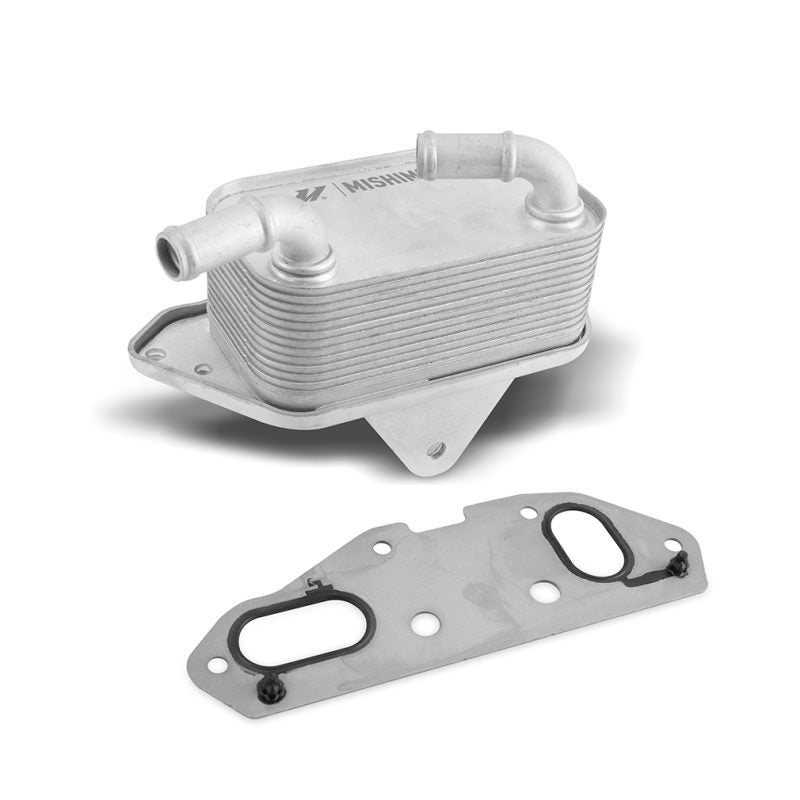

TechSpec Includes: (1) Oil Cooler Assembly-- (1) Oil Cooler Gasket-- Mishimoto Lifetime Warranty
TechSpec Applications: 2005-2009 Audi A4 V6 3.2L--2005-2011 Audi A6 V6 3.2L/3.0--2012-2015 Audi A6 V6 3.0L--2012-2015 Audi A7 V6 3.0L--2013-2014 Audi A8 V6 3.0L--2010-2016 Audi S4 V6 3.0L--2010-2017 Audi S5 V6 3.0L--2013-2017 Audi Q5 V6 3.0L--2014-2017 Audi SQ5 V6 3.0L--2011-2015 Audi Q7 V6 3.0L--2011-2015 Volkswagen Touareg V6 3.0L
TechSpec Fluid Capacity (qts): N/A
TechSpec Note: N/A
Install Difficulty: 2
