Mishimoto MMOC-MUS-79TBK - 79-93 Ford Mustang 5.0L Thermostatic Oil Cooler Kit - Black

Name: Mishimoto MMOC-MUS-79TBK - 79-93 Ford Mustang 5.0L Thermostatic Oil Cooler Kit - Black
Brand: Mishimoto
SKU: MMOC-MUS-79TBK
Price: 514.95 USD
Availability: InStock

Mishimoto MMOC-MUS-79TBK - 79-93 Ford Mustang 5.0L Thermostatic Oil Cooler Kit - Black

Mishimoto | MMOC-MUS-79TBK
SKU: MMOC-MUS-79TBK

$514.95 USD

~~$566.00 USD~~ $514.95 USD

Sale Sold out

Shipping calculated at checkout.

Low stock: 2 left

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Mishimoto MMOC-MUS-79TBK - 79-93 Ford Mustang 5.0L Thermostatic Oil Cooler Kit - Black

Oil Cooler Kit, Black, Thermostatic, fits Ford Mustang 5.0L 1979-1993

High-performance engine oil cooler designed to regulate oil temperature and protect critical engine components. Efficient heat dissipation improves durability, maintains lubrication, and ensures reliable performance.

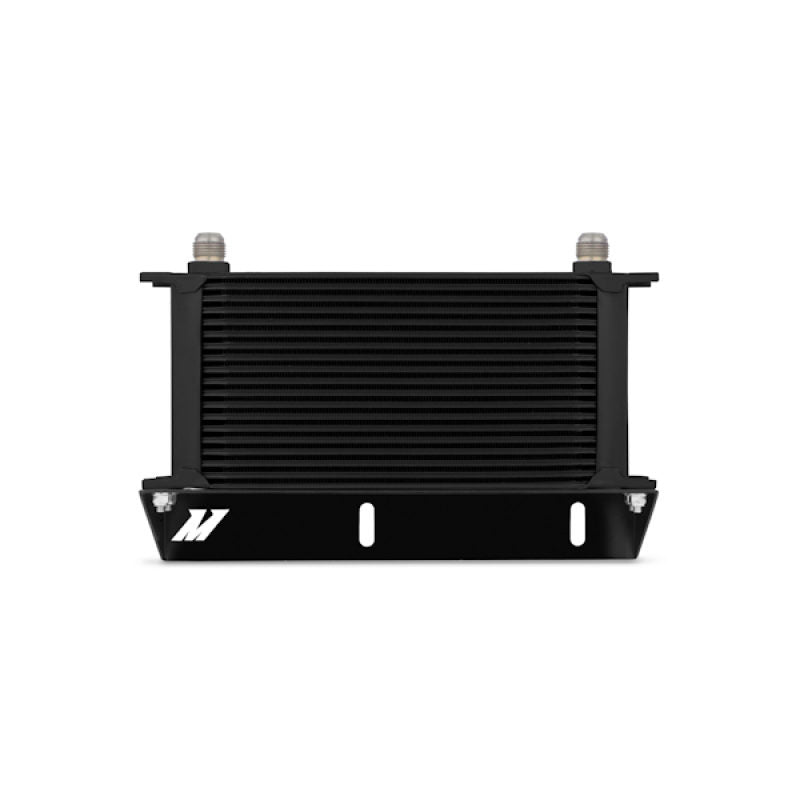

The Fox Body Mustang is well known for its lightweight chassis and powerful drive train.High-powered NA, turbocharged, and supercharged vehicles produce an abundance of unwanted heat under the hood, which accelerates oil breakdown and engine wear.Protect and enhance your Mustang with the Mishimoto direct-fit oil cooler kit.This kit features a large 19-row oil cooler that mounts in the front bumper for maximum airflow and cooling efficiency.The Mishimoto Mustang oil cooler kit can be installed in less than two hours and adds more than .5 qt to your total oil capacity.This kit includes a mounting bracket engineered specifically for the Fox Body, preassembled lines, fittings, oil sandwich plate, and all hardware necessary for a clean installation.The Mishimoto oil cooler kit is available with a thermostatic sandwich plate for additional oil temperature control, and your choice of stealth black or silver cooler.As with all our products, this kit includes the Mishimoto lifetime warranty.

Dramatic temperature drop
Minimal pressure loss
Installs in under an hour

Core Thickness: 1.97

Core Type: Bar-and-Plate

Core Width: 11

Finish: Anodized

Fluid Capacity: 0

Grade Type: Performance

Inlet Fitting Gender: Male

Inlet Fitting Type: AN Flare

Inlet Outside Diameter: 0

Outlet Fitting Gender: Male

Outlet Fitting Type: AN Flare

Outlet Outside Diameter: 0

Width: 0

TechSpec Rows: 19

TechSpec Core Construction: N/A

TechSpec Core Length (in): 11

TechSpec Core Height (in): 5.43

TechSpec Core Thickness (in): 1.97

TechSpec Engine Codes: 302 ci / 4.9L

TechSpec Chassis Codes: Fox

TechSpec Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb

TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.

TechSpec Overall Height (in): N/A

TechSpec Overall Length (in): N/A

TechSpec Overall Width (in): N/A

TechSpec Inlet: N/A

TechSpec Outlet: N/A

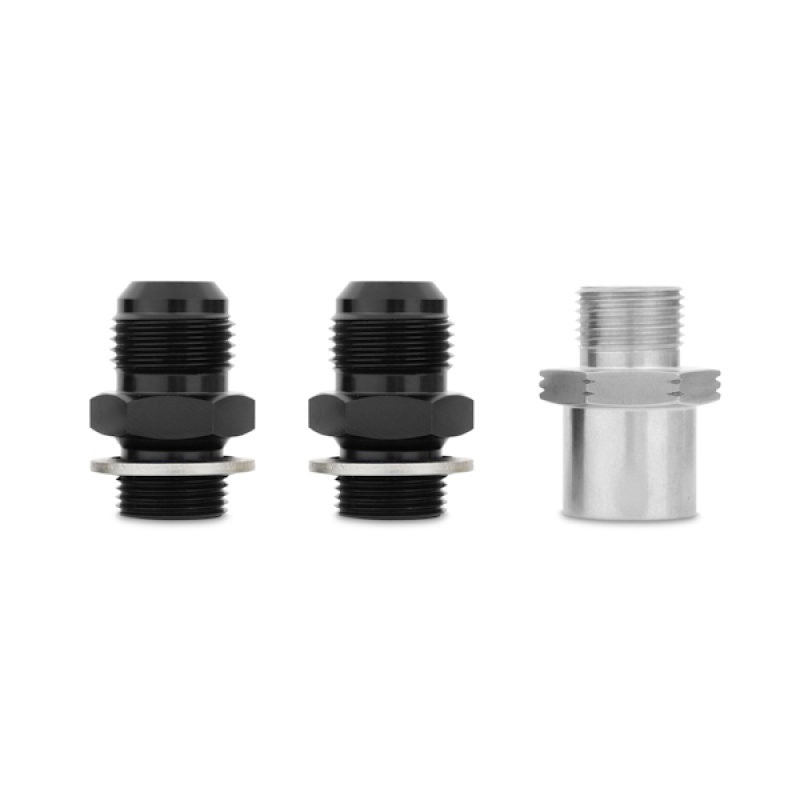

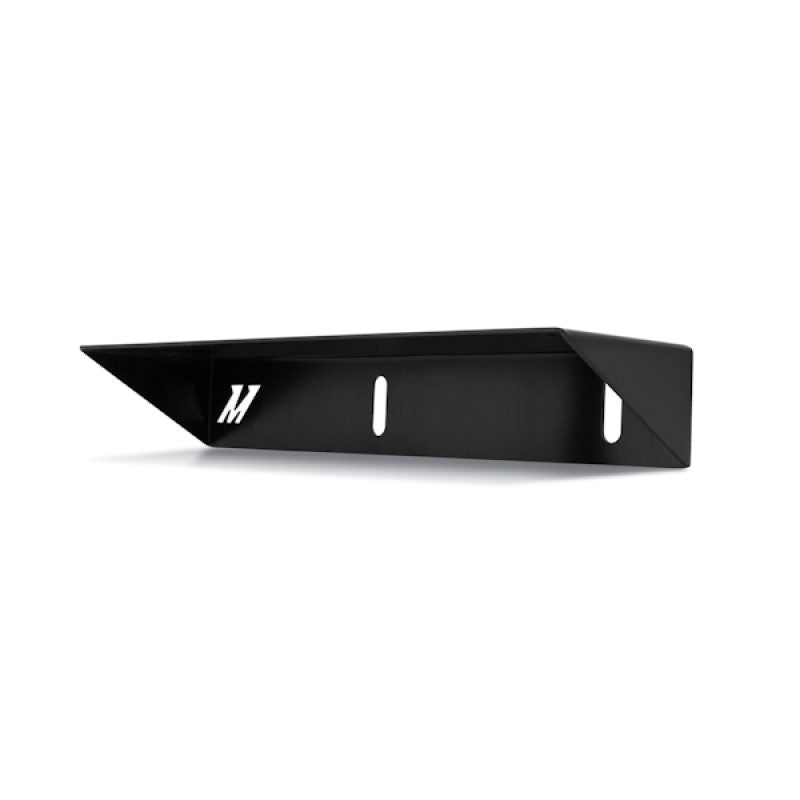

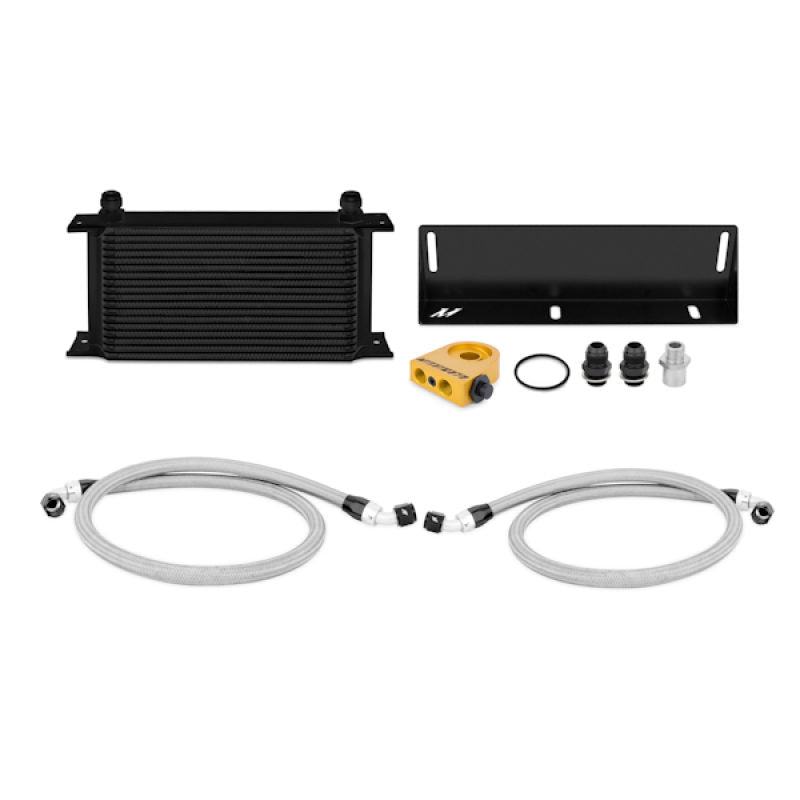

TechSpec Includes: Application Specific Mounting Bracket--19-Row Oil Cooler--3ft, 5in Stainless Steel Braided Hose with 45 Degree and 90 Degree -10AN Fittings--4ft, 1in Stainless Steel Braided Hose with 45 Degree and 90 Degree -10AN Fittings--M20 Thermostatic Sandwich Plate--3/4 x 16 Stainless Steel Sandwich Plate Adapter--M20 x -10AN Straight Fittings--Mounting Hardware Set--Mishimoto Lifetime Warranty

TechSpec Applications: N/A

TechSpec Fluid Capacity (qts): N/A

TechSpec Note: N/A

SellingPoint01: Dramatic temperature drop

SellingPoint02: Minimal pressure loss

SellingPoint03: Installs in under an hour

SellingPoint04: Direct fit for the Fox Body Mustang

SellingPoint05: Thermostatic option available

SellingPoint06: Stealth Black and Sleek Silver cooler options

SellingPoint07: Mishimoto Lifetime Warranty
