High-performance engine oil cooler designed to regulate oil temperature and protect critical engine components. Efficient heat dissipation improves durability, maintains lubrication, and ensures reliable performance.

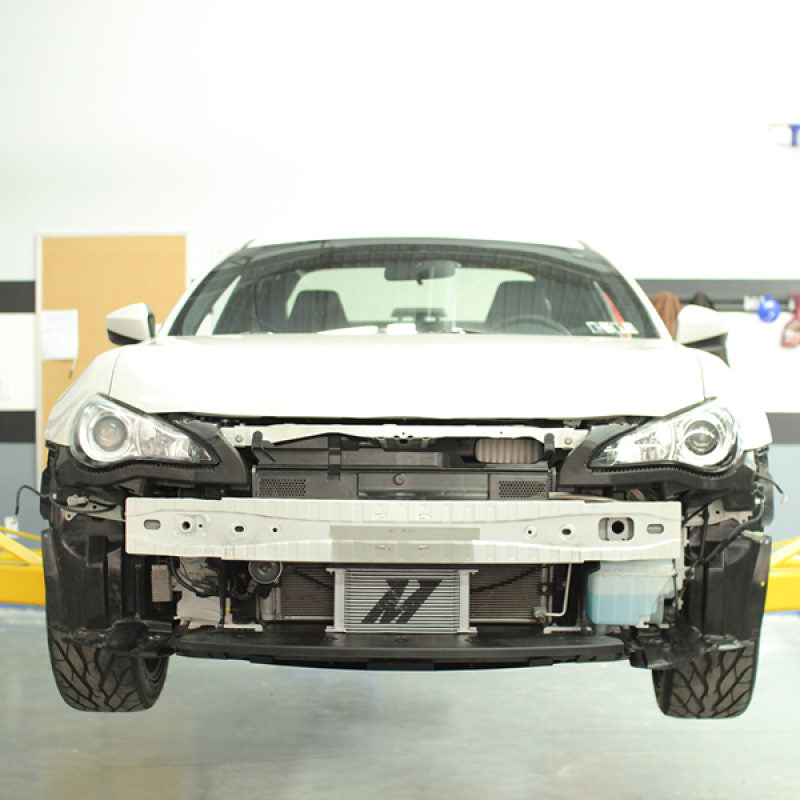

Mishimoto proudly announces the all-new direct-fit oil kit specifically designed for the Subaru BRZ / Scion FR-S.This direct-fit kit positions a large cooler in the front bumper for ample airflow and optimal cooling, which is perfect for your street or track BRZ/FR-S.Properly regulated oil temperatures will result in improved durability and longevity for your stock or modified 2.0L.This kit features all components for seamless bolt-on fitment.This direct-fit oil cooler kit substantially decreases oil temperatures, making it ideal for a hot day at the track or a spirited drive in the mountains.The Mishimoto BRZ / FR-S Oil Cooler Kit is offered with both black and silver coolers and includes our signature lifetime warranty.
TechSpec Rows: 19
TechSpec Core Construction: N/A
TechSpec Core Length (in): 11
TechSpec Core Height (in): 5.43
TechSpec Core Thickness (in): 1.97
TechSpec Engine Codes: FA20
TechSpec Chassis Codes: ZN6--ZC6
TechSpec Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation.
TechSpec Overall Height (in): N/A
TechSpec Overall Length (in): N/A
TechSpec Overall Width (in): N/A
TechSpec Inlet: N/A
TechSpec Outlet: N/A

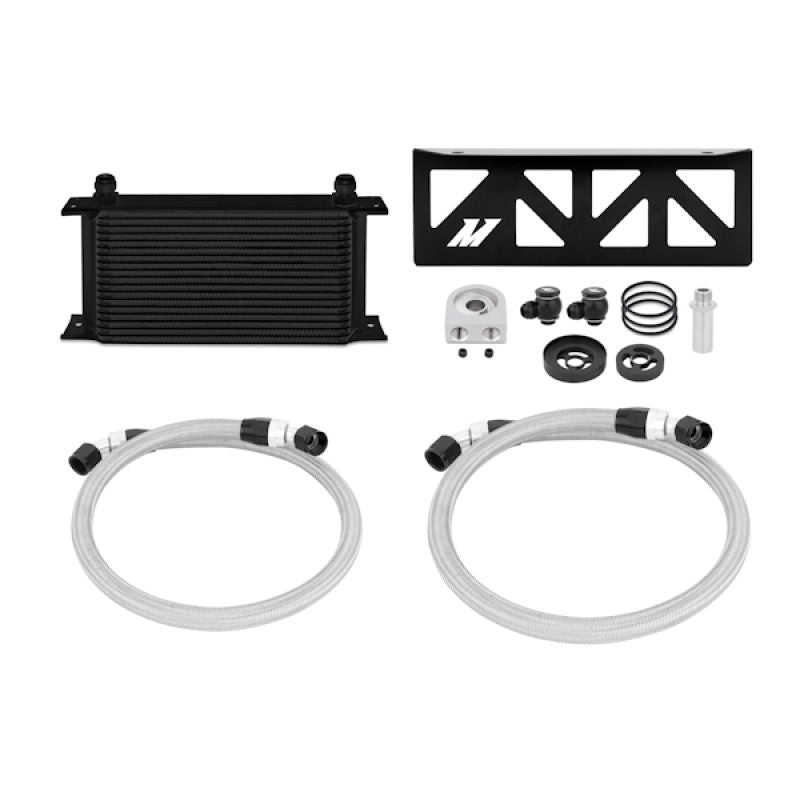

TechSpec Includes: Application-Specific Mounting Bracket--19-Row Oil Cooler--3-ft Stainless Steel Braided Hose w/ -10AN Fittings--4-ft 2-in Stainless Steel Braided Hose w/ -10AN Fittings--Oil Sandwich Plate--6061 Aluminum CNC Sandwich Plate Spacers, Black--Stainless Steel Sandwich Plate Adapter, M20--Banjo Fitting w/ Bolt M20 x -10AN, Black--1/8-in NPT Plugs--O-rings--Mounting Hardware Set--Mishimoto Lifetime Warranty
TechSpec Applications: 2013-2021 Subaru BRZ--2013-2021 Scion FR-S--2013-2021 Toyota GT86
TechSpec Fluid Capacity (qts): N/A
TechSpec Note: N/A
SellingPoint01: Direct fit for the 2013-2021 Scion FR-S and Subaru BRZ

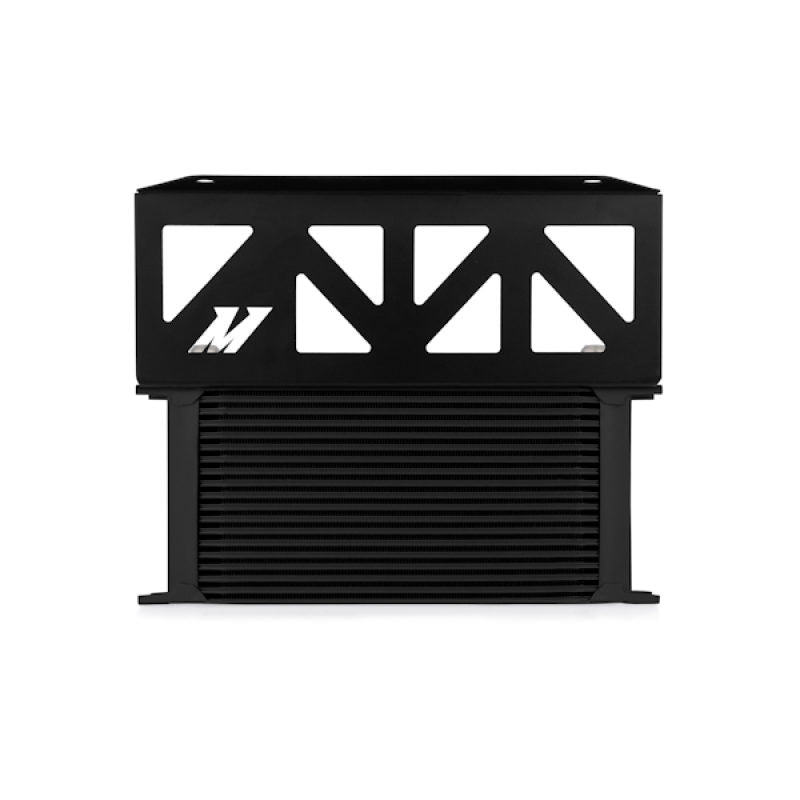

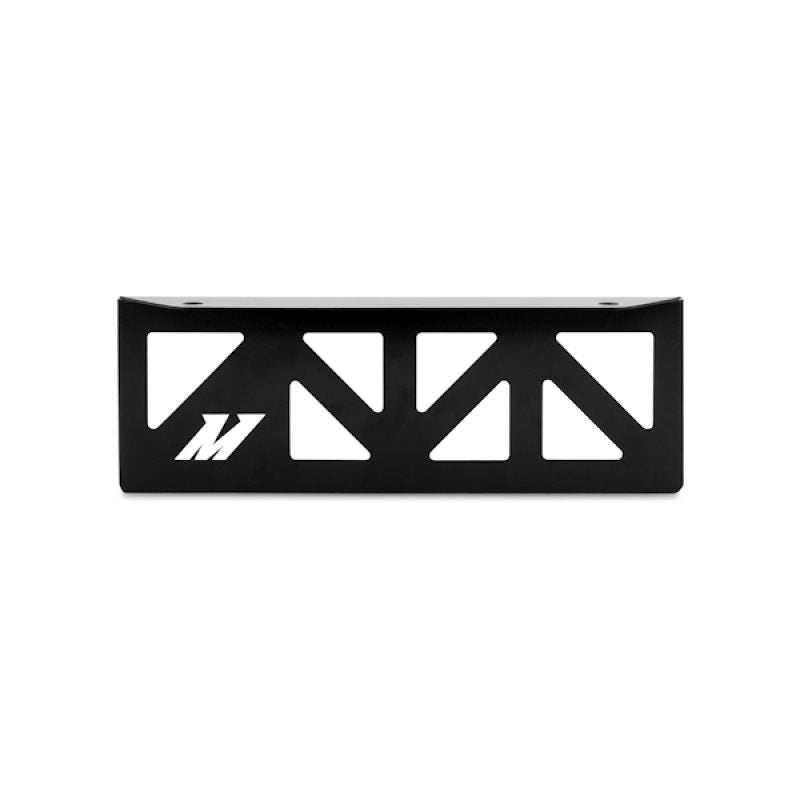

SellingPoint02: Application-specific mounting brackets

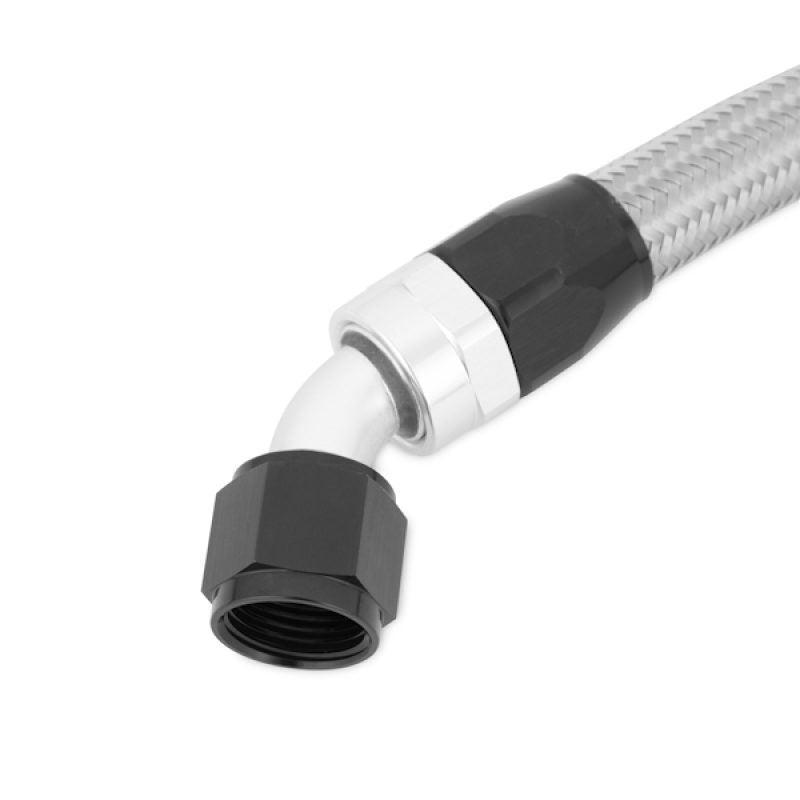

SellingPoint03: Premade braided stainless steel oil lines with durable -AN fittings

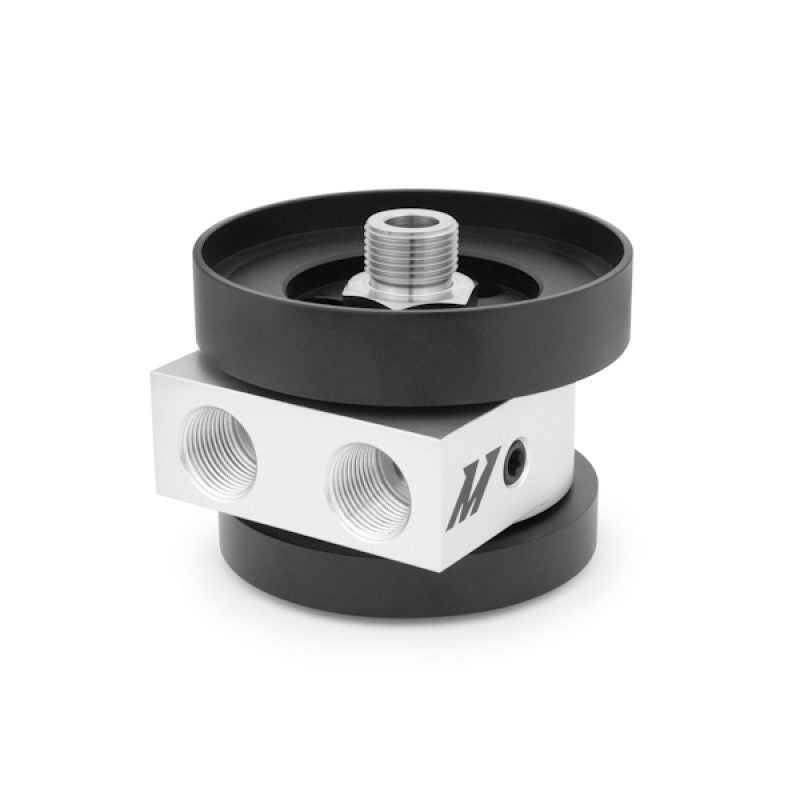

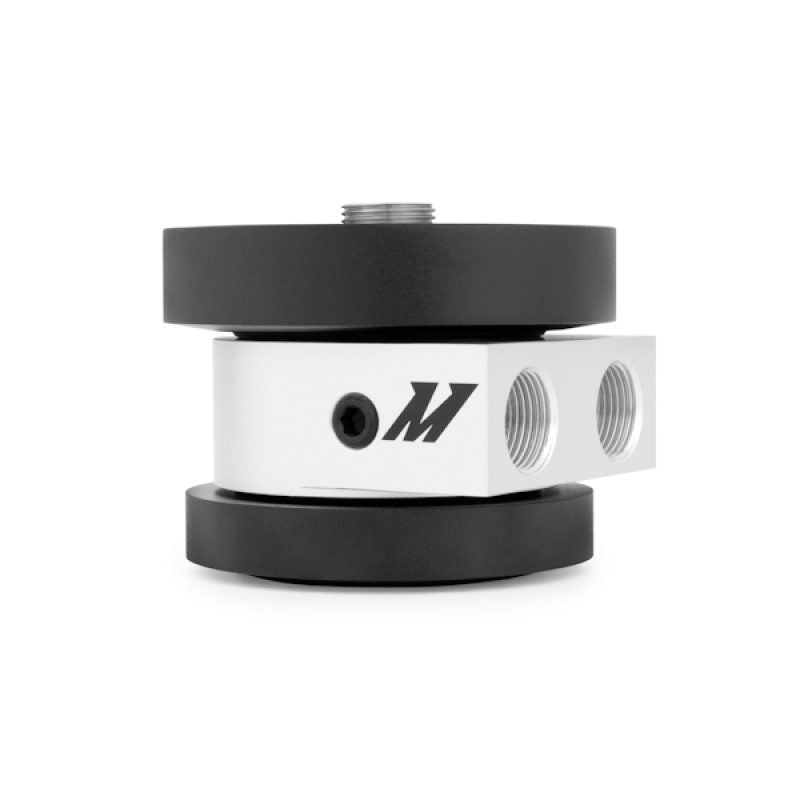

SellingPoint04: Billet aluminum oil sandwich plate in standard or thermostatic form
SellingPoint05: 19-row stacked-plate oil cooler for optimal fluid temperature reduction
SellingPoint06: CNC-machined aluminum spacers for the oil sandwich plate
SellingPoint07: Increases oil capacity by .65 qt
SellingPoint08: Mishimoto Lifetime Warranty
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Install Difficulty: 3
OptionLabel: Black Cooler, Non-Thermostatic
Base Height: 0
Color: Black
Core Color: Black
Core Height: 5.43
Core Row Quantity: 0
Core Thickness: 1.97
Core Type: Bar-and-Plate
Core Width: 11
Finish: Anodized
Fluid Capacity: 0
Grade Type: Performance
Inlet Fitting Gender: Male
Inlet Fitting Type: AN Flare
Inlet Outside Diameter: 0
Outlet Fitting Gender: Male
Outlet Fitting Type: AN Flare
Outlet Outside Diameter: 0
Width: 0
