Mishimoto MMINT-GRC-23KBKRD - 2023+ Toyota GR Corolla Intercooler & Pipe Kit - Black Cooler - Red Pipes

Mishimoto MMINT-GRC-23KBKRD - 2023+ Toyota GR Corolla Intercooler & Pipe Kit - Black Cooler - Red Pipes

Mishimoto | MMINT-GRC-23KBKRD
SKU: MMINT-GRC-23KBKRD
Regular price $1,234.95 USD
Regular price $1,358.00 USD Sale price $1,234.95 USD
Sale Sold out
Shipping calculated at checkout.

21 in stock

Quantity

Mishimoto MMINT-GRC-23KBKRD - 2023+ Toyota GR Corolla Intercooler & Pipe Kit - Black Cooler - Red Pipes

Intercooler Kit, Black/Red, fits Toyota GR Corolla 2023+

Complete intercooler kit engineered to reduce intake air temperatures for increased power and efficiency. Includes high-quality components for optimal airflow, improved throttle response, and a precise, easy installation.

Unleash the full potential of your 2023+ Toyota GR Corolla with the Mishimoto Performance Intercooler Kit—engineered for serious performance and unwavering reliability. This complete bolt-on solution includes everything you need for a seamless upgrade: a high-efficiency intercooler, precision-engineered hot- and cold-side aluminum piping, durable silicone couplers, and high-torque worm-gear clamps. -- At the heart of the kit is a massive 4 thick bar-and-plate core that delivers outstanding heat transfer, slashing intake temperatures and improving overall engine efficiency. With a 52% increase in core volume over the stock unit, this intercooler is built to handle the demands of spirited driving and track days alike. Robust cast-aluminum end tanks and CNC-machined inlet/outlet connections ensure smooth, unrestricted airflow and long-lasting performance under pressure. -- An anodized aluminum air duct channels airflow precisely through the intercooler's external fins, maximizing cooling efficiency, while the tough powder-coated finish keeps the entire system looking as sharp as it performs. Backed by the Mishimoto Lifetime Warranty, this intercooler kit is the ultimate cooling upgrade for drivers who demand more power, better cooling, and proven reliability. Step up from stock—your GR Corolla deserves it.

  • Direct-fit for the 2023+ Toyota GR Corolla
  • Cast throttle body elbow connection for drastically improved airflow and throttle response.
  • Durable 4 thick bar-and-plate core provides superior heat transfer
TechSpec Core Height (in): 6.93
TechSpec Inlet (in): 2.28
TechSpec Outlet (in): 2.28
TechSpec Weight (lbs): 25
TechSpec Note: Not designed to fit 8-speed GR-DAT automatic transmission.

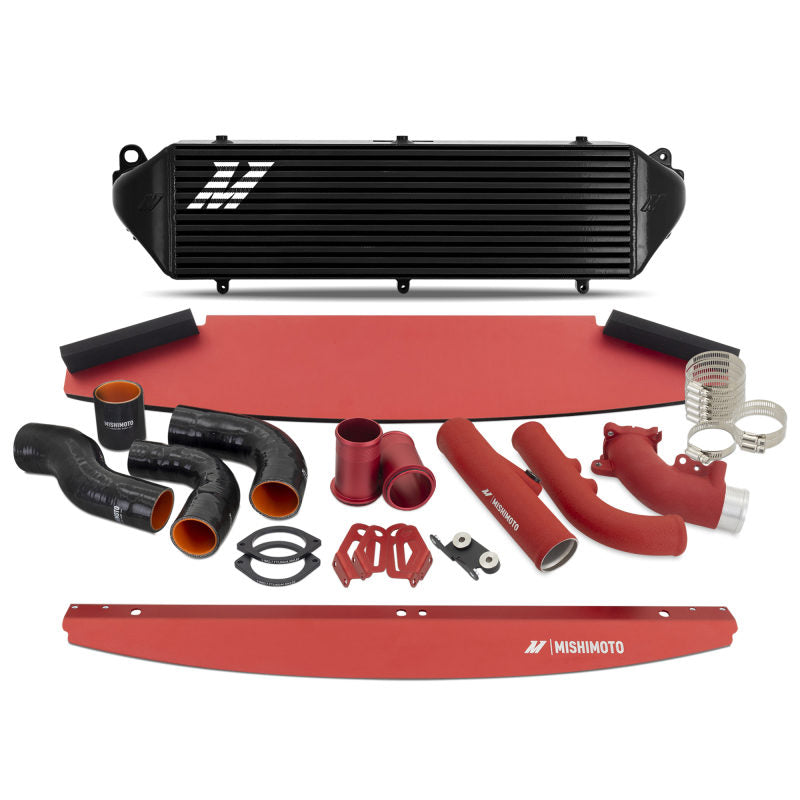

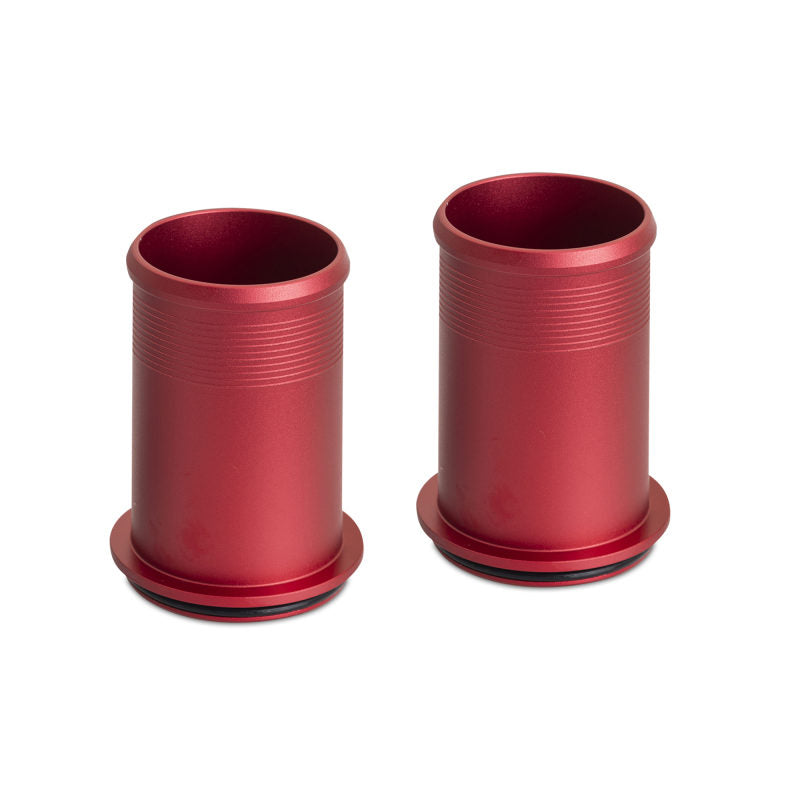

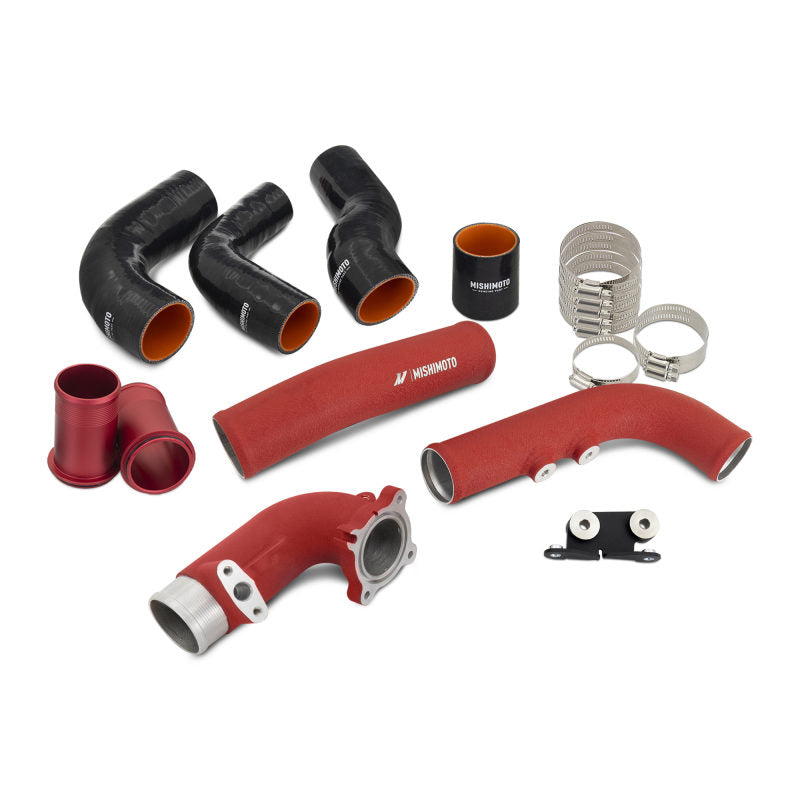

TechSpec Includes: (1) Intercooler, (1) Intercooler Adapter Set, (1) Intercooler Adapter Retainer Set, (1) Intercooler Ducting Set, (1) Intercooler Piping and coupler kit, Mishimoto Lifetime Warranty
TechSpec Installation Notes: N/A
TechSpec Pipe Shape: N/A
TechSpec Pipe Diameter: Hot side: 2.0, Cold side: 2.25
TechSpec Pipe Length: N/A
TechSpec Centerline Radius: N/A
Optionlabel: Black Cooler, Red Pipes
Install Difficulty: 5
CARB EO Number: D-759-27
Cold Side Pipe Inside Diameter: 2.28
Core Thickness: 3.94
Core Length: 24.8
Core Height: 6.93
Core Color: Black
Core Construction: Bar-and-Plate
Core Material: Aluminum
Coupler Color: Black
Coupler Material: Silicone
End Tank Construction: Cast
End Tank Material: Aluminum
Grade Type: Performance
Hose Clamps Included: Yes
Hot Side Pipe Inside Diameter: 2.28
Inlet Diameter: 2.28
Outlet Diameter: 2.28
Intercooler Type: Air-to-Air
Maximum Boost Pressure: 50
Maximum Horsepower: 650
Pipe Color: Red
Pipe Finish: Powder Coated
Pipe Material: Aluminum
Universal Or Specific Fit: Specific
SellingPoint01: Direct-fit for the 2023+ Toyota GR Corolla
SellingPoint02: Cast throttle body elbow connection for drastically improved airflow and throttle response.

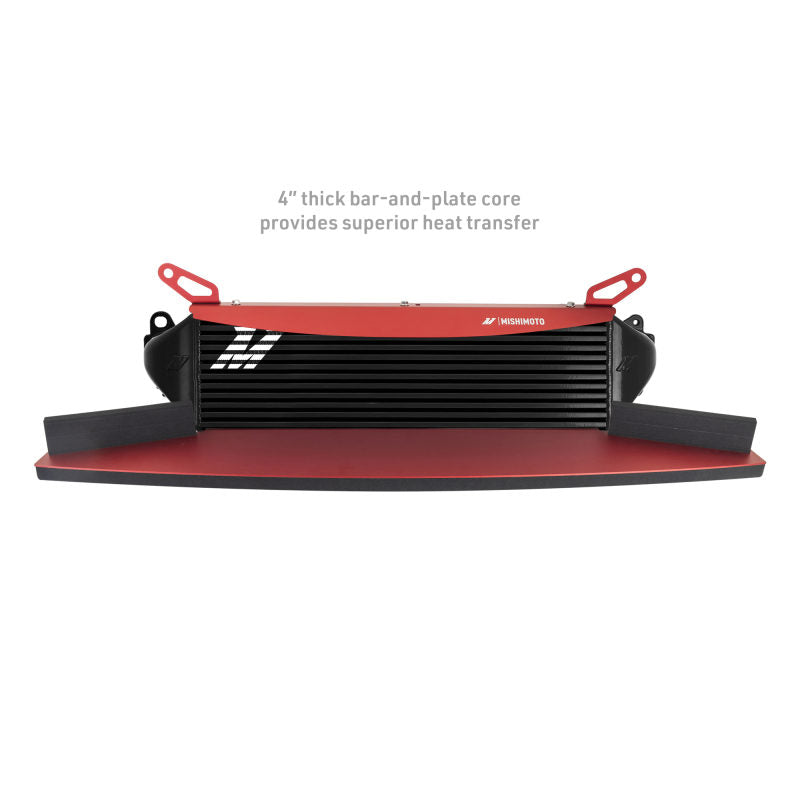

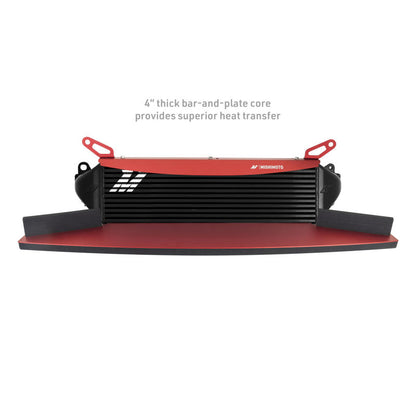

SellingPoint03: Durable 4” thick bar-and-plate core provides superior heat transfer
SellingPoint04: 52% increase in core volume compared to stock

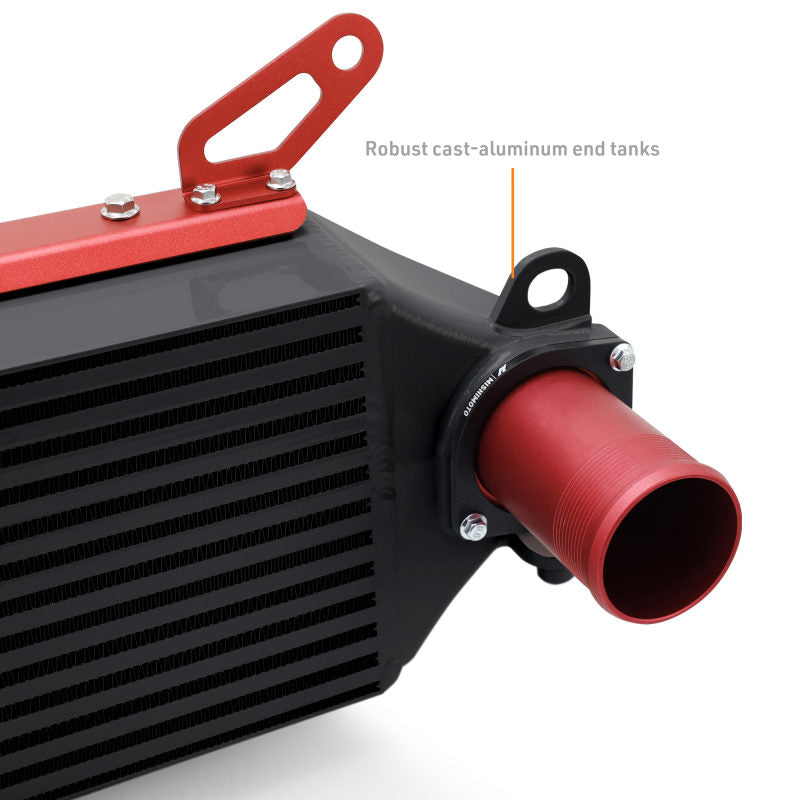

SellingPoint05: Robust cast-aluminum end tanks for dependable performance
SellingPoint06: CNC-machined inlet/outlet for smooth airflow entry into intercooler
SellingPoint07: Durable powder-coated finish
SellingPoint08: Anondized aluminum ducting ensures optimal airflow through external fins, improving overall cooling efficiency

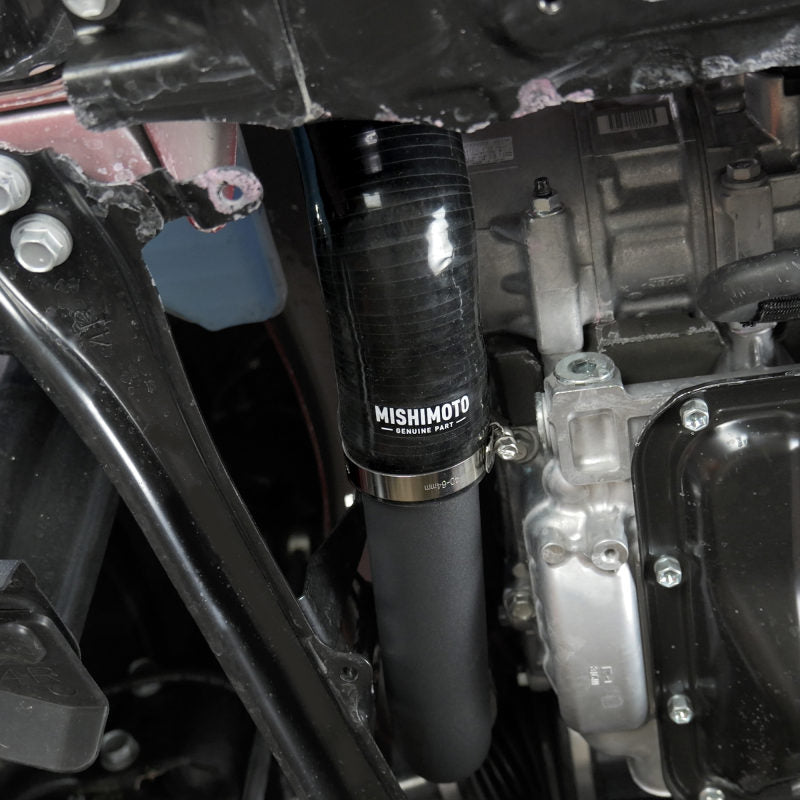

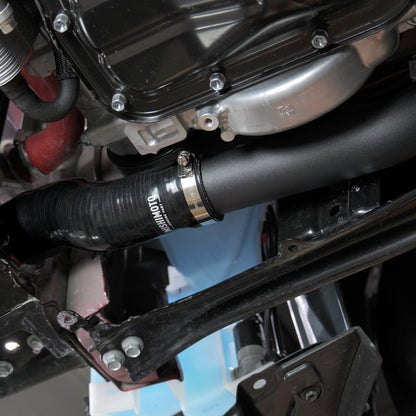

SellingPoint09: Wire-reinforced 5-layer silicone with heat resistant fibers
SellingPoint10: Mishimoto Lifetime Warranty
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: Toyota GR Corolla 1.6L L3 2023+
TechSpec Engine Codes: G16E-GTS
TechSpec Chassis Codes: GZEA14
TechSpec Maximum Recommended Boost Pressure (PSI): 50
TechSpec Maximum Recommended Horsepower: 650
TechSpec Overall Length (in): 32.85
TechSpec Overall Height (in): 8.19
TechSpec Overall Width (in): 7.67
TechSpec Core Type: Bar-And-Plate
TechSpec Core Thickness (in): 3.94
TechSpec Core Length (in): 24.8
