Complete intercooler kit engineered to reduce intake air temperatures for increased power and efficiency. Includes high-quality components for optimal airflow, improved throttle response, and a precise, easy installation.

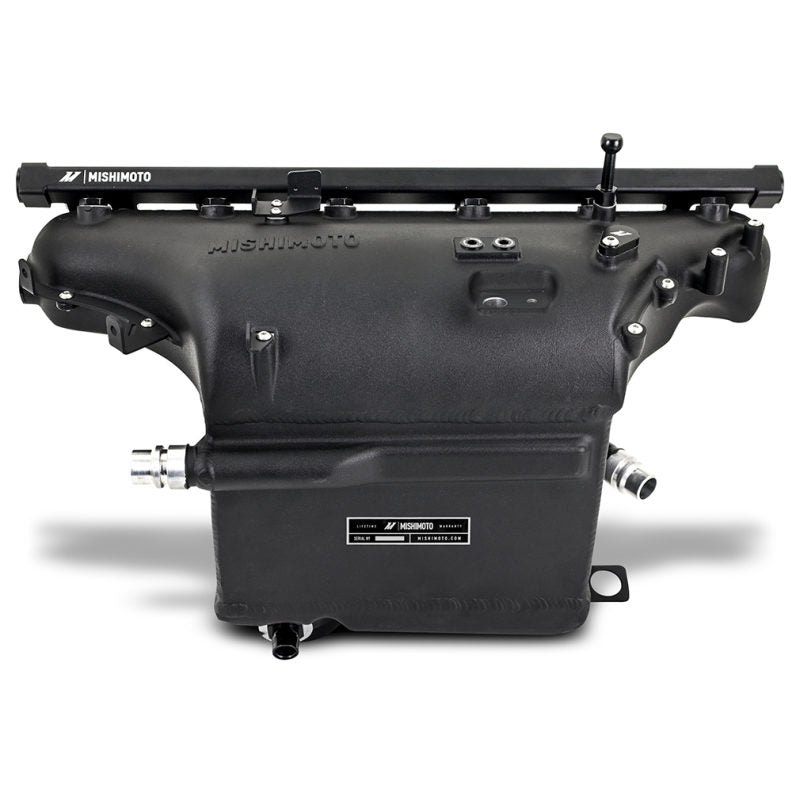

----Insane power levels require equally insane amounts of fuel, so we've added provisions for port fuel injection, including a billet fuel rail and anodized aluminum injector blanks to cap the injector ports when not in use. Our precision-machined injector ports feature optimized geometry for the perfect mixing of air and fuel, with no drilling required. The included PTFE -AN fuel lines and fittings are suitable for ethanol and tee into the stock fuel lines. ----If cooling, flow, and reliability weren't enough, we also designed our charge air cooler to fit like stock. This kit includes brackets to keep your wiring tidy, a mount to fit the stock engine cover, and custom EVAP lines for a seamless installation. A convenient cutout in the plenum allows easy access to the oil filter without affecting flow. Like all Mishimoto products, this performance charge air cooler for the 2021+ BMW G80 M3 is backed by our Mishimoto Lifetime Warranty for a lifetime of exceptional performance. If you want the ultimate upgrade to squeeze serious power from your S58 engine, this Mishimoto charge air cooler manifold is for you.
TechSpec Maximum Recommended Horsepower: 1150
TechSpec Overall Length (in): 11.5
TechSpec Overall Height (in): 13.1
TechSpec Overall Width (in): 21
TechSpec Core Type: Bar-And-Plate
TechSpec Core Thickness (in): 4.9
TechSpec Core Length (in): 9.8
TechSpec Core Height (in): 6.3
TechSpec Inlet (in): N/A
TechSpec Outlet (in): N/A
TechSpec Weight (lbs): N/A
TechSpec Note: Use of the included fuel rail is optional and for race-use only. The fuel rail has a tamper-proof sticker and may be removed only if the vehicle will no longer be used on the street or highway. Check local emissions regulations before removing.

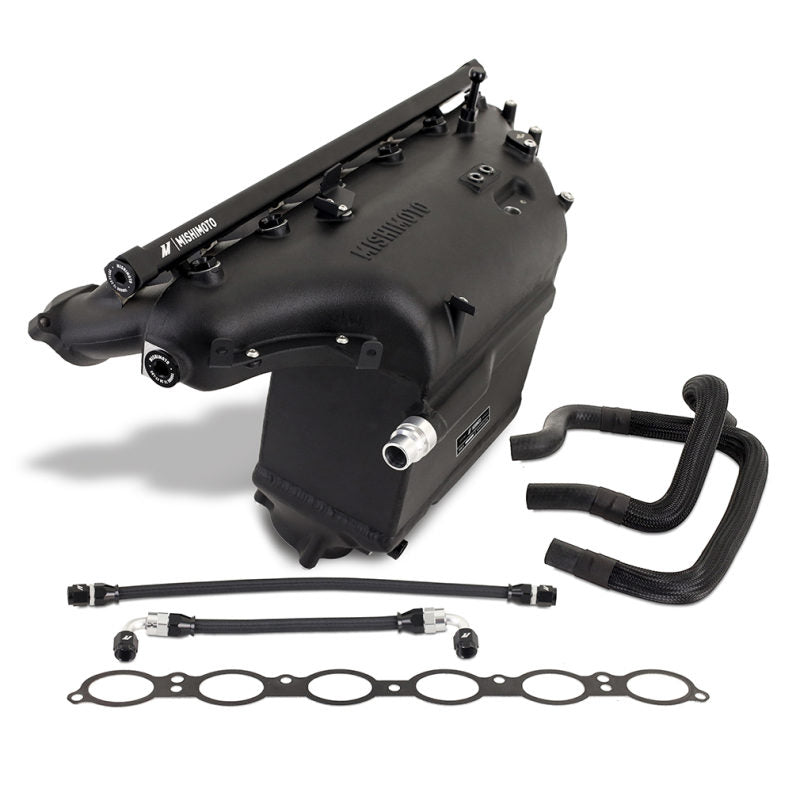

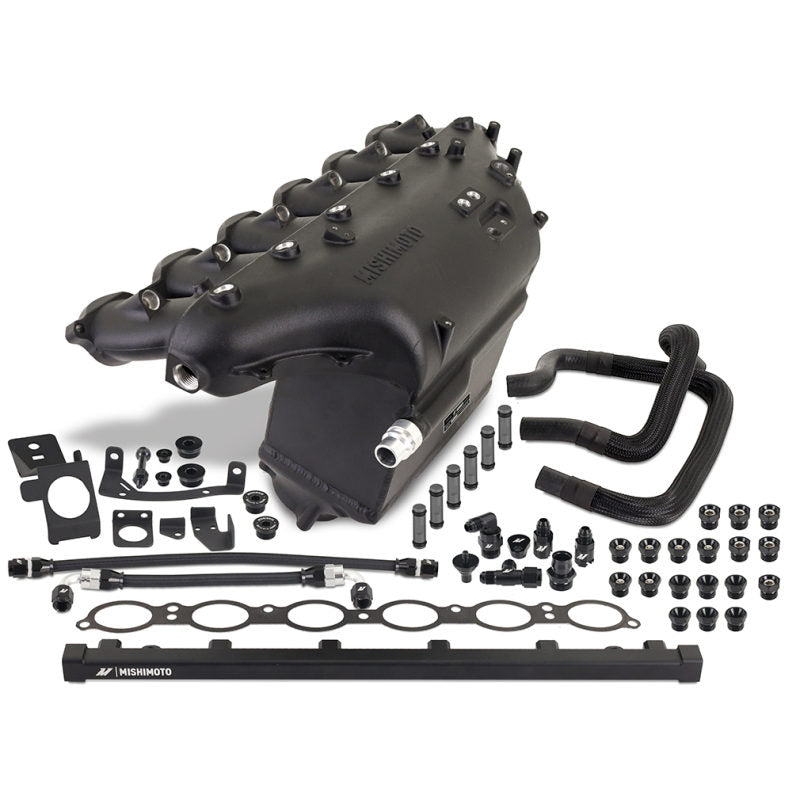

TechSpec Includes: (1) Mishimoto Charge Air Cooler Manifold--(1) Intake Manifold Gasket--(1) Manifold/Intercooler Accessory Bracket Set--(6) -6 ORB Plugs--(6) -6 ORB to 1/8-in NPT Adapters--(6) -6 ORB to 1/16-in NPT Adapters--(1) Fuel Rail--(6) Fuel Injector Blanks--(2) -8 ORB Plugs--(1) -10 ORB Plug--(2) 1/8-in NPT Plugs--(2) EVAP System Hoses--(1) Port Injection Fuel Line Kit--(1) Hardware Kit--Mishimoto Lifetime Warranty
TechSpec Installation Notes: N/A
TechSpec Pipe Shape: N/A
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Centerline Radius: N/A
Install Difficulty: 4
OptionLabel: N/A
Cold Side Pipe Inside Diameter: 0
Core Thickness: 4.9
Core Length: 9.8
Core Height: 6.3
Core Color: Black
Core Construction: Bar-and-Plate
Core Material: Aluminum
Coupler Color: Black
Coupler Material: Silicone
End Tank Construction: Cast
End Tank Material: Aluminum
Grade Type: Performance
Hose Clamps Included: Yes
Hot Side Pipe Inside Diameter: 0
Inlet Diameter: 0
Outlet Diameter: 0
Intercooler Type: Air-to-Air
Maximum Boost Pressure: 60
Maximum Horsepower: 1150
Pipe Color: Black
Pipe Finish: Powder Coated
Pipe Material: Aluminum
Universal Or Specific Fit: Specific
SellingPoint01: Design features a robust bar-and-plate core TIG-welded to cast-aluminum end tanks, ensuring superior durability and longevity compared to plastic stock tanks

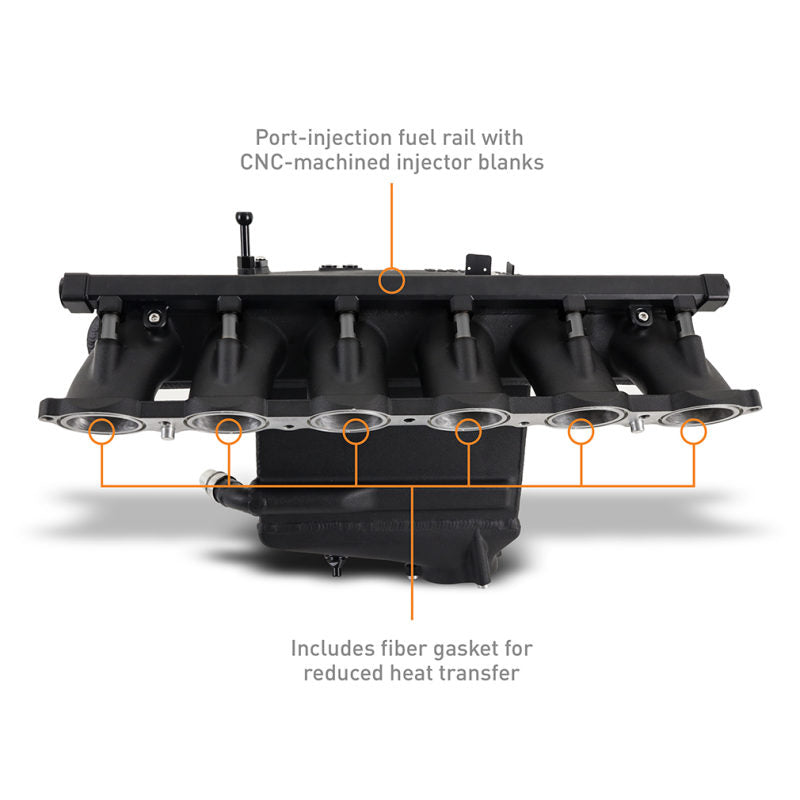

SellingPoint02: Includes billet fuel rail, lines, and precision-drilled ports for port injection

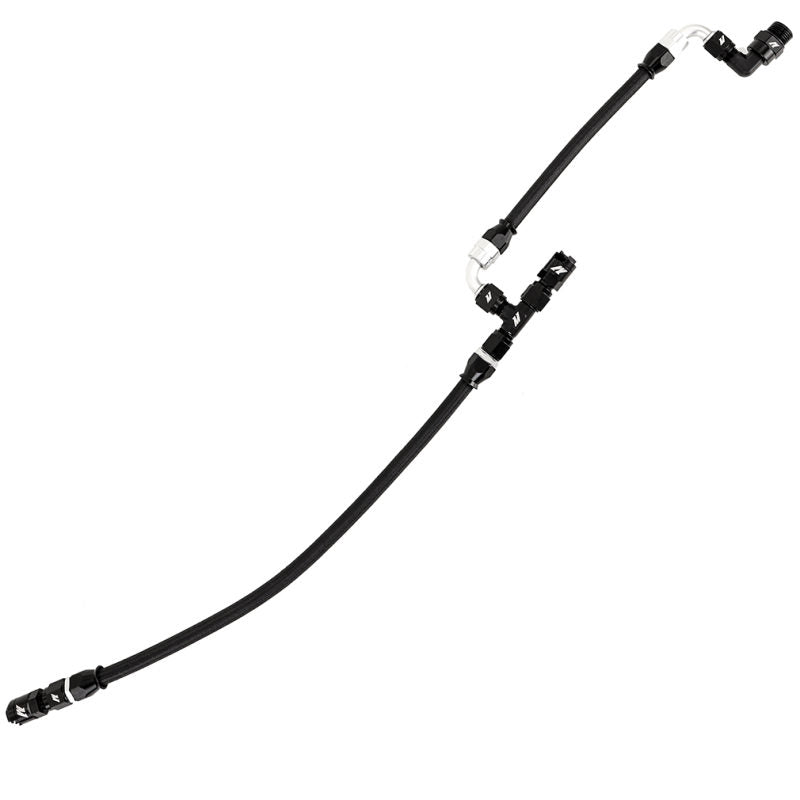

SellingPoint03: Includes PTFE -AN fuel lines that tee into stock fuel lines
SellingPoint04: Robust bar-and-plate core for IATs as low as 11-degrees above ambient
SellingPoint05: Improves flow to each cylinder by an average of 14-percent
SellingPoint06: Improves cooling without increasing pressure drop over stock

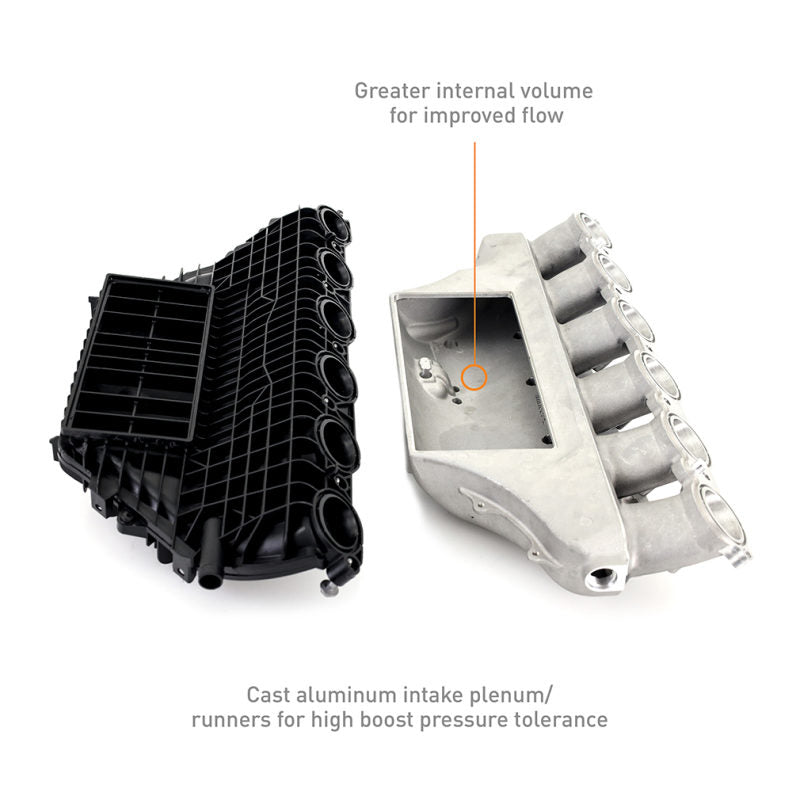

SellingPoint07: 33-percent core volume increase over stock with a 24-percent greater flow area
SellingPoint08: CFD-designed lower plenum for even flow distribution and safe fueling
SellingPoint09: Cast and CNC-machined runners accept stock O-rings or included fiber gasket
SellingPoint10: Includes harness brackets, engine cover mount, and custom EVAP lines for seamless install

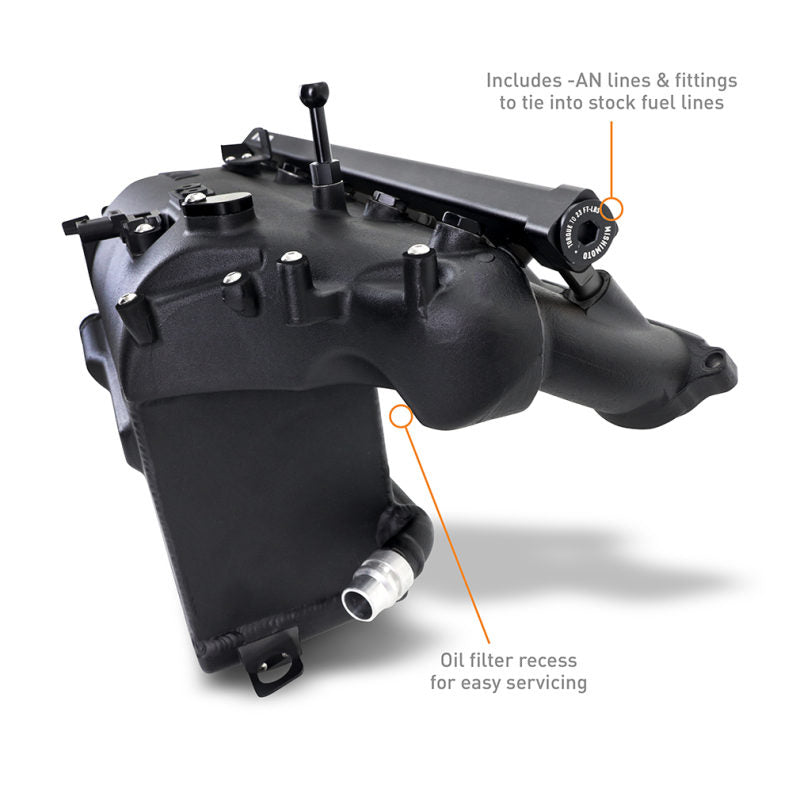

SellingPoint11: Plenum cutout allows easy access to oil filter without impeding flow

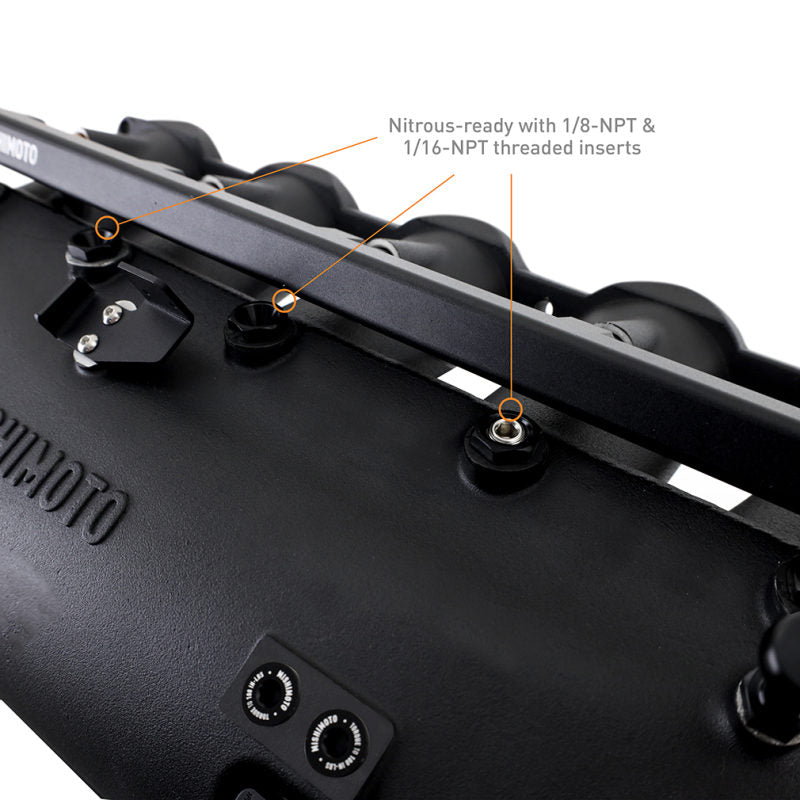

SellingPoint12: Includes two additional 1/8-NPT ports for manifold reference lines or sensors

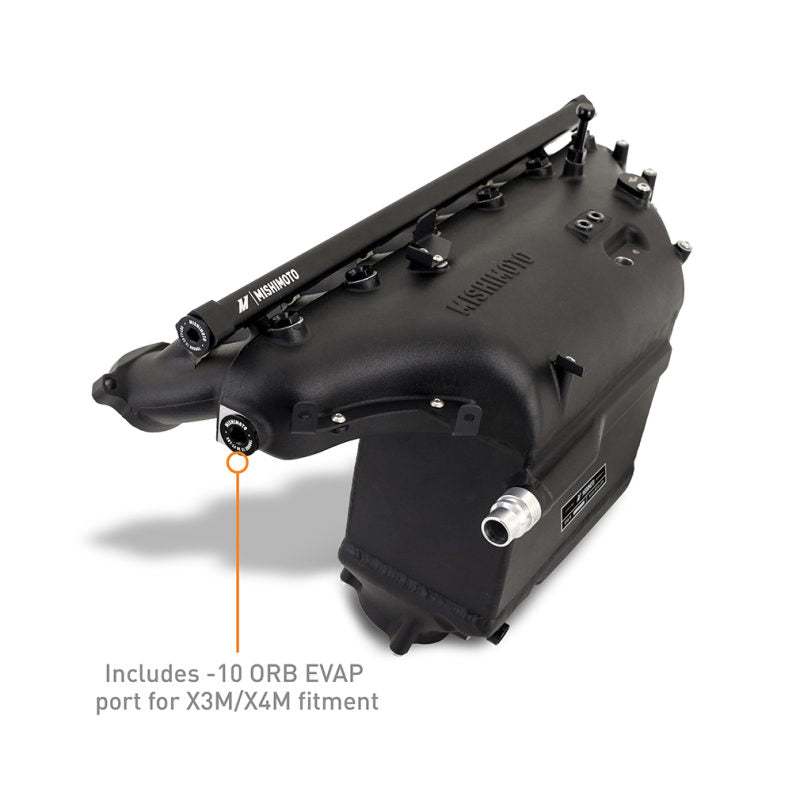

SellingPoint13: Also fits X3 M/X4 M models with included EVAP plug and fitting
SellingPoint14: Patent Pending
SellingPoint15: Mishimoto Lifetime Warranty
TechSpec Applications: 2021+ BMW M3 I6 3.0L--2021+ BMW M4 I6 3.0L--2021+ BMW M3 Competition I6 3.0L--2021+ BMW M4 Competition I6 3.0L--2019+ BMW X3 M I6 3.0L--2019+ BMW X4 M I6 3.0L--2019+ BMW X3 M Competition I6 3.0L--2019+ BMW X4 M Competition I6 3.0L
TechSpec Engine Codes: S58B30
TechSpec Chassis Codes: G80--G82--G83--G87--F97--F98
TechSpec Maximum Recommended Boost Pressure (PSI): 60
