Mishimoto MMINT-F35T-15KPBK - 15-16 Ford F-150 EcoBoost 3.5L Black Performance Intercooler Kit w/ Polished Pipes

Mishimoto MMINT-F35T-15KPBK - 15-16 Ford F-150 EcoBoost 3.5L Black Performance Intercooler Kit w/ Polished Pipes

Mishimoto | MMINT-F35T-15KPBK
SKU: MMINT-F35T-15KPBK
$1,858.95 USD
$2,045.00 USD $1,858.95 USD
Sale Sold out
Shipping calculated at checkout.

6 in stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

⛔ NON-CANCELLABLE OR RETURNABLE ITEM: ⛔
This is because the item is either a clearance item, or it may be made to order. Ask all questions before ordering.

Mishimoto MMINT-F35T-15KPBK - 15-16 Ford F-150 EcoBoost 3.5L Black Performance Intercooler Kit w/ Polished Pipes

Intercooler Kit, Black/Polished, fits Ford F-150 3.5L EcoBoost 2015-2016

Complete intercooler kit engineered to reduce intake air temperatures for increased power and efficiency. Includes high-quality components for optimal airflow, improved throttle response, and a precise, easy installation.

Mishimoto has developed a direct-fit 2015-2016 3.5L F-150 EcoBoost Intercooler and Pipe kit that allows owners to maximize the performance potential of their F-150. Our kit replaces the weak and unattractive plastic piping with free-flowing, durable aluminum piping and silicone boots with DuraCore technology. The 24-percent larger volume of our pipes allows your 2015-2016 3.5L F-150 EcoBoost to breathe free and make the most of the its two turbochargers. DuraCore boots coupled with constant-tension worm gear clamps provide superior strength and blowout resistance, ensuring boost always makes it to its destination. Combine our piping with the Mishimoto 2015+ F-150 EcoBoost Intercooler to unleash everything the twin-turbo 3.5L EcoBoost engine is capable of. Our intercooler increases core volume by 77-percent over stock and external fin surface area by 163-percent. With cast end tanks and bar-and-plate construction, our intercooler combines strength and power for an all-around upgrade over stock. This kit is available with a black or silver intercooler and wrinkle black or polished pipes. As with all Mishimoto products, this 2015-2016 3.5L F-150 EcoBoost Intercooler and Pipe kit is backed by our Lifetime Warranty.

  • 24-percent total internal volume increase over the stock intercooler pipes
  • Cold-side pipe includes CNC quick-disconnect with pre-installed O-ring and spring clip for quick and easy installation
  • Additional port on cold-side pipe can be drilled and tapped for methanol injection or sensors
SellingPoint05: Includes Mishimoto Silicone Boots with DuraCore technology for superior resistance to heat, pressure, fuel, and oil
SellingPoint06: Constant-tension worm gear clamps keep a strong grip as pipes and boots expand and contract
SellingPoint07: 10F (5.5C) reduction in intake air temp
SellingPoint08: 77-percent increase in internal Intercooler core volume
SellingPoint09: 163-percent increase in external fin surface area
SellingPoint10: All-aluminum, TIG-welded construction
SellingPoint11: Fits with stock intercooler fans without modification
SellingPoint12: Intercooler available in Sleek Silver or Stealth Black, pipes available in polished or wrinkle black powder-coated finish
SellingPoint13: Mishimoto Lifetime Warranty
SellingPoint14: N/A
SellingPoint15: N/A
CARB EO Number: D-759-6
Install Difficulty: 4
OptionLabel: Black Intercooler, Polished Pipes
Cold Side Pipe Inside Diameter: 3
Core Thickness: 4.7
Core Length: 19.6
Core Height: 9.4
Core Color: Black
Core Construction: Bar-and-Plate
Core Material: Aluminum
Coupler Color: Black
Coupler Material: Silicone
End Tank Construction: Cast
End Tank Material: Aluminum
Grade Type: Performance
Hose Clamps Included: Yes
Hot Side Pipe Inside Diameter: 2.5
Inlet Diameter: 2.5
Outlet Diameter: 3
Intercooler Type: Air-to-Air
Maximum Boost Pressure: 50
Maximum Horsepower: 0
Pipe Color: Polished
Pipe Finish: Powder Coated
Pipe Material: Aluminum
Universal Or Specific Fit: Specific
TechSpec Applications: 2015-2016 Ford F-150 3.5L V6 EcoBoost
TechSpec Engine Codes: 3.5L V6 EcoBoost
TechSpec Chassis Codes: P552
TechSpec Maximum Recommended Boost Pressure (PSI): 50
TechSpec Maximum Recommended Horsepower: N/A
TechSpec Overall Length (in): 29
TechSpec Overall Height (in): 9.5
TechSpec Overall Width (in): 7
TechSpec Core Type: Bar-and-Plate
TechSpec Core Thickness (in): 4.7
TechSpec Core Length (in): 19.6
TechSpec Core Height (in): 9.4
TechSpec Inlet (in): 2.5
TechSpec Outlet (in): 3
TechSpec Weight (lbs): N/A
TechSpec Note: N/A

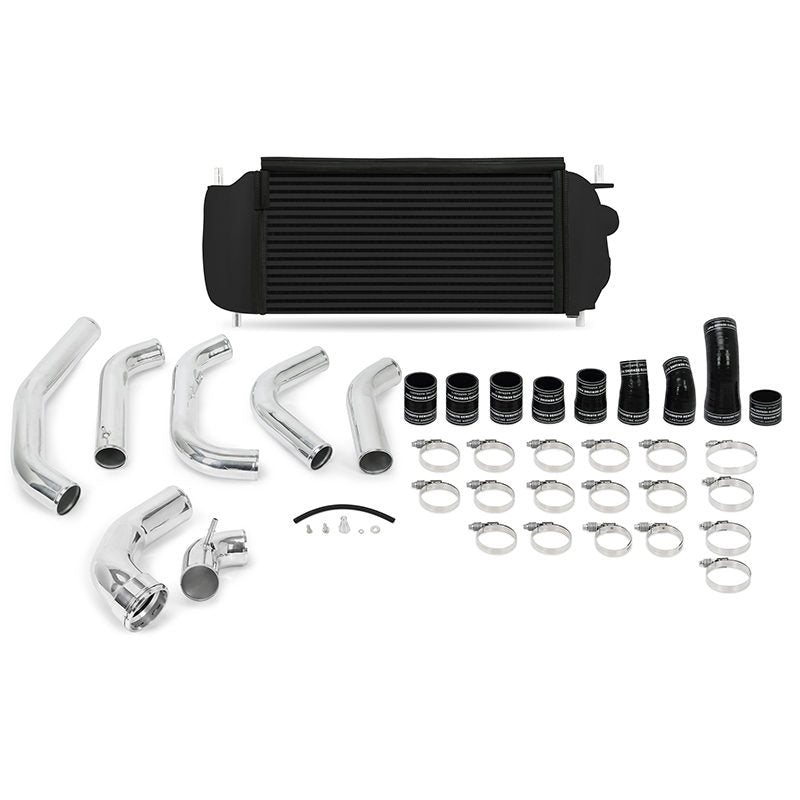

TechSpec Includes: (1) Mishimoto Intercooler w/ Assembled Rubber Trim--(1) Bypass Valve Bracket--(1) Aluminum Cold-Side Intercooler Pipe w/ CNC Quick-Disconnect Flange--(1) Aluminum Cold-Side Intercooler Pipe w/ CNC IAT Sensor Housing--(5) Aluminum Hot-Side Intercooler Pipes--(9) Silicone Boots w/ DuraCore Technology--(18) Constant-Tension Worm Gear Clamps--Mounting Hardware--Bypass Valve Hardware--Mishimoto Lifetime Warranty
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
TechSpec Pipe Shape: N/A
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Centerline Radius: N/A
SellingPoint01: Direct fit for 2015-2016 Ford F-150 3.5L EcoBoost
SellingPoint02: 24-percent total internal volume increase over the stock intercooler pipes
SellingPoint03: Cold-side pipe includes CNC quick-disconnect with pre-installed O-ring and spring clip for quick and easy installation
SellingPoint04: Additional port on cold-side pipe can be drilled and tapped for methanol injection or sensors
