Mishimoto MMINT-CAM4-16KWBK - 2016+ Chevrolet Camaro 2.0T / 2013+ Cadillac ATS 2.0T Intercooler Kit - Wrinkle Black

Mishimoto MMINT-CAM4-16KWBK - 2016+ Chevrolet Camaro 2.0T / 2013+ Cadillac ATS 2.0T Intercooler Kit - Wrinkle Black

Mishimoto | MMINT-CAM4-16KWBK
SKU: MMINT-CAM4-16KWBK
$1,325.95 USD
$1,459.00 USD $1,325.95 USD
Sale Sold out
Shipping calculated at checkout.

7 in stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Mishimoto MMINT-CAM4-16KWBK - 2016+ Chevrolet Camaro 2.0T / 2013+ Cadillac ATS 2.0T Intercooler Kit - Wrinkle Black

Mishimoto 2016+ Chevrolet Camaro 2.0T / 2013+ Cadillac ATS 2.0T Intercooler Kit - Wrinkle Black

Complete intercooler kit engineered to reduce intake air temperatures for increased power and efficiency. Includes high-quality components for optimal airflow, improved throttle response, and a precise, easy installation.

It's time to give the intercooling system in your 2016-2024 Chevrolet Camaro 2.0T or 2013-2019 Cadillac ATS a complete overhaul with the Mishimoto Performance Intercooler Kit. Our bar-and-plate constructed core picks up the slack for the stock unit by offering increased heat rejection characteristics, as well as a boost in airflow. On top of the new construction, our design increases the internal core volume by 45-percent, and offers a whopping 239-percent gain in external fin surface area, making sure that the charged air running through your LTG is as chilled as possible. Our kit also includes a set of our mandrel-bent intercooler piping featuring a range of 2.25-2.75? diameters equating in a 30-percent increase in volume and 10-percent better flow of the charged air. All together, our piping kit gits your LTG powered Camaro or ATS up to 11 additional horsepower and 9 ft-lbs of torque. We have also included a pre-welded NPT port on the cold side piping that not only allows for easy installation of your stock equipment, but also adding an aftermarket boost gauge or meth-injection is a breeze. The Mishimoto Performance Intercooler Kit for your 2013-2019 ATS or 2016-2024 Camaro is available with your choice of polished or wrinkle black piping, and as always this kit is covered under the Mishimoto Lifetime Warranty.

  • 2-in thick intercooler design optimized for maximum airflow with minimal pressure drop
  • 45-percent increase in internal core volume and 239-percent increase in external fin surface area
  • 78-percent increase in core size
TechSpec Applications: 2016-2024 Chevrolet Camaro 2.0T--2013-2019 Cadillac ATS 2.0T
TechSpec Engine Codes: LTG
TechSpec Chassis Codes: Alpha
TechSpec Maximum Recommended Boost Pressure (PSI): N/A
TechSpec Maximum Recommended Horsepower: 450
TechSpec Overall Length (in): N/A
TechSpec Overall Height (in): N/A
TechSpec Overall Width (in): N/A
TechSpec Core Type: N/A
TechSpec Core Thickness (in): 2
TechSpec Core Length (in): N/A
TechSpec Core Height (in): N/A
TechSpec Inlet (in): 2.4
TechSpec Outlet (in): 2.4
TechSpec Weight (lbs): N/A
TechSpec Note: There is an O-ring inside of the stock intercooler pipe on the end that connects to the intercooler. This O-ring must be removed and installed into your Mishimoto intercooler pipe. Take note when removing it from the stock pipe as the O-ring must be installed in the correct direction. Please reference our installation video for additional information.

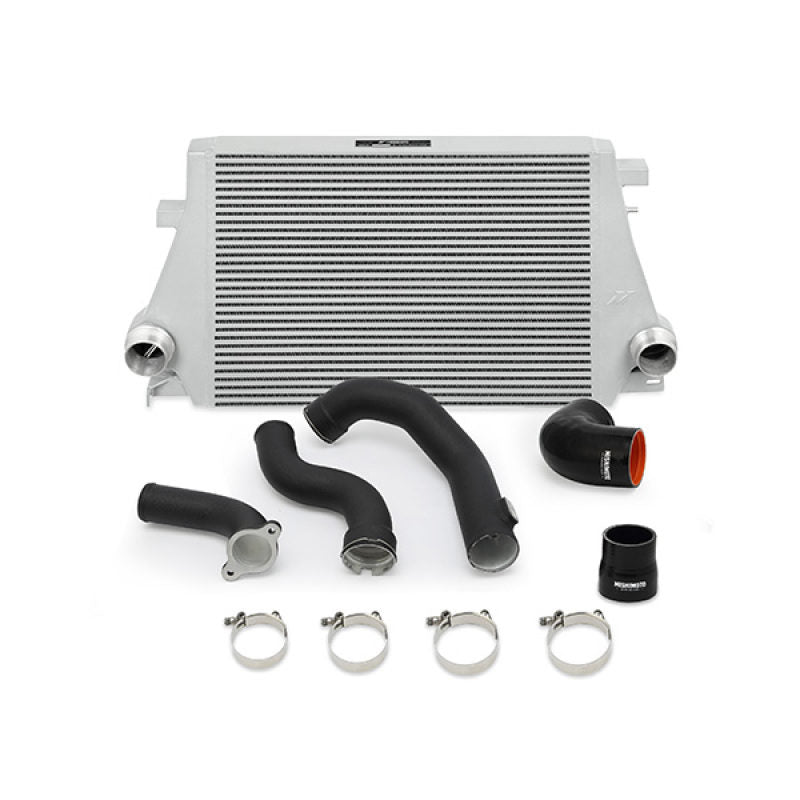

TechSpec Includes: (1) Aluminum Intercooler--(2) Aluminum Pipes w/ CNC-machined quick-disconnects--(1) Aluminum Pipe w/ CNC-machined 2-bolt flange--(2) Quick-Disconnect Spring Clips--(1) 2.75-in 90-degree Silicone Coupler--(1) 2.25-in to 2.5-in Silicone Transition Coupler--(1) 2.5-in T-bolt Clamp--(1) 2.75-in T-bolt Clamp--(2) 3-in T-bolt Clamps--(3) Tree Clips--Mishimoto Lifetime Warranty
TechSpec Installation Notes: N/A
TechSpec Pipe Shape: N/A
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Centerline Radius: N/A
SellingPoint01: Direct fit for the 2016-2024 Chevrolet Camaro 2.0T and 2013-2019 Cadillac ATS 2.0T
SellingPoint02: 2-in thick intercooler design optimized for maximum airflow with minimal pressure drop
SellingPoint03: 45-percent increase in internal core volume and 239-percent increase in external fin surface area
SellingPoint04: 78-percent increase in core size
SellingPoint05: Cast end tanks with internal air diverter provide optimal airflow through intercooler
SellingPoint06: 30-percent greater internal volume than stock
SellingPoint07: 10-percent increase in flow
SellingPoint08: Utilizes stock quick-disconnect fittings for easy installation
SellingPoint09: Pre-welded NPT port on cold-side pipe allows for quick install of aftermarket meth injection or boost gauge
SellingPoint10: Piping available in polished and wrinkle black
SellingPoint11: Mishimoto Lifetime Warranty
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Install Difficulty: 4
OptionLabel: Wrinkle Black Piping
Cold Side Pipe Inside Diameter: 2.4
Core Thickness: 2
Core Length: 0
Core Height: 0
Core Color: Black
Core Construction: Bar-and-Plate
Core Material: Aluminum
Coupler Color: Black
Coupler Material: Silicone
End Tank Construction: Cast
End Tank Material: Aluminum
Grade Type: Performance
Hose Clamps Included: Yes
Hot Side Pipe Inside Diameter: 2.4
Inlet Diameter: 2.4
Outlet Diameter: 2.4
Intercooler Type: Air-to-Air
Maximum Boost Pressure: 0
Maximum Horsepower: 450
Pipe Color: Black
Pipe Finish: Powder Coated
Pipe Material: Aluminum
Universal Or Specific Fit: Specific
