Mishimoto MMICP-F35T-17KP - 2017+ Ford F150 3.5L EcoBoost Intercooler Pipe Kit - Polished

Mishimoto MMICP-F35T-17KP - 2017+ Ford F150 3.5L EcoBoost Intercooler Pipe Kit - Polished

Mishimoto | MMICP-F35T-17KP
SKU: MMICP-F35T-17KP
$814.95 USD
$896.00 USD $814.95 USD
Sale Sold out
Shipping calculated at checkout.

20 in stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Mishimoto MMICP-F35T-17KP - 2017+ Ford F150 3.5L EcoBoost Intercooler Pipe Kit - Polished

Intercooler Pipe Kit, Polished, fits Ford F-150 3.5L EcoBoost 2017-2020

Intercooler pipe set designed to improve airflow between turbo and intercooler for enhanced performance. Durable piping reduces pressure loss, improves throttle response, and ensures a precise fit for reliable installation.

Mishimoto has developed a direct-fit 2017-2020 3.5L F-150 EcoBoost Intercooler Pipe kit that allows owners to maximize the performance potential of their F-150 or second-gen Raptor. Our kit replaces the weak and unattractive plastic piping with free-flowing, durable aluminum piping and silicone boots with DuraCore? technology. The larger volume of our pipes allows your 2017-2020 3.5L F-150 EcoBoost to breathe freely and make the most of the its two turbochargers. DuraCore? boots coupled with constant-tension worm gear clamps provide superior strength and blowout resistance, ensuring boost always makes it to its destination. Available with a sleek polished finish or powder-coated in stealthy wrinkle black, these pipes are a great addition to every F-150 EcoBoost or second-gen Raptor from the show to the track. Combine this kit with the Mishimoto 2015+ F-150 EcoBoost Intercooler to unleash everything the twin-turbo 3.5L EcoBoost engine is capable of. As with all Mishimoto products, this 2017-2020 3.5L F-150 EcoBoost Intercooler Pipe kit is backed by our Lifetime Warranty.

  • Direct-fit for 2017-2020 Ford F-150 3.5L EcoBoost
  • Increased volume for better flow and power potential
  • Cold-side pipe includes CNC quick-disconnect with pre-installed o-ring and spring clip for quick and easy installation
TechSpec Applications: 2017-2020 Ford F-150 3.5L V6 EcoBoost--2017-2020 Ford Raptor 3.5L V6 EcoBoost
TechSpec Engine Codes: 3.5L V6 EcoBoost
TechSpec Chassis Codes: N/A
TechSpec Maximum Recommended Boost Pressure (PSI): N/A
TechSpec Maximum Recommended Horsepower: N/A
TechSpec Overall Length (in): N/A
TechSpec Overall Height (in): N/A
TechSpec Overall Width (in): N/A
TechSpec Core Type: N/A
TechSpec Core Thickness (in): N/A
TechSpec Core Length (in): N/A
TechSpec Core Height (in): N/A
TechSpec Inlet (in): N/A
TechSpec Outlet (in): N/A
TechSpec Weight (lbs): N/A
TechSpec Note: N/A

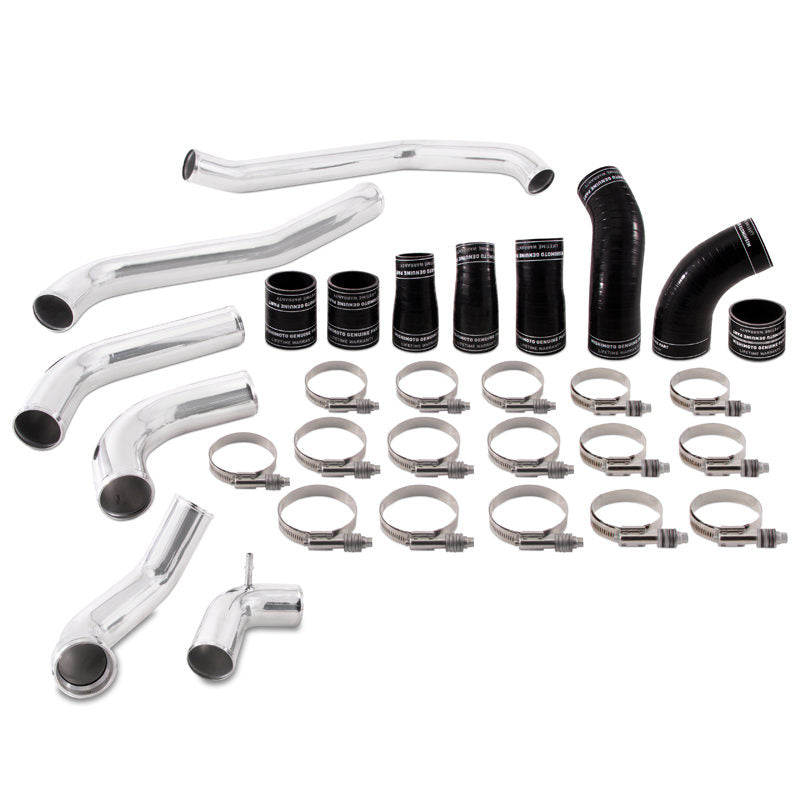

TechSpec Includes: (1) Aluminum Cold-Side Intercooler Pipe w/ CNC Quick-Disconnect Flange--(1) Aluminum Cold-Side Intercooler Pipe w/ CNC IAT Sensor Housing--(4) Aluminum Hot-Side Intercooler Pipes--(8) Silicone Boots w/ DuraCore Technology--(16) Constant-Tension Worm Gear Clamps--Mishimoto Lifetime Warranty
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
TechSpec Pipe Shape: N/A
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Centerline Radius: N/A
SellingPoint01: Direct-fit for 2017-2020 Ford F-150 3.5L EcoBoost
SellingPoint02: Increased volume for better flow and power potential
SellingPoint03: Cold-side pipe includes CNC quick-disconnect with pre-installed o-ring and spring clip for quick and easy installation
SellingPoint04: Additional port on cold-side pipe can be drilled and tapped for methanol injection or sensors
SellingPoint05: Constant-tension worm-gear clamps keep a strong grip as pipes and boots expand and contract
SellingPoint06: Available in polished or wrinkle black powder-coated finish
SellingPoint07: Mishimoto Lifetime Warranty
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Install Difficulty: N/A
OptionLabel: Polished
Clamp Quantity: 10
Clamp Type: Worm Gear
Clamps Included: Yes
Cold Side Pipe Inside Diameter: 0
Coupler Color: Black
Coupler Material: Silicone
Finish: Polished
Hot Side Pipe Inside Diameter: 0
Pipe Bend Type: Mandrel
Pipe Color: Polished
Pipe Material: Aluminum
Pipe Quantity: 6
