Mishimoto MMICP-CAM4-16HP - 2016+ Chevrolet Camaro 2.0T/2013+ Cadillac ATS Hot-Side Intercooler Pipe Kit - Polished

Name: Mishimoto MMICP-CAM4-16HP - 2016+ Chevrolet Camaro 2.0T/2013+ Cadillac ATS Hot-Side Intercooler Pipe Kit - Polished
Brand: Mishimoto
SKU: MMICP-CAM4-16HP
Availability: OutOfStock

Mishimoto MMICP-CAM4-16HP - 2016+ Chevrolet Camaro 2.0T/2013+ Cadillac ATS Hot-Side Intercooler Pipe Kit - Polished

Mishimoto | MMICP-CAM4-16HP
SKU: MMICP-CAM4-16HP

$0.00 USD

~~$0.00 USD~~ $0.00 USD

Sale Sold out

Shipping calculated at checkout.

Out of stock

Mishimoto MMICP-CAM4-16HP - 2016+ Chevrolet Camaro 2.0T/2013+ Cadillac ATS Hot-Side Intercooler Pipe Kit - Polished

Chevrolet Camaro 2.0T 2016+ / Cadillac ATS 2013+ Hot-Side Intercooler Pipe Kit

Intercooler pipe set designed to improve airflow between turbo and intercooler for enhanced performance. Durable piping reduces pressure loss, improves throttle response, and ensures a precise fit for reliable installation.

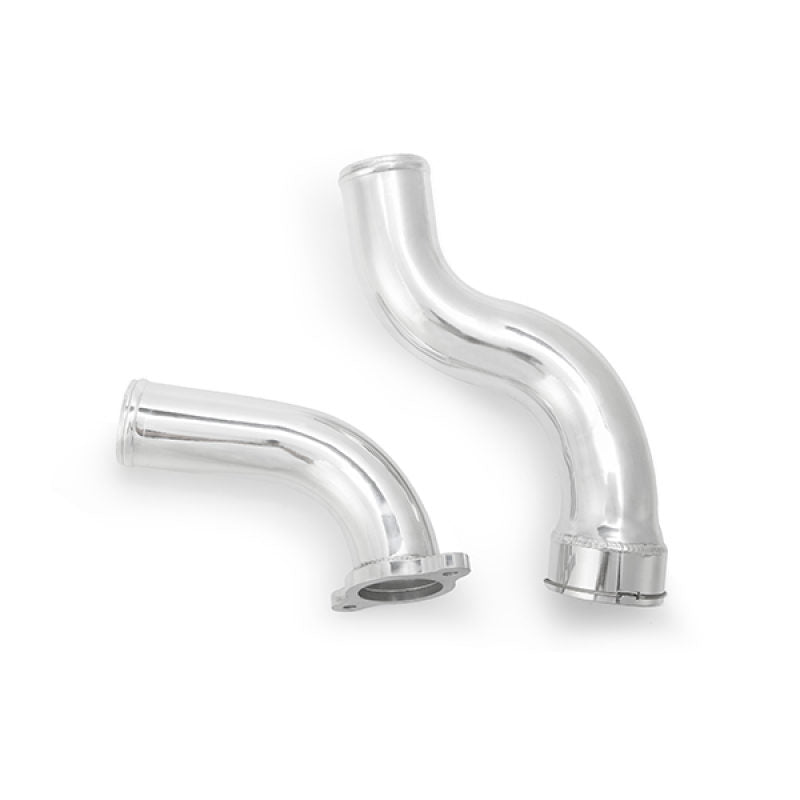

Expose your 2.0T LTG engine to improved airflow with the Mishimoto Hot-Side Intercooler Pipe Kit for the 2016-2024 Chevrolet Camaro. The stock intercooler pipe is plagued by bends and a restrictive diameter. Both slow the airflow to your intercooler. The stock piping is also constructed of plastic and rubber, which will deteriorate over time. The Mishimoto intercooler pipe increases the overall diameter over stock and is constructed of mandrel-bent aluminum to minimize any airflow restrictions. The hot-side pipe can handle the power you throw at it when turning up the boost on your LTG. Mishimoto's hot-side Camaro 2.0T intercooler pipe also features a CNC-machined connection flange to ensure a direct connection to the turbo. In addition, the hot-side pipe includes a durable silicone coupler and stainless steel T-bolt clamps to ensure a leak free connection. Installation can be completed without modification to the engine bay as it is compatible with the stock intercooler. The Mishimoto hot-side intercooler pipe is available in either wrinkle black or a polished finish, and like all our Camaro 2.0T performance parts, includes the Mishimoto Lifetime Warranty.

Dyno-proven maximum gains up to 7 whp and 8 wtq on a stock tune
29-percent greater internal volume than stock
20-percent increase in flow

SellingPoint12: N/A

SellingPoint13: N/A

SellingPoint14: N/A

SellingPoint15: N/A

Install Difficulty: 3

OptionLabel: Polished

Clamp Quantity: 2

Clamp Type: T-Bolt

Clamps Included: Yes

Cold Side Pipe Inside Diameter: 0

Coupler Color: Black

Coupler Material: Silicone

Finish: Polished

Hot Side Pipe Inside Diameter: 0

Pipe Bend Type: Mandrel

Pipe Color: Polished

Pipe Material: Aluminum

Pipe Quantity: 2

TechSpec Applications: 2016-2024 Chevrolet Camaro 2.0T--2013-2019 Cadillac ATS 2.0T

TechSpec Engine Codes: LTG

TechSpec Chassis Codes: Alpha

TechSpec Maximum Recommended Boost Pressure (PSI): N/A

TechSpec Maximum Recommended Horsepower: N/A

TechSpec Overall Length (in): N/A

TechSpec Overall Height (in): N/A

TechSpec Overall Width (in): N/A

TechSpec Core Type: N/A

TechSpec Core Thickness (in): N/A

TechSpec Core Length (in): N/A

TechSpec Core Height (in): N/A

TechSpec Inlet (in): N/A

TechSpec Outlet (in): N/A

TechSpec Weight (lbs): N/A

TechSpec Note: There is an O-ring inside of the stock intercooler pipe on the end that connects to the intercooler. This O-ring must be removed and installed into your Mishimoto intercooler pipe. Take note when removing it from the stock pipe as the O-ring must be installed in the correct direction. Please reference our installation video for additional information.

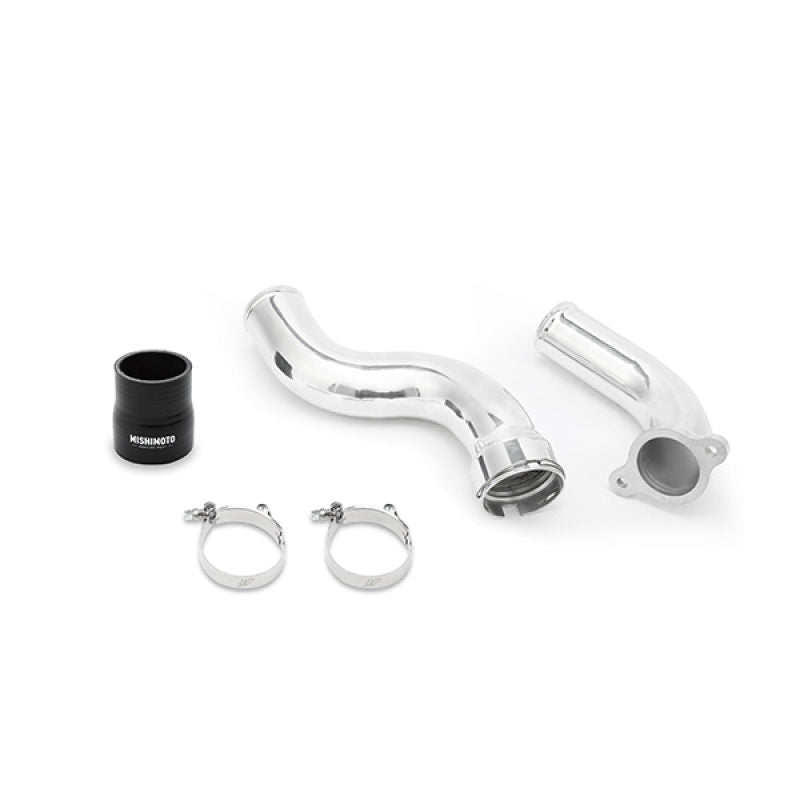

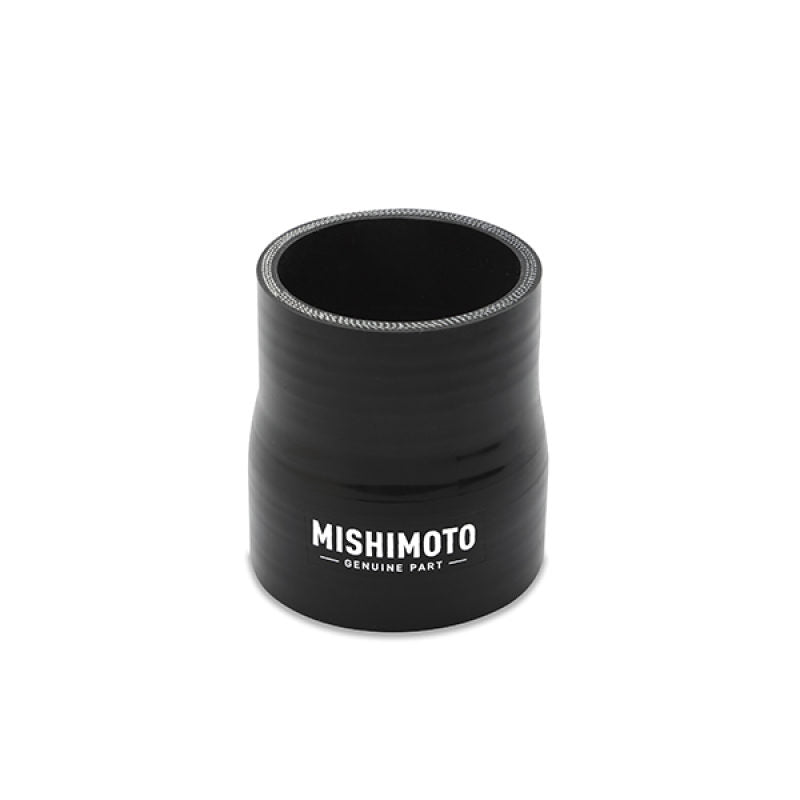

TechSpec Includes: (1) Aluminum Pipe w/ CNC-machined quick-disconnect--(1) Aluminum Pipe w/ CNC-machined 2-bolt flange--(1) Quick-Disconnect Spring Clip--(1) 2.25-in to 2.5-in Silicone Transition Coupler--(1) 2.5-in T-bolt Clamp--(1) 2.75-ft T-Bolt Clamp--Mishimoto Lifetime Warranty

TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).

TechSpec Pipe Shape: N/A

TechSpec Pipe Diameter: N/A

TechSpec Pipe Length: N/A

TechSpec Centerline Radius: N/A

SellingPoint01: Direct fit for the 2016-2024 Chevrolet Camaro 2.0T/2013-2019 Cadillac ATS 2.0T

SellingPoint02: Dyno-proven maximum gains up to 7 whp and 8 wtq on a stock tune

SellingPoint03: 29-percent greater internal volume than stock

SellingPoint04: 20-percent increase in flow

SellingPoint05: Aluminum intercooler pipe replaces weak stock rubber pipe

SellingPoint06: Utilizes stock quick-disconnect fittings for easy installation

SellingPoint07: 2.25-in to 2.5-in mandrel-bent aluminum piping

SellingPoint08: Includes Mishimoto silicone coupler and Mishimoto T-bolt clamps

SellingPoint09: Available in polished and wrinkle black

SellingPoint10: Mishimoto Lifetime Warranty

SellingPoint11: N/A
