Mishimoto MMFS-E46-01K - 01-06 BMW M3 Performance Aluminum Fan Shroud w/Fan Controller Kit
High-performance component designed to enhance thermal efficiency, durability, and reliability under demanding conditions. Engineered to support optimal temperature control and system performance across applications.

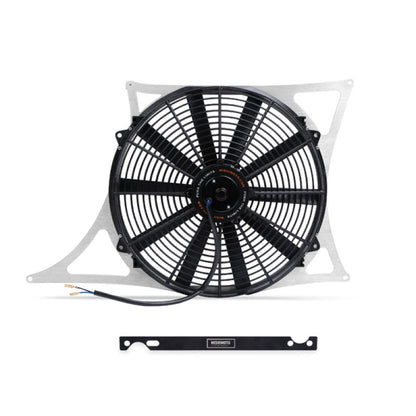

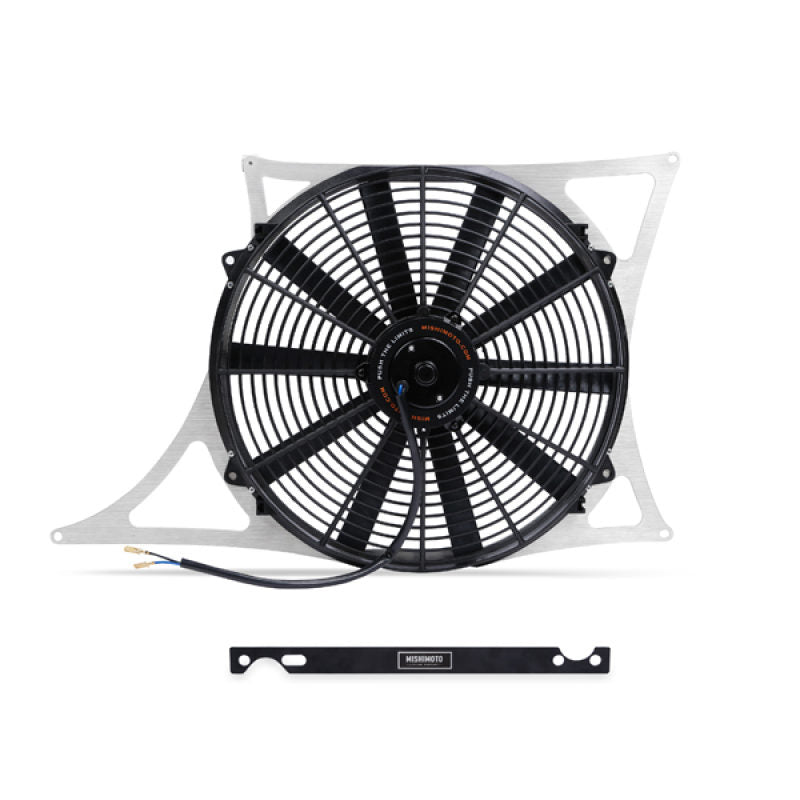

Keep your E46 M3 cool with the Mishimoto Performance Aluminum Fan Shroud Kit! This unique electric fan shroud setup completely eliminates the stock, failure-prone mechanical fan. The fan shroud mounts directly to both stock and Mishimoto radiators and includes a 16in high-flow electric fan that produces over 1850 cfm of airflow. Our in-house Dynojet testing has shown a 5 whp gain from 6500-7500 rpm and 1-2 whp gains over a majority of the power band after removing the factory clutch fan. Optionally, this kit can include an adjustable fan controller and wiring kit, which will provide the user with total control over coolant temperatures. The Mishimoto BMW E46 Fan Shroud Kit includes a removal tool for the clutch fan as well as all hardware required for installation. This fan shroud has a brushed finish that provides a subtle accent for your engine bay. As with all our products, this fan shroud kit includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
Motor Included: Yes
Mounting Hardware Included: Yes
Shroud Color: Silver
Shroud Included: Yes
Shroud Material: Aluminum
Width: 3
Color: Silver
Finish: Brushed Aluminum
Installation Difficulty: 3
Material: Aluminum
TechSpec Engine Codes: S54
TechSpec Chassis Codes: E46
TechSpec Weight (lbs): 7
TechSpec Includes: (1) Aluminum Fan Shroud--(1) 16-inch Mishimoto Slim Electric Fan--Fan Removal Tool--(1) Adjustable Relay--(1) Push-In Radiator Temperature Probe--(1) 1/8-in NPT Temperature Sensor--(1) Wiring Harness--(16) Zip Ties--(4) Wire Straight Crimp Connectors--(1) Wire Butt Crimp Connector--(1) Wire Quick-Splice Connector--(4) Wire Ring Terminals--(2) Wire Spade Connectors--(1) In-line Mini Fuse Holder--(1) 40-in 10 AWG Wire--(1) 7-ft 12 AWG Wire--(1) 12-in Heat Shrink--Mishimoto Lifetime Warranty
TechSpec CFM (Each Fan): 1850
TechSpec Note: This fan shroud is compatible with stock radiator. Electric fan comes attached to the shroud. Stock plastic fan shroud components must be removed for installation.----Fans may require additional wiring.----Optional Fan Controller is Mishimoto MMFAN-CNTL-U and includes both NPT and Probe type sensors.
TechSpec Height (in): 16.7
TechSpec Length (in): 25
TechSpec Width (in): 3
TechSpec Applications: 2001-2006 BMW E46 M3
SellingPoint01: Direct fit for the 2001-2006 BMW E46 M3
SellingPoint02: Dyno-proven gains of up to 5 whp at 6500-7500 rpm
SellingPoint03: Includes high-flow 16-in electric fan that provides over 1850 cfm of airflow
SellingPoint04: Offset fan mounting provides clearance for popular supercharger kits
SellingPoint05: Optional fan controller provides complete control of coolant temperatures at idle
SellingPoint06: Includes fan tool for removal of stock mechanical fan
SellingPoint07: Fits with both stock and Mishimoto radiators
SellingPoint08: Replaces failure-prone stock mechanical fan
SellingPoint09: Brushed aluminum finish
SellingPoint10: Includes all mounting hardware for installation
SellingPoint11: Mishimoto Lifetime Warranty
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Install Difficulty: 4
Airflow Rate: 1850
OptionLabel: w/ Fan Controller
Blade Color: Black
Blade Included: Yes
Blade Length: 8
Blade Material: Plastic
Blade Quantity: 10
Blade Type: Straight
Control Module Included: No
Control Unit Included: No
Depth: 3
Electrical Or Mechanical: Electrical
Fan 1 Blade Quantity: 10
Fan 1 Diameter: 16
Fan 2 Blade Quantity: 10
Fan 2 Diameter: 16
Fan Clutch Mounted: No
Fan Quantity: 1
Grade Type: Performance
Hardwired Or Plug-In: Plug-In
Height: 16.7
Housing Finish: Aluminum
Maximum CFM: 1850
