Mishimoto MMFS-CK-78K - 78-86 Chevrolet/GM C/K Truck Performance Aluminum Fan Shroud w/Fan Controller
High-performance component designed to enhance thermal efficiency, durability, and reliability under demanding conditions. Engineered to support optimal temperature control and system performance across applications.

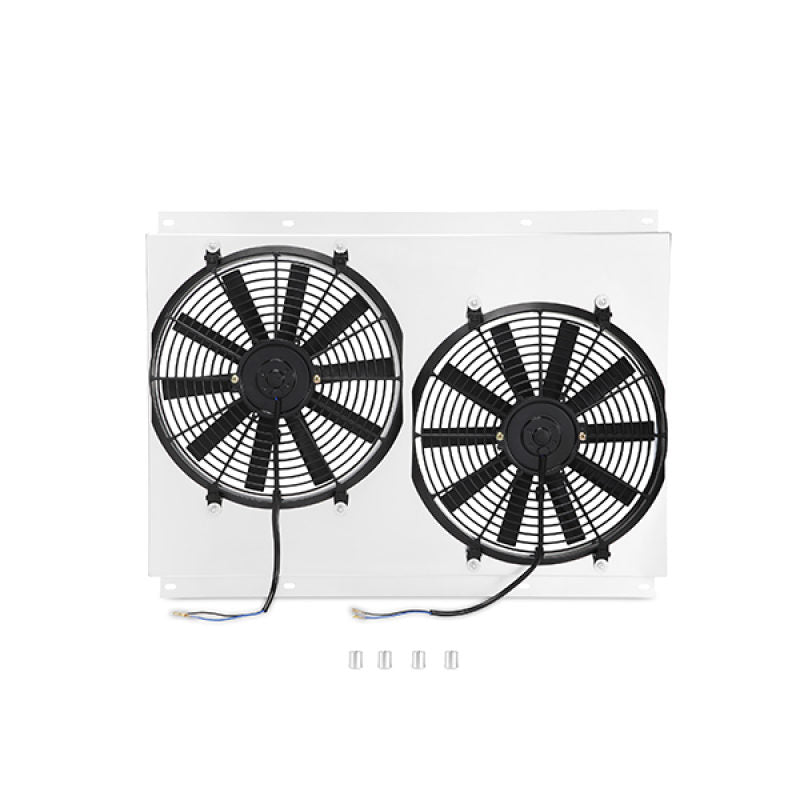

Keep your 1978-86 GM C/K Series cool with the Mishimoto Performance Fan Shroud Kit! This unique electric fan shroud setup completely eliminates the stock, failure-prone mechanical fan. The fan shroud mounts exclusively to the Mishimoto'sChevrolet/GM C/K Performance Radiator and includes two 14in high-flow electric fans that produce over 1300 cfm of airflow. Optionally, this kit can include a Mishimoto Adjustable Fan Controller Kit, which will provide the user with total control over coolant temperatures. As with all our products, this fan shroud kit includes the Mishimoto Lifetime Warranty you know and trust.
SellingPoint07: Includes all mounting hardware for installation
SellingPoint08: Mishimoto Lifetime Warranty
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Install Difficulty: 3
Airflow Rate: 1300
OptionLabel: w/ Fan Controller
Blade Color: Black
Blade Included: Yes
Blade Length: 7
Blade Material: Plastic
Blade Quantity: 10
Blade Type: Straight
Control Module Included: No
Control Unit Included: No
Depth: 3.9
Electrical Or Mechanical: Electrical
Fan 1 Blade Quantity: 10
Fan 1 Diameter: 14
Fan 2 Blade Quantity: 10
Fan 2 Diameter: 14
Fan Clutch Mounted: No
Fan Quantity: 2
Grade Type: Performance
Hardwired Or Plug-In: Plug-In
Height: 23.53
Housing Finish: Aluminum
Maximum CFM: 1300
Motor Included: Yes
Mounting Hardware Included: Yes
Shroud Color: Silver
Shroud Included: Yes
Shroud Material: Aluminum
Width: 3.9
Color: Silver
Finish: Brushed
Installation Difficulty: 3
Material: Aluminum
TechSpec Height (in): 23.53
TechSpec Length (in): 30.48
TechSpec Width (in): 3.9
TechSpec Applications: 1978-1986 GM C/K Series Pickup 292ci (4.8L) L6, 305ci (5.0L) V8, 350ci (5.7L) V8, 454ci (7.4L) V8--1987-1991 Chevrolet Blazer 305ci (5.0L) V8, 350ci (5.7L) V8--1981-1991 GMC Jimmy 305ci (5.0L) V8, 350ci (5.7L) V8--1987-1991 R-Series 305ci (5.0L) V8, 350ci (5.7L) V8, 454ci (7.4L) V8--1987-1991 V-Series 305ci (5.0L) V8, 350ci (5.7L) V8, 454ci (7.4L) V8
TechSpec Engine Codes: 292ci (4.8L) L6--305ci (5.0L) V8--350ci (5.7L) V8--454ci (7.4L) V8
TechSpec Chassis Codes: ED3--ED4--ED6--ED7--ED8--ED9--EE2--EE4
TechSpec Weight (lbs): N/A
TechSpec Includes: (1) Aluminum Fan Shroud--(2) 14-inch Slim Electric Fans--(1) Adjustable Relay--(1) Push-In Radiator Temperature Probe--(1) 1/8-in NPT Temperature Sensor--(1) Wiring Harness--(16) Zip Ties--(4) Wire Straight Crimp Connectors--(1) Wire Butt Crimp Connector--(1) Wire Quick-Splice Connector--(4) Wire Ring Terminals--(2) Wire Spade Connectors--(1) In-line Mini Fuse Holder--(1) 40-in 10 AWG Wire--(1) 7-ft 12 AWG Wire--(1) 12-in Heat Shrink--Mishimoto Lifetime Warranty
TechSpec CFM (Each Fan): 1300
TechSpec Note: Electric fans already come attached to the shroud.----Fans may require additional wiring.----Optional Fan Controller is Mishimoto MMFAN-CNTL-U and includes both NPT and Probe type sensors.
SellingPoint01: Includes two high-flow 14-in electric fans, each providing over 1300 cfm of airflow
SellingPoint02: All-aluminum construction
SellingPoint03: Optional fan controller provides complete control of coolant temperatures at idle
SellingPoint04: Designed to mate exclusively with Mishimoto's Chevrolet/GM C/K Performance Radiator
SellingPoint05: Replaces failure-prone stock mechanical fan
SellingPoint06: No cutting or bending of shroud required
