Mishimoto MMFS-BRZ-13P - 2013+ Subaru BRZ/Scion FRS/Toyota GT86 Performance Fan Shroud

Mishimoto MMFS-BRZ-13P - 2013+ Subaru BRZ/Scion FRS/Toyota GT86 Performance Fan Shroud

Mishimoto | MMFS-BRZ-13P
SKU: MMFS-BRZ-13P
Regular price $377.95 USD
Regular price $416.00 USD Sale price $377.95 USD
Sale Sold out
Shipping calculated at checkout.

25 in stock

Quantity

Mishimoto MMFS-BRZ-13P - 2013+ Subaru BRZ/Scion FRS/Toyota GT86 Performance Fan Shroud

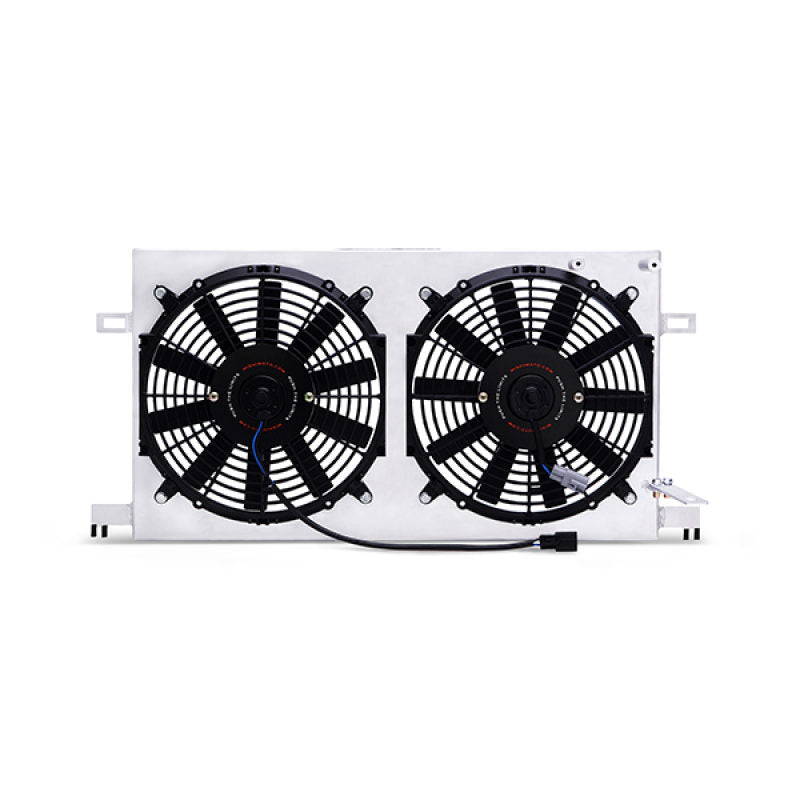

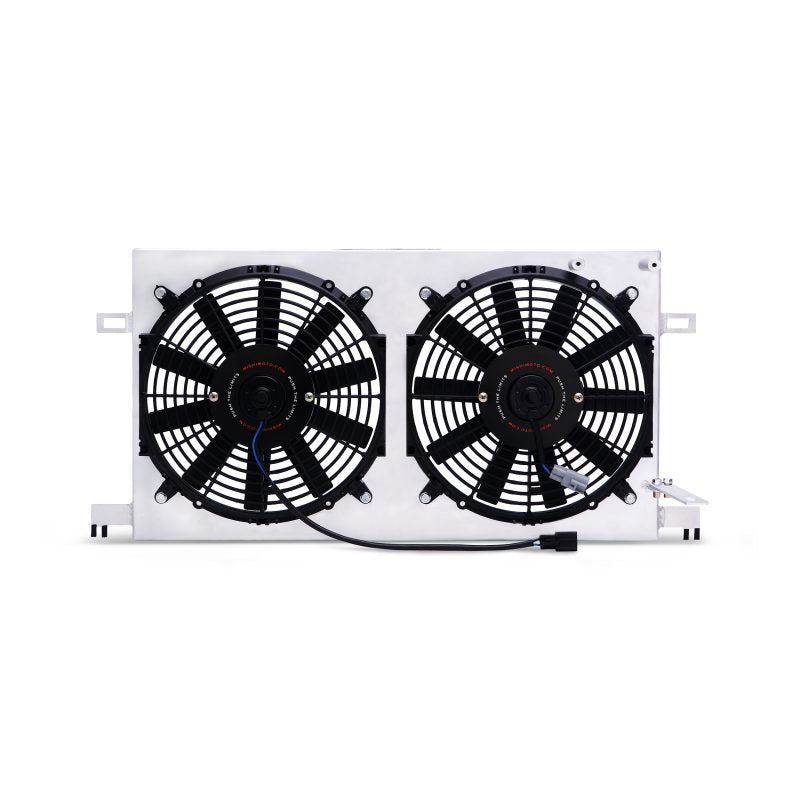

Subaru BRZ / Scion FR-S / Toyota GT86 Plug-N-Play Aluminum Fan Shroud Kit, 2013+

High-performance component designed to enhance thermal efficiency, durability, and reliability under demanding conditions. Engineered to support optimal temperature control and system performance across applications.

Free up some space in your BRZ / FR-S / or GT86's small engine bay with the Mishimoto Plug-N-Play Aluminum Fan Shroud Kit! This kit bolts directly to your stock or Mishimoto Subaru BRZ /Scion FR-S Performance Aluminum Radiator and works perfectly with the stock coolant overflow tank. The brushed aluminum fan shroud is preassembled in the correct location with two 12in high-flow fans, and prewired with stock-style connectors. This plug-n-play kit requires zero splicing, soldering, or crimping and bolts into place just like the stock fan shroud setup. Each fan provides over 1150 CFM of airflow, which effectively keeps hot engine temperatures at bay. Thanks to a slim profile, this fan shroud has a maximum depth of just 3.5in that saves significantly more engine bay space for a larger header, turbo kit, or supercharger. This kit includes all hardware for installation and the Mishimoto Lifetime Warranty.

  • Direct plug-n-play for the 2013-2021 Subaru BRZ / Scion FR-S / Toyota GT86
  • Includes two 12-in fans, each providing over 1150 CFM of airflow
  • Fans are pre-wired with stock-style connectors
TechSpec Engine Codes: FA20--4U-GSE
TechSpec Chassis Codes: ZC6--ZN6
TechSpec Weight (lbs): 7.5

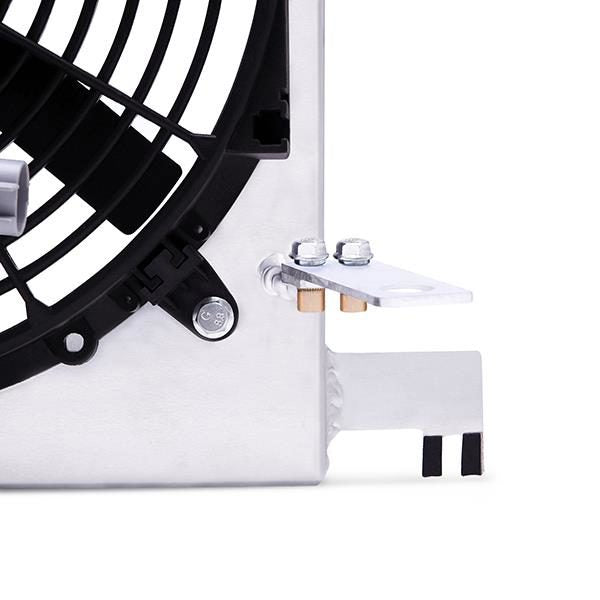

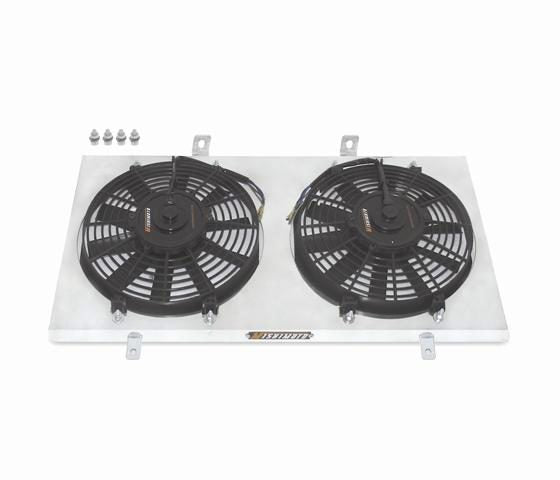

TechSpec Includes: (1) Aluminum Fan Shroud--(2) 12-inch Mishimoto Slim Electric Fans--(2) OEM style fan plugs--(3) Overflow tank mounting bracket & posts--Mishimoto Lifetime Warranty
TechSpec CFM (Each Fan): 1150
TechSpec Note: This fan shroud is compatible with stock radiator or Mishimoto Performance Aluminum Radiators.----This fan shroud is compatible with stock expansion tank.----Electric fan comes attached to the shroud in the same orientation as stock.
TechSpec Height (in): 14.2
TechSpec Length (in): 29.7
TechSpec Width (in): 3.5
TechSpec Applications: 2013-2021 Subaru BRZ--2013-2021 Scion FR-S--2013-2021 Toyota GT86
SellingPoint01: Direct plug-n-play for the 2013-2021 Subaru BRZ / Scion FR-S / Toyota GT86
SellingPoint02: Includes two 12-in fans, each providing over 1150 CFM of airflow
SellingPoint03: Fans are pre-wired with stock-style connectors
SellingPoint04: Fits with both stock and Mishimoto Subaru BRZ / Scion FR-S radiators
SellingPoint05: Accommodates stock coolant overflow tank

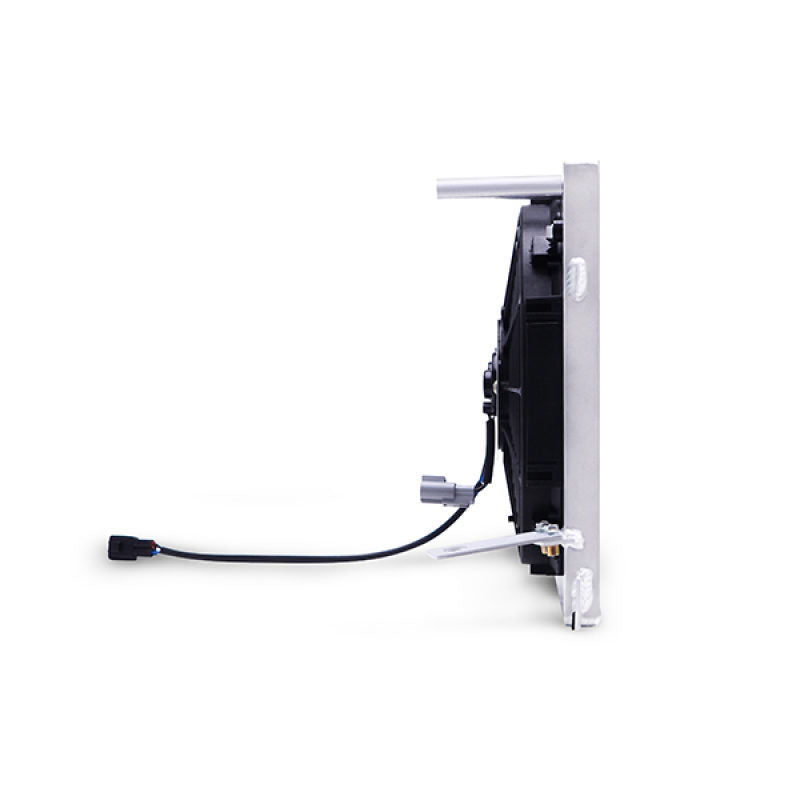

SellingPoint06: Slim profile with a maximum thickness of just 3.5-in
SellingPoint07: Includes all mounting hardware for installation

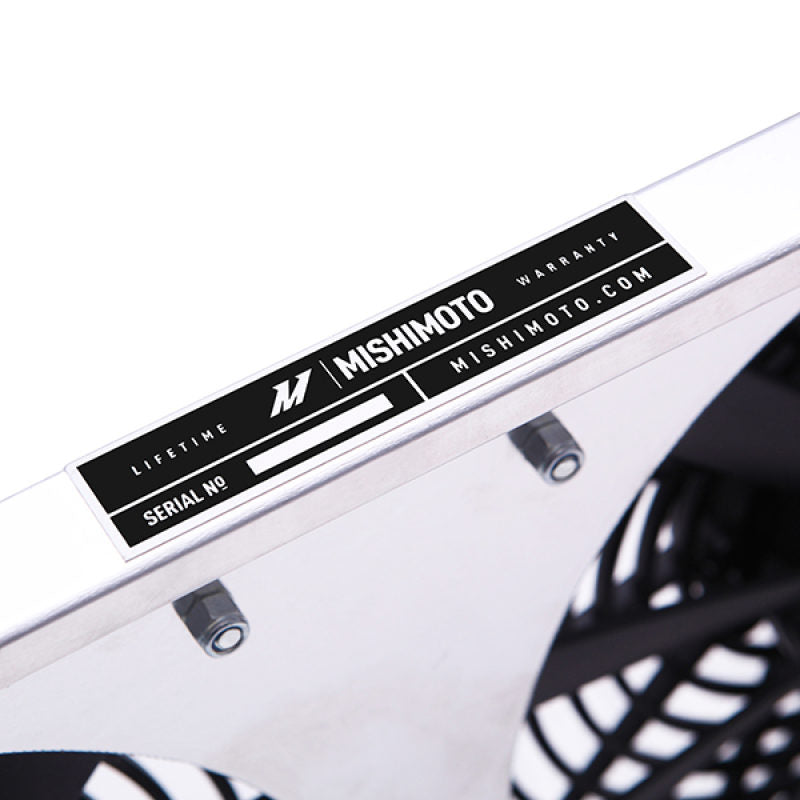

SellingPoint08: Mishimoto Lifetime Warranty
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Install Difficulty: 2
Airflow Rate: 1150
Blade Color: Black
Blade Included: Yes
Blade Length: 6
Blade Material: Plastic
Blade Quantity: 10
Blade Type: Straight
Control Module Included: No
Control Unit Included: No
Depth: 3.5
Electrical Or Mechanical: Electrical
Fan 1 Blade Quantity: 10
Fan 1 Diameter: 12
Fan 2 Blade Quantity: 10
Fan 2 Diameter: 12
Fan Clutch Mounted: No
Fan Quantity: 2
Grade Type: Performance
Hardwired Or Plug-In: Plug-In
Height: 14.2
Housing Finish: Aluminum
Maximum CFM: 1150
Motor Included: Yes
Mounting Hardware Included: Yes
Shroud Color: Silver
Shroud Included: Yes
Shroud Material: Aluminum
Width: 3.5
Color: Silver
Finish: Polished
Installation Difficulty: 2
Material: Aluminum
