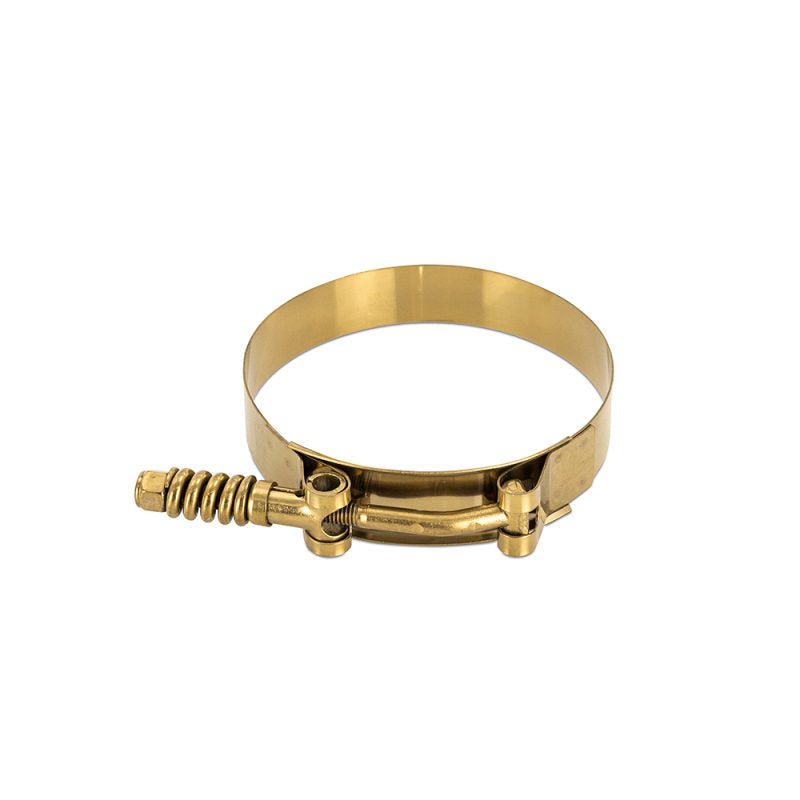

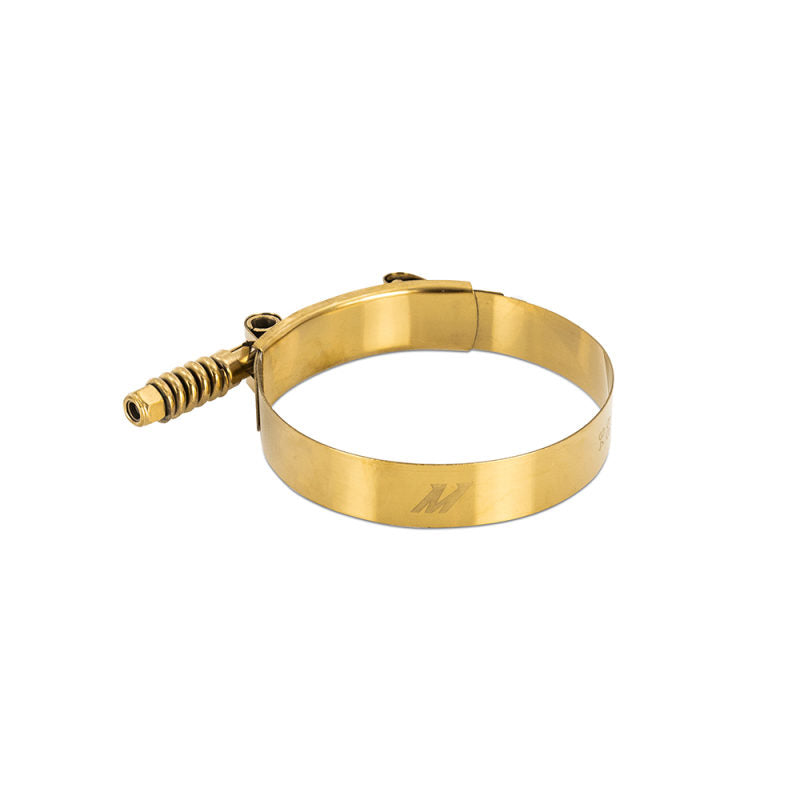

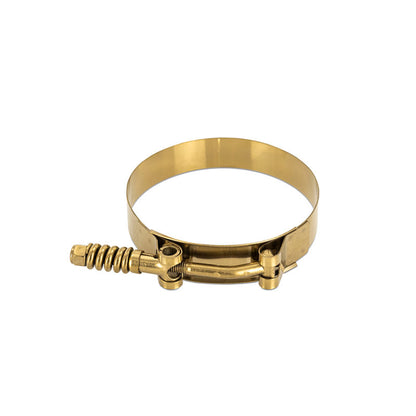

Mishimoto MMCLAMP-4TGD - 4 Inch Stainless Steel Constant Tension T-Bolt Clamp - Gold

Mishimoto MMCLAMP-4TGD - 4 Inch Stainless Steel Constant Tension T-Bolt Clamp - Gold

Mishimoto | MMCLAMP-4TGD
SKU: MMCLAMP-4TGD
Regular price $0.00 USD
Regular price $0.00 USD Sale price $0.00 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

Mishimoto MMCLAMP-4TGD - 4 Inch Stainless Steel Constant Tension T-Bolt Clamp - Gold

Mishimoto Stainless Steel Constant Tension T-Bolt Clamp, 4-in, Gold

Durable hose clamp designed to provide a secure, leak-free seal for hoses in cooling, intake, and fluid systems. Corrosion-resistant construction ensures long-lasting performance and consistent clamping force.

Mishimoto’s Constant Tension T-bolt Clamps are the ideal choice for clamping hoses and couplers that see a wide range of temperature and where high clamping force is needed. This 3.74" - 4.06" (95mm - 103mm) constant tension T-bolt clamps takes the superior clamping force of our traditional T-bolt clamp and adds even more reliability. A spring on the adjustment bolt allows the clamp to expand and contract with temperature swings while keeping constant pressure on the clamped parts. Like our traditional T-bolt clamps, these constant tension T-bolt clamps include a locking nut to prevent loosening under vibration. Like all Mishimoto clamps, this 3.74" - 4.06" (95mm - 103mm) constant tension T-bolt clamp is backed by our Mishimoto Lifetime Warranty.

  • Securely clamps pipes, couplers, and hoses with an outer diameter from 3.74- 4.06-in (95mm-103mm)
  • Constant tension spring maintains clamping pressure through a wide range of temperatures
  • Included self-locking nut prevents loosening with movement and vibration
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Install Difficulty: 1
OptionLabel: Gold
Band Width: 0.75
Color: Gold
Finish: Plain
Grade Type: Premium
Material: Stainless Steel
Maximum Diameter: 4.06
Minimum Diameter: 3.74
Recommended Torque: 27
Reusable: Yes
SAE Size: 66
SAE Type: F
Size: 4
Spring Material: Steel
Type: T-Bolt
TechSpec Clamp Style: Constant Tension T-Bolt Clamp
TechSpec Minimum Clamp Diameter (in): 3.74
TechSpec Maximum Clamp Diameter (in): 4.06
TechSpec Material: Stainless Steel
TechSpec Includes: (1) Mishimoto Stainless Steel Constant Tension T-Bolt Clamp--Mishimoto Lifetime Warranty
TechSpec Recommended Tightening Torque: 27 in-lbs (3 NM)
TechSpec Band Width (in): 0.75
TechSpec SAE Number: N/A
TechSpec Note: If using this clamp, we recommend purchasing:--MMICP-SS-25U----MMICP-SS-3U
SellingPoint01: Securely clamps pipes, couplers, and hoses with an outer diameter from 3.74- 4.06-in (95mm-103mm)
SellingPoint02: Constant tension spring maintains clamping pressure through a wide range of temperatures
SellingPoint03: Included self-locking nut prevents loosening with movement and vibration
SellingPoint04: Stainless steel construction resists corrosion longer than zinc-plated clamps
SellingPoint05: Optional wear-resistant titanium nitride gold coating provides unique engine bay styling
SellingPoint06: Clamps sold individually
SellingPoint07: Mishimoto Lifetime Warranty
