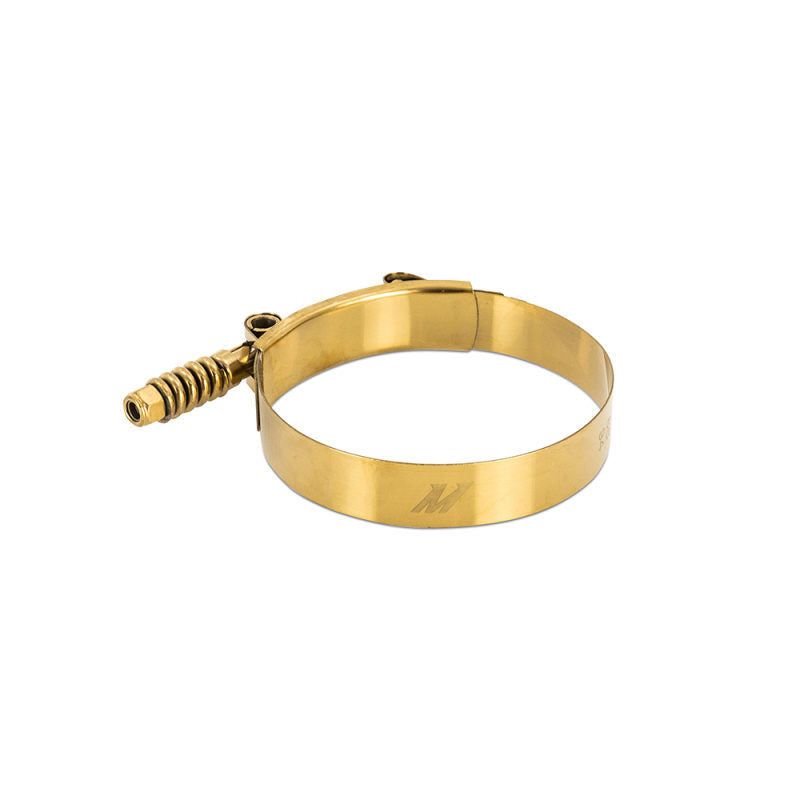

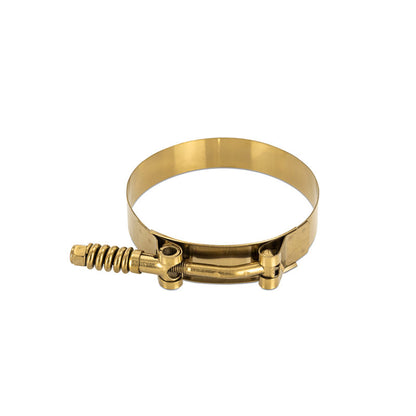

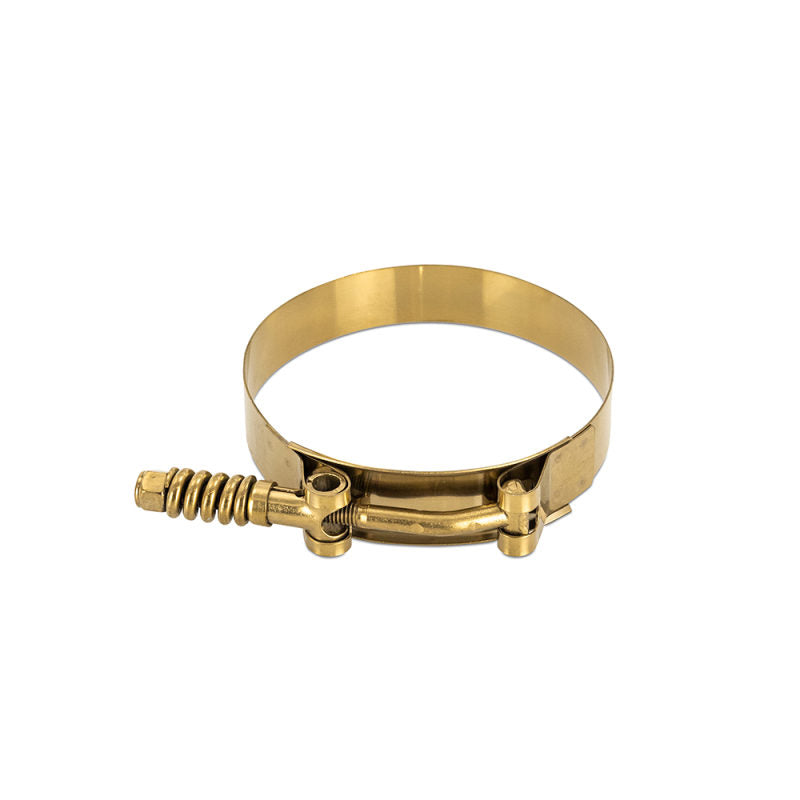

Mishimoto MMCLAMP-3TGD - 3 Inch Stainless Steel Constant Tension T-Bolt Clamp - Gold

Mishimoto MMCLAMP-3TGD - 3 Inch Stainless Steel Constant Tension T-Bolt Clamp - Gold

Mishimoto | MMCLAMP-3TGD
SKU: MMCLAMP-3TGD
Regular price $31.99 USD
Regular price $35.19 USD Sale price $31.99 USD
Sale Sold out
Shipping calculated at checkout.

21 in stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Mishimoto MMCLAMP-3TGD - 3 Inch Stainless Steel Constant Tension T-Bolt Clamp - Gold

T-Bolt Clamp, Stainless-Steel, Constant Tension, Gold, 3in

Durable hose clamp designed to provide a secure, leak-free seal for hoses in cooling, intake, and fluid systems. Corrosion-resistant construction ensures long-lasting performance and consistent clamping force.

Mishimoto's Constant Tension T-bolt Clamps are the ideal choice for clamping hoses and couplers that see a wide range of temperature and where high clamping force is needed. This 2.87" - 3.19" (73mm - 81mm) constant tension T-bolt clamps takes the superior clamping force of our traditional T-bolt clamp and adds even more reliability. A spring on the adjustment bolt allows the clamp to expand and contract with temperature swings while keeping constant pressure on the clamped parts. Like our traditional T-bolt clamps, these constant tension T-bolt clamps include a locking nut to prevent loosening under vibration. Like all Mishimoto clamps, this 2.87" - 3.19" (73mm - 81mm) constant tension T-bolt clamp is backed by our Mishimoto Lifetime Warranty.

  • Securely clamps pipes, couplers, and hoses with an outer diameter from 2.87- 3.19-in (73mm-81mm)
  • Constant tension spring maintains clamping pressure through a wide range of temperatures
  • Included self-locking nut prevents loosening with movement and vibration
Minimum Diameter: 2.87
Recommended Torque: 27
Reusable: Yes
SAE Size: 52
SAE Type: F
Size: 3
Spring Material: Steel
Type: T-Bolt
TechSpec Clamp Style: Constant Tension T-Bolt Clamp
TechSpec Minimum Clamp Diameter (in): 2.87
TechSpec Maximum Clamp Diameter (in): 3.19
TechSpec Material: Stainless Steel
TechSpec Includes: (1) Mishimoto Stainless Steel Constant Tension T-Bolt Clamp--Mishimoto Lifetime Warranty
TechSpec Recommended Tightening Torque: 27 in-lbs (3 NM)
TechSpec Band Width (in): 0.75
TechSpec SAE Number: N/A
TechSpec Note: If using this clamp, we recommend purchasing:--MMICP-SS-21----MMICP-SS-250----MMICP-SS-259----MMICP-SS-251----MMICP-SS-30----MMICP-SS-39----MMICP-SS-31
SellingPoint01: Securely clamps pipes, couplers, and hoses with an outer diameter from 2.87- 3.19-in (73mm-81mm)
SellingPoint02: Constant tension spring maintains clamping pressure through a wide range of temperatures
SellingPoint03: Included self-locking nut prevents loosening with movement and vibration
SellingPoint04: Stainless steel construction resists corrosion longer than zinc-plated clamps
SellingPoint05: Optional wear-resistant titanium nitride gold coating provides unique engine bay styling
SellingPoint06: Clamps sold individually
SellingPoint07: Mishimoto Lifetime Warranty
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Install Difficulty: 1
OptionLabel: Gold
Band Width: 0.75
Color: Gold
Finish: Plain
Grade Type: Premium
Material: Stainless Steel
Maximum Diameter: 3.19
