Mishimoto MMCFK-XD-16RD - Nissan Titan XD Coolant Filter Kit, 2016+ - Red

Name: Mishimoto MMCFK-XD-16RD - Nissan Titan XD Coolant Filter Kit, 2016+ - Red
Brand: Mishimoto
SKU: MMCFK-XD-16RD
Availability: OutOfStock

Mishimoto MMCFK-XD-16RD - Nissan Titan XD Coolant Filter Kit, 2016+ - Red

Mishimoto | MMCFK-XD-16RD
SKU: MMCFK-XD-16RD

$0.00 USD

~~$0.00 USD~~ $0.00 USD

Sale Sold out

Shipping calculated at checkout.

Out of stock

Mishimoto MMCFK-XD-16RD - Nissan Titan XD Coolant Filter Kit, 2016+ - Red

Coolant Filter Kit, Red, fits Nissan Titan XD 5.0L Cummins 2016-2019

High-performance component designed to enhance thermal efficiency, durability, and reliability under demanding conditions. Engineered to support optimal temperature control and system performance across applications.

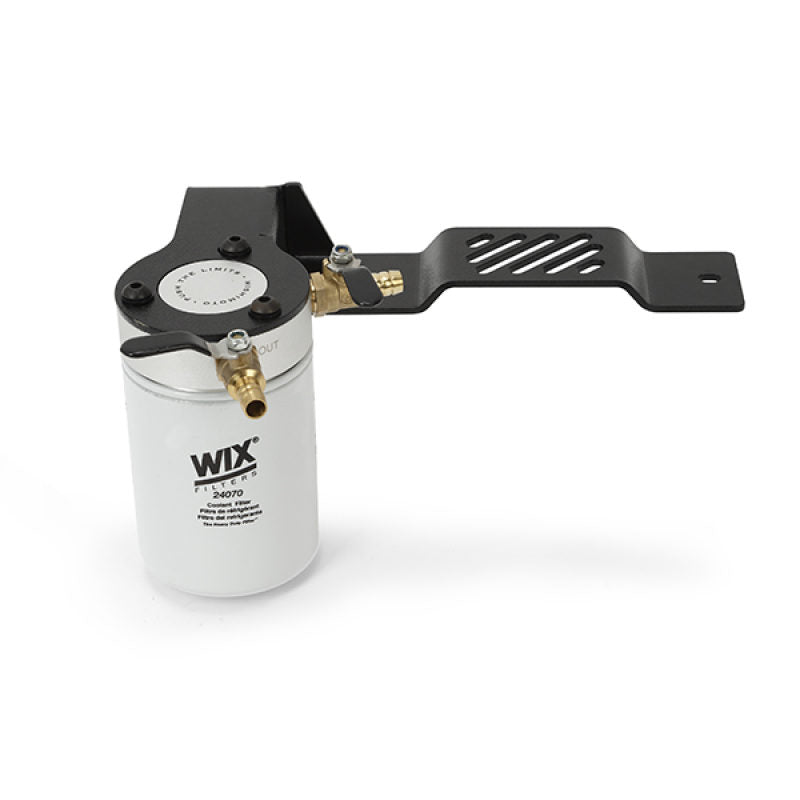

Mishimoto has released a direct-fit coolant filter kit for the 2016-2019 Nissan Titan XD to help prevent your truck from being a victim of factory cooler clogs and failure. The application-specific mounting bracket mounts a precision CNC-machined 6061 aluminum filter mount and Wix coolant filter to the passenger side battery mount, an ideal location for easily removing the filter. This Titan XD coolant filtration system is routed in parallel with the flow path of your coolant system and allows a small amount of coolant to be filtered with each pass. The Mishimoto engineers also included two brass ball valves with this kit to help make changing the filters a clean process. The two silicone coolant hoses have been designed as once piece hoses to reduce any possibility of leaks and are offered in black, blue, or red to complement any engine bay. This coolant filter kit installs in under 45 minutes with no modification necessary. Protect your truck from harmful particles and help to extend the life of your trucks oil cooler, water pump, EGR cooler, coolant, and other critical engine components with the Mishimoto Titan XD coolant filter kit. Like all Mishimoto Titan performance parts, this Titan XD Coolant Filter kit comes with the Mishimoto Lifetime Warranty.

6061 anodized aluminum filter mount
One-piece application-specific silicone hoses available in black, blue, or red
Filters solid particles from your truck's coolant

TechSpec Rows: N/A

TechSpec Core Construction: N/A

TechSpec Core Length (in): N/A

TechSpec Core Height (in): N/A

TechSpec Core Thickness (in): N/A

TechSpec Engine Codes: IS-V

TechSpec Chassis Codes: N/A

TechSpec Installation Notes: 22 in-lbs recommended for all worm gear clamps. These clamps have an operating range of 18-27 in- 2-3NM. Do not exceed the maximum torque rating of 27 in-lbs

TechSpec Caution: N/A

TechSpec Overall Height (in): N/A

TechSpec Overall Length (in): N/A

TechSpec Overall Width (in): N/A

TechSpec Inlet: N/A

TechSpec Outlet: N/A

TechSpec Note: Mishimoto recommends changing the coolant filter after the first month, again after 3 months, and then every year after that, depending on driving conditions. Because each engine was cast differently, there will be a different amount of debris collected. Utilizes WIX filter #24070

SellingPoint01: Direct fit for 2016-2019 Nissan Titan XD

SellingPoint02: 6061 anodized aluminum filter mount

SellingPoint03: One-piece application-specific silicone hoses available in black, blue, or red

TechSpec Fluid Capacity (qts): N/A

TechSpec Applications: 2016-2019 Nissan Titan XD 5.0 Cummins

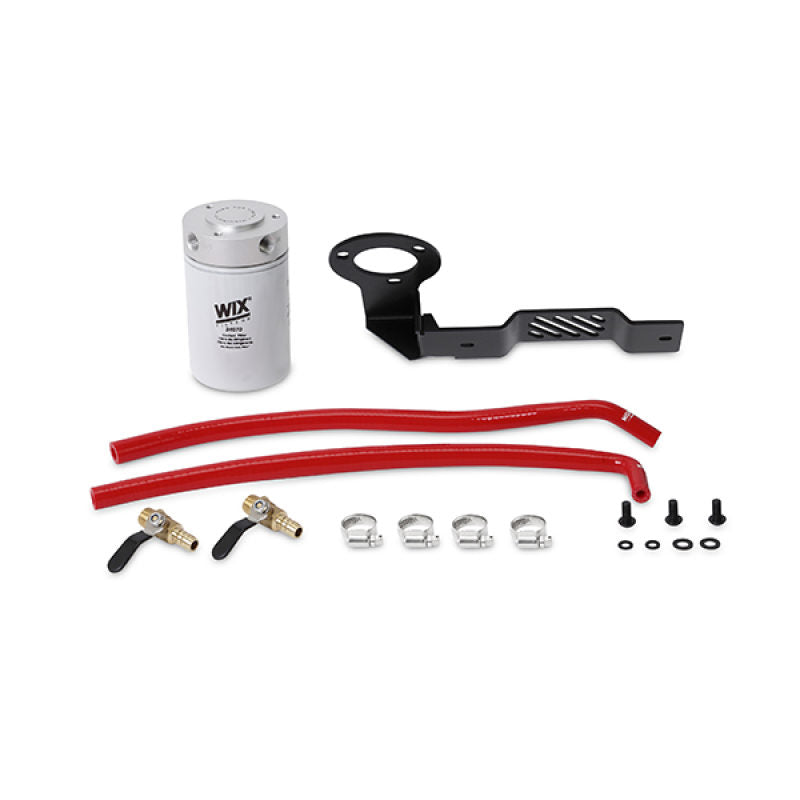

TechSpec Includes: Application-Specific Mounting Bracket--Silver, Anodized 6061 Aluminum Filter Mount--Coolant Filter--Direct-Fit Silicone Hoses--Brass Ball Valves--Worm Gear Clamps--Plastic Straight Barbed Fitting--Mounting Hardware--Mishimoto Lifetime Warranty

SellingPoint04: Filters solid particles from your truck's coolant

SellingPoint05: Extends the life of your oil cooler, water pump, EGR cooler, coolant, and other critical components

SellingPoint06: No modification of factory hoses

SellingPoint07: Includes Wix coolant filter

SellingPoint08: Ball valve shut-offs included

SellingPoint09: Installs in under 45 minutes

SellingPoint10: Mishimoto Lifetime Warranty

SellingPoint11: N/A

SellingPoint12: N/A

SellingPoint13: N/A

OptionLabel: Red

Configuration: Multi-Piece
