Mishimoto MMBCC-MS3-07PBE2 - 07-13 Mazda Mazdaspeed3 Baffled Oil Catch Can Kit - Black (PCV Side)

Mishimoto MMBCC-MS3-07PBE2 - 07-13 Mazda Mazdaspeed3 Baffled Oil Catch Can Kit - Black (PCV Side)

Mishimoto | MMBCC-MS3-07PBE2
SKU: MMBCC-MS3-07PBE2
Regular price $229.95 USD
Regular price $253.00 USD Sale price $229.95 USD
Sale Sold out
Shipping calculated at checkout.

9 in stock

Quantity

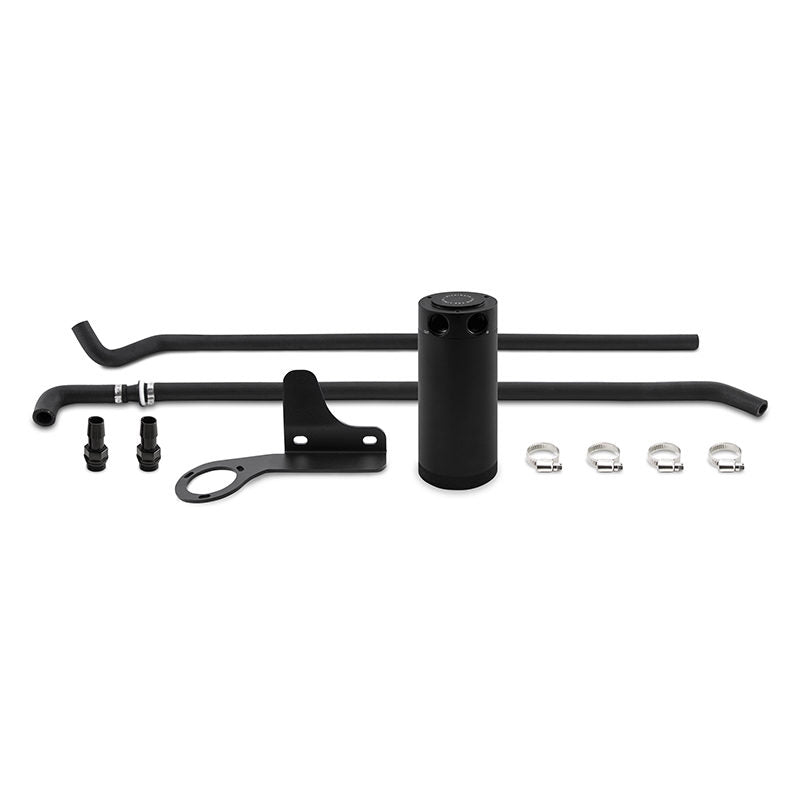

Mishimoto MMBCC-MS3-07PBE2 - 07-13 Mazda Mazdaspeed3 Baffled Oil Catch Can Kit - Black (PCV Side)

Baffled Oil Catch Can, PCV Side, fits Mazdaspeed 3 2007-2013

Engine oil catch can kit designed to capture oil vapors and prevent buildup in the intake system. Helps maintain efficiency, reduce carbon deposits, and improve performance with durable components and easy installation.

Add a layer of protection to your 2007-2013 Mazdaspeed 3 with the Mishimoto Baffled Oil Catch Can Kit. While the MS3 might have been one of the pioneers in the North American hot-hatch renaissance in the mid-2000s, but like the rest of the direct injected turbo charged engines of that era, It'suffered from copious carbon build up due to engine blow-by. The 2.3L MZR turbo also has a unique issue with blow-by as It's equipped with a top-mounted intercooler which is prone to heat soak effectively baking in all of the oil and fuel droplets into the heat exchanger. With the Mishimoto Baffled Oil Catch Can Kit, those crank-case gases are intercepted before even reaching the intercooler in the 6061-billet aluminum can. We also included our taller 7.5 oz. catch can to compensate for the increased levels of blow-by that the Mazdaspeed 3 experiences in colder weather. Also included in the kit are pre-formed hoses along with all of the necessary mounting hardware to ensure a simple, and direct fit to your MS3. As with all of our products, the Mazdaspeed 3 Baffled Oil Catch Can Kit is covered under the Mishimoto Lifetime Warranty, keeping your 2.3L MZR Turbo blow-by free over the lifetime of the car.

  • Single can mounts in line with the PCV system to separate oil from air using a 50-micron bronze filter
  • Installs in under 30 minutes

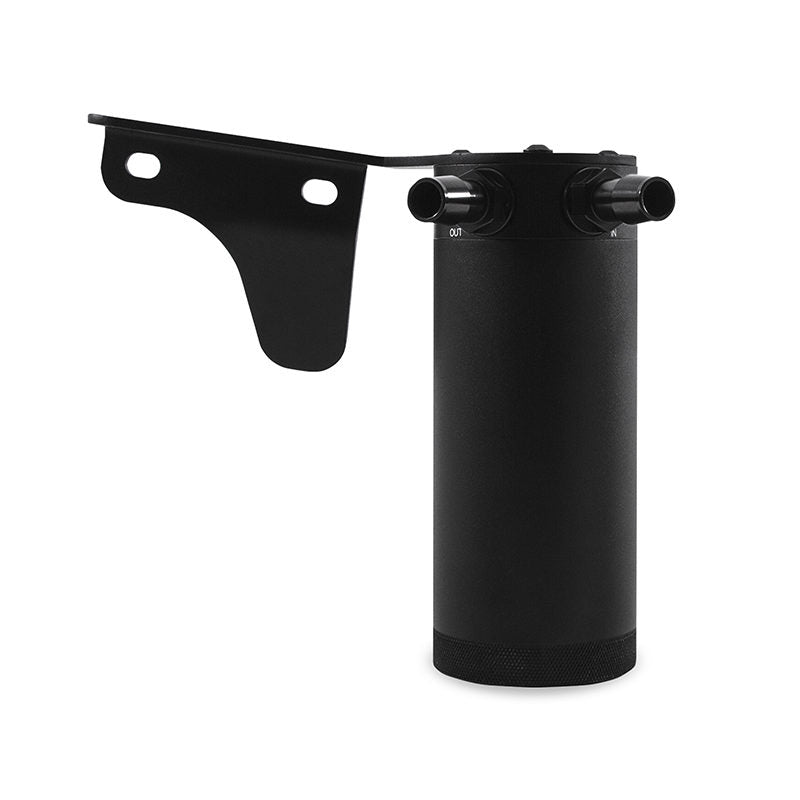

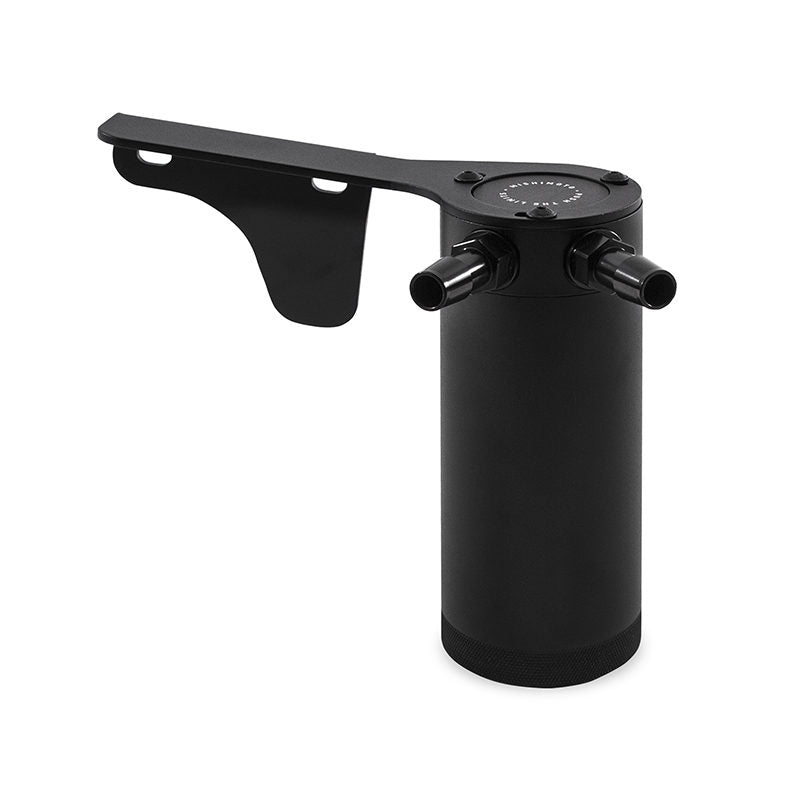

  • Robust, application-specific bracket mounts the can in a serviceable location
Drain Plug Included: Yes
Finish: Anodized
Height: 6.2
Hose Included: Yes
Inlet Port Inside Diameter: 0.5
Inlet Port Quantity per Can: 1
Interior Baffle: Yes
Maximum Can Capacity: 7.5
Mounting Bracket Included: Yes
Outlet Port Inside Diameter: 0.5
Outlet Port Quantity per Can: 1
TechSpec Height (in): N/A
TechSpec Catch Can Diameter (in): N/A
TechSpec Inlet: N/A
TechSpec Outlet: N/A
TechSpec Drain Plug Thread Size: N/A
TechSpec Includes: N/A
TechSpec Applications: N/A
TechSpec Engine Codes: N/A
TechSpec Chassis Codes: N/A
TechSpec Material: N/A
TechSpec Installation Notes: N/A
TechSpec Note: N/A
SellingPoint01: Direct fit for the 2007-2009 Mazdaspeed 3
SellingPoint02: Single can mounts in line with the PCV system to separate oil from air using a 50-micron bronze filter
SellingPoint03: Installs in under 30 minutes
SellingPoint04: Robust, application-specific bracket mounts the can in a serviceable location
SellingPoint05: Catch can has an extra large 7.5 oz. capacity for longer servicing intervals
SellingPoint06: Molded hoses include pre-installed check valve for a true plug-and-play install
SellingPoint07: Defends intake system and essential components from oil blow-by
SellingPoint08: Helps maintain proper octane levels to reduce potential detonation

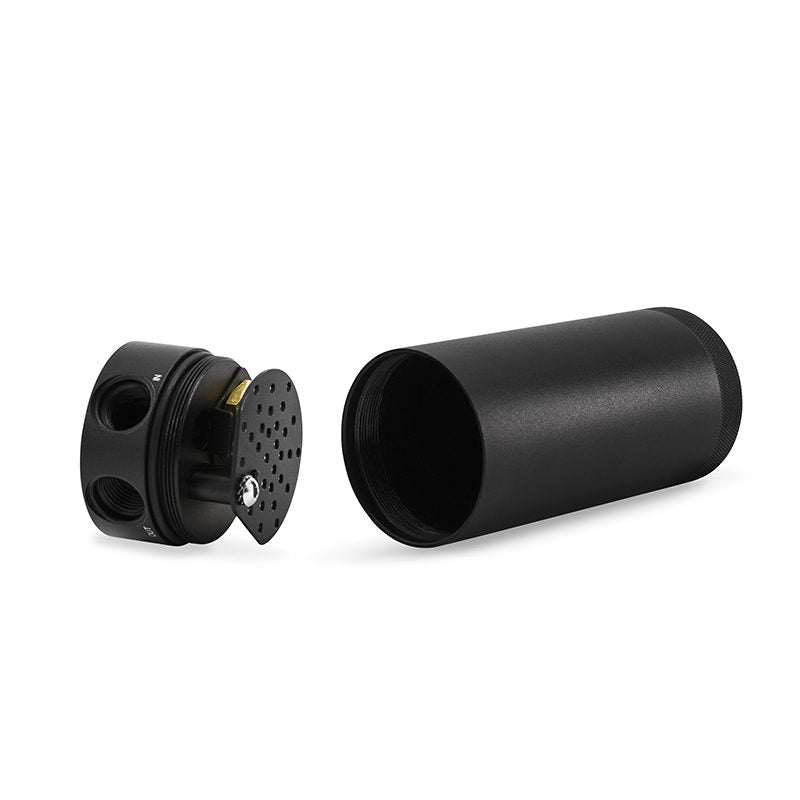

SellingPoint09: Billet 6061 aluminum sealed can is fully serviceable
SellingPoint10: Internal air diverter increases air turbulence to improve oil separation
SellingPoint11: Patent No. US ZL 202120175368.7
SellingPoint12: Mishimoto Lifetime Warranty
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Install Difficulty: 3
Can Finish: Anodized
Can Material: 6061-T6 Billet Aluminum
Can Outside Diameter: 2.5
Can Type: Twist Off
Color: Black
