Mile Marker - 77-53112BW

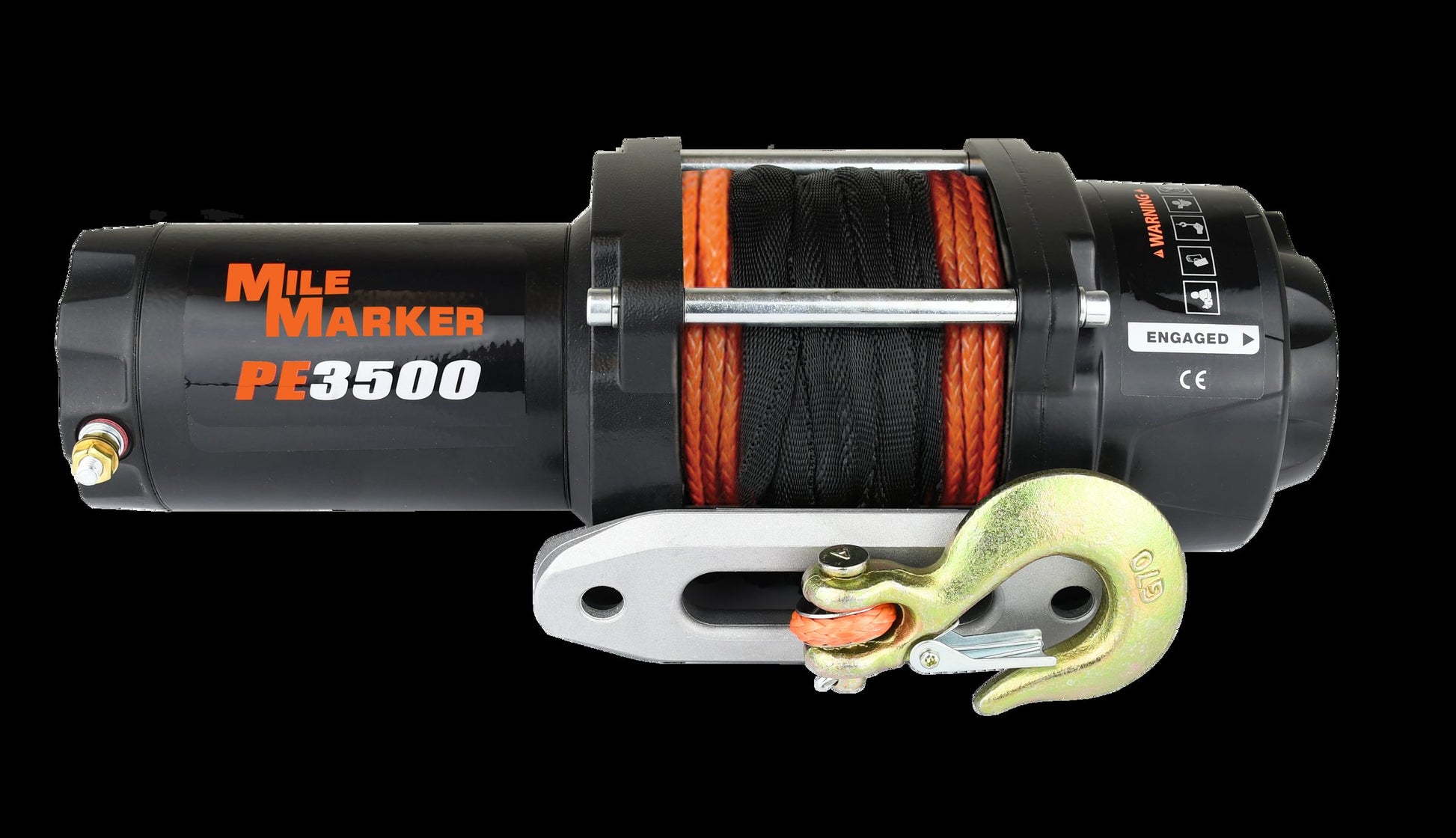

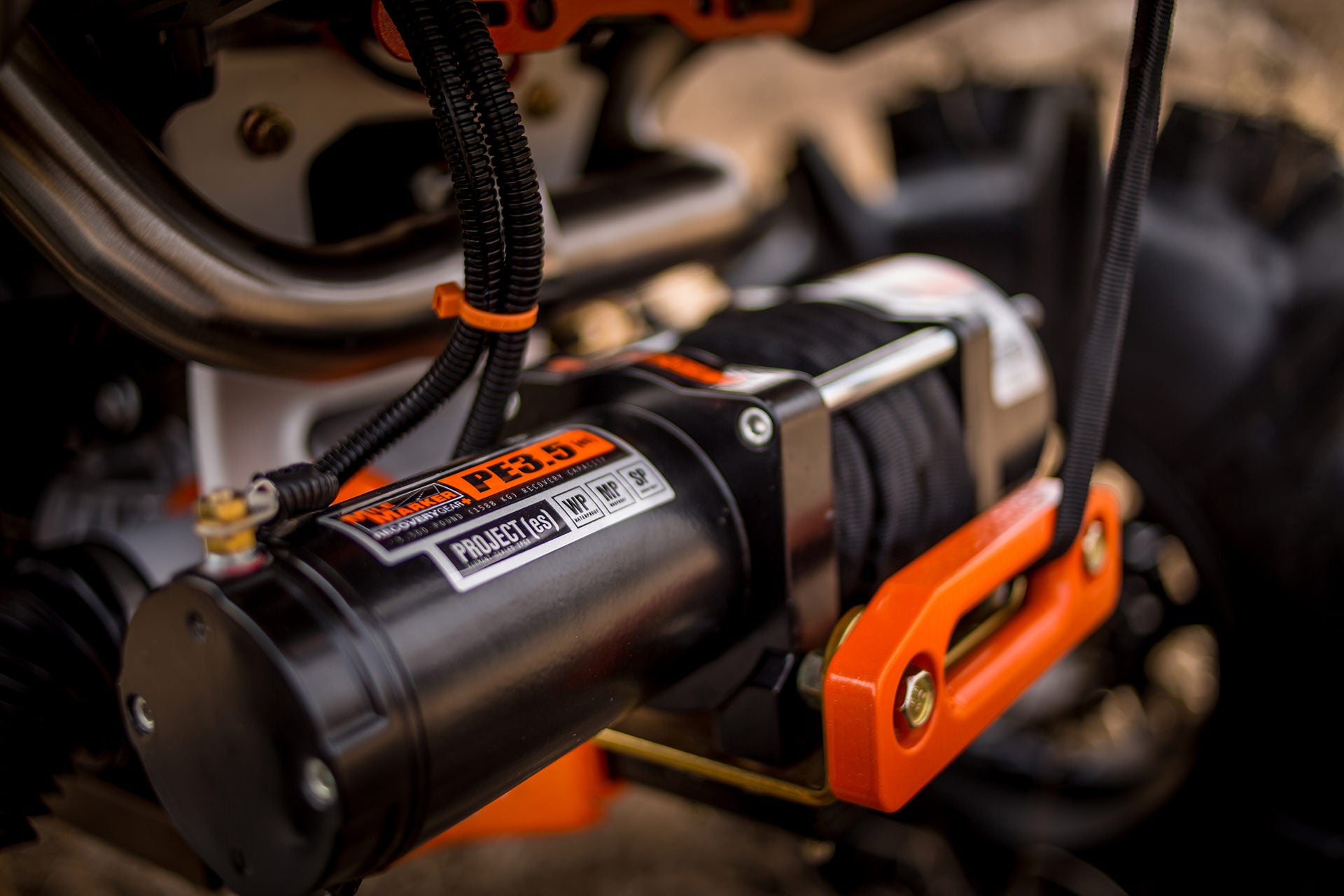

At less than 16 pounds, the Mile Marker PE3500winch for ATVs boasts top-of-the-line recovery speeds and an impressive 3500 pounds of pulling capacity.
Fully-sealed, submersible, water, mud, and snow proof, the PE3500 includes a 7/32 inch x 50 foot synthetic rope, an aluminum hawse fairlead, a hook, corrosive-resistant, and a handheld remote control and a handle bar mounted remote control for versatility and convenience.
With the all-metal, 3-stage planetary gear train, 200-amp solenoid, high-output, permanent magnet motor and marine grade remote control connectors, the PE3500 provides the durability and reliability you can depend on in the most extreme situations.
Features:
- 2.4 HP Permanent Magnet Motor
- All Metal Planetary Gearing
- Submersible, 200 Amp Solenoid
- Automatic Load Holding Brake
- Center Focused Drum
- Fast Line Speeds
- 50 foot of Synthetic Rope
- Aluminum Hawse Fairlead
- Waterproof
- Handheld and Handlebar Remote Controls
Specifications:
- Rated line pull 3500 lbs (1588 kg) Single Line
- Gear Train 3 Stage Planetary
- Gear Ratio 242:1
- Motor Permanent Magnet, 2.4 hp (1.5kw), 12 V DC
- Remote Control Power-In, Power-Out Remote, 12 foot (3.6 m)
- Dimensions (LxWxH) 13.0 inch X 4.1 inch X 4.2 inch (330 mm X 105 mmX 108 mm)
- Synthetic Rope 7/32 inch X 50 foot (nominal 5440 lbs, 2468 kg) (5.5 mm X 15.2 m)
- Drum Size Diameter/Length 1.5 inch X 3.15 inch (38.1 mm X 80 mm)
- Net weight 15.9 lbs (9.4 kg)
- Bolt Pattern 4 Bolt Pattern, 4.88 inch X 3 inch (124 mm X 76.2 mm)
