Mile Marker 77-50280W - SEC18 18,000 lb Heavy Duty Electric Recovery Winch 12V 79 Foot

Mile Marker 77-50280W - SEC18 18,000 lb Heavy Duty Electric Recovery Winch 12V 79 Foot

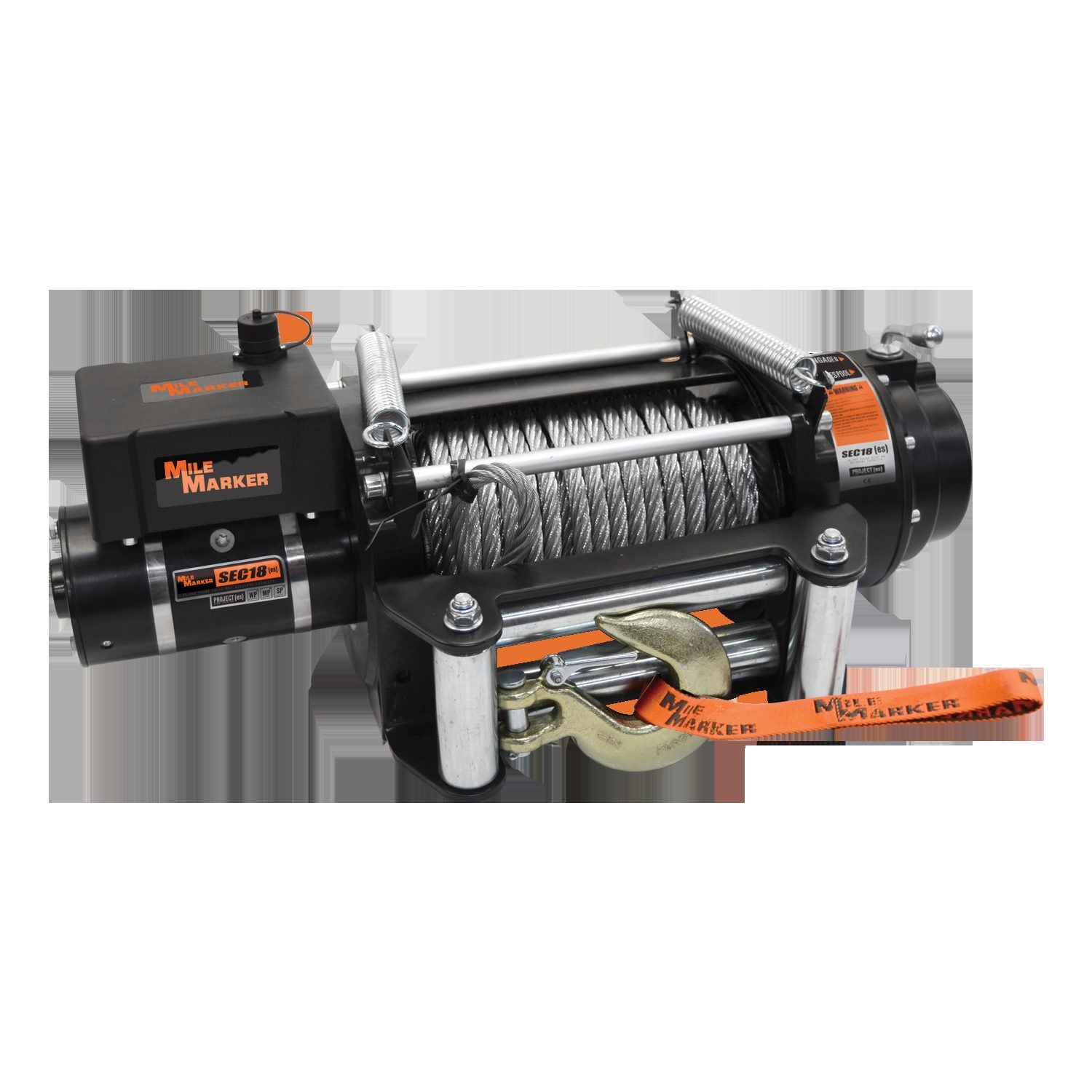

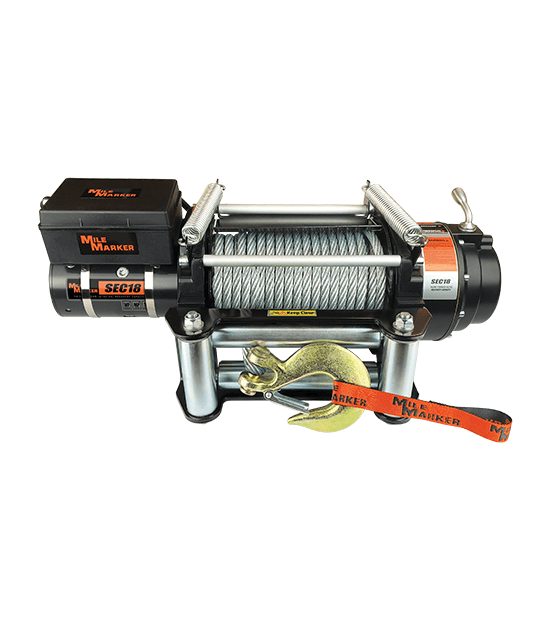

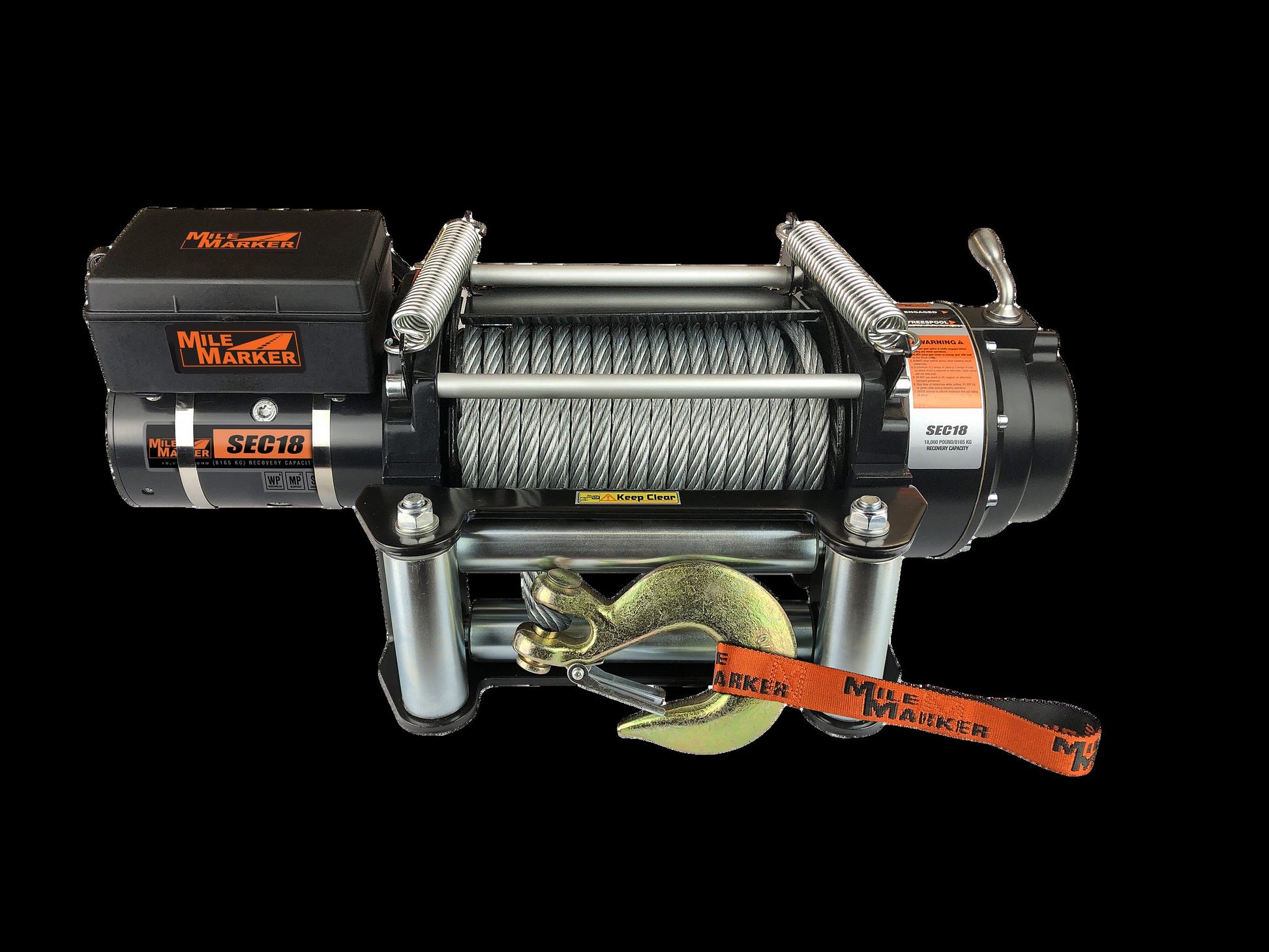

The SEC18 18,000 lb Heavy Duty Electric Recovery Winch represents the most powerful electric winch in the Mile Marker lineup. Delivering an impressive 18,000 lb rated line pull, the SEC18 is engineered for demanding recovery, tow truck, fleet, and industrial Dc applications that require serious pulling capability. Despite its high capacity rating, the winch maintains a relatively manageable weight and compact configuration to support installation flexibility across a wide range of mounting systems.

Featuring fast line speeds and fully sealed submersible construction, the SEC18 is built to perform reliably in harsh environmental conditions including exposure to water, mud, and debris. Designed to meet SAE J706 standards, it reflects Mile Marker's commitment to tested performance and operational safety. The winch includes a 10 in drum and features an 8 bolt mounting pattern with 6.5 x 12 and 4.5 x 12 configurations to support multiple installation requirements.

An optional 7.75 in drum is available to accommodate a 10 in mounting pattern. A rugged heavy duty solenoid ensures dependable power delivery, while a low friction automatic load holding brake integrated into a military grade drum helps maintain controlled positioning under load. Built with corrosion resistant stainless fasteners and accents, the SEC18 combines high capacity strength, sealed protection, and proven Mile Marker engineering to deliver reliable heavy duty electric recovery performance.

Features and Benefits:

• 18,000 lb rated line pull delivers maximum electric recovery power for heavy duty truck and industrial applications.
• Fast line speeds improve recovery efficiency and reduce pull times under heavy load.
• Fully sealed and submersible construction protects internal components in harsh environments.
• Low friction automatic load holding brake in a military grade drum maintains controlled positioning.
• SAE J706 compliant design with rugged heavy duty solenoid ensures dependable high capacity performance.

Associated Comments:

• Designed to work with heavy duty trucks, tow vehicles, fleet service units, and industrial Dc applications requiring up to 18,000 lb rated line pull. Designed for permanent mounting using compatible 8 bolt mounting patterns of 6.5 x 12 and 4.5 x 12. Includes 10 in drum configuration. Customized products may require an additional 4 to 6 weeks for shipment. Always verify mounting structure and electrical system capacity prior to installation.
• Engineered for fully submersible operation and exposure to harsh environmental conditions. Requires proper electrical connection to a suitable 12V battery system with secure grounding capable of supporting high current draw. Requires inspection of cable, hook, drum, and mounting hardware before each use. Not intended for overhead lifting or personnel lifting applications. Follow all SAE and rated load guidelines during operation.

Details:

• Cable Length: 79 Foot
• Gear Housing: Clockable
• Gear Ratio: 13.1256944444444
• Gear Train: 3 Stage Planetary
• Winch Brake: Automatic Load Holding
• Winch Fairlead Type: Roller Fairlead
• Winch Line Material: Steel
• Winch Motor: 7.7 HP Series Wound Motor
• Rope Diameter: 1/2 Inch
• Series: SEC Series
• Style: Electric Winch
• Pull Capacity: 18000 LB
• Volts: 12 Volt DC
• Material: Metal
• Remote Type: Handheld
• Waterproof Rating: IP68 Rated
• Warranty: 2 Year
