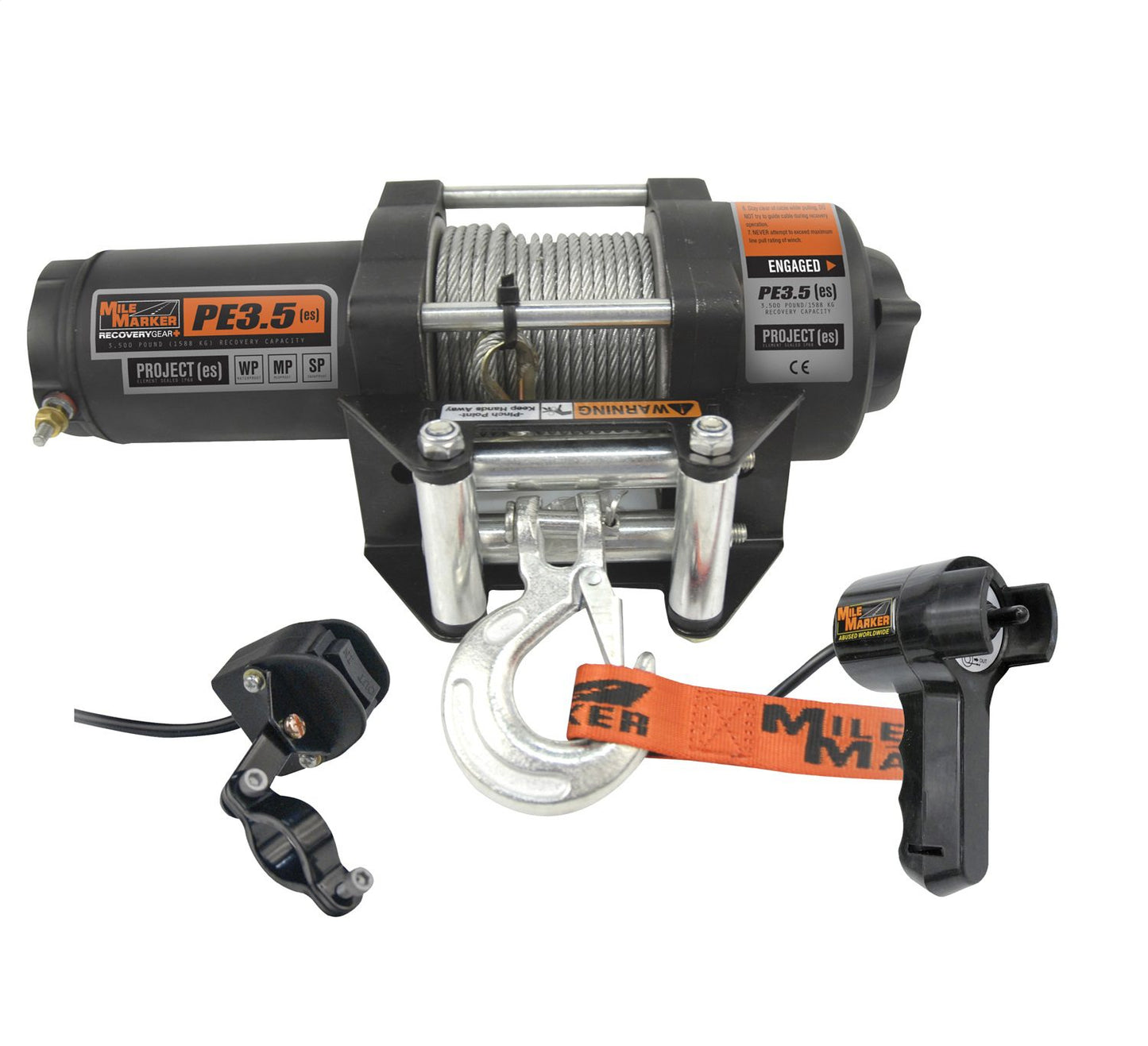

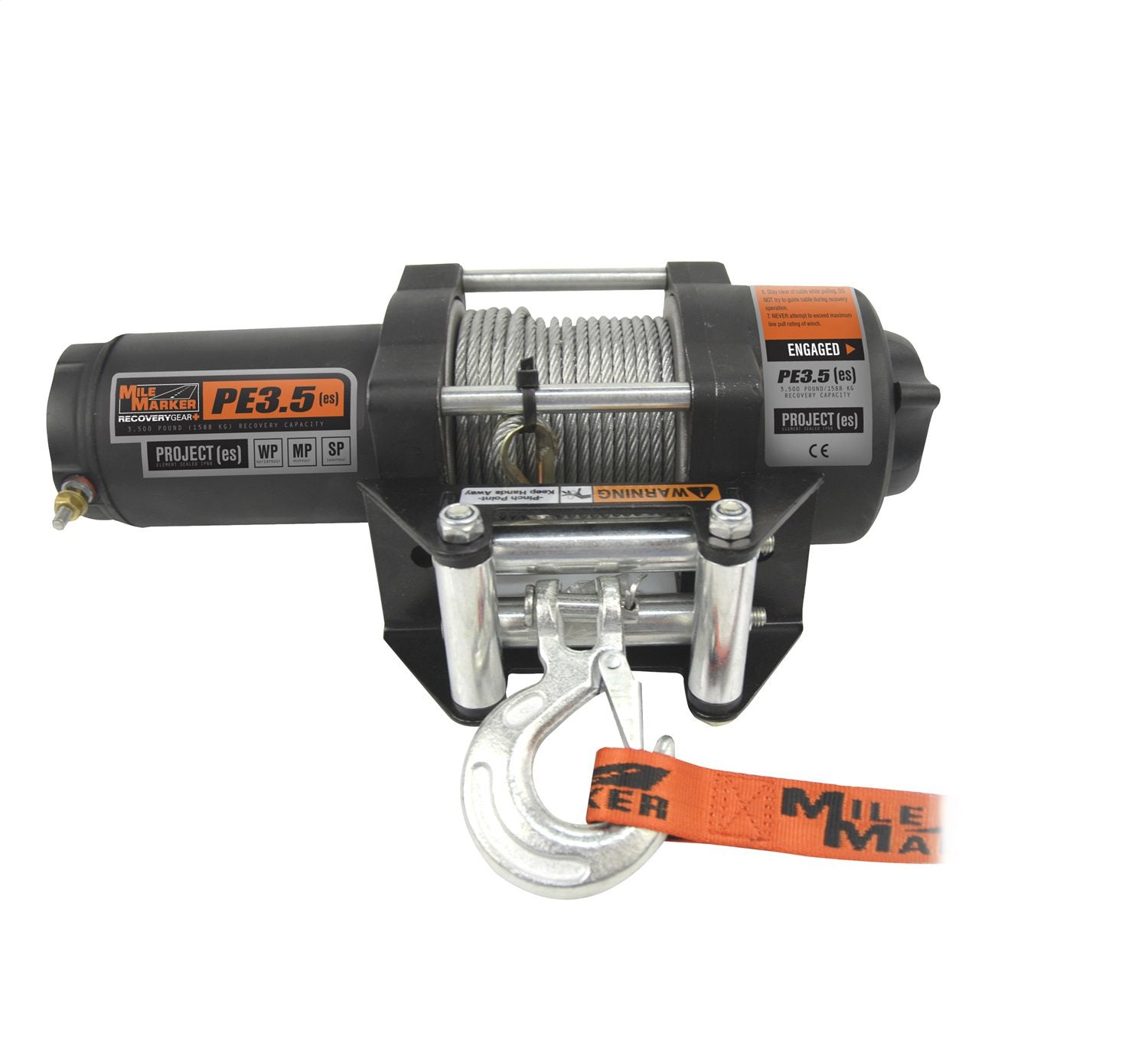

Mile Marker 77-50112BW - PE3.5 3,500 lb Waterproof ATV UTV Winch 12V 42 Foot

Mile Marker 77-50112BW - PE3.5 3,500 lb Waterproof ATV UTV Winch 12V 42 Foot

The PE3.5 3,500 lb Waterproof Powersport Winch is engineered to deliver dependable recovery performance for ATVs and UTVs operating in demanding terrain. Weighing less than 16 lb, this compact 12V winch combines lightweight design with an impressive 3,500 lb rated line pull, making it ideal for trail recovery, property maintenance, and utility applications. Built with a fully sealed and submersible housing, the PE3.5 is designed to resist water, mud, and snow while maintaining consistent performance in harsh environments.

A high output 2.4 hp permanent magnet motor delivers strong pulling power and efficient operation, while the all metal 3 stage planetary gear train ensures smooth power transfer and long term durability. The submersible 200 amp solenoid provides reliable power management, and marine grade remote control connectors enhance resistance to corrosion and moisture. An automatic load holding brake integrated with a center focused drum helps maintain controlled load positioning and reduce rollback during winching operations.

The steel cable configuration includes 45 ft of 7/32 in cable and a roller fairlead for secure line management. Designed to meet the demands of serious powersport users, the PE3.5 combines sealed protection, rugged construction, and proven Mile Marker engineering to deliver reliable performance in extreme outdoor conditions.

Features and Benefits:

• 3,500 lb rated line pull in a lightweight sub 16 lb design for reliable ATV and UTV recovery performance.
• All metal 3 stage planetary gearing provides smooth operation and long term durability.
• Fully sealed and submersible housing protects against water, mud, and harsh trail conditions.
• High output 2.4 hp permanent magnet motor delivers strong and efficient pulling power.
• Submersible 200 amp solenoid and marine grade connectors improve reliability in extreme environments.

Associated Comments:

• Designed to work with ATVs and UTVs requiring up to 3,500 lb rated line pull. Designed for permanent mounting on compatible powersport winch mounts. Replacement for light to mid range ATV and UTV winches where waterproof performance and compact size are required. Steel cable version includes 45 ft of 7/32 in steel cable and roller fairlead. Customized products may require an additional 4 to 6 weeks for shipment. Always verify mounting structure and electrical system capacity prior to installation.
• Engineered for fully submersible operation and exposure to water, mud, snow, and harsh trail conditions. Requires proper electrical connection to a suitable 12V battery with secure grounding. Requires inspection of steel cable, hook, and mounting hardware before each use. Not intended for overhead lifting or personnel lifting applications. Follow all rated load limits and safe winching practices during operation.

Details:

• Drum Diameter: 1.5x3.15 Inch
• Cable Length: 42 Foot
• Gear Ratio: 10.0840277777778
• Gear Train: Planetary
• Winch Brake: Automatic Load Holding
• Winch Fairlead Type: Roller Fairlead
• Winch Line Material: Steel
• Winch Motor: 2.4 HP Permanent Magnet Motor
• Rope Diameter: 7/32 Inch
• Series: PE Series
• Style: Electric Winch
• Pull Capacity: 3500 LB
• Volts: 12 Volt
• Material: Metal
• Remote Type: Handheld
• Waterproof Rating: IP68 Rated
• Warranty: 2 Year
