Mile Marker 75-52000C - HI12000 12,000 lb 2 Speed Hydraulic Winch Integrated Solenoid 100 Foot

Mile Marker 75-52000C - HI12000 12,000 lb 2 Speed Hydraulic Winch Integrated Solenoid 100 Foot

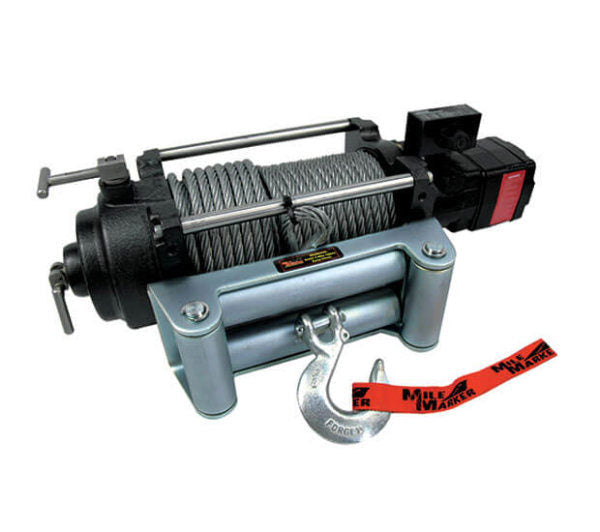

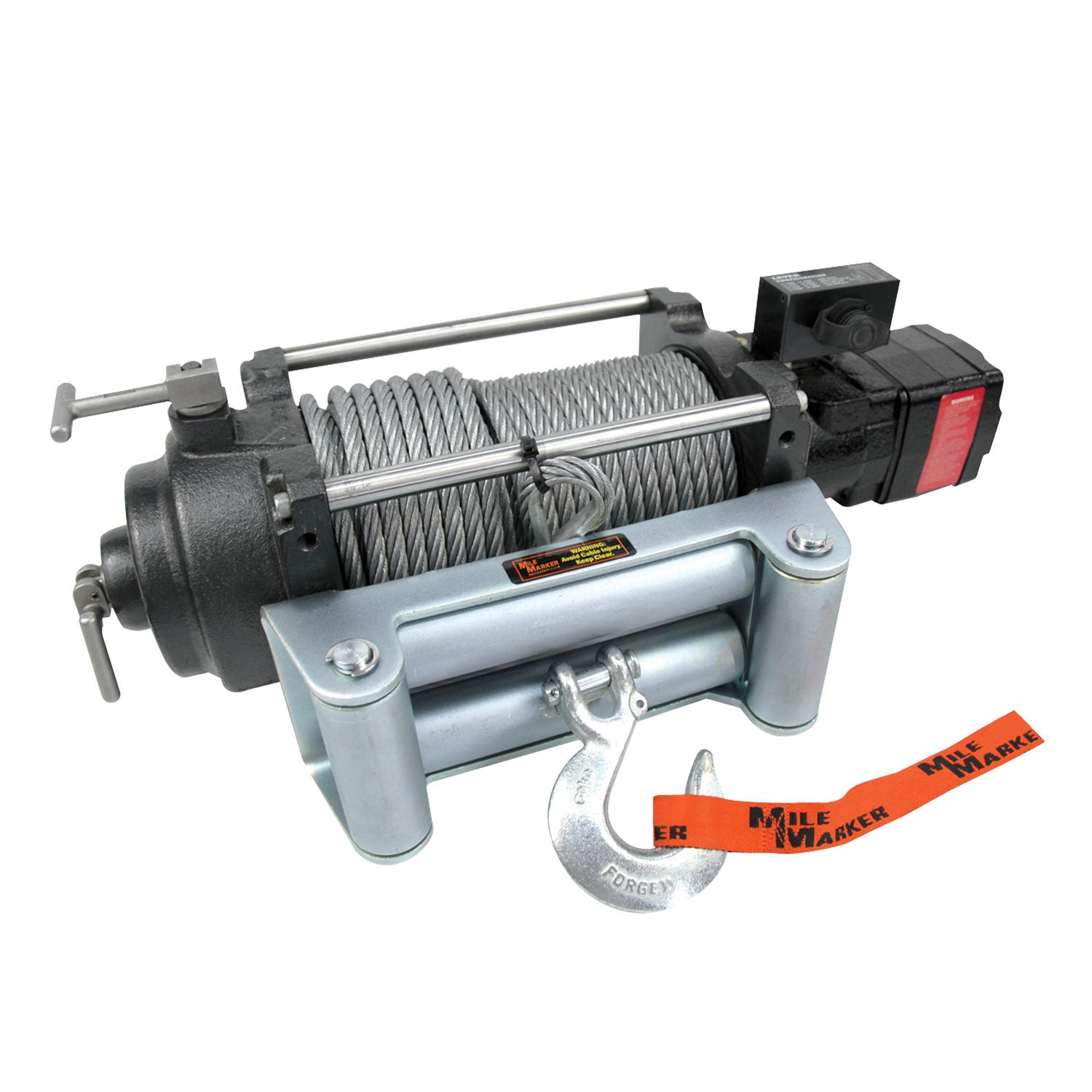

The Mile Marker HI12000 12,000 lb 2 Speed Hydraulic Winch with Integrated Solenoid is engineered for permanent front or rear mounting on vehicles requiring maximum hydraulic recovery strength. Featuring a factory mounted solenoid control valve integrated directly onto the winch, the HI12000 streamlines installation and simplifies hydraulic plumbing compared to remote valve configurations. Powered by a robust 18.7 cu in hydraulic motor, this winch delivers a 12,000 lb rated line pull with true continuous duty capability, utilizing hydraulic power to operate without draining the vehicle battery.

Designed for durability in extreme environments, the HI12000 features completely element proof construction with corrosion and water resistant components for reliable performance in mud, rain, snow, and severe off road conditions. The heavy duty ductile iron body enhances structural integrity, while reversible mounting on three sides provides flexible installation options. Two speed operation allows controlled line management and improved retrieval efficiency, and free spooling capability enables rapid line payout during setup.

A mechanical lock system supports secure load control under tension, and stainless steel tie bars and fasteners provide long term corrosion resistance and strength. Supplied with 100 ft of steel cable and roller fairlead, the HI12000 is built for demanding recovery applications. An illuminated joystick remote control is included for precise and visible operation.

Installation requires a vehicle specific 35 Series valve adapter kit to properly integrate with the vehicle power steering pump. Combining integrated control efficiency, ductile iron strength, and trusted Mile Marker hydraulic engineering, the HI12000 delivers uncompromising recovery performance for professional and off road use.

Features and Benefits:

• 12,000 lb rated line pull with true continuous duty hydraulic operation.
• Ductile iron body with 3 sided mounting enhances structural strength and versatility.
• Factory integrated solenoid valve simplifies installation and improves hydraulic efficiency.
• Includes illuminated joystick remote for precise and visible winch control.
• Two speed operation and free spooling improve control and recovery flexibility.

Associated Comments:

• Designed to work with vehicles equipped with compatible hydraulic systems requiring up to 12,000 lb rated line pull. Designed for permanent front or rear mounting with reversible 3 sided mounting configuration and factory integrated solenoid valve. Replacement for remote valve hydraulic winches where simplified installation and integrated control are preferred. Includes 100 ft steel cable, roller fairlead, and illuminated joystick remote control. Adapter sold separately. Requires vehicle specific 35 Series valve adapter kit to integrate with the vehicle power steering pump. Always verify hydraulic flow, pressure ratings, and mounting structure prior to installation.
• Engineered for off road, commercial, and severe duty recovery environments. Requires properly configured hydraulic plumbing and compatible 35 Series valve adapter kit for operation. Requires inspection of steel cable, hook, fairlead, hydraulic lines, and mounting hardware before each use. Not intended for overhead lifting or personnel lifting applications. Follow all rated load limits and hydraulic system safety guidelines during operation.

Details:

• Drum Diameter: 2.5x9 Inch
• Cable Length: 100 Foot
• Gear Ratio: 0.250694444444444
• Gear Train: Planetary
• Winch Brake: Automatic Load Holding
• Winch Fairlead Type: Roller Fairlead
• Winch Line Material: Steel
• Rope Diameter: 3/8 Inch
• Style: Hydraulic Winch
• Pull Capacity: 12000 LB
• Volts: 12 Volt
• Material: Metal
• Remote Type: Handheld
• Waterproof Rating: IP68 Rated
• Warranty: 5 Year
