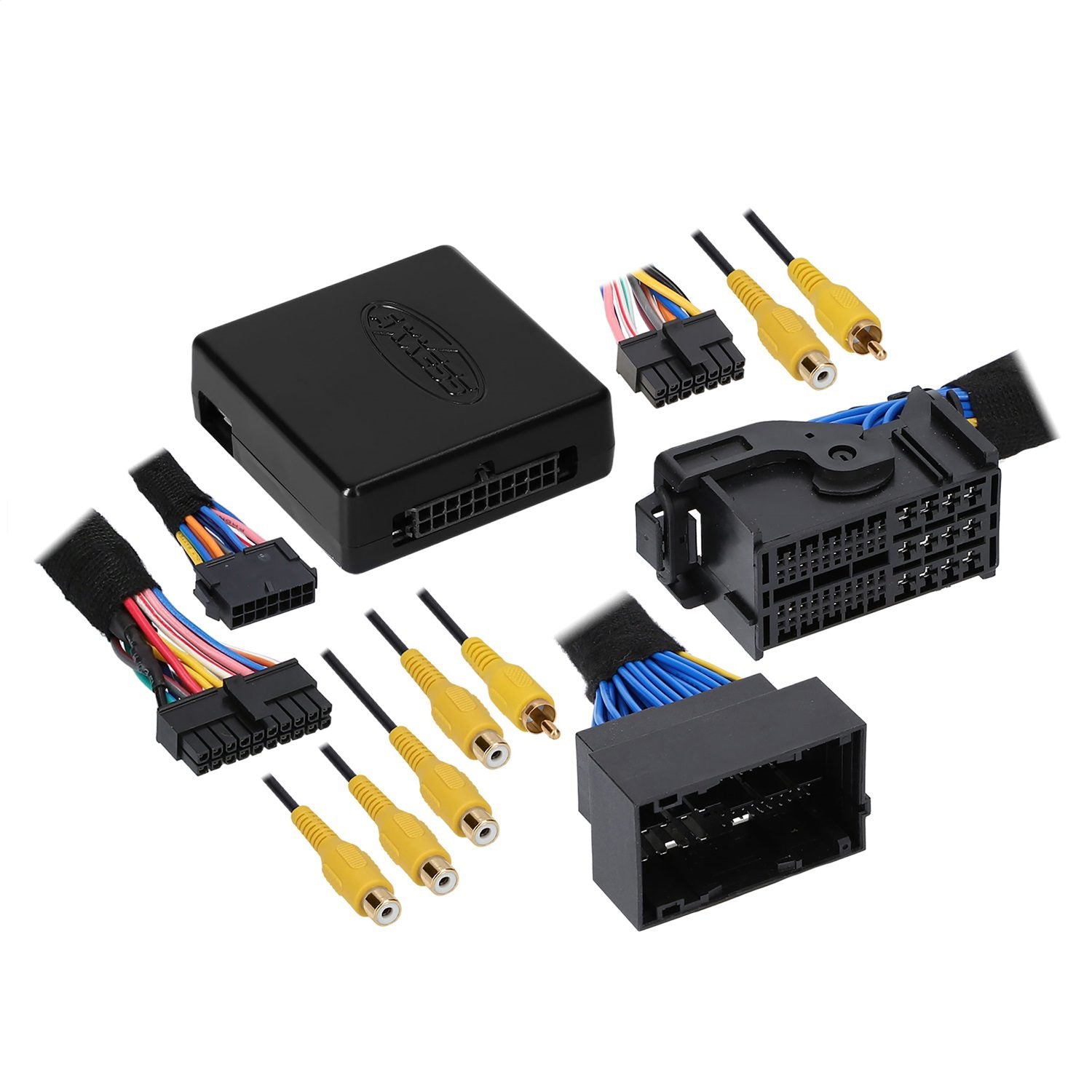

Metra Electronics AXAC-CH5 - Camera Add-On Package

Metra Electronics AXAC-CH5 - Camera Add-On Package

Camera Add-On Package;

Dodge/Ram/Jeep Add-On Multiple CAN Activated Cameras 2013-up. With this interface you can add multiple cameras to the OEM screen. Allows up to (4) Camera inputs. Programmable 12V 5-amp switched output (configured through the Axxess Updater program) and has a Reverse signal trigger generated via CAN bus communication of the vehicle. Turn signal trigger generated via CAN bus communication of the vehicle. (4) Programmable camera control wires (configured through the Axxess Updater program). Can also be manually controlled and used along with an aftermarket radio.

• To Be Used When Adding Cameras To An OEM Screen
• 4 Camera Inputs
• Programmable 12V 5-Amp Switched Output
• Reverse Signal Trigger Generated By CAN Bus Comm Of Vehicle
• Turn Signal Trigger Generated Via CAN Bus Com Of Vehicle
• Programmable Cam Control Wires Configure Through Updater Program
• Can Be Manual Controlled And Used With An Aftermarket Radio
• VSS - Vehicle Speed Sense Input And Output
