Melling MWP-505 - Stock Replacement Water Pump

Melling MWP-505 - Stock Replacement Water Pump

Melling | MWP-505
SKU: BCBCMWP-505
$0.00 USD
$0.00 USD $0.00 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

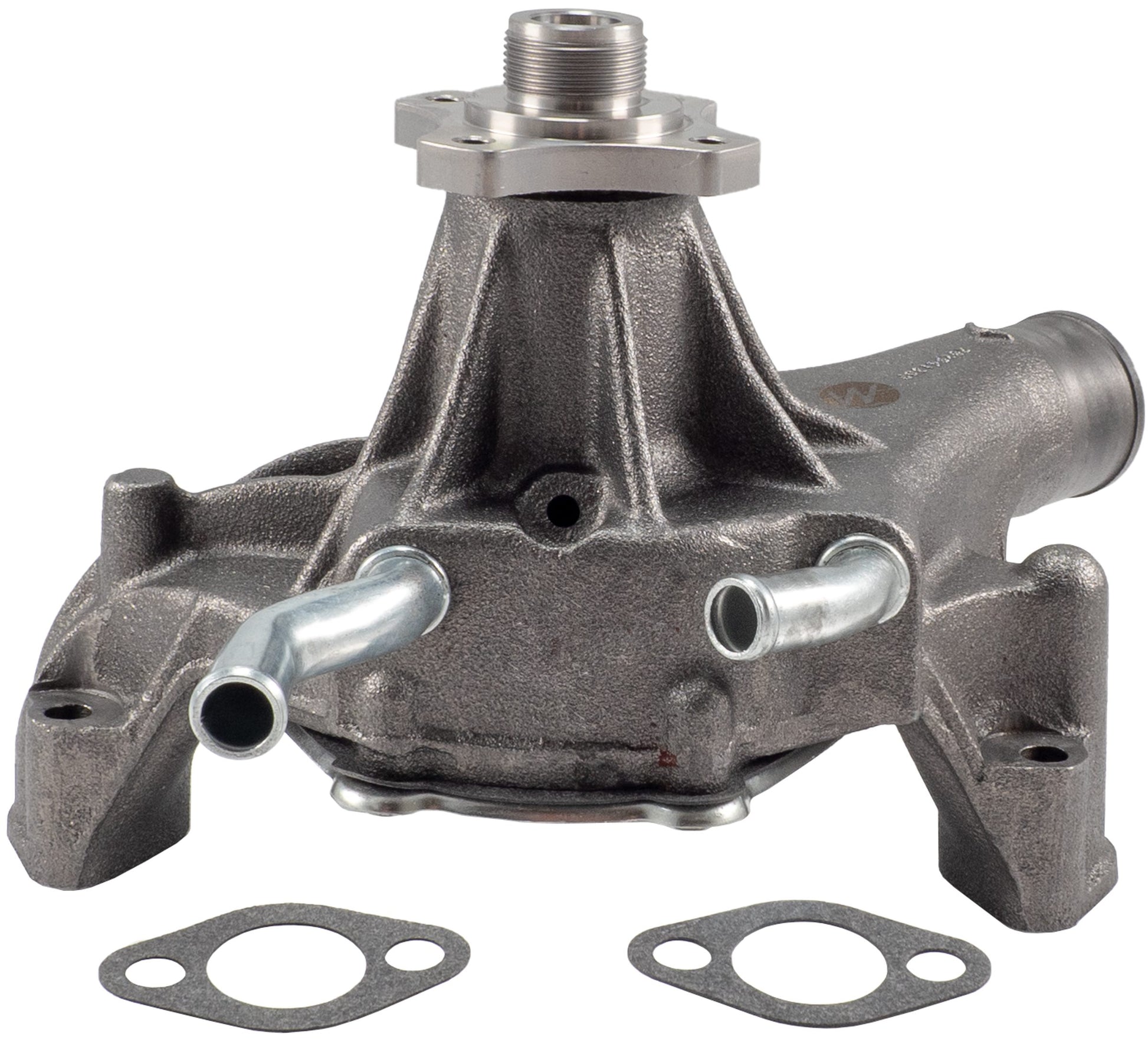

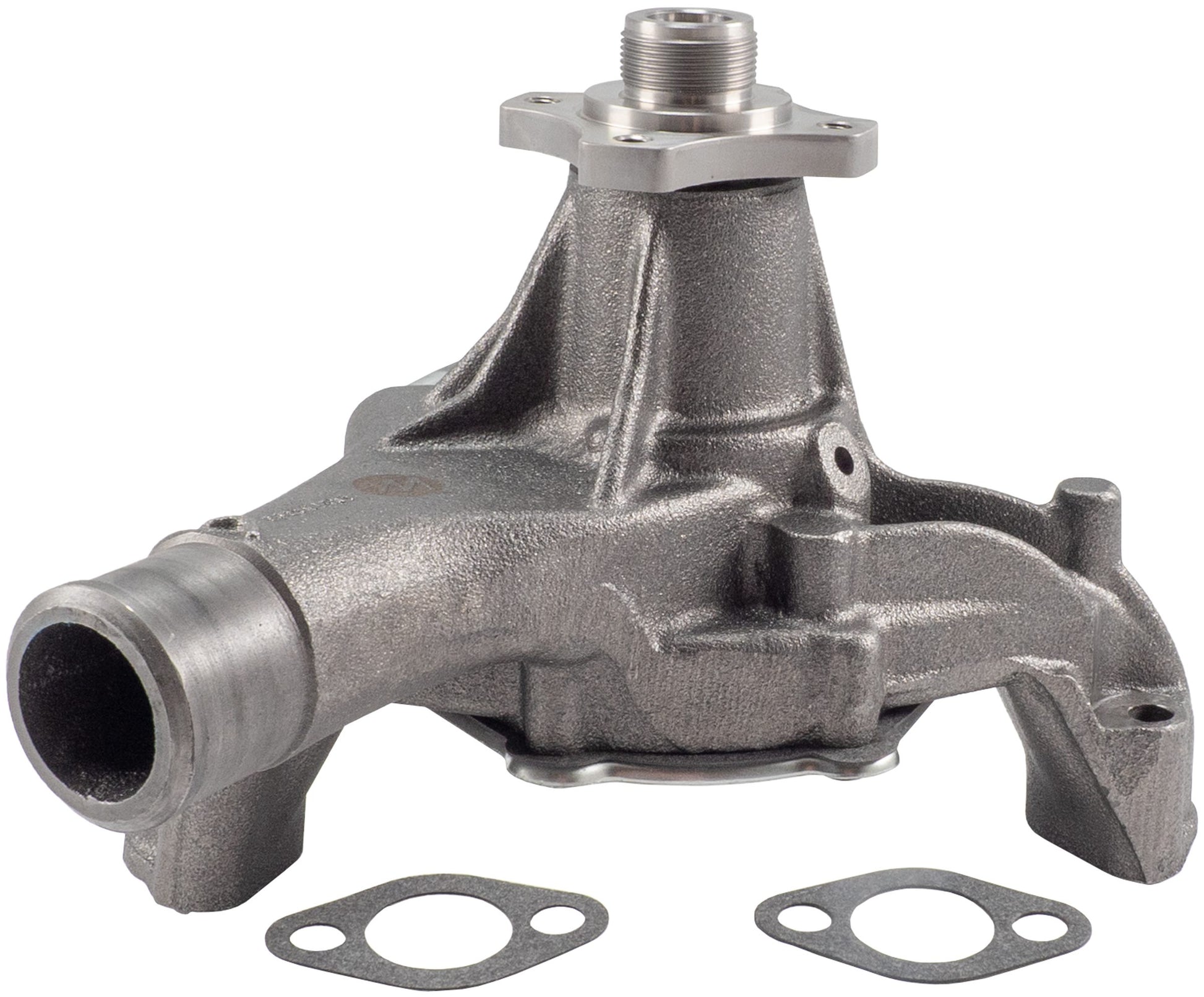

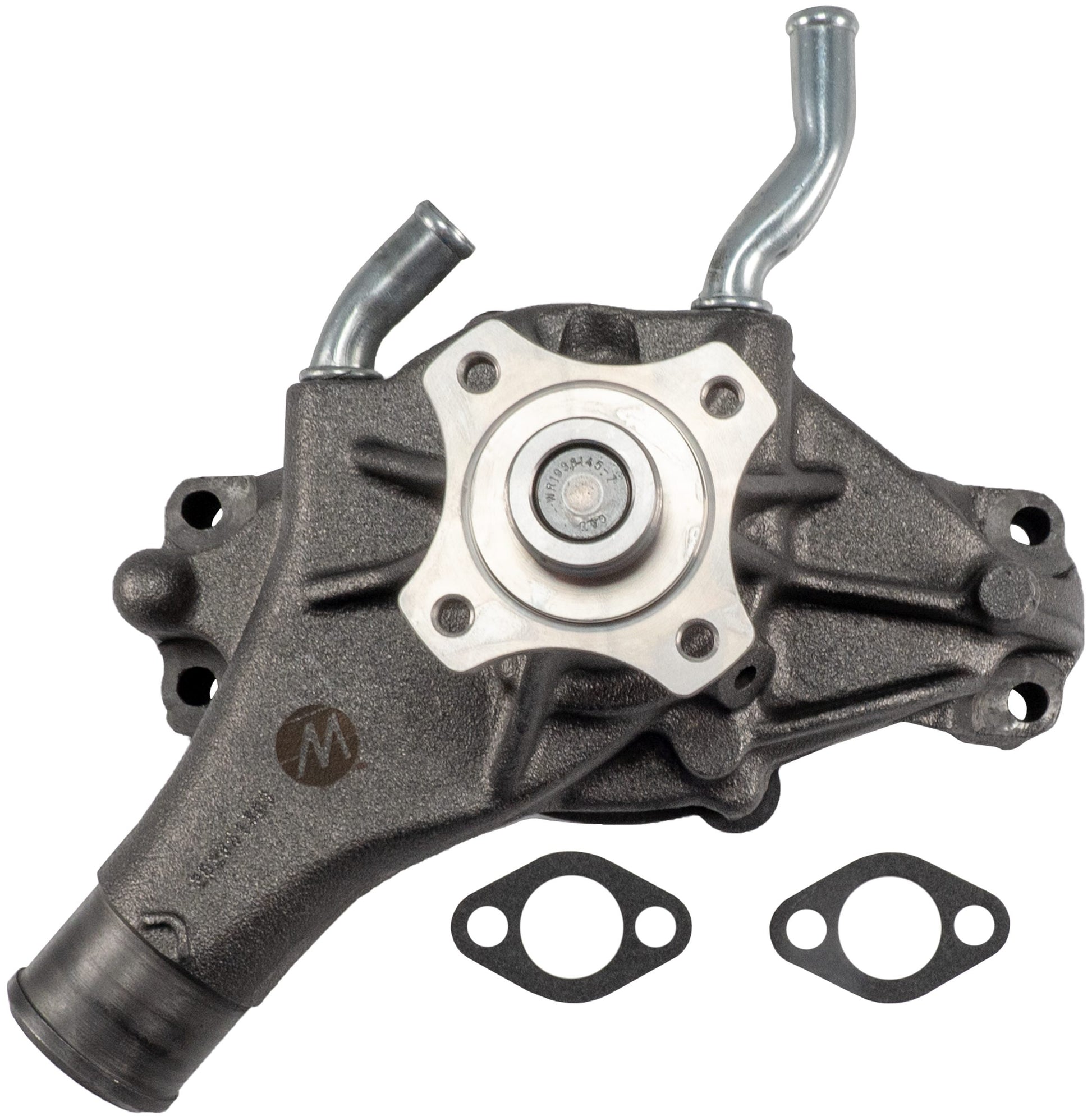

Melling MWP-505 - Stock Replacement Water Pump

Water Pump - Mechanical - 6.71 in Hub Height - Aluminum - Natural - Small Block Chevy / GM V6 / GM LS-Series - Each

Stock Replacement Water Pump

Melling water pumps provide dependable performance every time in every application. Every Melling water pump is engineered and assembled to the highest production standards from high quality materials. All Melling water pumps use the latest technology to provide the highest level of quality and performance. Every Melling water pump is individually leak tested under conditions designed to duplicate actual engine operating conditions.

  • Precision engineered for optimum fit and function
  • Manufactured from high quality materials for consistent durable wear
  • Designed for long-life and worry-free performance
  • Meets or exceeds original equipment specifications
Electric or Mechanical: Mechanical
Impeller Diameter (in): 3.600
Impeller Diameter (mm): 91.44
Gasket or Seal Included: Yes
Pulley Type: Belt
Shaft Included: Yes
Tube Included: Yes
Bracket Included: No
Instructions Included: Yes
Number of Connectors: 5
Sensor Included: No
Flow Rate (GPM): OEM
Voltage: N/A
Gasket Material: Composite
Attachment Method: Bolted
Seal Type: None
Width (mm): 273.36
Finish: Natural
Connector Shape: Circular
Width (in): 10.762
Color: Cast Iron Grey, Machine-Finished Silver
Number of Seals: 0
Length (in): 7.581
Length (mm): 192.56
Outside Diameter (in): 1.707
Outside Diameter (mm): 43.35
Water Pump Drive Type: Belt
Installation Tool Included: No
Number of Gaskets: 2
Pulley Included: No
Mounting Hardware Included: No
Fan Clutch Included: No
Mounting Hole Quantity: 4
Housing Material: Cast Iron
Hub Height: 6.71
Hub Height: 170.0
Hub Hole Quantity: 4
Impeller Material: Steel
Impeller Rotation: Reverse
Related Cooling Fan Components: Mounting Bolts
Installation Warnings: No
Water Pump Drive Type: Serpentine Belt
Outlet Quantity: 2
Impeller Vane Quantity: 6
Thermostat And Housing Included: No
Grade Type: Standard Replacement
Pulley Groove Quantity: 0
Includes Back Housing: Yes
