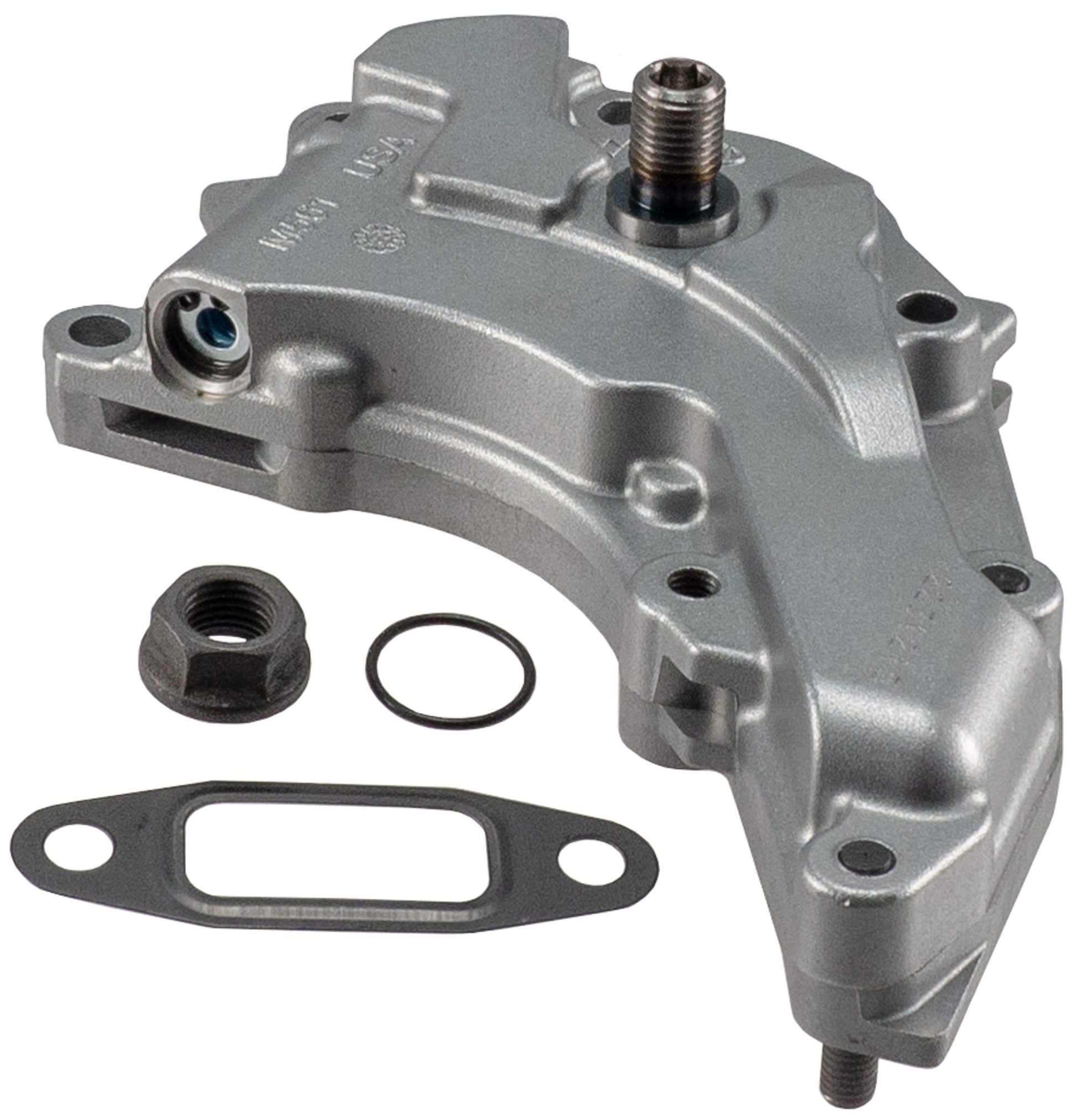

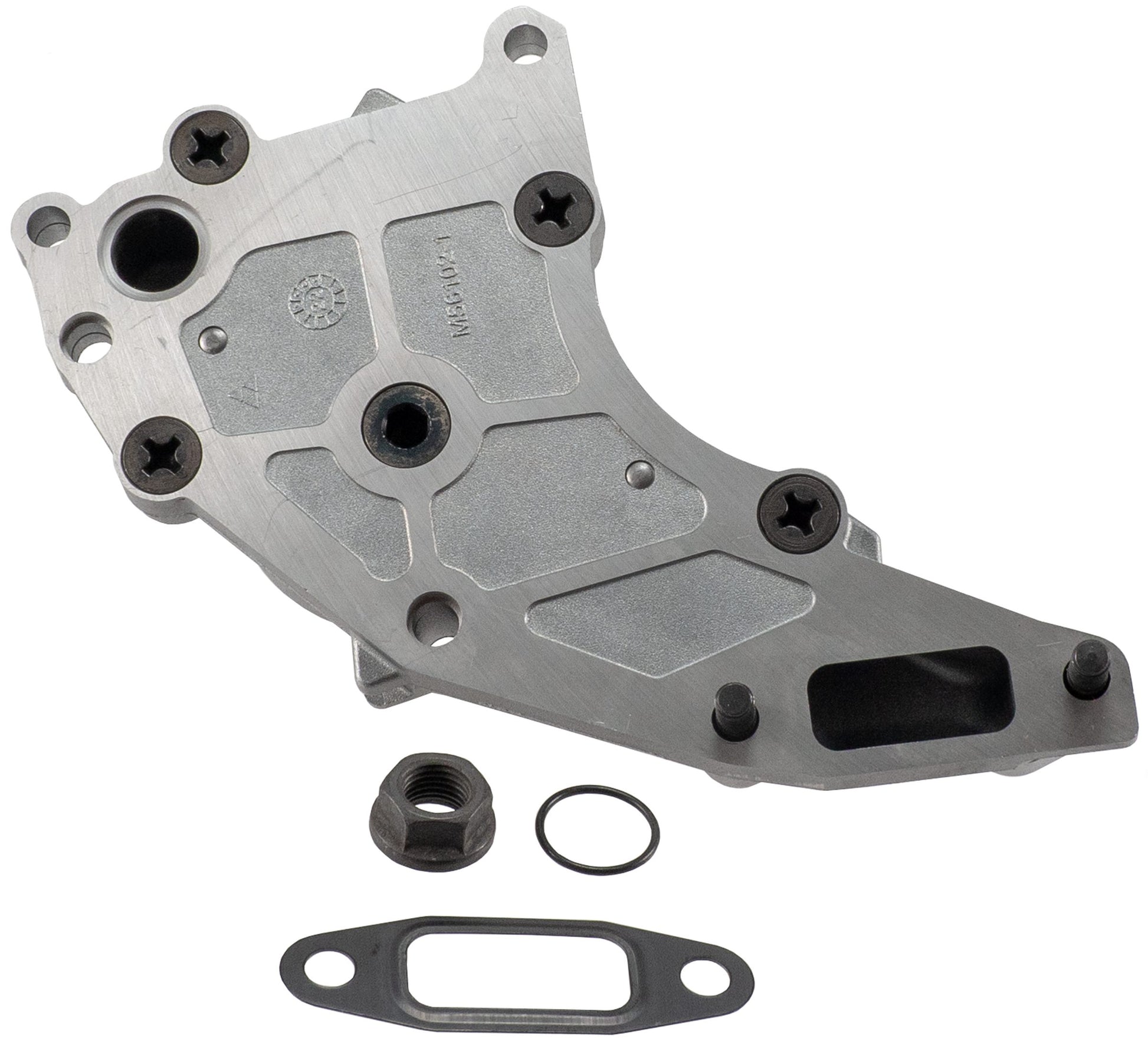

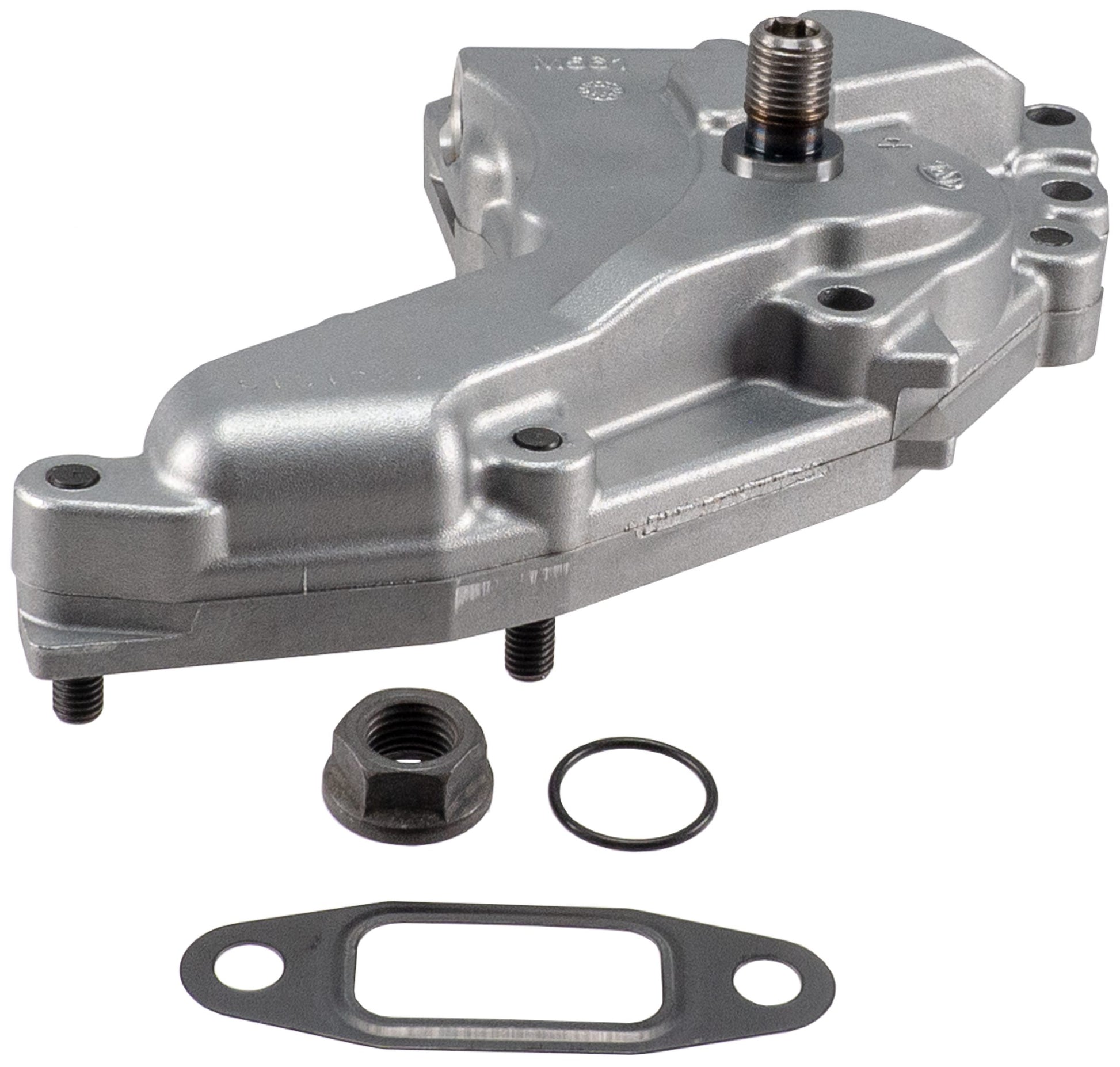

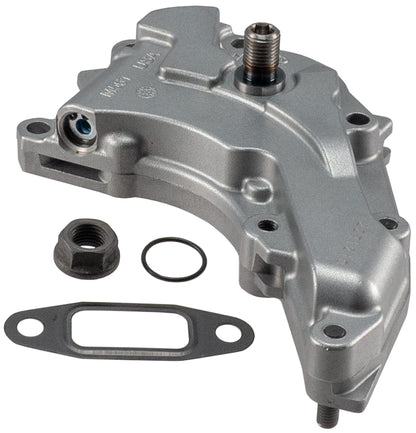

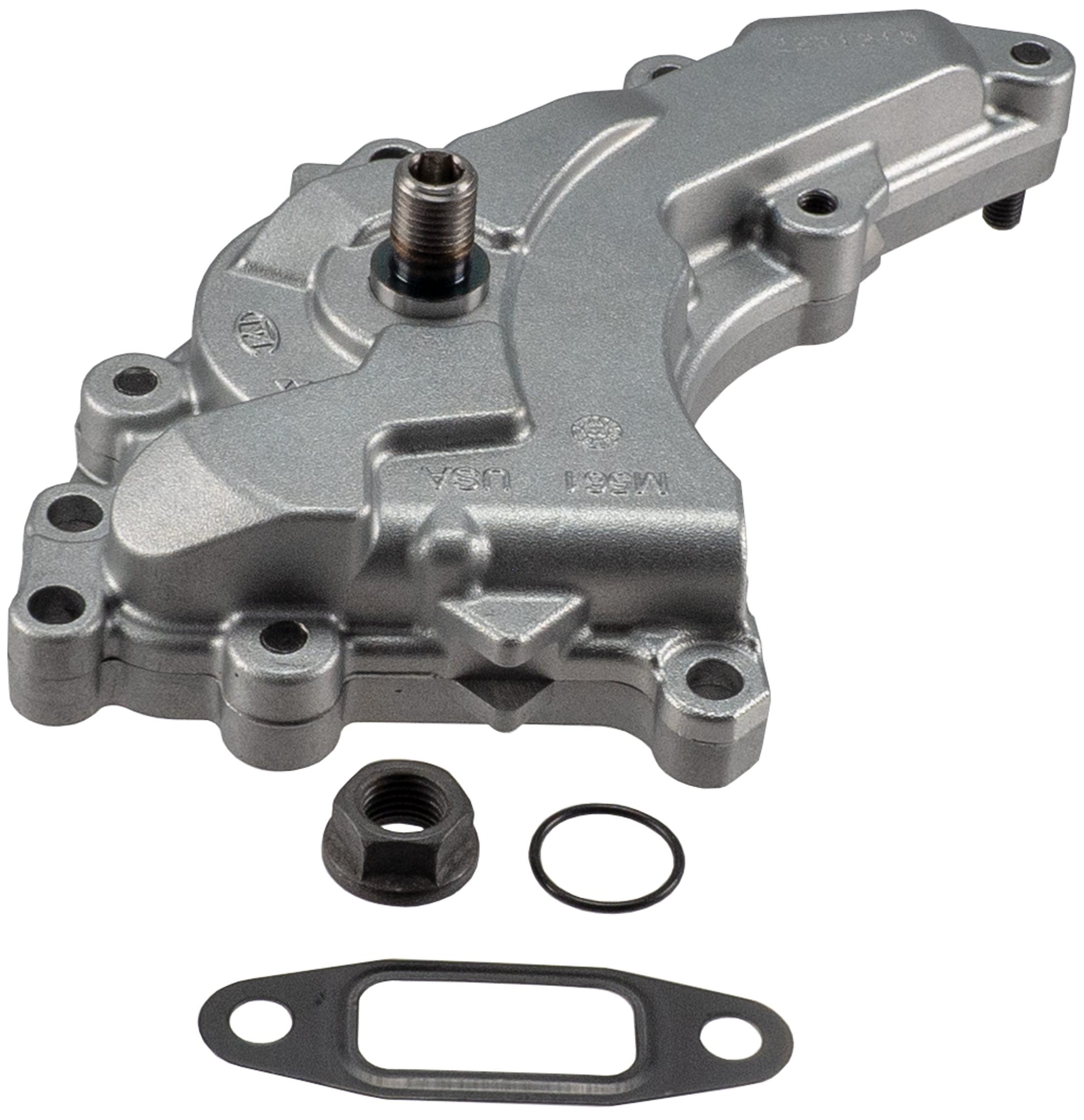

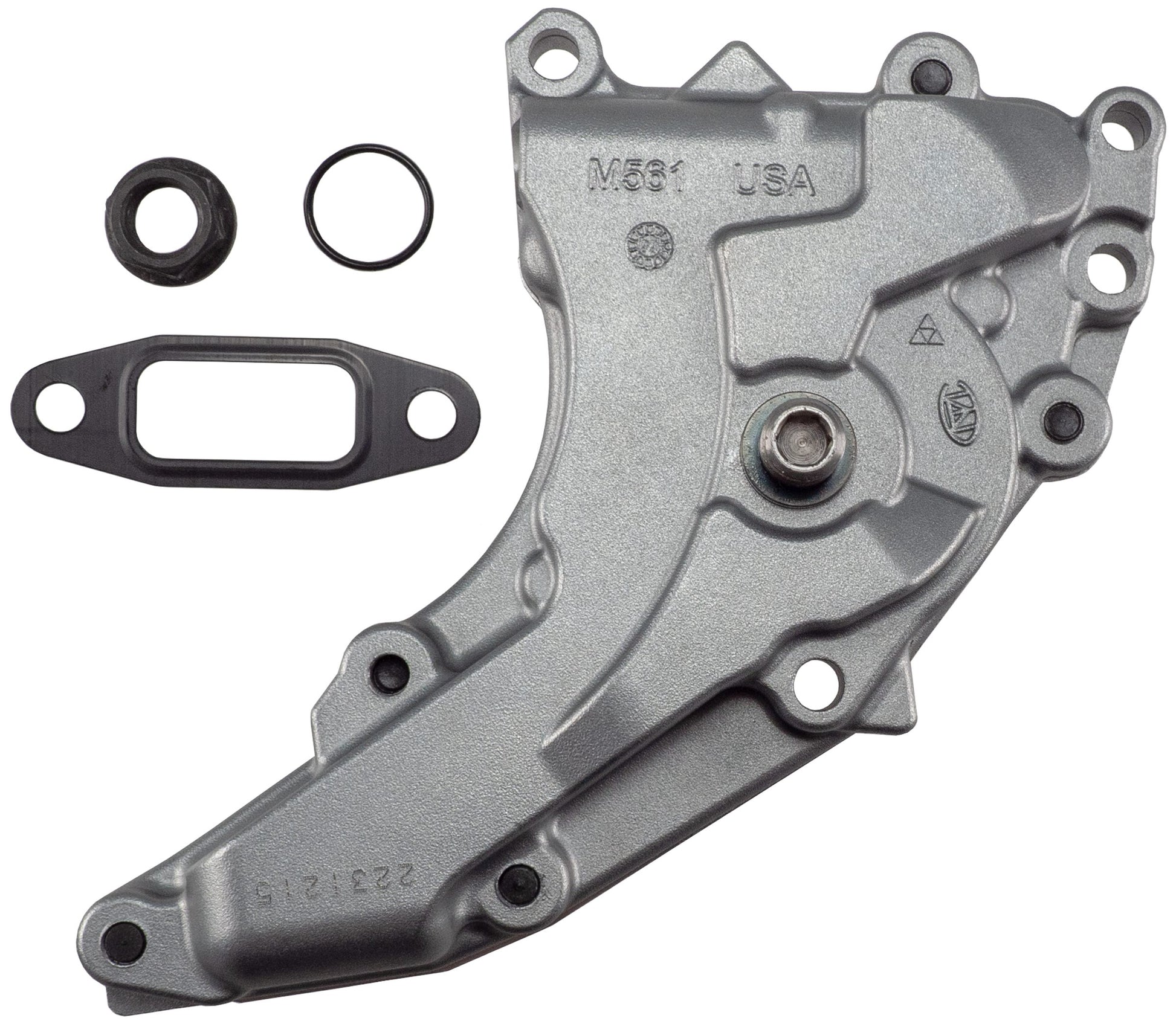

Melling M561 - Stock Replacement Oil Pump

Melling M561 - Stock Replacement Oil Pump

Melling | M561
SKU: BCBCM561
$261.99 USD
$288.19 USD $261.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Melling M561 - Stock Replacement Oil Pump

Oil Pump - Wet Sump - Internal - Standard Volume - GM Duramax 2001-10 - Each

M561 Stock Replacement : Standard Volume, Standard Pressure, Cast Aluminum Oil Pump

Made in USA. Melling oil pumps provide dependable performance every time in every application. Every Melling oil pump is engineered and assembled to the highest production standards from high quality materials. All Melling oil pumps use the latest in gear and gerotor technology to provide the highest level of quality and performance. Gears are machined to close tolerances to ensure proper engine pressure and correct, efficient pump operation. End plates are precision ground for maximum wear resistance. Every Melling oil pump is individually tested for pressure and flow under conditions designed to duplicate actual engine operating conditions.

Gears Included: Yes
Pickup Screen Included: No
Intermediate Shaft Included: Not Applicable
Inlet Size (in): 1.500
Inlet Size (mm): 13.00
Cover Material: Cast Iron
Bolts Included: No
Bushing Included: No
Cotter Pin Included: No
Finish: Rust Preventative
Governor Spinner Included: No
Guide Included: No
Nylon Bushing Included: No
O-Ring Included: Yes
Pump Cover Included: Yes
Shaft Material: Not Applicable
Timing Cover Included: No
Washers Included: No
Spacer Included: No
Width: 9.75
Width: 248.0
Height: 5.736
Height: 146.0
Grade Type: Standard Replacement
Gasket Or Seal Included: Yes
Mounting Hole Quantity: 4
Housing Material: Cast Aluminum
Drive Type: Timing Chain
Rotor Material: Stainless Steel
Oil Pump Type: Rotary
Solenoid Included: No
Mounting Hole Diameter: 0.35
Mounting Hole Diameter: 9.0
Alternate Pressure Springs Included: No
Oil Pump Pressure Type: Standard Pressure
Oil Pump Volume Type: Standard Volume
Pickup Tube Diameter: 1.500
Pickup Tube Diameter: 13.00
Drive Shaft Included: No
Adjustable Bypass Pressure: No
