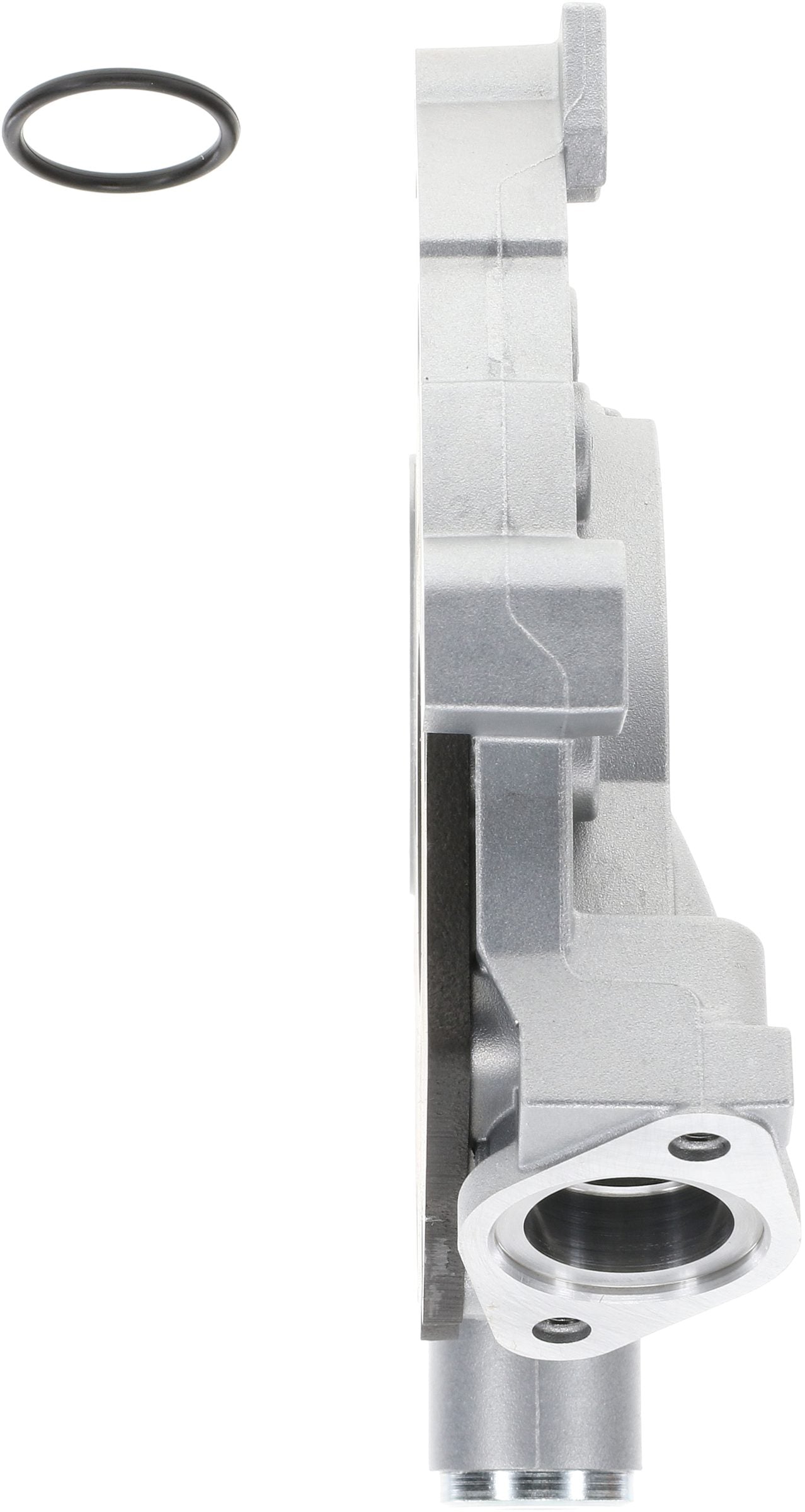

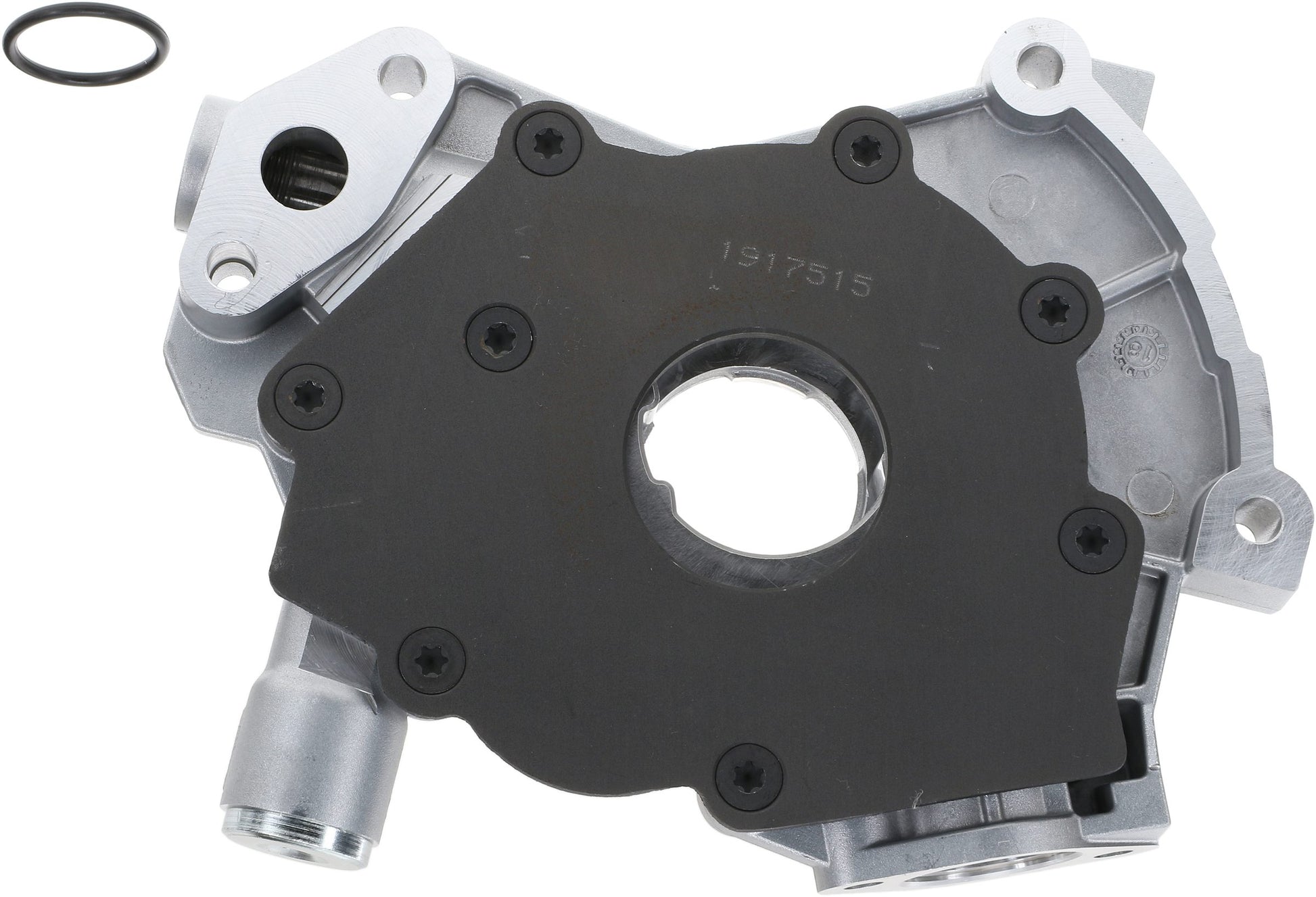

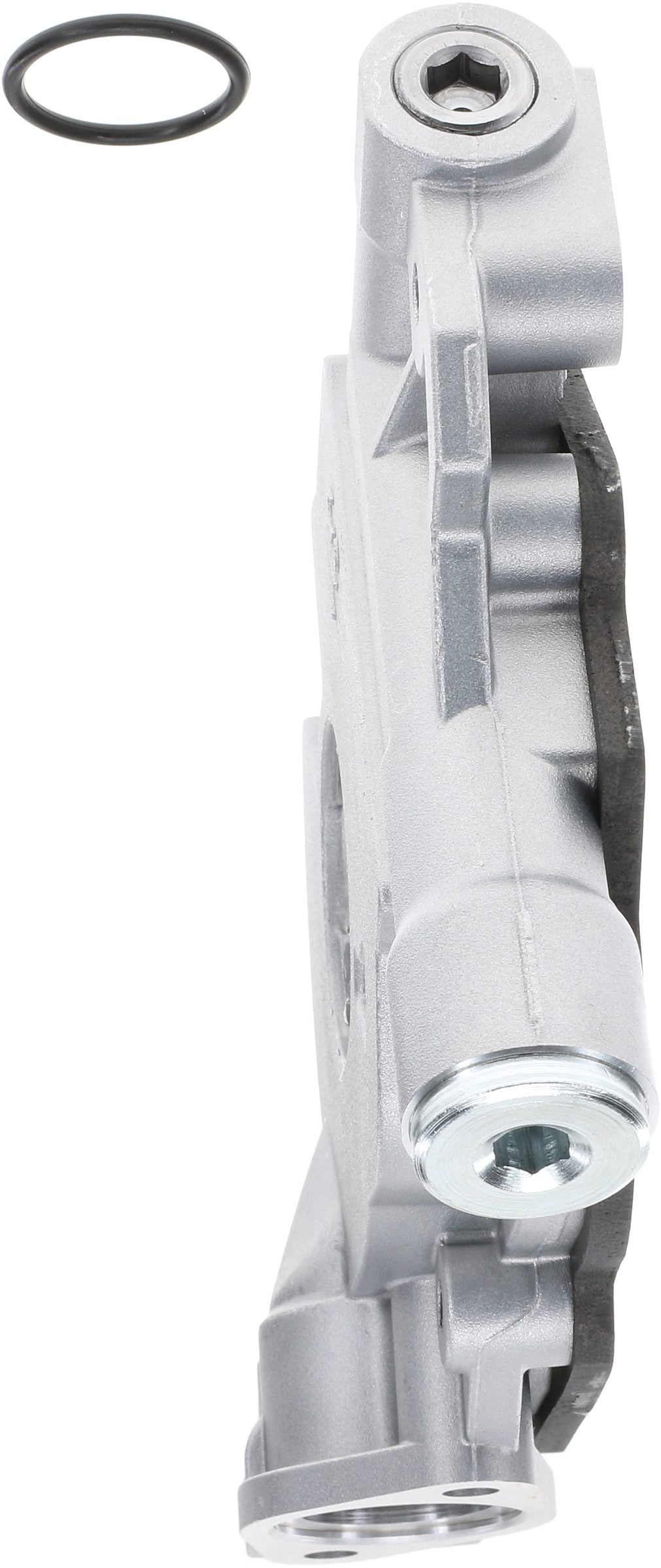

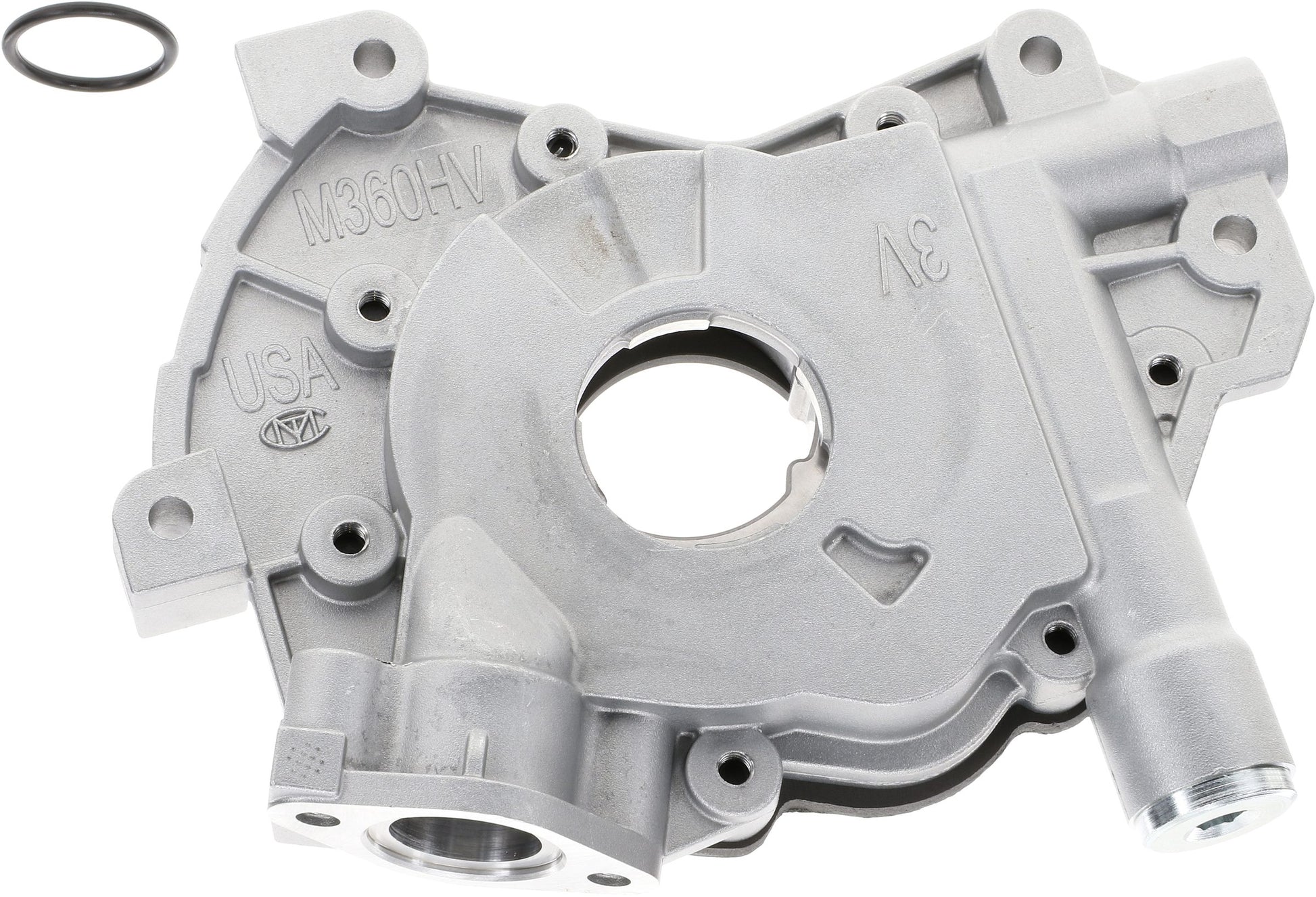

Melling M360HV - High Volume Replacement Oil Pump

Melling M360HV - High Volume Replacement Oil Pump

Melling | M360HV
SKU: BCBCM360HV
Regular price $158.99 USD
Regular price $174.89 USD Sale price $158.99 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 2 left

Quantity

Melling M360HV - High Volume Replacement Oil Pump

Oil Pump - Wet Sump - Internal - High Volume - Ford Modular - Each

M360HV Stock Replacement : High Volume, Standard Pressure, Cast Aluminum Oil Pump With Gasket

Made in USA. Melling high volume oil pumps increase the amount of oil flow by an average of 20% through the engine improving oil pressure at idle providing dependable performance every time in every application. Every Melling high volume oil pump is engineered and assembled to the highest production standards from high quality materials. All Melling high volume oil pumps use the latest in gear and gerotor technology to provide the highest level of quality and performance. High volume gears are machined to close tolerances to ensure proper engine pressure and correct, efficient pump operation. End plates are precision ground for maximum wear resistance. Every Melling oil pump is individually tested for pressure and flow under conditions designed to duplicate actual engine operating conditions.

  • Precision engineered for optimum fit and function
  • Manufactured from high quality materials for consistent durable wear
  • Sets or exceeds original equipment specifications
  • Designed for long-life and worry-free performance
Pickup Screen Included: No
Intermediate Shaft Included: Not Applicable
Inlet Size (in): 1.000
Inlet Size (mm): 25.40
Cover Material: Aluminum
Bolts Included: No
Bushing Included: No
Cotter Pin Included: No
Governor Spinner Included: No
Guide Included: No
Nylon Bushing Included: No
O-Ring Included: Yes
Pump Cover Included: Yes
Shaft Material: Not Applicable
Timing Cover Included: No
Washers Included: No
Spacer Included: No
Gears Included: Not Applicable
Finish: Rust Preventative
Width: 8.0
Width: 203.0
Height: 6.5
Height: 166.0
Gasket Or Seal Included: Yes
Mounting Hole Quantity: 4
Housing Material: Cast Aluminum
Drive Type: Crankshaft
Oil Pump Type: Rotary
Pickup Screen Diameter: 0.938
Pickup Screen Diameter: 24.0
Mounting Hole Diameter: 0.25
Mounting Hole Diameter: 6.0
Oil Pump Pressure Type: Standard Pressure
Oil Pump Volume Type: High Volume
Additional Volume Over Stock Percentage: 20%
Grade Type: Improved Design
Rotor Material: Powdered Metal
Pickup Tube Diameter: 1.000
Pickup Tube Diameter: 25.40
Adjustable Bypass Pressure: No
Alternate Pressure Springs Included: No
Drive Shaft Included: No
