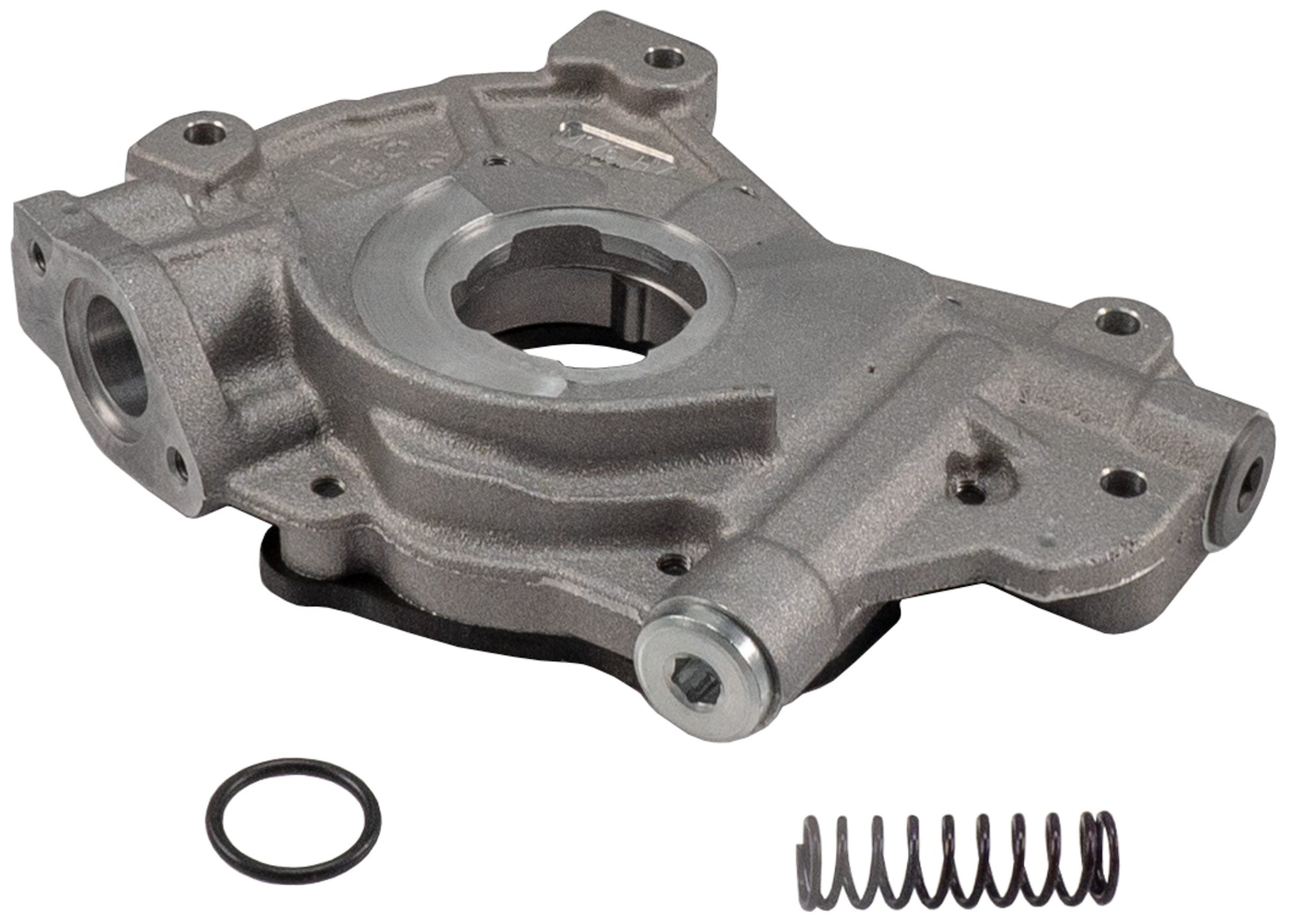

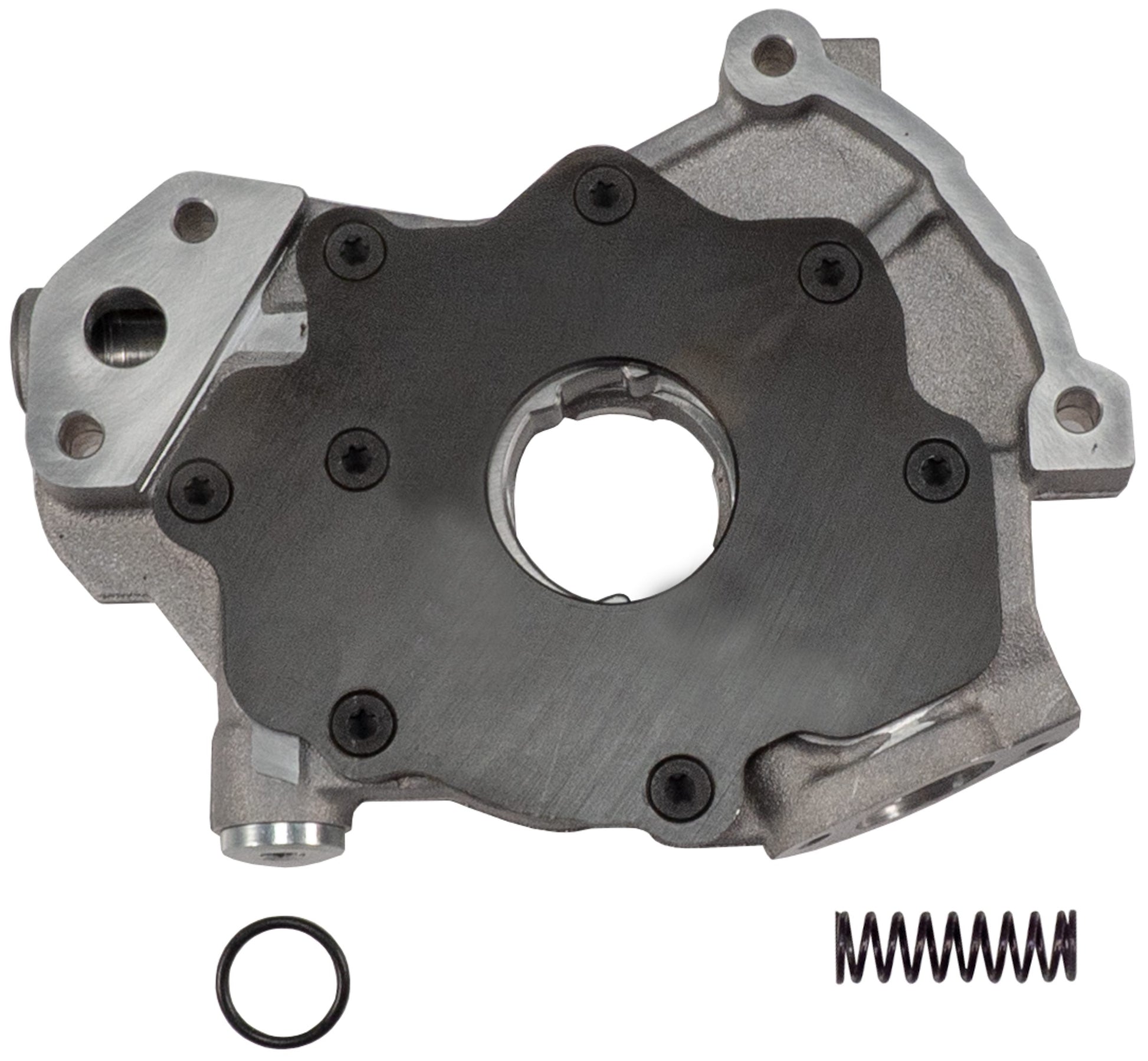

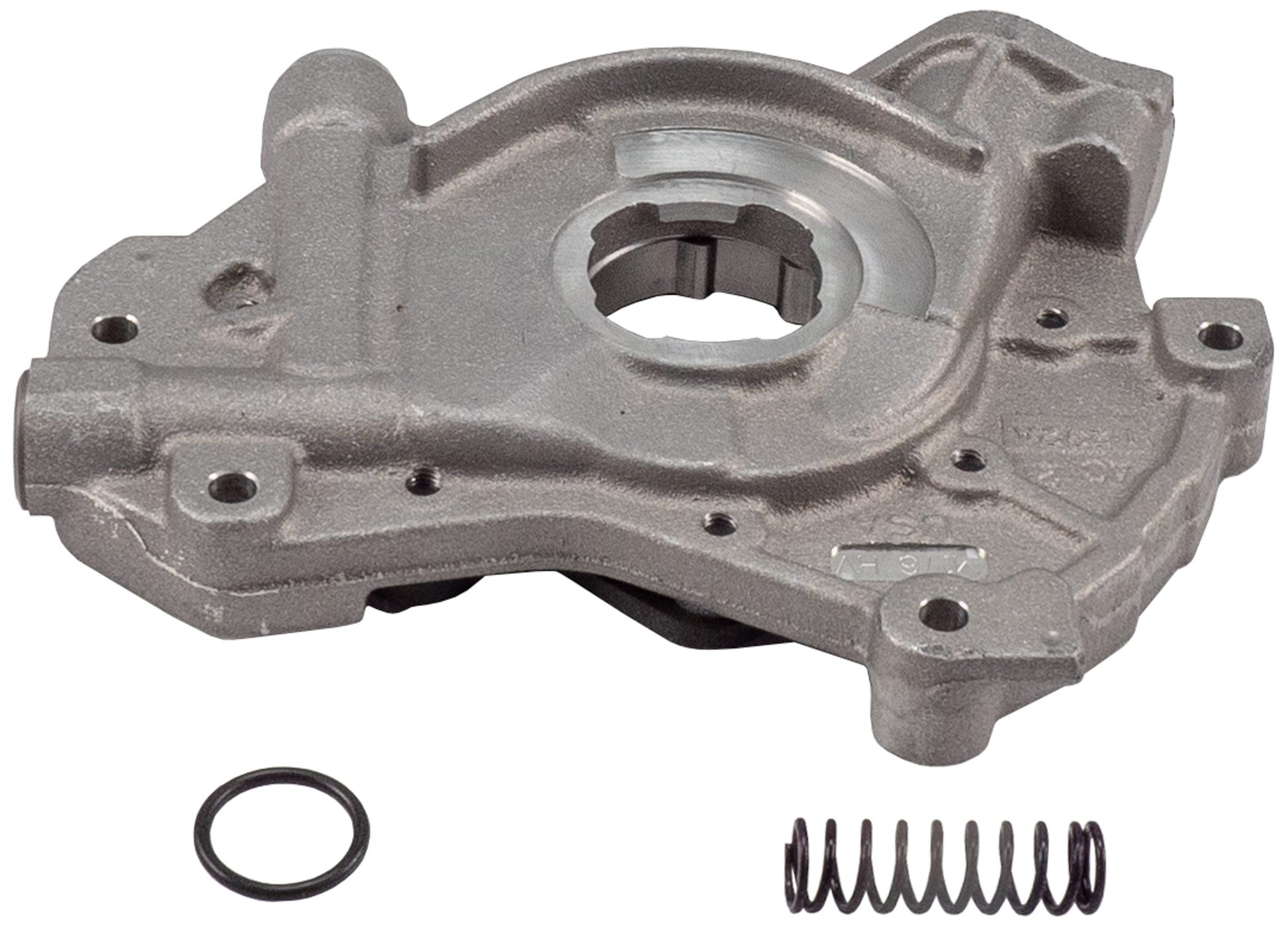

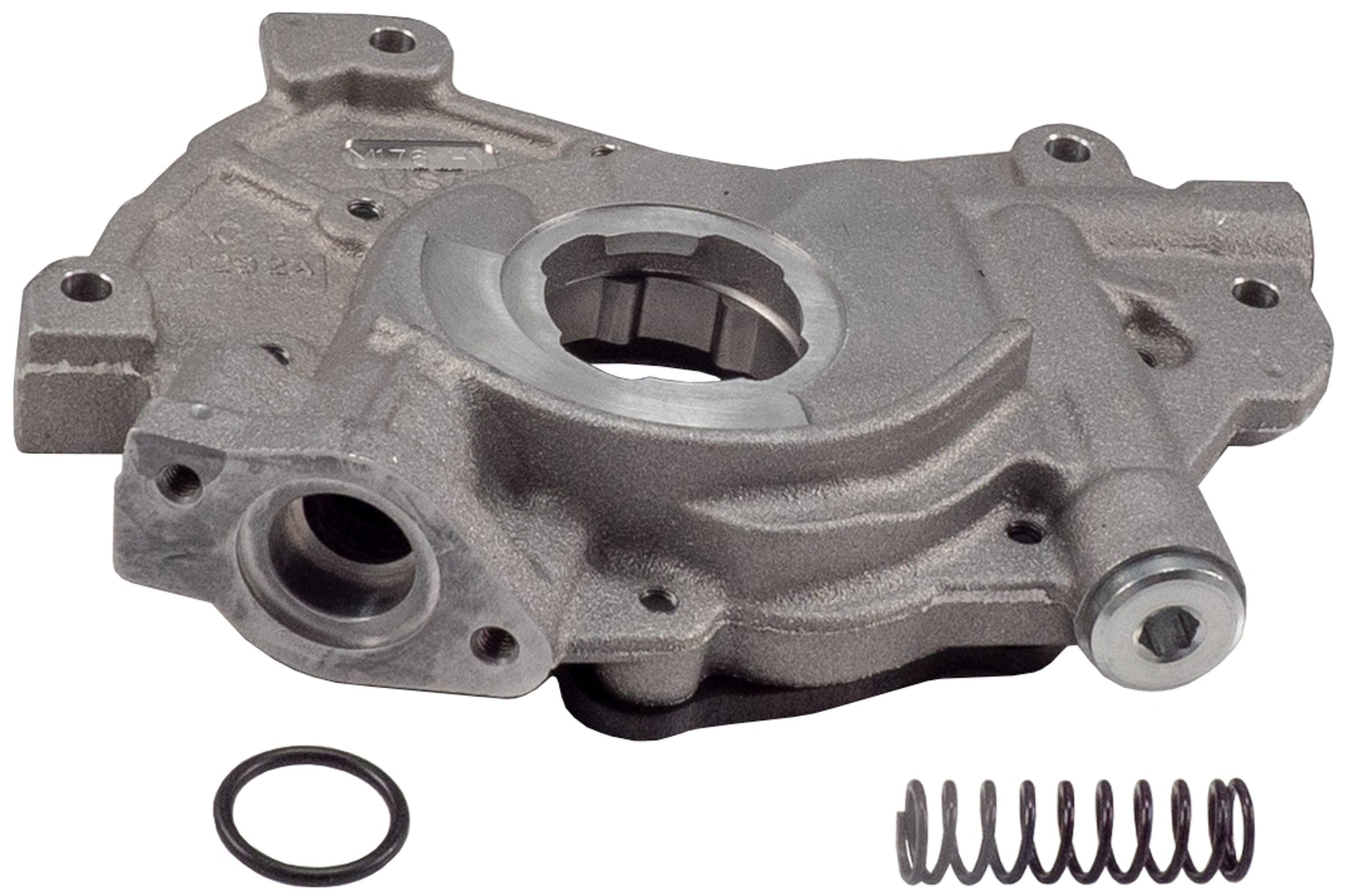

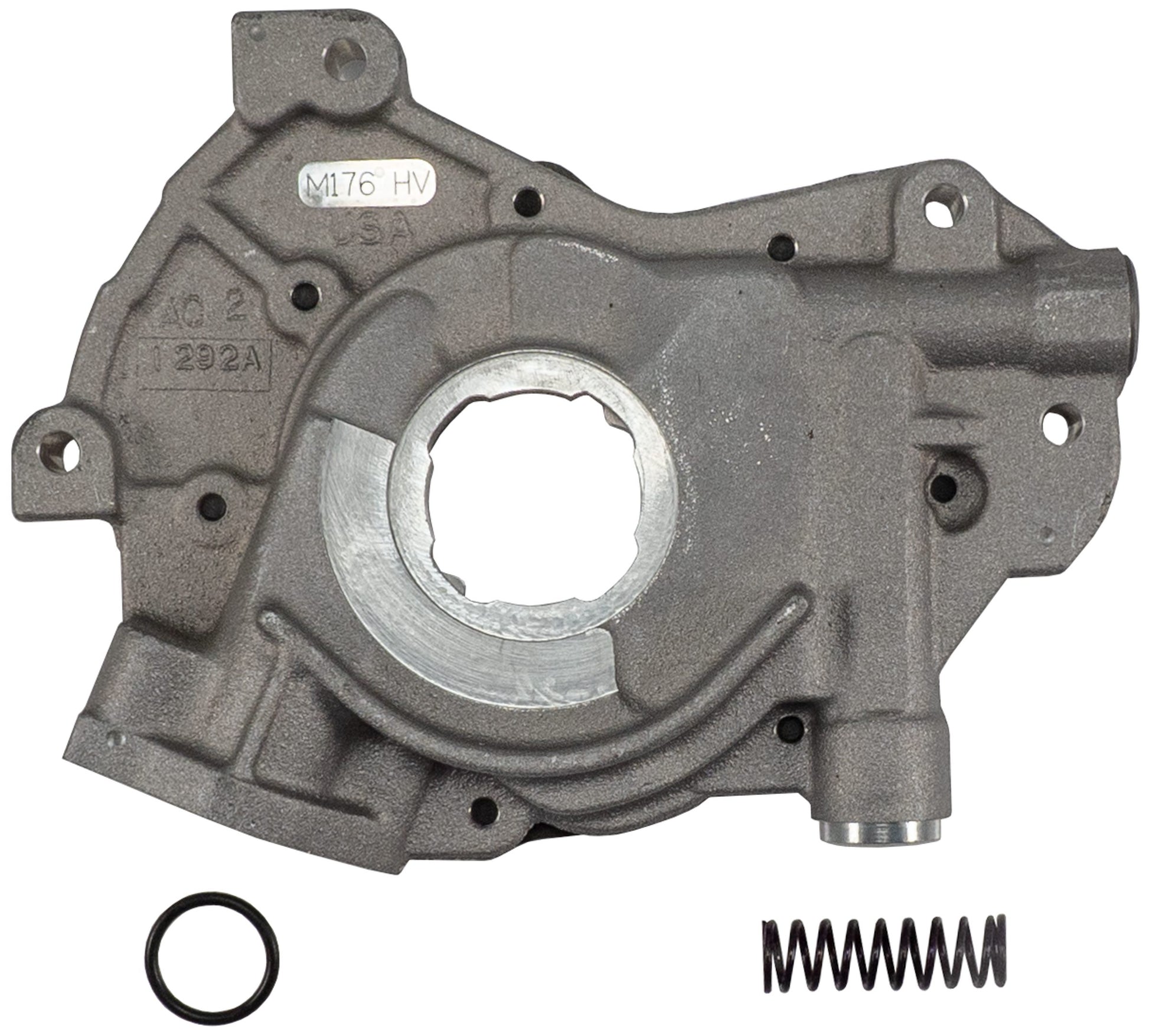

Melling M176HV - High Volume Replacement Oil Pump

Melling M176HV - High Volume Replacement Oil Pump

Melling | M176HV
SKU: BCBCM176HV
$139.99 USD
$153.99 USD $139.99 USD
Sale Sold out
Shipping calculated at checkout.

35 in stock

Melling M176HV - High Volume Replacement Oil Pump

Oil Pump - Wet Sump - Internal - High Volume - Ford Modular - Each

M176HV Stock Replacement : High Volume, Standard Pressure, Aluminum Oil Pump With Gasket

Made in USA. Melling oil pumps provide dependable performance every time in every application. Every Melling oil pump is engineered and assembled to the highest production standards from high quality materials. All Melling oil pumps use the latest in gear and gerotor technology to provide the highest level of quality and performance. Gears are machined to close tolerances to ensure proper engine pressure and correct, efficient pump operation. End plates are precision ground for maximum wear resistance. Every Melling oil pump is individually tested for pressure and flow under conditions designed to duplicate actual engine operating conditions.

Gears Included: Not Applicable
Pickup Screen Included: No
Intermediate Shaft Included: No
Inlet Size (in): 0.811
Inlet Size (mm): 20.00
Cover Material: Aluminum
Bolts Included: No
Bushing Included: No
Cotter Pin Included: No
Finish: Rust Preventative
Governor Spinner Included: No
Guide Included: No
Nylon Bushing Included: No
O-Ring Included: Yes
Pump Cover Included: Yes
Shaft Material: Not Applicable
Timing Cover Included: No
Washers Included: No
Spacer Included: No
Width: 8.0
Width: 203.0
Height: 6.25
Height: 159.0
Gasket Or Seal Included: Yes
Mounting Hole Quantity: 4
Housing Material: Aluminum
Drive Type: Crankshaft
Rotor Material: Stainless Steel
Oil Pump Type: Rotary
Pickup Tube Diameter: 0.811
Pickup Tube Diameter: 21.0
Mounting Hole Diameter: 0.25
Mounting Hole Diameter: 6.0
Alternate Pressure Springs Included: Yes
Oil Pump Pressure Type: Standard Pressure
Oil Pump Volume Type: High Volume
Additional Volume Over Stock Percentage: 8%
Grade Type: Improved Design
Drive Shaft Included: No
Adjustable Bypass Pressure: No
