Melling M-77G - Stock Replacement Oil Pump

Melling M-77G - Stock Replacement Oil Pump

Melling | M-77G
SKU: BCBCM-77G
Regular price $79.99 USD
Regular price $87.99 USD Sale price $79.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

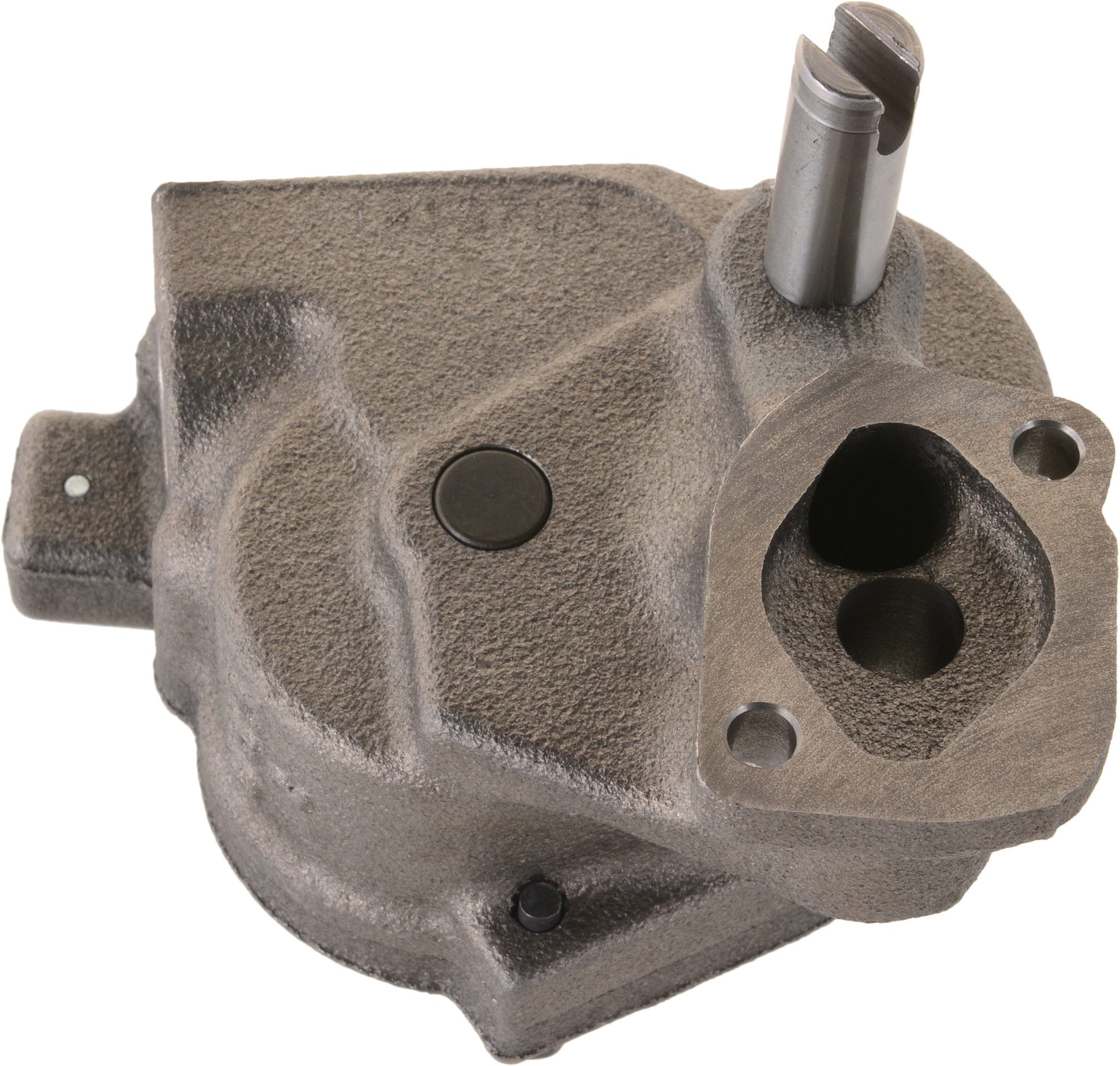

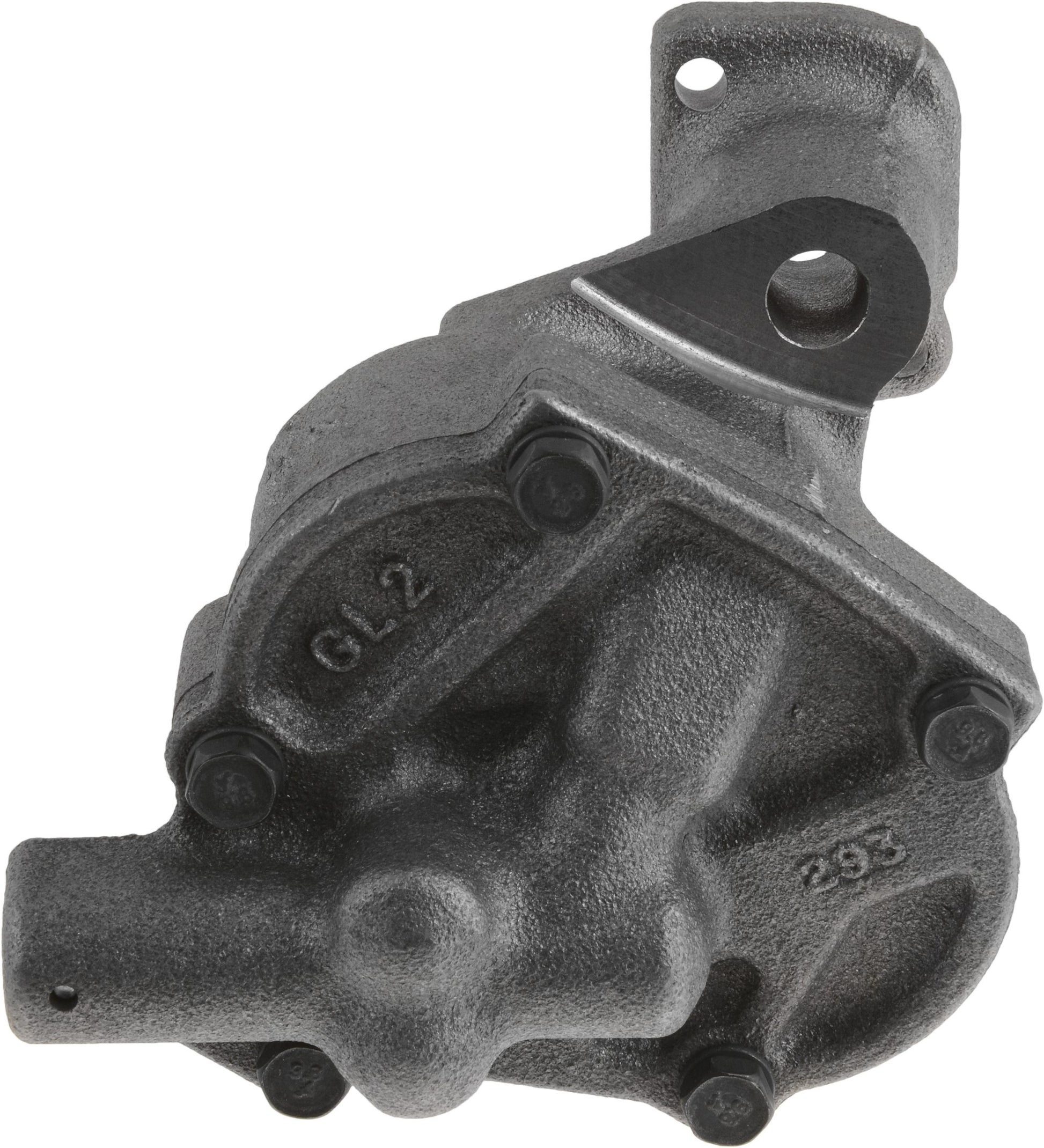

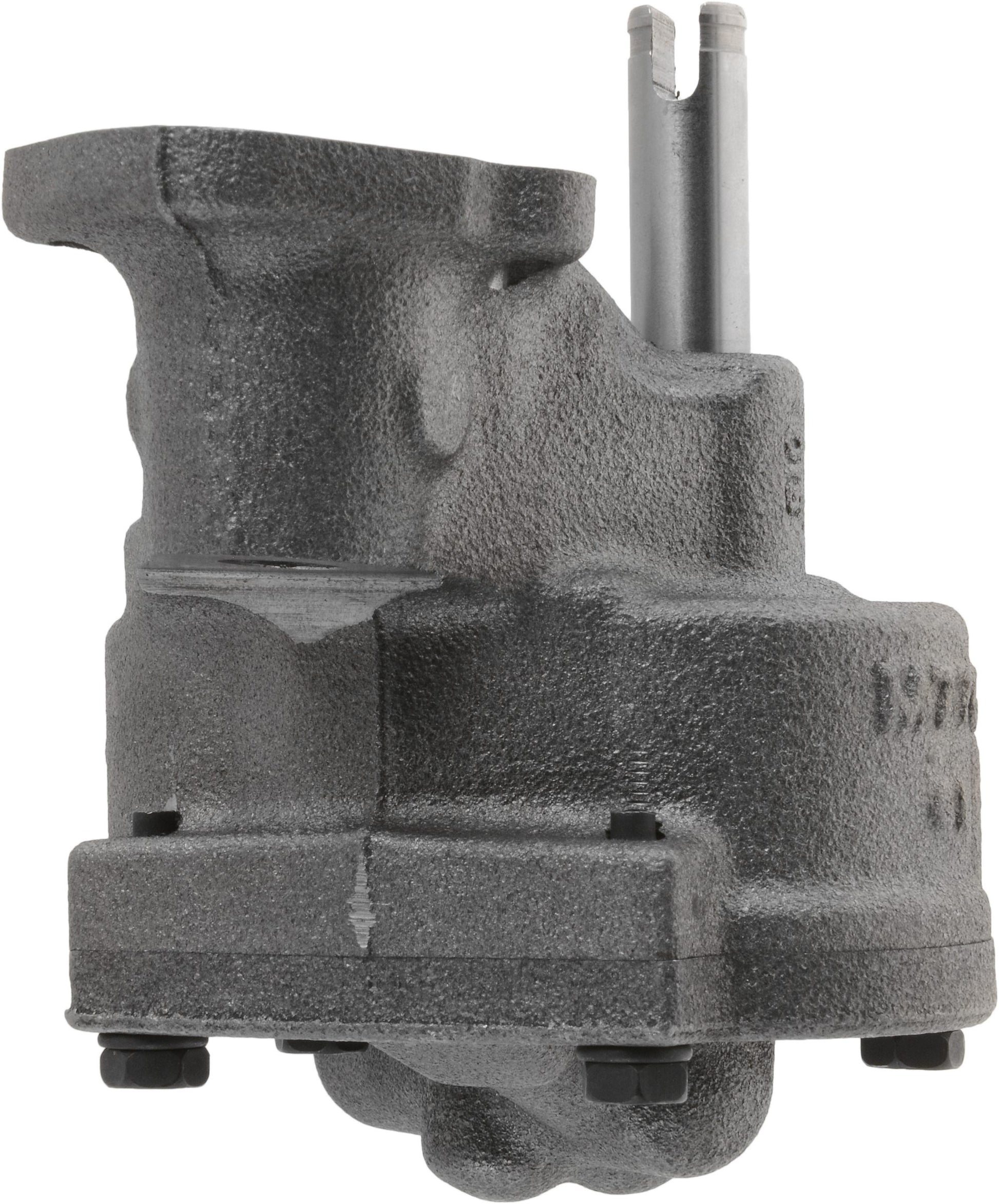

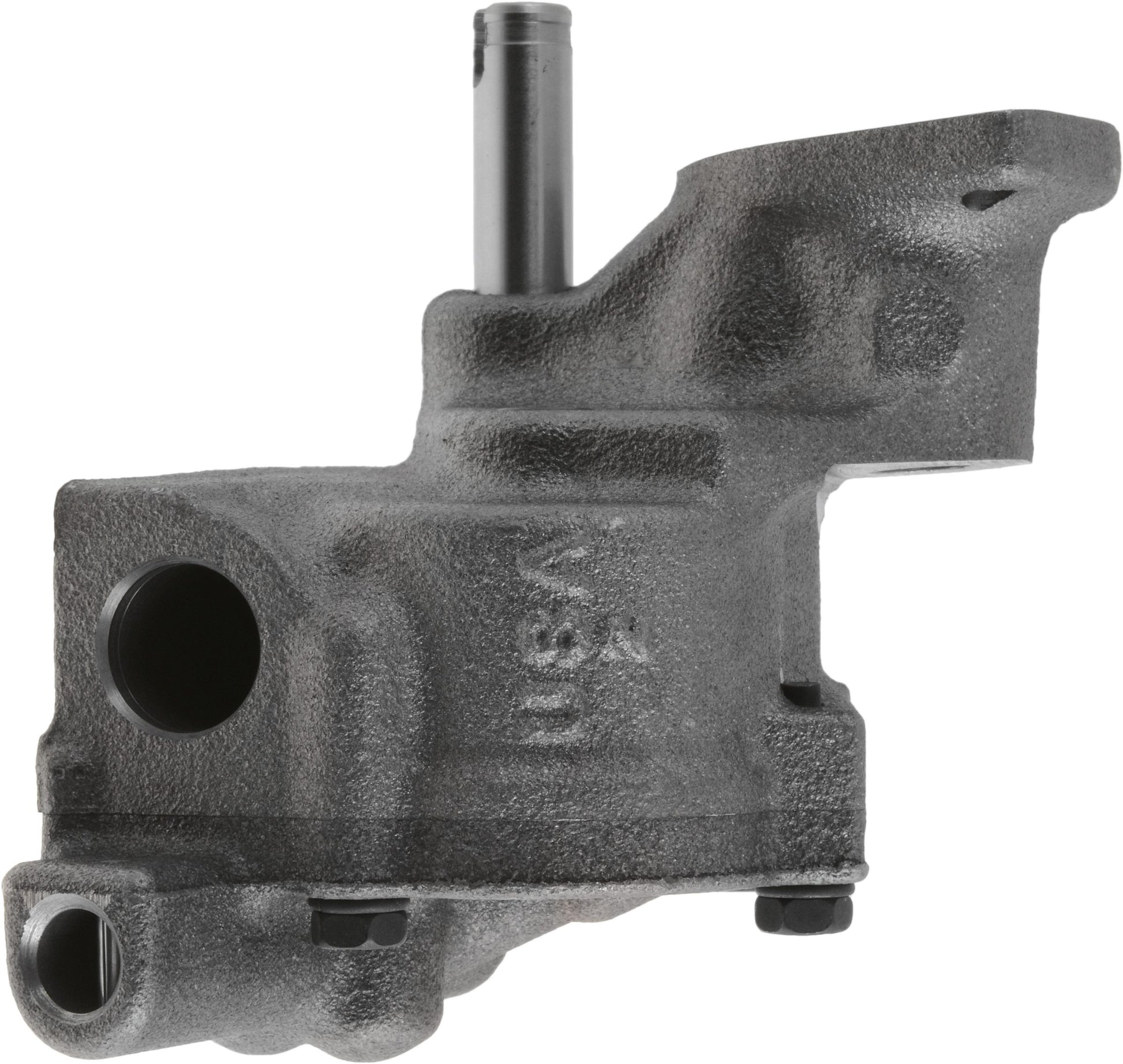

Melling M-77G - Stock Replacement Oil Pump

M-77G Stock Replacement : Standard Volume, Standard Pressure, Cast Iron Oil Pump

Made in USA. Melling oil pumps provide dependable performance every time in every application. Every Melling oil pump is engineered and assembled to the highest production standards from high quality materials. All Melling oil pumps use the latest in gear and gerotor technology to provide the highest level of quality and performance. Gears are machined to close tolerances to ensure proper engine pressure and correct, efficient pump operation. End plates are precision ground for maximum wear resistance. Every Melling oil pump is individually tested for pressure and flow under conditions designed to duplicate actual engine operating conditions.

  • Precision engineered for optimum fit and function
  • Manufactured from high quality materials for consistent durable wear
  • Designed for long-life and worry-free performance
  • Meets or exceeds original equipment specifications
Guide Included: No
Nylon Bushing Included: No
O-Ring Included: No
Pump Cover Included: Yes
Shaft Material: Not Applicable
Timing Cover Included: No
Washers Included: No
Spacer Included: No
Gears Included: Yes
Finish: Rust Preventative
Width: 3.82
Width: 97.0
Height: 4.18
Height: 106.0
Grade Type: Standard Replacement
Gasket Or Seal Included: No
Mounting Hole Quantity: 2
Housing Material: Cast Iron
Drive Type: Drive Shaft
Oil Pump Type: Gear
Mounting Hole Diameter: 0.25
Mounting Hole Diameter: 6.0
Gear Type: Spur Gear
Oil Pump Pressure Type: Standard Pressure
Oil Pump Volume Type: Standard Volume
Gear Material: Steel
Pickup Tube Diameter: 0.750
Pickup Tube Diameter: 19.00
Adjustable Bypass Pressure: No
Alternate Pressure Springs Included: No
Drive Shaft Included: No
Pickup Screen Included: No
Intermediate Shaft Included: No
Inlet Size (in): 0.750
Inlet Size (mm): 19.00
Cover Material: Cast Iron
Bolts Included: No
Bushing Included: No
Cotter Pin Included: No
Governor Spinner Included: No
