Mcleod 681622-00-10 - Mag Force Double Disc Nissan 1989-02 SR-20 RWD 1 x 24 Spline

Mcleod 681622-00-10 - Mag Force Double Disc Nissan 1989-02 SR-20 RWD 1 x 24 Spline

Mcleod | 681622-00-10
SKU: MC-681622-00-10
$1,505.99 USD
$1,585.00 USD $1,505.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

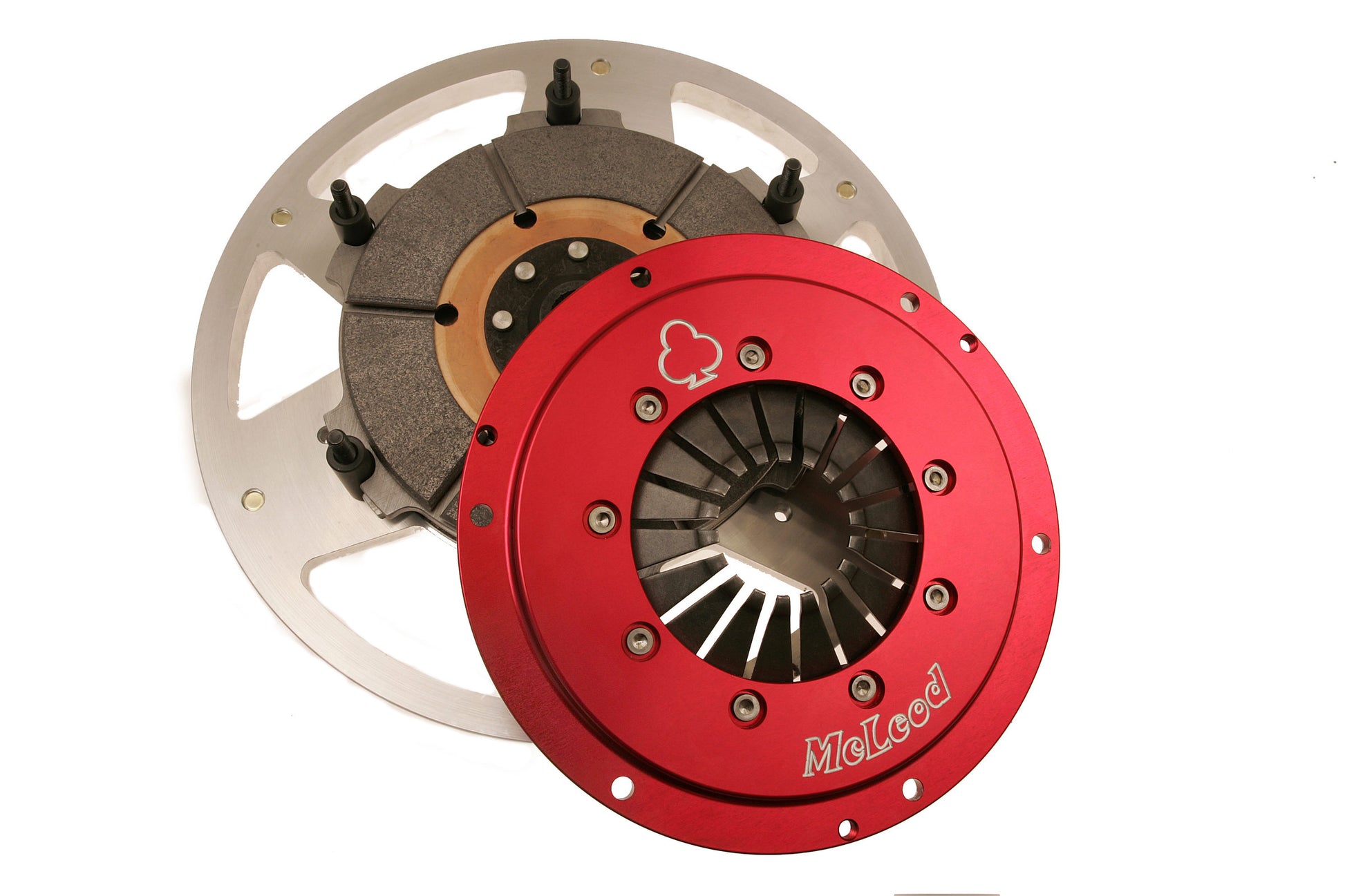

Mcleod 681622-00-10 - Mag Force Double Disc Nissan 1989-02 SR-20 RWD 1 x 24 Spline

Mag Force:Double Disc:Steel:Pin Drive:Nissan:1989-02 SR-20 RWD:0Bal:1x24

Mag Force; Double Disc;Nissan SR20DE/DET 2.0L RWD 1989-2002;8" x 1 x 24 Spl;Strapped Floater;Each

Mag Force - These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On A Pin Drive Actuation System Where The Floater Plate Slides On 6 Evenly Spaced Pins For Quick Release In A Racing Application. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications.

  • The Mag Force is perfect for Road Racing, Drag Racing and Salt Flats Time trials.
Number of Discs: Double
Hub Style: Solid
Hardware Included: Yes
Alignment Tool Included: Yes
Flywheel Material: Aluminum
Flywheel Included: Yes
Engine Balance: Neutral
Disc Style: Segmented
Disc Material: Sintered Iron
Disc Diameter: 8In.
Throwout Bearing Included: No
Clutch Usage: Drifting,Land Speed, Road Race
Clutch Patterns: Proprietery McLeod Mag Force
Throwout Bearing Style: Standard
Make: Nissan
Engine: SR20DE/DET 2.0L
Torque Rating: 900 Ft. Lbs.
Spline: 1 x 24
Additional Counter Weight Kit Required: N/A
Ring Gear: Factory
Pressure Plate Style: Diaphragm
Pilot Bushing Material: N/A
Pilot Bushing Included: No
