Mcleod 653322-00-03 - Mag Force Double Strap Ford 302 351 0-Bal 1-1/16X10 Spline 157

Mcleod 653322-00-03 - Mag Force Double Strap Ford 302 351 0-Bal 1-1/16X10 Spline 157

Mcleod | 653322-00-03
SKU: MC-653322-00-03
Regular price $1,420.99 USD
Regular price $1,495.00 USD Sale price $1,420.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

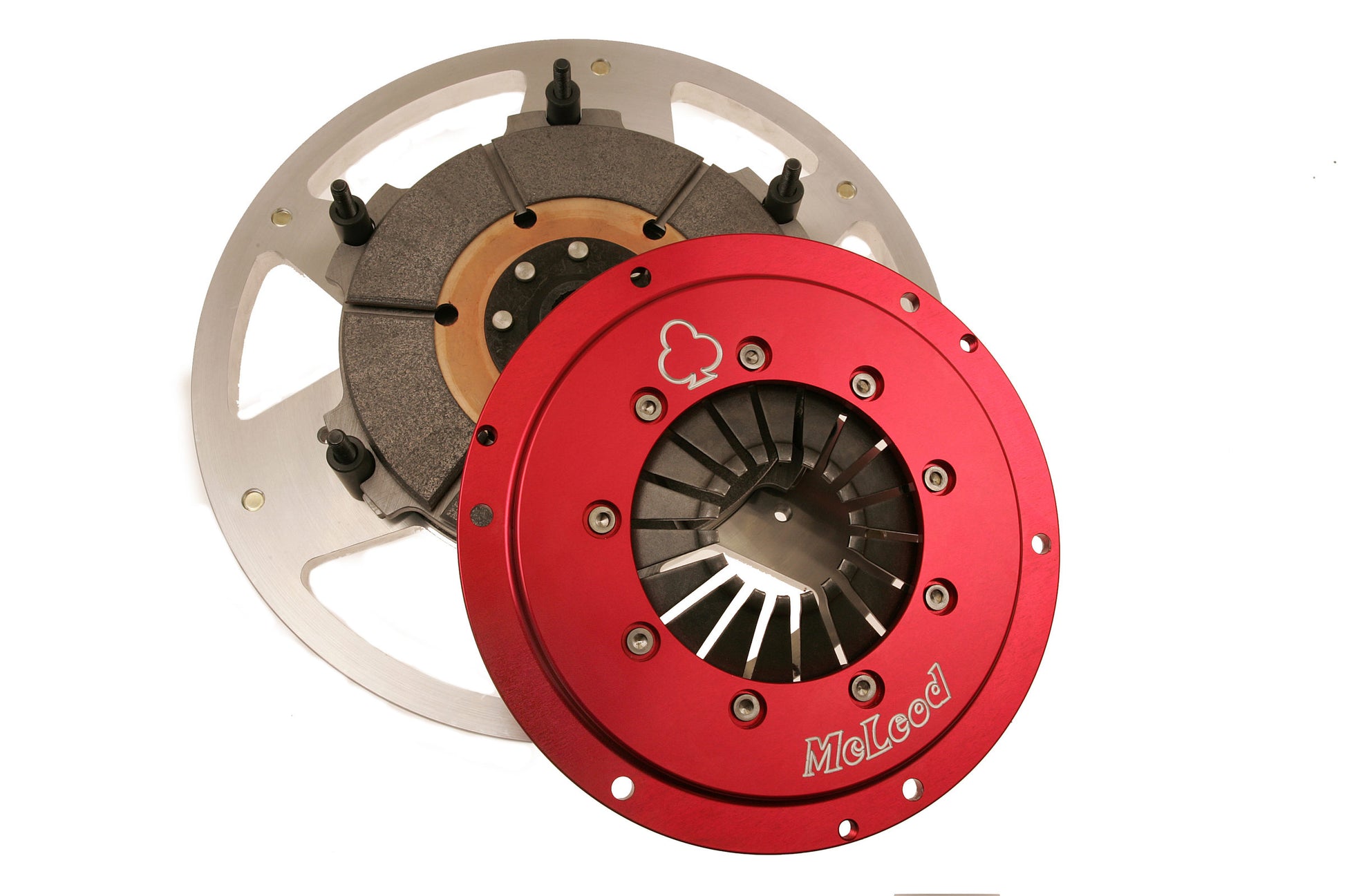

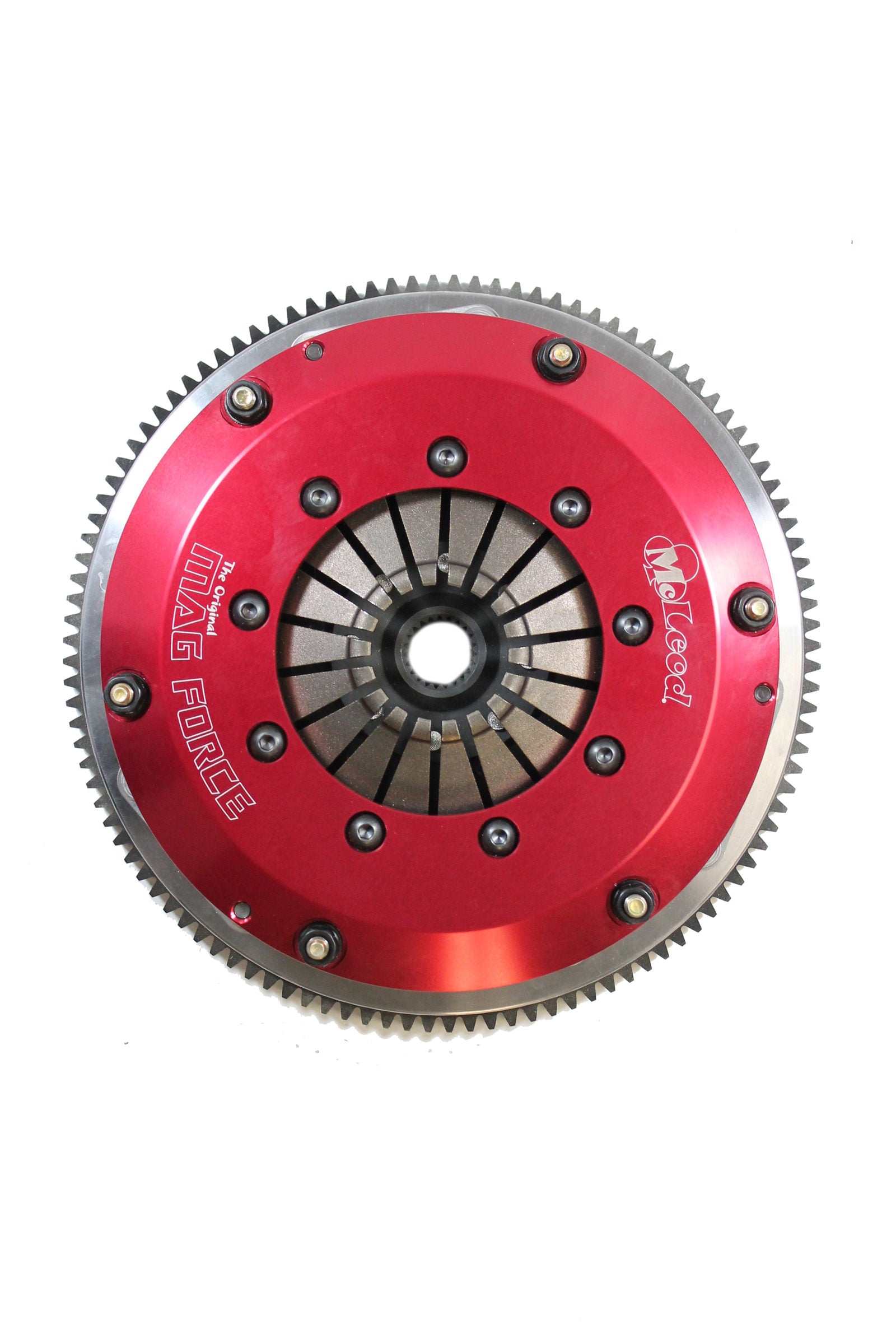

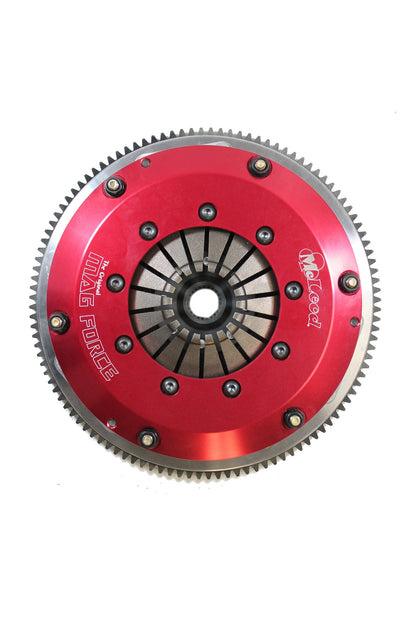

Mcleod 653322-00-03 - Mag Force Double Strap Ford 302 351 0-Bal 1-1/16X10 Spline 157

Mag Force: 2 Disc: Strap Drive: Ford 1963-95 SBF 289/302/351: 1-1/16 x 10: 157T

Mag Force; Double Disc;Ford, SBF 289/302/351; 157T;8" x 1-1/16 x 10 Spl;Strapped Floater;Each

Mag Force - These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On strapped drive system where the floater plate is bolted to the flywheel using a spring steel strap. This keeps the twin disc system quiet during clutch release and gets away from the stigma of "noisey twin discs" associated with pin drive units. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications.

  • • Ceramic Discs. • Pin or Strap Drive. • Oval Track, Road Racing and Dry Lakes usage. • Single Disc (500Ft Tq) • Double Disc (900 Ft Tq) • Triple Disc (1500 Ft Tq
Disc Material: Sintered Iron
Disc Style: Full face
Hub Style: Solid
Clutch Disc Quantity: 2
Pressure Plate Style: Diaphragm
Counterweight Assist: No
Alignment Tool Included: Yes
Hardware Included: Yes
Clutch Usage: Performance
Pilot Bushing Included: No
Throwout Bearing Included: No
Flywheel Included: Yes
Flywheel Material: Billet aluminum
Ring Gear Tooth Quantity: 164-tooth
Engine Balance: Internal
Crankshaft to Flywheel Bolt Quantity: 6-bolt
Quantity: Sold as a kit.
Counter Weight Kit if Required: 563333 (sold separately)
Make: Ford
Disc Diameter (in.): 8.000
Input Shaft Diameter (in.): 1.063
Input Spline Quantity: 10
