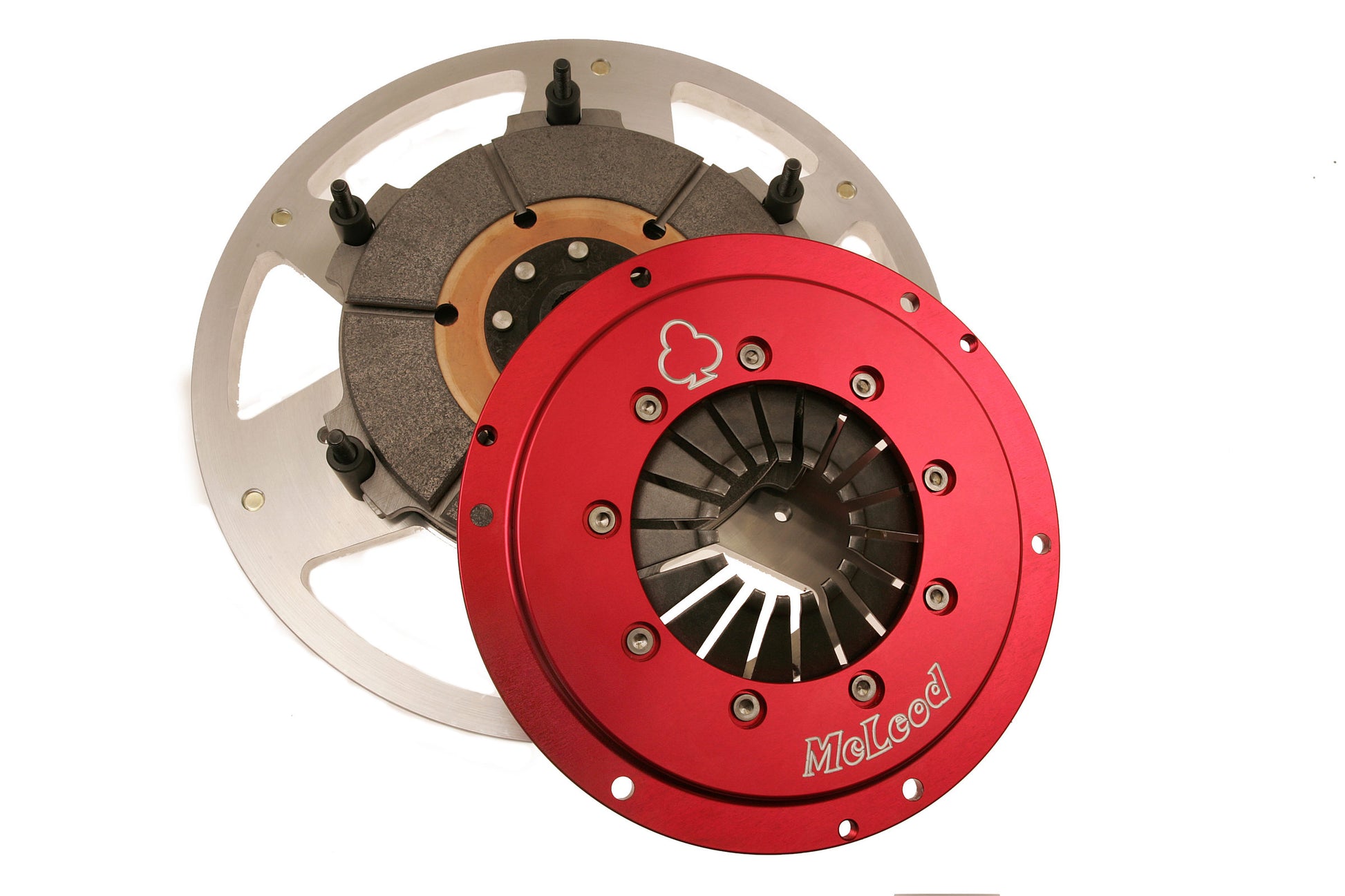

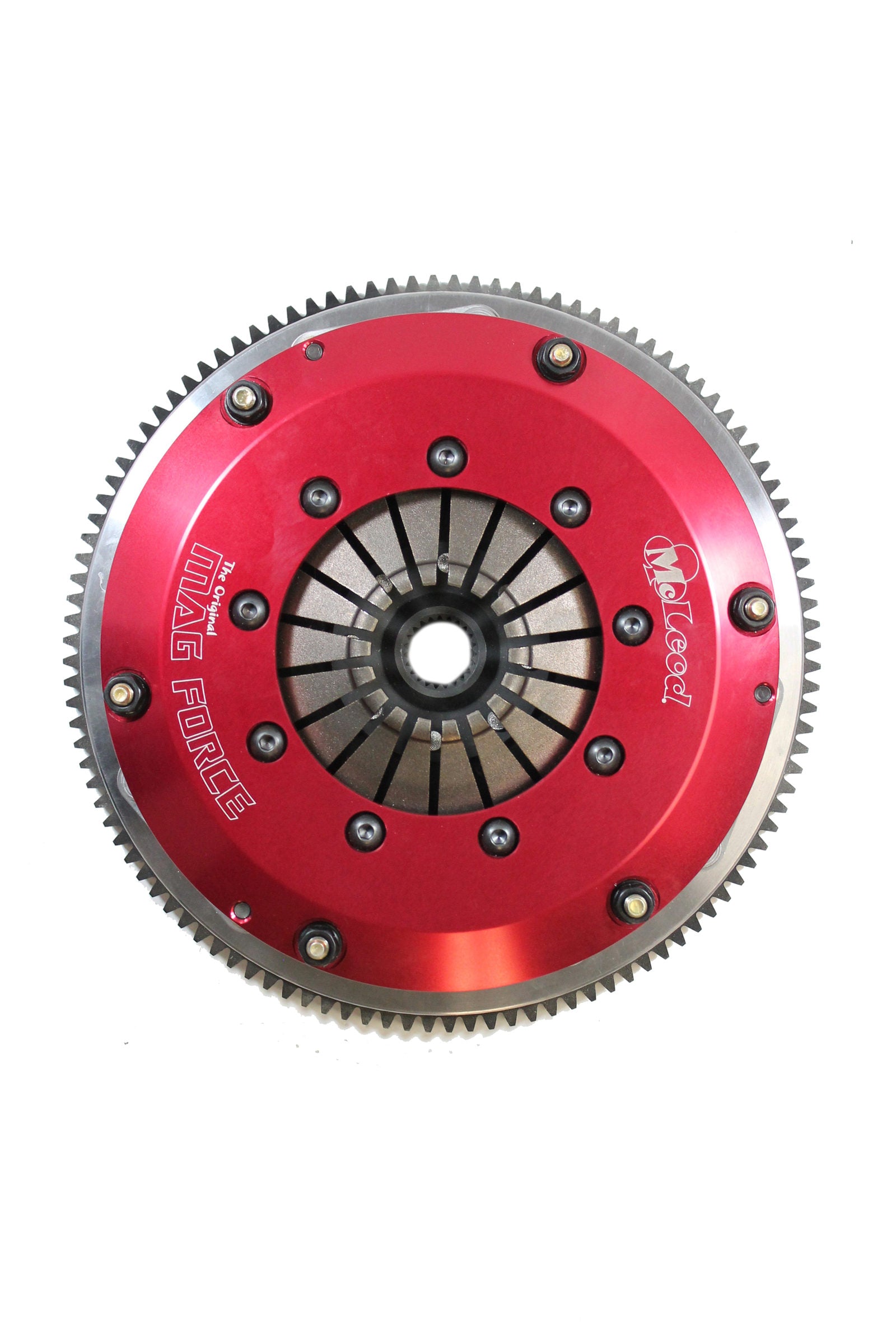

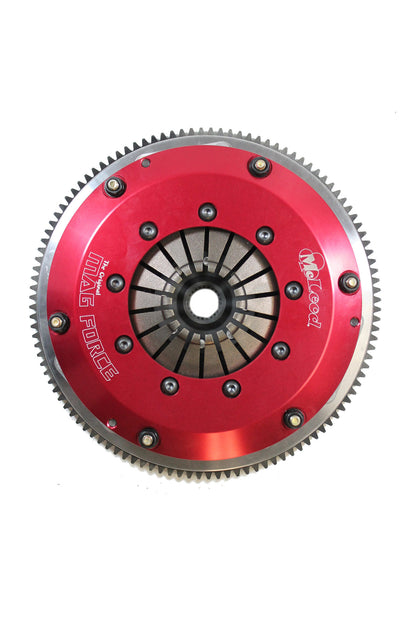

Mcleod 651353-00-03 - Mag Force Triple Pin Drive Ford 1969-78 460 0Bal 1-1/16X10 176

Mcleod 651353-00-03 - Mag Force Triple Pin Drive Ford 1969-78 460 0Bal 1-1/16X10 176

Mcleod | 651353-00-03
SKU: MC-651353-00-03
Regular price $1,705.99 USD
Regular price $1,795.00 USD Sale price $1,705.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Mcleod 651353-00-03 - Mag Force Triple Pin Drive Ford 1969-78 460 0Bal 1-1/16X10 176

Mag Force:Triple Disc:Pin Drive:Ford:1969-98 BBF 429/460:0Bal:1-1/16x10:176T

Mag Force: 3 Disc: Pin Drive: Ford 1969-98 BBF 429/460: 1-1/16 x 10 Spline: 176T

Mag Force - These clutches are the perfect choice for racers looking for a lightweight, high torque capacity unit. They are designed to be used for oval track, road racing and dry lakes applications. These units are offered in single disc (500ft tq) double disc (900 ft tq) and triple disc (1500 ft tq) configurations to meet the harshest needs in the industry. These units rely on a pin drive actuation system where the floater plate slides on 6 evenly spaced pins for quick release in a racing application. Our Mag Force units also offer bolt on external balance weights for most applications.

  • • Ceramic Discs. • Pin or Strap Drive. • Oval Track, Road Racing and Dry Lakes usage. • Single Disc (500Ft Tq) • Double Disc (900 Ft Tq) • Triple Disc (1500 Ft Tq
Make: Ford
Disc Diameter (in.): 8.000
Input Shaft Diameter (in.): 1.063
Input Spline Quantity: 10
Disc Material: Sintered Iron
Disc Style: Full face
Hub Style: Solid
Hardware Included: Yes
Pressure Plate Style: Diaphragm
Counterweight Assist: No
Clutch Disc Quantity: 3
Alignment Tool Included: Yes
Clutch Usage: Performance
Throwout Bearing Included: No
Pilot Bushing Included: No
Flywheel Included: Yes
Flywheel Material: Billet aluminum
Engine Balance: Internal
Ring Gear Tooth Quantity: 176-tooth
Crankshaft to Flywheel Bolt Quantity: 6-bolt
Quantity: Sold as a kit.
Counter Weight Kit if Required: 563333 (sold separately)
