Mcleod 6300105 - Street Twin Aluminum Chevy 2Pc Seal Crank 1-3/16X18 Spline 168

Mcleod 6300105 - Street Twin Aluminum Chevy 2Pc Seal Crank 1-3/16X18 Spline 168

Mcleod | 6300105
SKU: MC-6300105
Regular price $1,325.99 USD
Regular price $1,395.00 USD Sale price $1,325.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

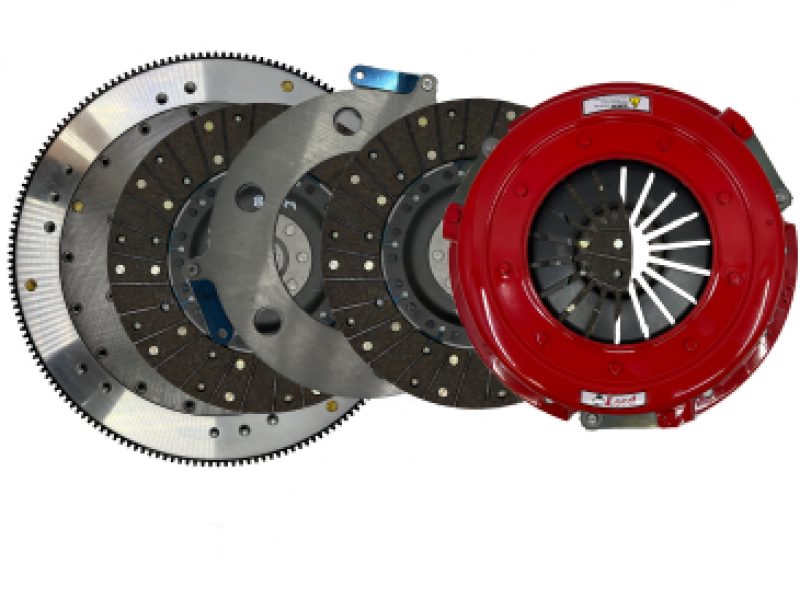

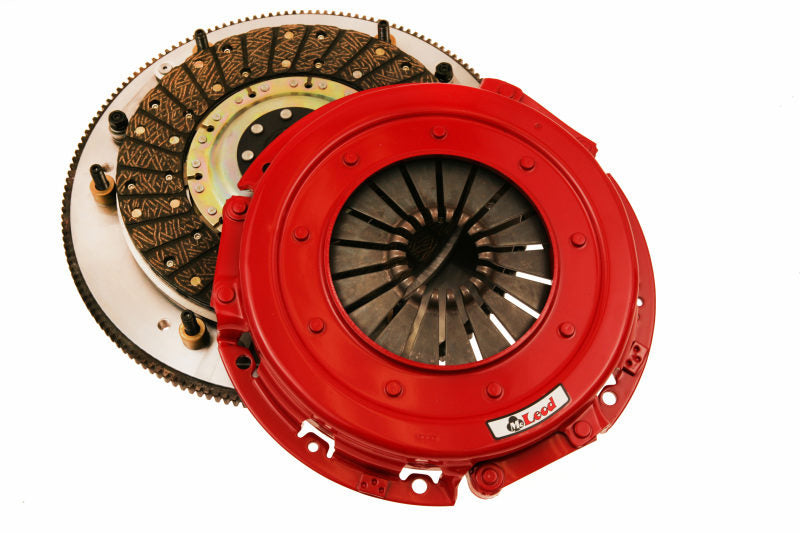

Mcleod 6300105 - Street Twin Aluminum Chevy 2Pc Seal Crank 1-3/16X18 Spline 168

Original Street Twin: Aluminum: Chevrolet 55-85 SBC: 70-90 BBC: 1-3/16 x 18:168T

McLeod Original Street Twin, Aluminum Flywheel, Chevrolet 1955-1985 SBC, 1970-1990 BBC, 1-3/16 x 18 Spline, 168T, Aftermarket Transmission - 6300105

Street Twin - In 1974 with the rising popularity of power adders such as Nitrous,Superchargers and Turbochargers, McLeod recognized the need for a clutch assembly that was street friendly, yet still capable of handling up to 1,200 horsepower, thus the Street Twin was born! This series of McLeod clutch kit is intended for high horsepower street enthusiast. Whether it's NOS,Supercharger,Turbocharger or a Big Inch mountain motor the "Original Street Twin" can handle it. Go with the innovator not the imitator McLeod Racing!

  • • Street Twin. • Street Friendly. • Ceramic or Organic Discs. • Strap Drive. • Flywheel Included.
Engine Balance: Internal
Ring Gear Tooth Quantity: 168-tooth
Hardware Included: Yes
Quantity: Sold as a kit.
Notes: Counter Weight Kit if Required 560222 (sold separately). Aftermarket Transmission.
Rear Main Seal Style: 2-piece
Make: Chevrolet
Disc Diameter (in.): 10.500
Input Shaft Diameter (in.): 1.188
Input Spline Quantity: 18
Disc Material: Organic
Disc Style: Full face
Hub Style: Solid
Clutch Disc Quantity: 2
Pressure Plate Style: Diaphragm
Horsepower Rating: 1200
Clutch Usage: Performance
Throwout Bearing Included: No
Pilot Bushing Included: No
Alignment Tool Included: Yes
Flywheel Included: Yes
Flywheel Material: Billet aluminum
Crankshaft to Flywheel Bolt Quantity: 6-bolt
