Mcleod 560530 - Flywheel Aluminum Chevy LS Motor 1997 Up 12in Steel Insert 168

Mcleod 560530 - Flywheel Aluminum Chevy LS Motor 1997 Up 12in Steel Insert 168

Mcleod | 560530
SKU: MC-560530
$471.99 USD
$495.00 USD $471.99 USD
Sale Sold out
Shipping calculated at checkout.

5 in stock

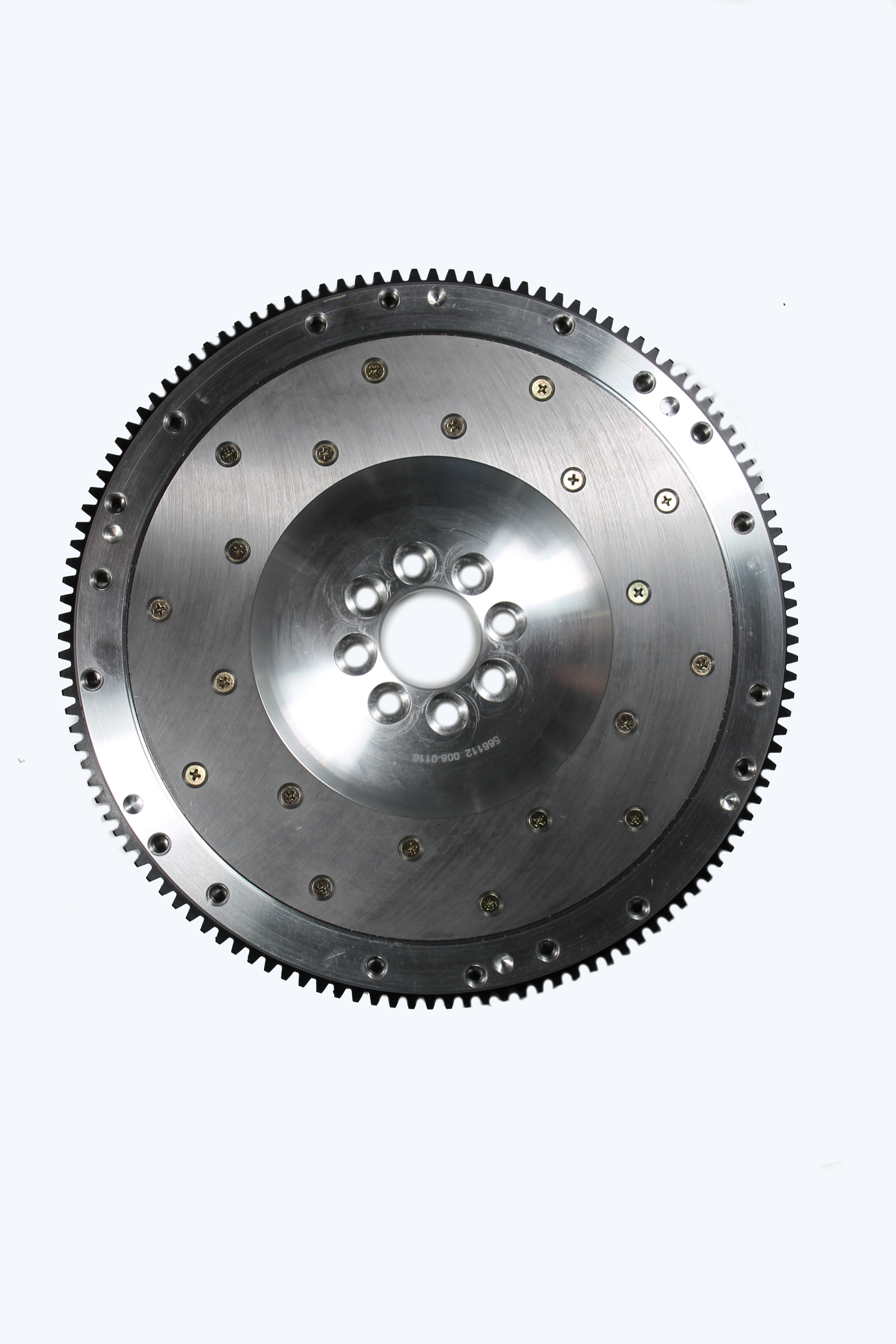

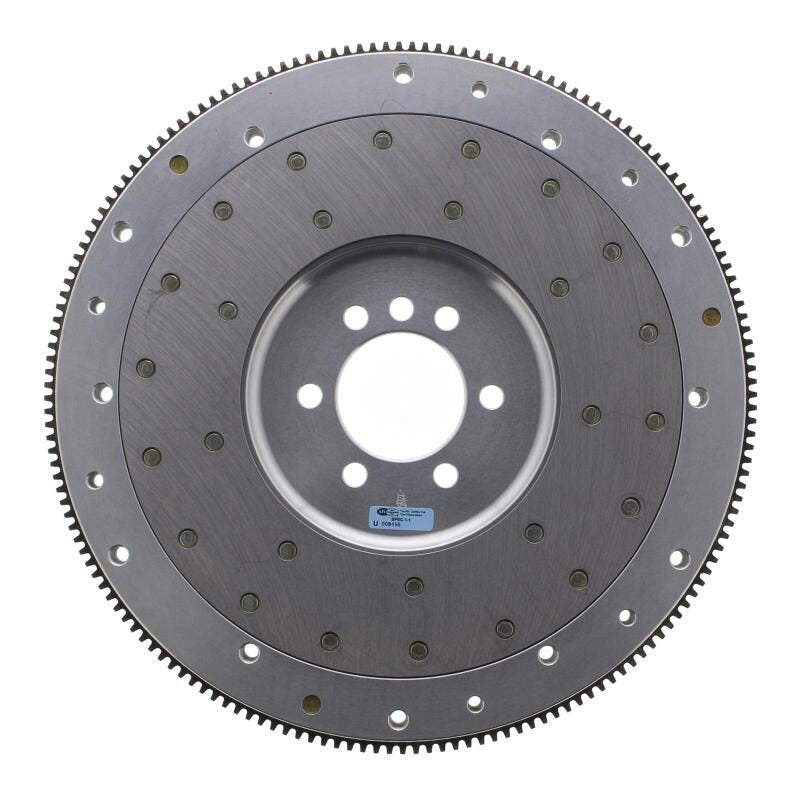

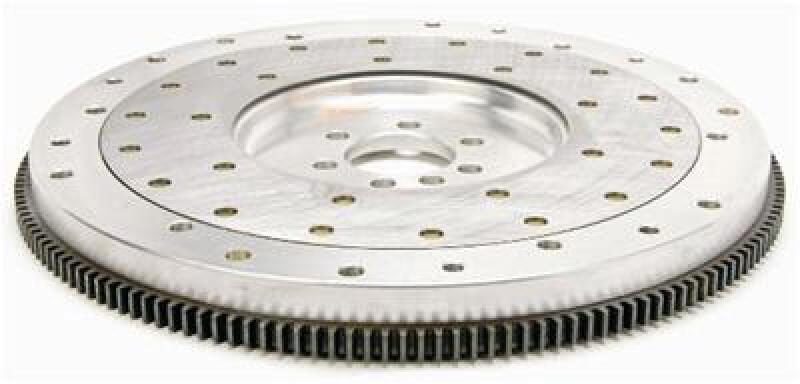

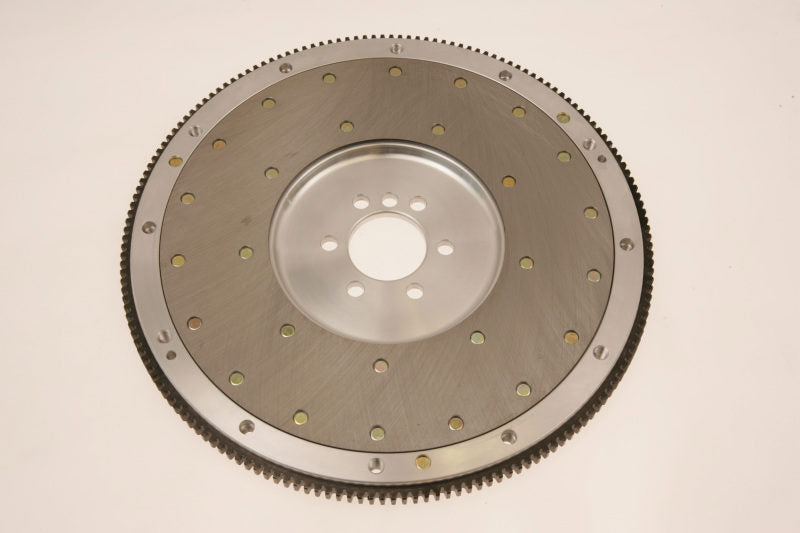

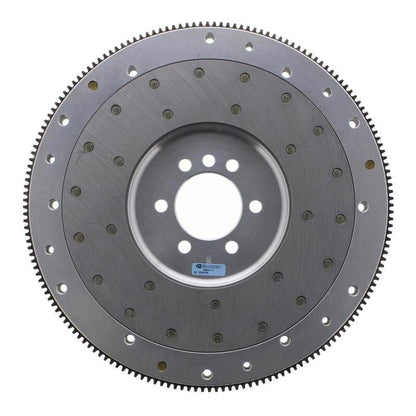

Mcleod 560530 - Flywheel Aluminum Chevy LS Motor 1997 Up 12in Steel Insert 168

Flywheel: Aluminum: Chevrolet 1997-13 LS-X 6 Bolt Crank: 168T: 15 Lbs

ALUMINUM FLYWHEEL CHEVY LS MOTORS 1997-2013, 4.8L, 5.3L, 5.7L, 6.0L, 6.2L, 7.0L; 168T McLeod aluminum flywheels are CNC machined and include a replaceable friction surface.

McLeod Aluminum Flywheels are ideal for numerous applications such as supercharged or turbocharged engines. These flywheels are ideal for higher horsepower engines and combinations that achieve rapid RPM levels. McLeod Aluminum Flywheels are CNC machined from 6061 T6 aluminum and come with a replaceable steel friction plate and 1045 steel hardened ring gear.

  • • Billet Aluminum 6060-T6. • 1045 Steel Hardened Ring Gear. • SFI rated.
Make: Chevrolet
Flywheel Material: Billet aluminum
Marine Use: No
Replaceable Friction Surface: Yes
Engine Balance: Internal
Quantity: Sold individually.
Ring Gear Tooth Quantity: 168-tooth
SFI 1.1 Approved: Yes
Crankshaft to Flywheel Bolt Quantity: 6-bolt
Disc Diameter (in.): 11.000/12.000 in.
Engine: 1997-2013 LS1/LS2/LS3/LS6/LS7
Notes: Because of standard variances in OEM and Aftermarket manufacturing tolerances, the flywheel to crankshaft fit may have variations from slip-fit to slight interference. Tight fit at the crankshaft can be corrected by heating the flywheel to temporarily to expand the center bore for correct mounting. Caution, flywheel will be hot, handle with care.
Pressure Plate Style: Borg & Beck/Diaphragm
Rear Main Seal Style: 1-piece
Weight: 15.000 lbs.
