Mcleod 4993-00-03 - Soft Lok HCF Ford Big Blk 429/460 0Bal 10.5in X 1-1/16 X 10 Spline 176

Mcleod 4993-00-03 - Soft Lok HCF Ford Big Blk 429/460 0Bal 10.5in X 1-1/16 X 10 Spline 176

Mcleod | 4993-00-03
SKU: MC-4993-00-03
Regular price $2,042.99 USD
Regular price $2,150.00 USD Sale price $2,042.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Mcleod 4993-00-03 - Soft Lok HCF Ford Big Blk 429/460 0Bal 10.5in X 1-1/16 X 10 Spline 176

SOFT LOK ALM FORD 429/460 10.5 X 1-1/16 X 10 SPL HCF 0BAL 176

Soft Lok: Ford 1969-78 BBF 429/460: 10.5 x 1-1/16 x 10 Spline: 176T

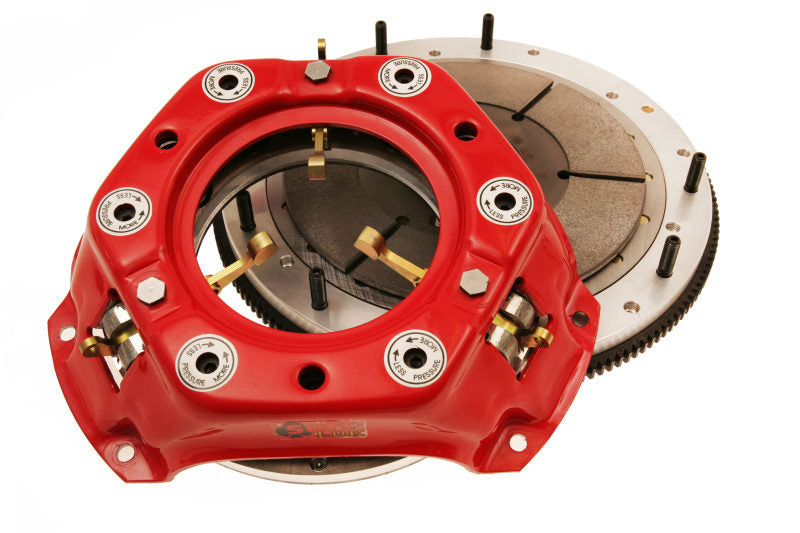

Soft Lok - The McLeod Soft Lok assembly is the most widely used McLeod clutch assembly for drag racers, and is not recommended for street use. This unit is an NHRA and IHRA record holder. Low static pressure for light pedal effort and soft clutch engagement. Leave the starting line harder with less tire spin. Enough holding power for the entire run. Adjustable spring pressure and counter weights. Kit includes adjustable long style pressure plate, sintered iron 5135 compound disc and billet aluminum flywheel. SFI Rated and made in the USA!

  • • Low Static Pressure. • Soft Clutch Engagement. • Leave Line Harder with Less Tire Spin. • Adjustable Spring Pressure. • Available with Counterweights.
Alignment Tool Included: Yes
Hardware Included: Yes
Clutch Usage: Performance
Pilot Bushing Included: No
Throwout Bearing Included: No
Flywheel Included: Yes
Flywheel Material: Billet aluminum
Ring Gear Tooth Quantity: 176-tooth
Engine Balance: Internal
Crankshaft to Flywheel Bolt Quantity: 6-bolt
Quantity: Sold as a kit.
Counter Weight Kit if Required: 563333 (sold separately)
Make: Ford
Disc Diameter (in.): 10.500
Input Shaft Diameter (in.): 1.063
Input Spline Quantity: 10
Disc Material: Sintered Iron
Disc Style: Full face
Hub Style: Solid
Clutch Disc Quantity: 1
Pressure Plate Style: Long
Counterweight Assist: Yes
