Mcleod 1309 - Hydraulic T.O. Bearing Bolt On Richmond Ford 5 & 6 Spd 4.850 O.D

Mcleod 1309 - Hydraulic T.O. Bearing Bolt On Richmond Ford 5 & 6 Spd 4.850 O.D

Mcleod | 1309
SKU: MC-1309
Regular price $379.99 USD
Regular price $395.00 USD Sale price $379.99 USD
Sale Sold out
Shipping calculated at checkout.

5 in stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Mcleod 1309 - Hydraulic T.O. Bearing Bolt On Richmond Ford 5 & 6 Spd 4.850 O.D

1300 Series Hydraulic Bearing: Ford: Richmond 5/6 Speed: "A" 2.50"-2.99"

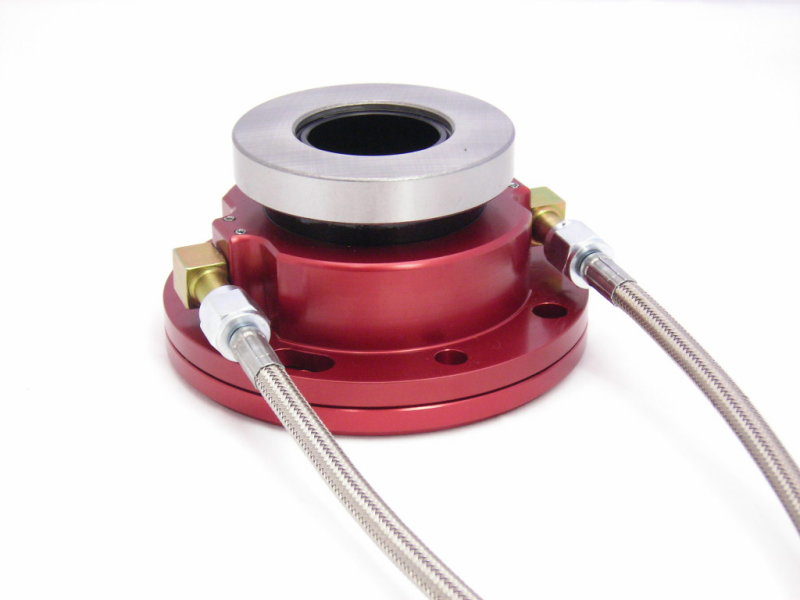

HYDRAULIC THROWOUT BEARING BLT ON RICHMOND FORD 5 & 6 SPD 4.850 O.D. McLeod Hydraulic TOB's are made of the finest hard anodized billet aluminum. They are built with swivel fittings, stainless steel lines and a bleeder for easier installati

Mcleod 1300 Series Hydraulic Throw-Out Bearings Replace Your Oem Bearing Retainer With The Finest Hard Anodized Billet Aluminum. These High-Quality, Bolt-On Hydraulic Throw-Out Bearings Are Extremely Durable And Are Packaged With High-Pressure Stainless Steel Braided Lines And Premium Elbow Swivel Fittings, Making Their Install Much Easier. These Assemblies Are Available For Several Applications And May Be Used To Eliminate The Need To Fabricate Complex Clutch Linkage When Swapping Transmissions. Mcleod 1300 Series Hydraulic Throw-Out Bearings Offer Extreme Durability And Performance For Your Street Or Strip Machine.

  • • Hard Anodized Billet Aluminum. • Stainless Steel Lines. • Bleeder. • Slip on. • Self-adjusting.
Transmission: Ford Richmond 5 & 6 Speed, Doug Nash 5 Speed
"A" Dimension: 2.50 in. to 2.99 in.
Stock Collar I.D. (in.): 4.850In.
Height 3 Spacers: 2.890In.
Height 2 Spacers: 2.740
Height 1 Spacer: 2.590In.
Bearing Face O.D. (in.): 3.000
Bearing Face I.D. (in.): 1.590
Quantity: Sold individually.
Note: This bearing will NOT work with a OEM self adjusting pressure plate. For more info please call McLeod Tech at 714-630-2764
Note 2: This bearing will NOT work with counter weighted diaphragm pressure plates.
