Mcleod

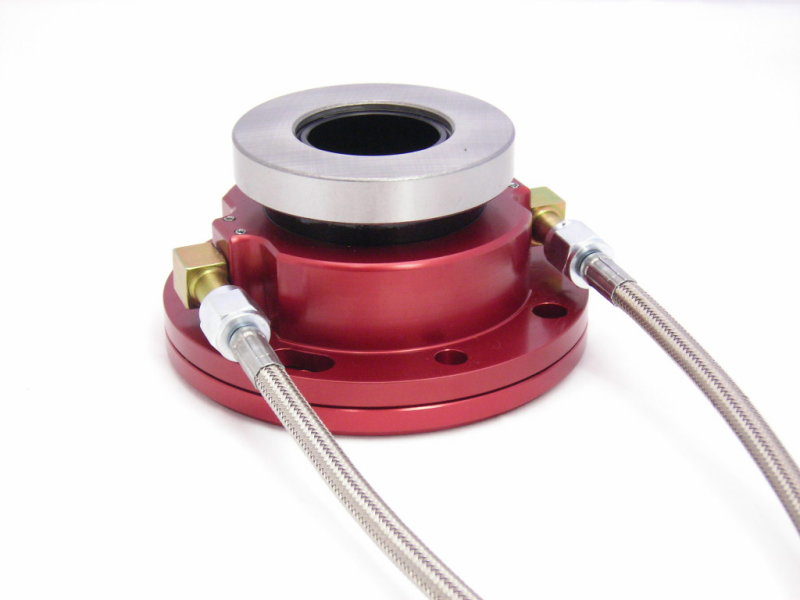

Mcleod 1301 - Hydraulic T.O. Bearing Blt On T10 Trans (Comes With 2 Piston)

MSRP: $462.00
$385.00
( saved $77.00 )
Write a Review
  • Mcleod 1301 - Hydraulic T.O. Bearing Blt On T10 Trans (Comes With 2 Piston)
  • PLEASE NOTE: Pictures are repsentative of style, may be generic.
Adding to cart… The item has been added
SKU:
MC-1301
UPC:
887753010858
  • Free Ground Shipping

  • No Restocking Fee

  • Safe Payments

  • No Backorders Ever

Mcleod - 1301

Throwout Bearing - 1300 Series - Hydraulic - Bolt-On - Braided Stainless Lines - Diaphragm Pressure Plate - Borg Warner T-10 / Super T-10 - Each

HYDRAULIC THROWOUT BEARING BLT ON T10 & SUPER T10 TRANS McLeod Hydraulic TOB's are made of the finest hard anodized billet aluminum. They are built with swivel fittings, stainless steel lines and a bleeder for easier

Mcleod 1300 Series Hydraulic Throw-Out Bearings Replace Your Oem Bearing Retainer With The Finest Hard Anodized Billet Aluminum. These High-Quality, Bolt-On Hydraulic Throw-Out Bearings Are Extremely Durable And Are Packaged With High-Pressure Stainless Steel Braided Lines And Premium Elbow Swivel Fittings, Making Their Install Much Easier. These Assemblies Are Available For Several Applications And May Be Used To Eliminate The Need To Fabricate Complex Clutch Linkage When Swapping Transmissions. Mcleod 1300 Series Hydraulic Throw-Out Bearings Offer Extreme Durability And Performance For Your Street Or Strip Machine.

  • • Hard Anodized Billet Aluminum. • Stainless Steel Lines. • Bleeder. • Slip on. • Self-adjusting.

Transmission: Borg Warner T-10,Super T-10, G-Force 5 Speed
"A" Dimension: 2.50 in. to 2.99 in.
Spline: 1 1/8In. x 26
Bearing Register O.D.: 4.680In.
Height 3 Spacers: 2.890In.
Height 2 Spacers: 2.740
Height 1 Spacer: 2.590In.
Bearing Face O.D. (in.): 3.000
Bearing Face I.D. (in.): 1.590
Quantity: Sold individually.
Note: This bearing will NOT work with a OEM self adjusting pressure plate. For more info please call McLeod Tech at 714-630-2764
Note 2: This bearing will NOT work with counter weighted diaphragm pressure plates.
