Manley 261454 - Big Block Bracket Super Gas / Super Comp. Valve Spring and Retainer Kit (.850in max lift)

Manley 261454 - Big Block Bracket Super Gas / Super Comp. Valve Spring and Retainer Kit (.850in max lift)

Manley | 261454
SKU: BBPB-261454
Regular price $0.00 USD
Regular price $0.00 USD Sale price $0.00 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

Manley 261454 - Big Block Bracket Super Gas / Super Comp. Valve Spring and Retainer Kit (.850in max lift)

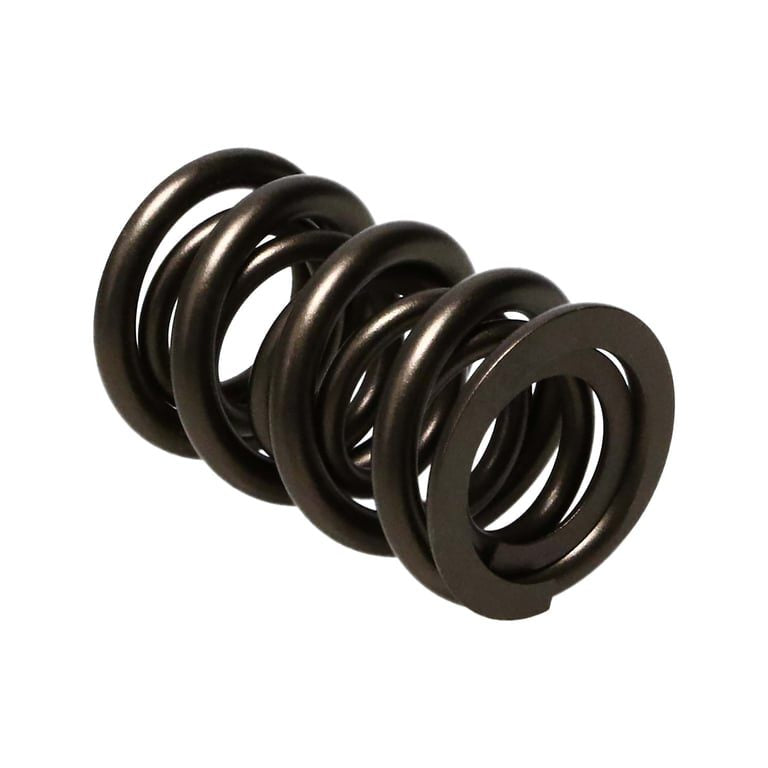

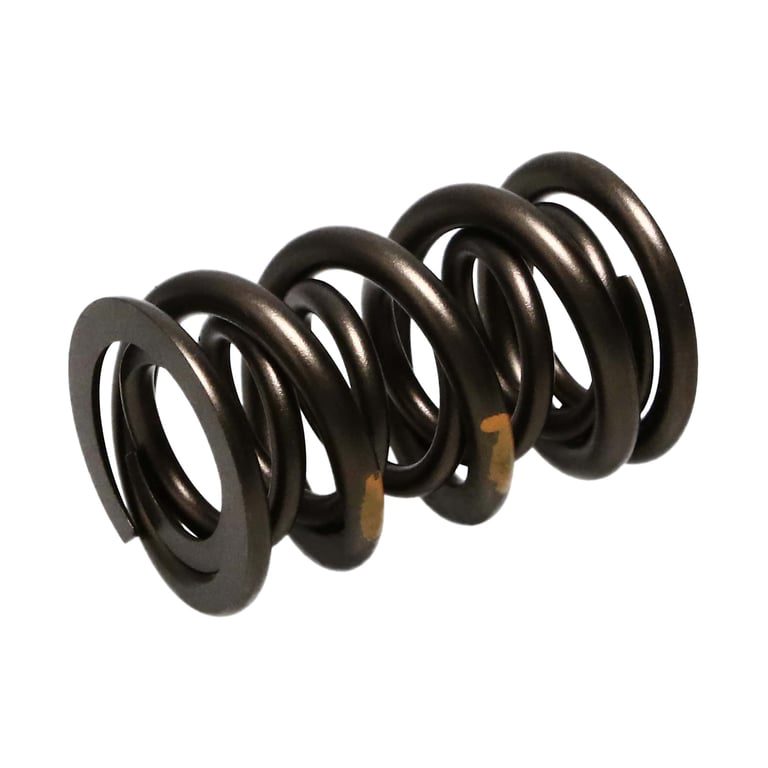

Manley Valve Spring Kit, KIT-NexTek SPRING

Double Spring w/out Damper: 221454-16 (155 g) and 10° Ti Retainer No. 23640-16 (20 g)

From drag strips to short track and endurance circuits, the Manley NexTek® series is engineered for serious racers. NexTek® springs resist pressure loss and valve-train degradation even in the most demanding race conditions. That means more consistent spring force deep into a run, reduced valve bounce, and improved overall stability for high-RPM performance. Built to outperform and outlast in real-world competition.

  • Squeeze more RPM out of your engine and avoid valve float
  • Special heat treated titanium for maximum strength
  • Lightweight retainer does not sacrifice reliability
  • Advertised pressures are achieved after springs have been pressed solid three times
Product Market: Domestic
Product Type: Engine Valve Spring & Retainer Kit
Valve Spring Outer Diameter: 1.650
Valve Spring Inner Diameter: 0.855
Valve Spring Quantity: 16
Valve Spring Series: NexTek? Series
Valve Spring Material: Chrome Silicon
Valve Spring Type: Double
Valve Spring Coil Bind Height: 1.105
Valve Spring Rate: 635
Installed Pressure and Height: 290 @ 2.000
Open Pressure and Height: 825 @ 1.150
Valve Spring Retainer Quantity: 16
Valve Spring Retainer Series: 10 Degree Titanium
Valve Spring Retainer Material: 6AL-4V Titanium
Valve Lock Angle: 10
First Step Diameter: 1.500
Second Step Diameter: 1.175
Third Step Diameter: 0.850
Industry: Automotive
Out of Stock Message: Call for Availability
Engine Type: ICE
