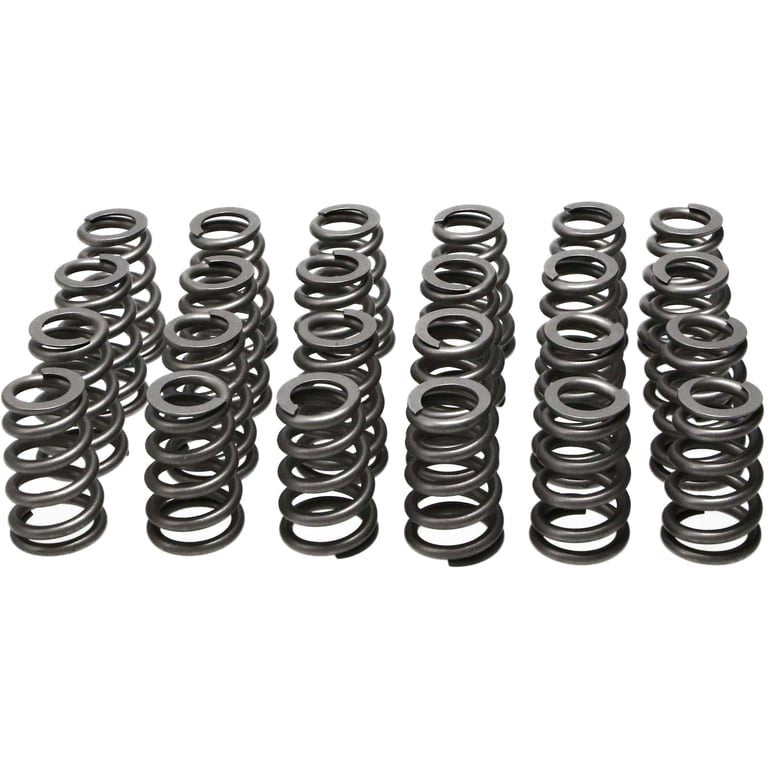

Manley 26135 - Toyota Supra 2JZ 6 Cyl. Valve Spring and Retainer Kit (w/o Valve Locks)

Manley 26135 - Toyota Supra 2JZ 6 Cyl. Valve Spring and Retainer Kit (w/o Valve Locks)

Manley | 26135
SKU: BBPB-26135
Regular price $655.91 USD
Regular price $690.43 USD Sale price $655.91 USD
Sale Sold out
Shipping calculated at checkout.

7 in stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Manley 26135 - Toyota Supra 2JZ 6 Cyl. Valve Spring and Retainer Kit (w/o Valve Locks)

Manley Sprng/Retnr Kit - Toyota Supra 2JZ-GE/2JZ-GTE - Locks NOT Included

Max Lift: 0.430" - Spring: 22135-24 - Titanium Retainer: 23135-24

Manley Performance Valve spring and Retainer Kits take the guess work out of making your valvetrain race-ready. Engineered for maximum durability, stability, and precision in high-performance and racing applications, these chrome-silicon alloy springs provide exceptional fatigue resistance and high-tensile strength, ensuring consistent valve control at extreme RPMs. Save time and money with these kits, featuring premium springs, retainers, designed to handle aggressive aftermarket camshafts.

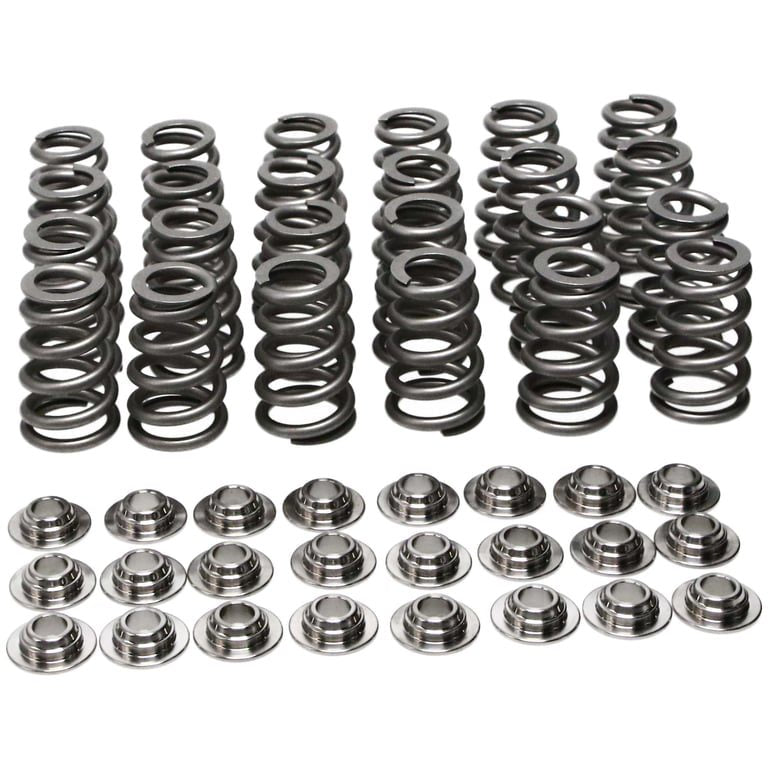

  • Includes matched Valve Springs, Retainers, and Locks (if part number ends in "K"). Spring Locators included in some applications.
  • Designed to handle aftermarket camshafts and up to 10,000 RPM
  • Heat treated aerospace grade titanium retainers CNC machined to exacting tolerances
  • Includes 7 Machined Valve Locks manufactured from the premium quality heat treated steel
Product Market: Sport Compact
Stem Diameter: 6.00
Valve Stem Diameter: 6.00
Product Type: Valve Spring Kit
Valve Spring Outer Diameter - Top: 0.856
Valve Spring Inner Diameter - Top: 0.560
Valve Spring Outer Diameter - Bottom: 1.046
Valve Spring Inner Diameter - Bottom: 0.750
Valve Spring Quantity: 24
Valve Spring Coil Bind Height: 0.845
Valve Spring Rate: 339
Valve Lift - Stock: 0.340
Valve Lift - Maximum: 0.430
Installed Pressure and Height: 100 @ 1.300
Open Pressure and Height: 245 @ 0.870
Valve Spring Retainer Step Height: 0.100
Valve Lock Angle: 6
Industry: Automotive
Out of Stock Message: Call for Availability
Engine Type: ICE
Make: Toyota
Engine: 2JZ
