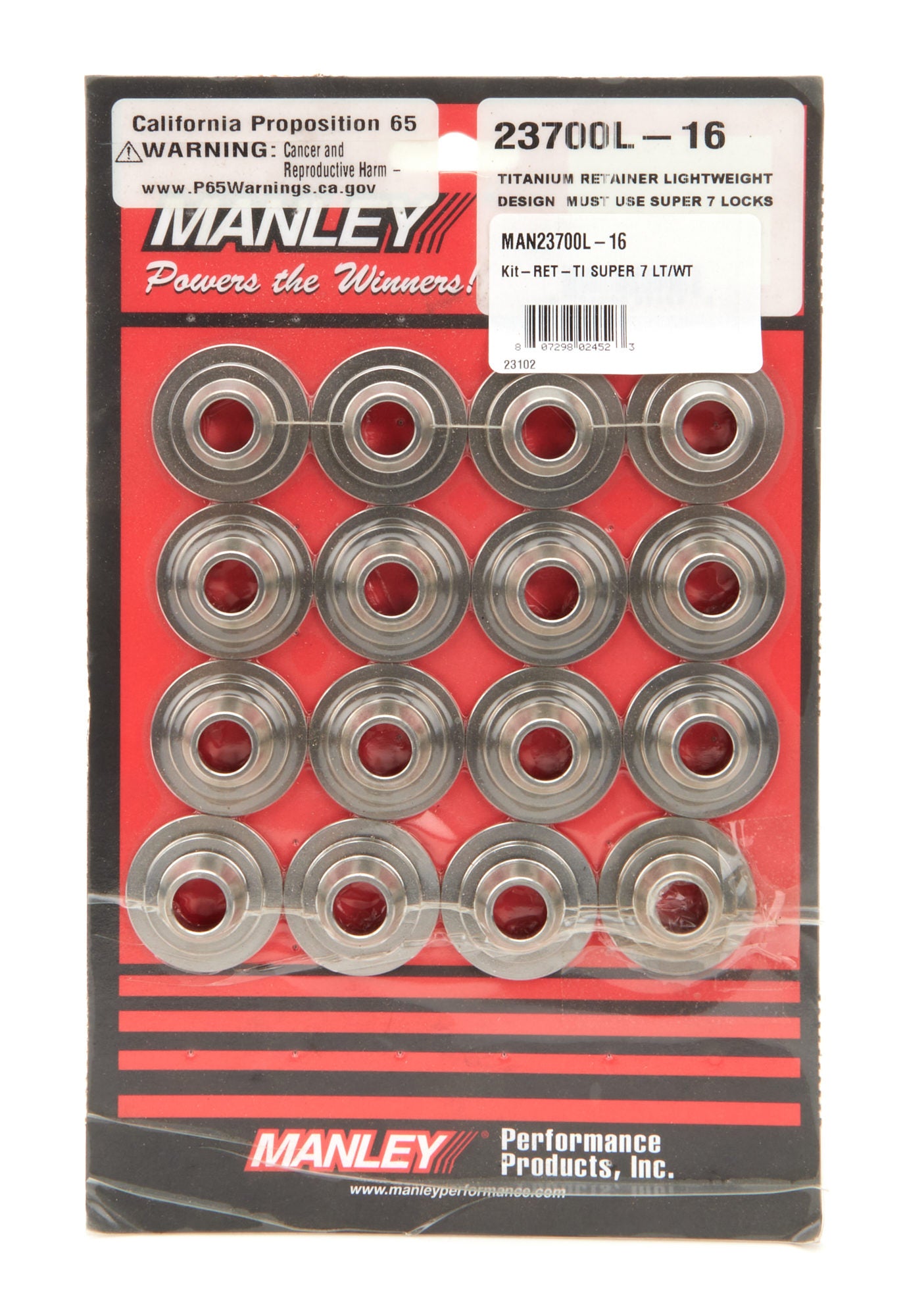

Manley 23700L-16 - 16pc Titanium Retainers - 1.500in. Spring OD 1.080in. I.D

Manley 23700L-16 - 16pc Titanium Retainers - 1.500in. Spring OD 1.080in. I.D

Manley | 23700L-16
SKU: BBPB-23700L-16
Regular price $0.00 USD
Regular price $0.00 USD Sale price $0.00 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

Manley 23700L-16 - 16pc Titanium Retainers - 1.500in. Spring OD 1.080in. I.D

Valve Spring Retainer - 7 Degree - 1.450 in / 1.080 in / 0.785 in OD Steps - 1.500 in Dual Spring - Titanium - Natural - Set of 16

Manley Spring Retainer, RET-SUPER 7 LT/WT CT1040.

Upgrade your valve train with Manley Performance Titanium Retainers and other lightweight titanium options designed specifically for high-revving engines. Machined from our special TI-17 Titanium alloy material, these retainers dramatically reduce valvetrain mass for quicker rev-up, improved valve control and enhanced overall responsiveness. The reduced weight helps your engine hold spring pressure at high RPM, minimizing float and unlocking more performance potential in race or aggressive street applications. Lightweight, strong, and precision-built for serious performance.

  • Made from our high strength Ti-17 Titanium material for maximum strength
  • Heat treated for maximum strength
  • Available w/ or w/out our exclusive impingement surface enhancement process
  • "L" suffix indicates lightweight version which is 3-4 grams lighter than the standard number
  • Impingement results in 20% improvement in abrasion resistance, 30% improvement in fatigue strength,and surface finish improvement
Weight: 16
Product Type: Engine Valve Spring Retainer Set
Valve Spring Outer Diameter: 1.500
Valve Spring Type: Double
Valve Spring Retainer Quantity: 16
Valve Spring Retainer Series: Super 7 Degree Titanium
Valve Spring Retainer Material: TI-17 Titanium
Valve Spring: PSI CT1040
Valve Lock Angle: 8
First Step Diameter: 1.450
Second Step Diameter: 1.080
Third Step Diameter: 0.785
Engine Type: ICE
