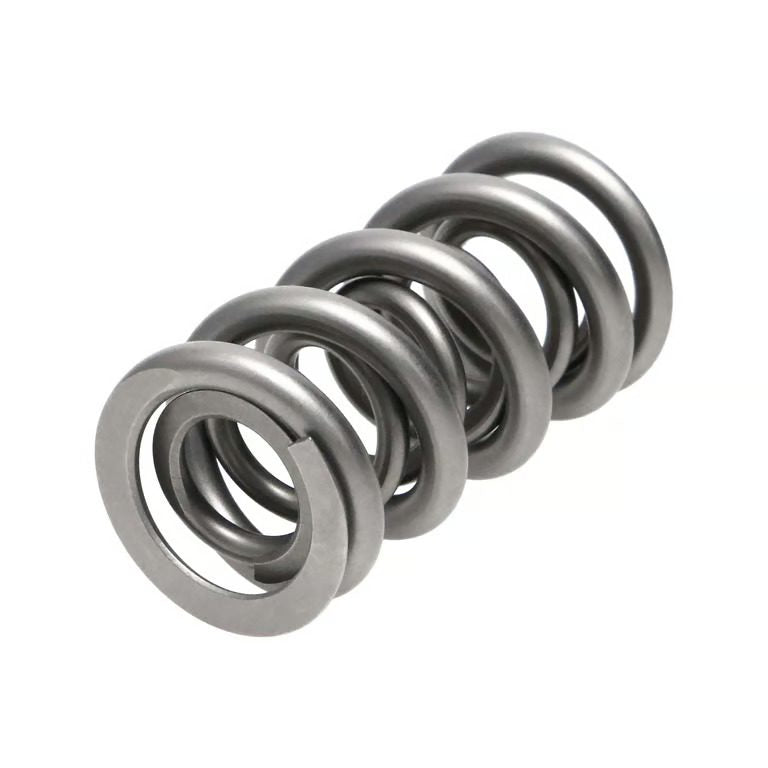

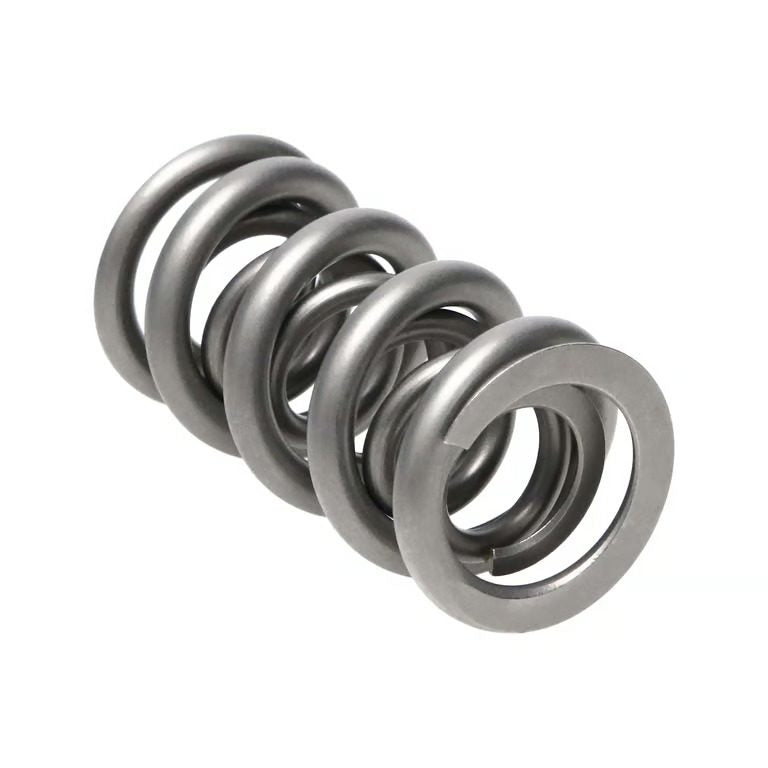

Manley 221461-1 - Valve Spring, SPRING-1.540 DOUBLE
Manley 221461-1 - Valve Spring, SPRING-1.540 DOUBLE
SKU: BBPB-221461-1
Regular price
$0.00 USD
Regular price
$0.00 USD
Sale price
$0.00 USD
Shipping calculated at checkout.
Out of stock
Quantity
Couldn't load pickup availability
Manley 221461-1 - Valve Spring, SPRING-1.540 DOUBLE
Manley Valve Spring, SPRING-1.540 DOUBLE
From drag strips to short track and endurance circuits, the Manley NexTek® series is engineered for serious racers. NexTek® springs resist pressure loss and valve-train degradation even in the most demanding race conditions. That means more consistent spring force deep into a run, reduced valve bounce, and improved overall stability for high-RPM performance. Built to outperform and outlast in real-world competition.
- Higher natural frequency and lower active mass provides improved valvetrain control and higher RPM potential
- Dual spring design reduces friction, which generates less heat and translates into greatly reduced load loss
- Extensively tested on the Spintron, dyno and race track (including blown nitro engines) and proven highly effective
- Smaller diameter, lightweight dual design allows engine to rev higher with improved valve train control
- Accepts smaller, lighter retainers which also promotes higher revs
- Ultra clean, high tensile strength chrome silicon material
Product Market: Domestic
Average Gram Weight: 154
Product Type: Engine Valve Spring
Valve Spring Outer Diameter: 1.540
Valve Spring Inner Diameter: 0.710
Valve Spring Quantity: 1
Valve Spring Series: NexTek? Series
Valve Spring Material: Chrome Silicon
Valve Spring Type: Double
Valve Spring Coil Bind Height: 1.215
Valve Spring Rate: 964
Valve Lift - Maximum: 1.000
Installed Pressure and Height: 425 @ 2.300
Open Pressure and Height: 1389 @ 1.300
Industry: Automotive
Out of Stock Message: Call for Availability
Engine Type: ICE
