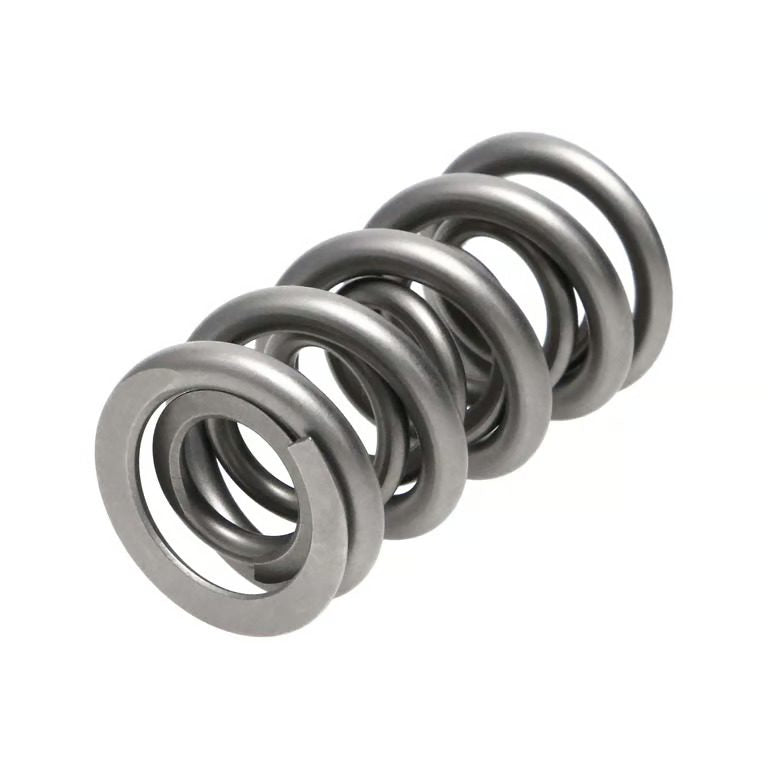

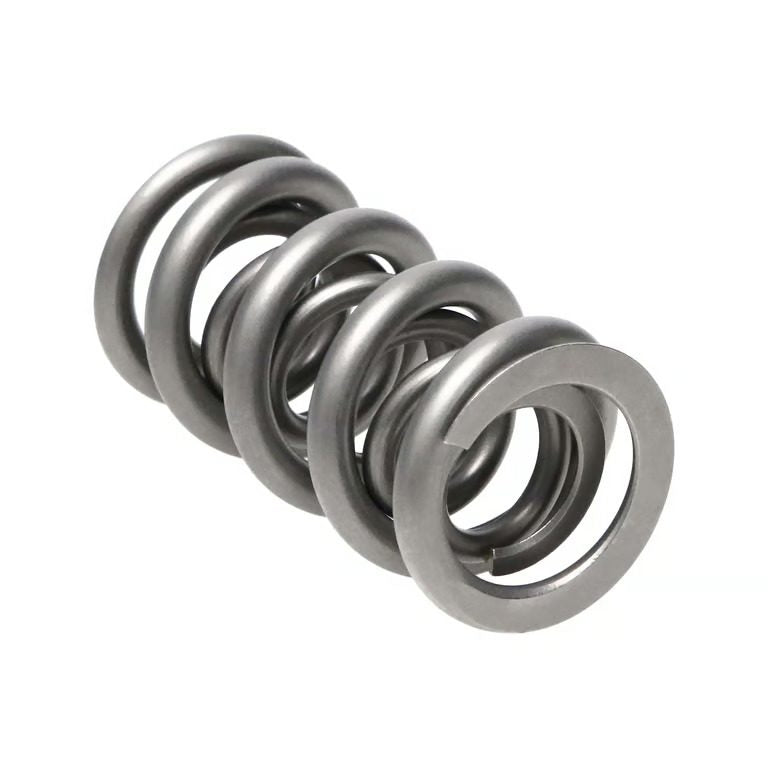

Manley 221460-16 - .950in Valve Lift 1.522in OD NexTek Series Lightweight Dual Drag Race Valve Springs Set of 16

Manley 221460-16 - .950in Valve Lift 1.522in OD NexTek Series Lightweight Dual Drag Race Valve Springs Set of 16

Manley | 221460-16
SKU: BBPB-221460-16
Regular price $1,037.99 USD
Regular price $1,110.76 USD Sale price $1,037.99 USD
Sale Sold out
Shipping calculated at checkout.

20 in stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Manley 221460-16 - .950in Valve Lift 1.522in OD NexTek Series Lightweight Dual Drag Race Valve Springs Set of 16

Manley Valve Spring, SPRING-1.522 DOUBLE

From drag strips to short track and endurance circuits, the Manley NexTek® series is engineered for serious racers. NexTek® springs resist pressure loss and valve-train degradation even in the most demanding race conditions. That means more consistent spring force deep into a run, reduced valve bounce, and improved overall stability for high-RPM performance. Built to outperform and outlast in real-world competition.

  • Higher natural frequency and lower active mass provides improved valvetrain control and higher RPM potential
  • Dual spring design reduces friction, which generates less heat and translates into greatly reduced load loss
  • Extensively tested on the Spintron, dyno and race track (including blown nitro engines) and proven highly effective
  • Smaller diameter, lightweight dual design allows engine to rev higher with improved valve train control
  • Accepts smaller, lighter retainers which also promotes higher revs
  • Ultra clean, high tensile strength chrome silicon material
Product Market: Domestic
Average Gram Weight: 154
Product Type: Engine Valve Spring
Valve Spring Outer Diameter: 1.522
Valve Spring Inner Diameter: 0.710
Valve Spring Quantity: 16
Valve Spring Series: NexTek? Series
Valve Spring Material: Chrome Silicon
Valve Spring Type: Double
Valve Spring Coil Bind Height: 1.255
Valve Spring Rate: 948
Valve Lift - Maximum: 0.950
Installed Pressure and Height: 440 @ 2.250
Open Pressure and Height: 1340 @ 1.300
Industry: Automotive
Out of Stock Message: Call for Availability
Engine Type: ICE
