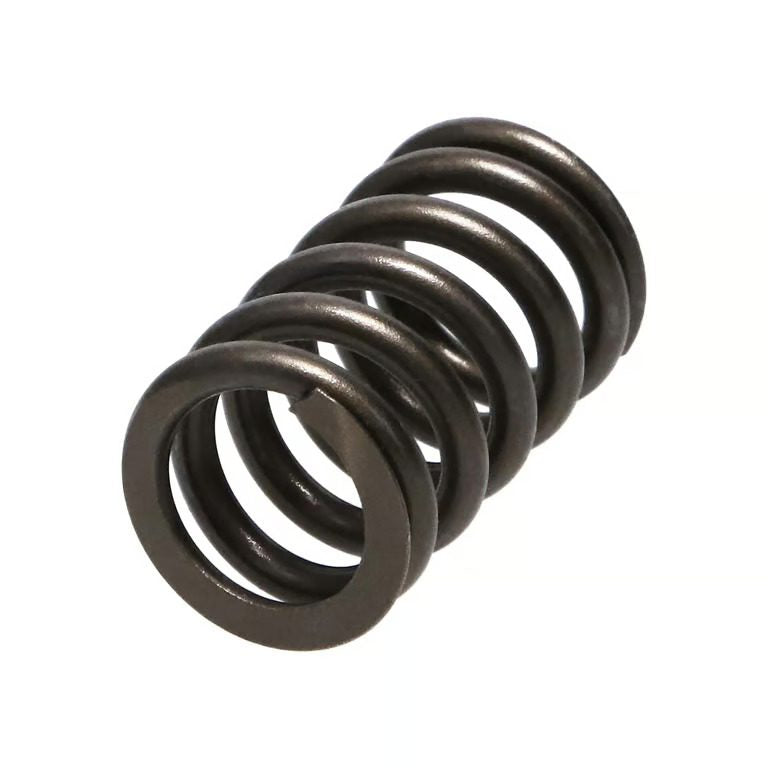

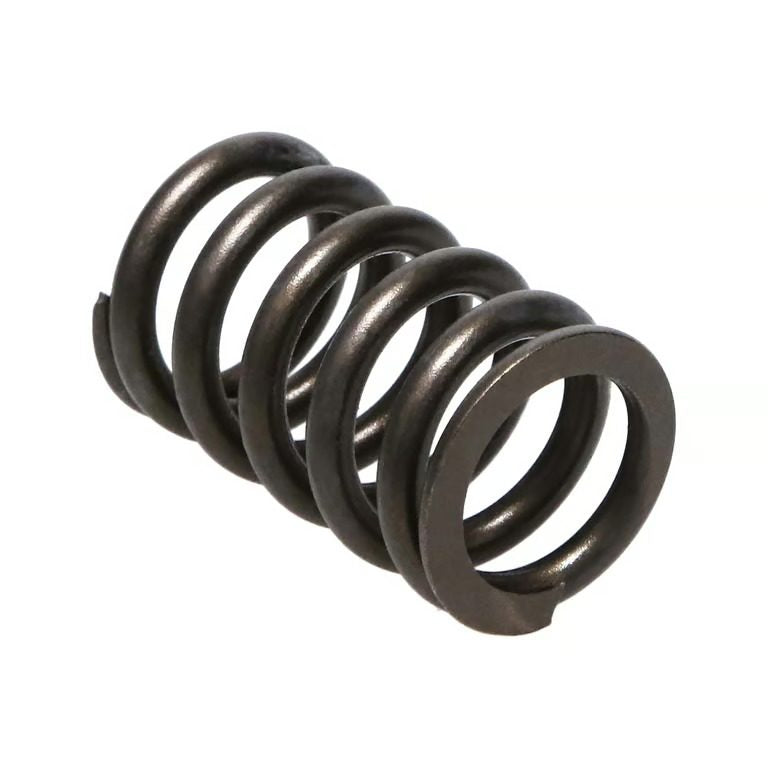

Manley 22145-16 - Honda (K20A3 K24A) 16pc Valve Springs

Manley 22145-16 - Honda (K20A3 K24A) 16pc Valve Springs

Manley | 22145-16
SKU: BBPB-22145-16
$201.99 USD
$222.19 USD $201.99 USD
Sale Sold out
Shipping calculated at checkout.

7 in stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Manley 22145-16 - Honda (K20A3 K24A) 16pc Valve Springs

Manley Valve Spring, SPRING-HONDA K20A3/K24A

Engineered for today’s high-revving sport compact engines, Manley valve springs deliver exceptional durability, precise control, and consistent performance. Manufactured from premium alloys and designed for demanding turbocharged and naturally aspirated applications, they ensure reliable valvetrain stability at elevated RPM and boost levels.

  • Wound from super clean alloy
  • Designed to handle aftermarket camshafts
  • Revs up to 10,000 RPM with Manley titanium retainers
Valve Spring Outer Diameter: 1.106
Valve Spring Inner Diameter: 0.787
Valve Spring Quantity: 16
Valve Spring Series: Sport Compact
Product Type: Engine Valve Spring
Valve Spring Type: Single
Valve Spring Coil Bind Height: 0.975
Valve Spring Rate: 274
Valve Lift - Stock: 0.380
Valve Lift - Maximum: 0.545
Installed Pressure and Height: 79 @ 1.565
Open Pressure and Height: 226 @ 1.025
Engine Type: ICE
Make: Honda
Engine: K20A3
Engine: K24A
