Manley 22140-1 - Valve Spring, SPRING-HONDA K20A/K20Z

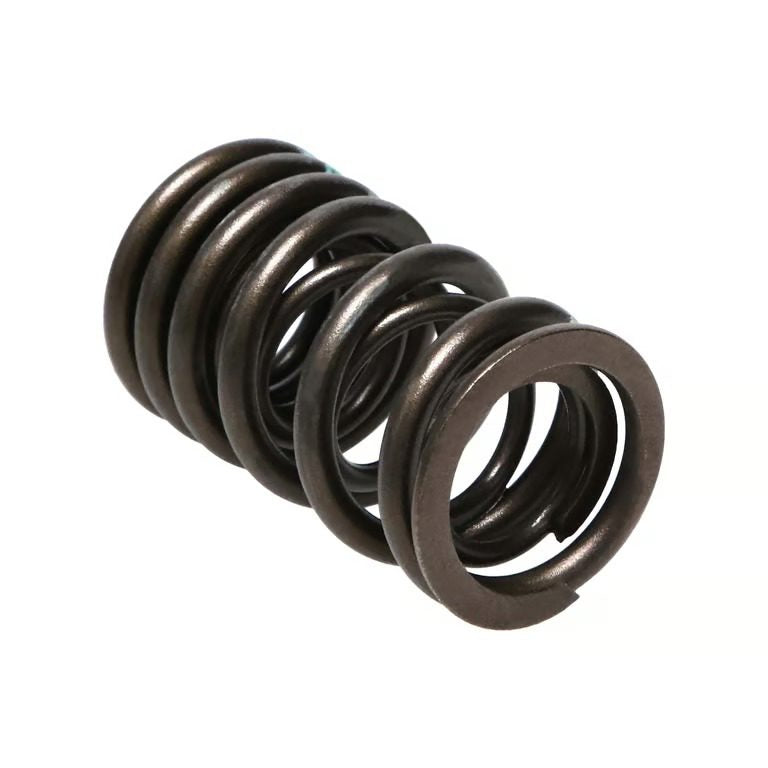

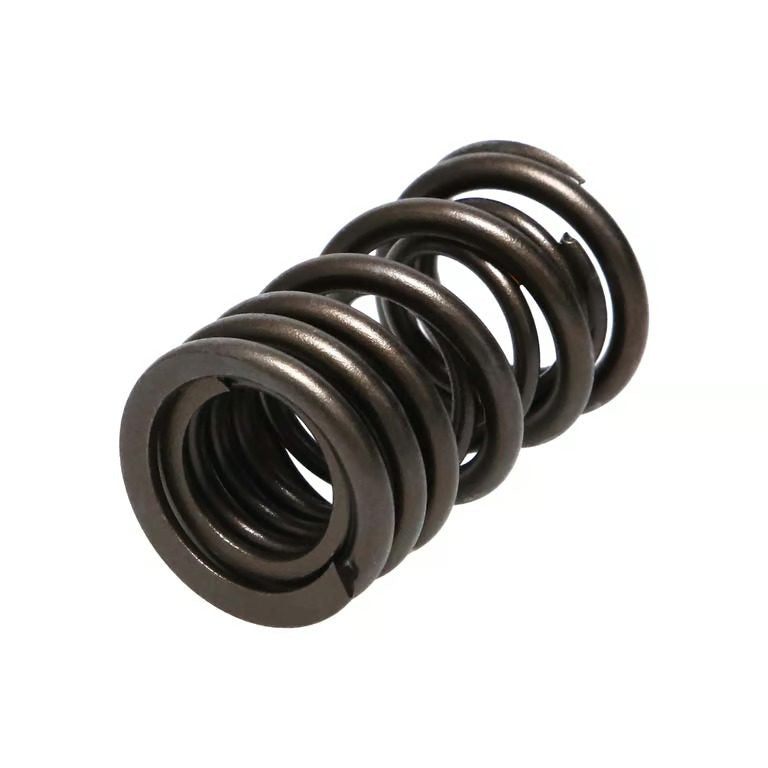

Manley Valve Spring, SPRING-HONDA K20A/K20Z
Engineered for today’s high-revving sport compact engines, Manley valve springs deliver exceptional durability, precise control, and consistent performance. Manufactured from premium alloys and designed for demanding turbocharged and naturally aspirated applications, they ensure reliable valvetrain stability at elevated RPM and boost levels.
- Wound from super clean alloy
- Designed to handle aftermarket camshafts
- Revs up to 10,000 RPM with Manley titanium retainers
Product Type: Engine Valve Spring
Outer Diameter of Outer Valve Spring: 1.160
Inner Diameter of Outer Valve Spring: 0.870
Outer Diameter of Inner Valve Spring: 0.865
Inner Diameter of Inner Valve Spring: 0.660
Valve Spring Quantity: 1
Valve Spring Series: Sport Compact
Valve Spring Type: Double
Valve Spring Coil Bind Height: 1.000
Valve Spring Rate: 375
Valve Lift - Stock: 0.450
Valve Lift - Maximum: 0.540
Installed Pressure and Height: 80 @ 1.590
Open Pressure and Height: 283 @ 1.050
Engine Type: ICE
Make: Honda
Engine: K20A
Engine: K20Z
