Manley 22110-1 - Valve Spring, SPRING-H22 VTEC

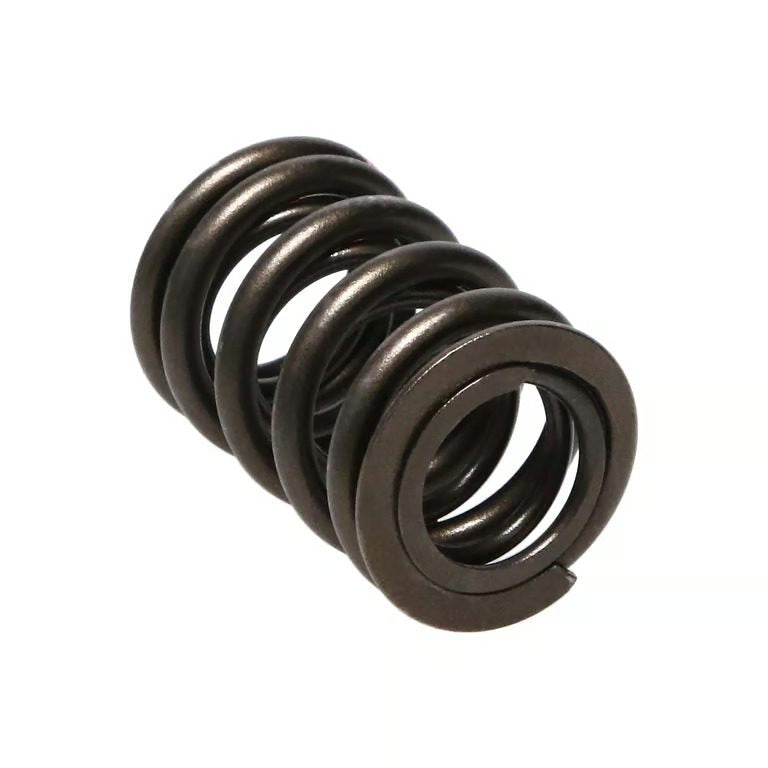

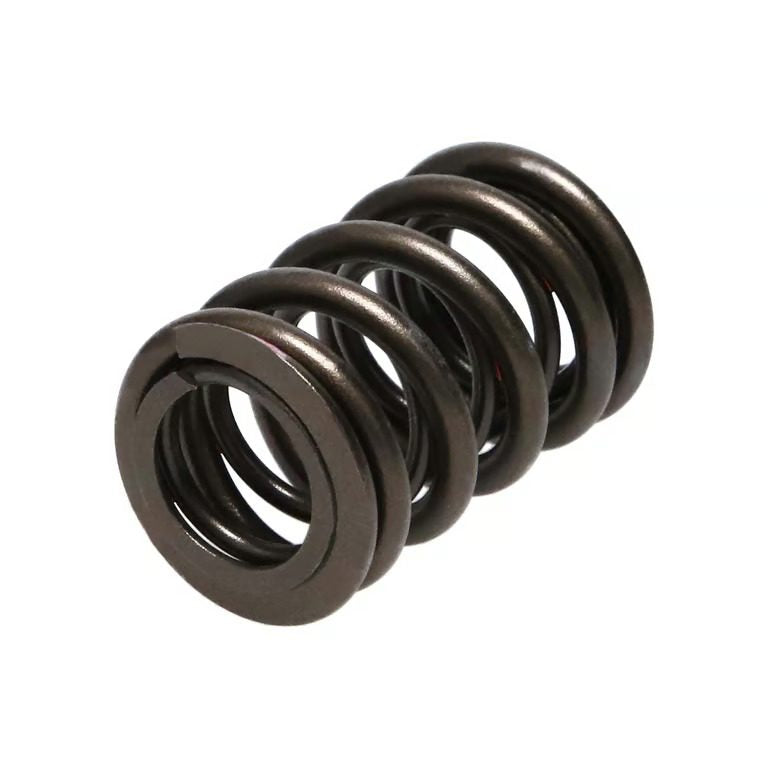

Manley Valve Spring, H22 VTEC
Outer Spring: 1.160"/.870" - Inner Spring: .865"/.660" - Max Net Lift: .560" - Coil Bind: .790" - Rate: 227 lbs./in. - Use w/ 23100-16 Ti Retainer
Engineered for today’s high-revving sport compact engines, Manley valve springs deliver exceptional durability, precise control, and consistent performance. Manufactured from premium alloys and designed for demanding turbocharged and naturally aspirated applications, they ensure reliable valvetrain stability at elevated RPM and boost levels.
- Wound from super clean alloy
- Designed to handle aftermarket camshafts
- Revs up to 10,000 RPM with Manley titanium retainers
Product Type: Engine Valve Spring
Outer Diameter of Outer Valve Spring: 1.160
Inner Diameter of Outer Valve Spring: 0.870
Outer Diameter of Inner Valve Spring: 0.865
Inner Diameter of Inner Valve Spring: 0.660
Valve Spring Quantity: 1
Valve Spring Series: Sport Compact
Valve Spring Type: Double
Valve Spring Coil Bind Height: 0.790
Valve Spring Rate: 227
Valve Lift - Stock: 0.450
Valve Lift - Maximum: 0.560
Installed Pressure and Height: 88 @ 1.400
Open Pressure and Height: 232 @ 0.840
Engine Type: ICE
Make: Honda
Engine: H22
