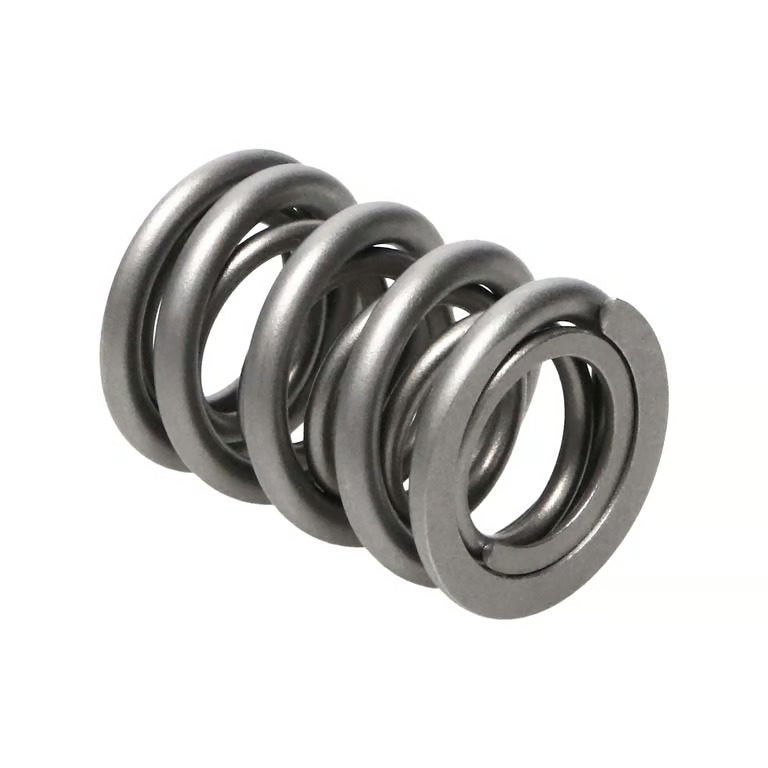

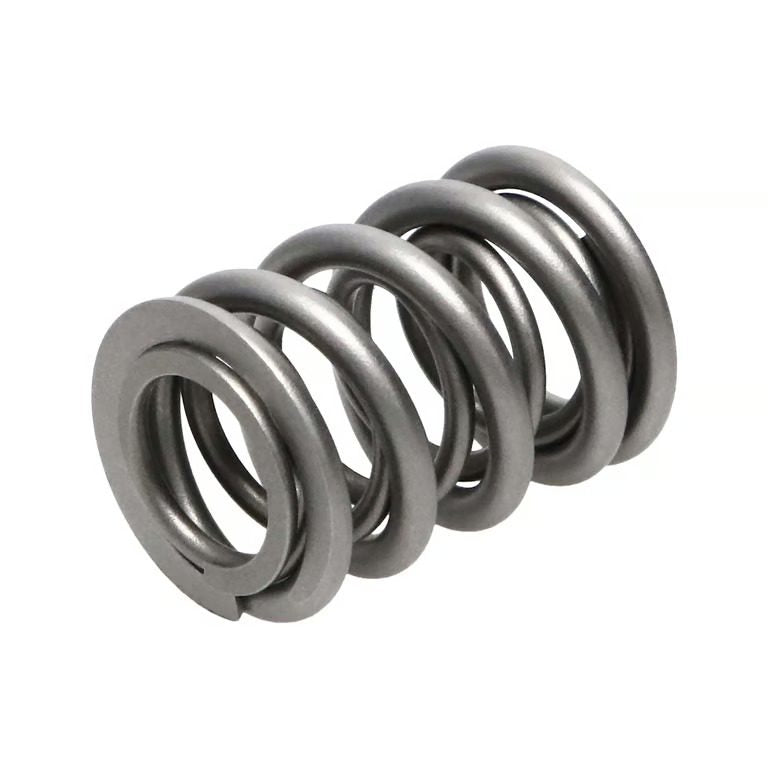

Manley 22105-1 - Valve Spring, SPRING-B SERIES VTEC
Manley 22105-1 - Valve Spring, SPRING-B SERIES VTEC
SKU: BBPB-22105-1
Regular price
$0.00 USD
Regular price
$0.00 USD
Sale price
$0.00 USD
Shipping calculated at checkout.
Out of stock
Quantity
Couldn't load pickup availability
Manley 22105-1 - Valve Spring, SPRING-B SERIES VTEC
Manley Valve Spring, B SERIES VTEC
Outer Spring: 1.180"/.870" - Inner Spring: .865"/.660" - Max Net Lift: .535" - Coil Bind: .765" - Rate: 310 lbs./in. - Use w/ 23100-16 Ti Retainer
Engineered for today’s high-revving sport compact engines, Manley valve springs deliver exceptional durability, precise control, and consistent performance. Manufactured from premium alloys and designed for demanding turbocharged and naturally aspirated applications, they ensure reliable valvetrain stability at elevated RPM and boost levels.
- Wound from super clean alloy
- Designed to handle aftermarket camshafts
- Revs up to 10,000 RPM with Manley titanium retainers
Product Type: Engine Valve Spring
Outer Diameter of Outer Valve Spring: 1.180
Inner Diameter of Outer Valve Spring: 0.870
Outer Diameter of Inner Valve Spring: 0.865
Inner Diameter of Inner Valve Spring: 0.660
Valve Spring Quantity: 1
Valve Spring Series: Sport Compact
Valve Spring Type: Double
Valve Spring Coil Bind Height: 0.765
Valve Spring Rate: 310
Valve Lift - Stock: 0.400
Valve Lift - Maximum: 0.535
Installed Pressure and Height: 82 @ 1.350
Open Pressure and Height: 248 @ 0.815
Engine Type: ICE
Make: Acura
Engine: B Series
