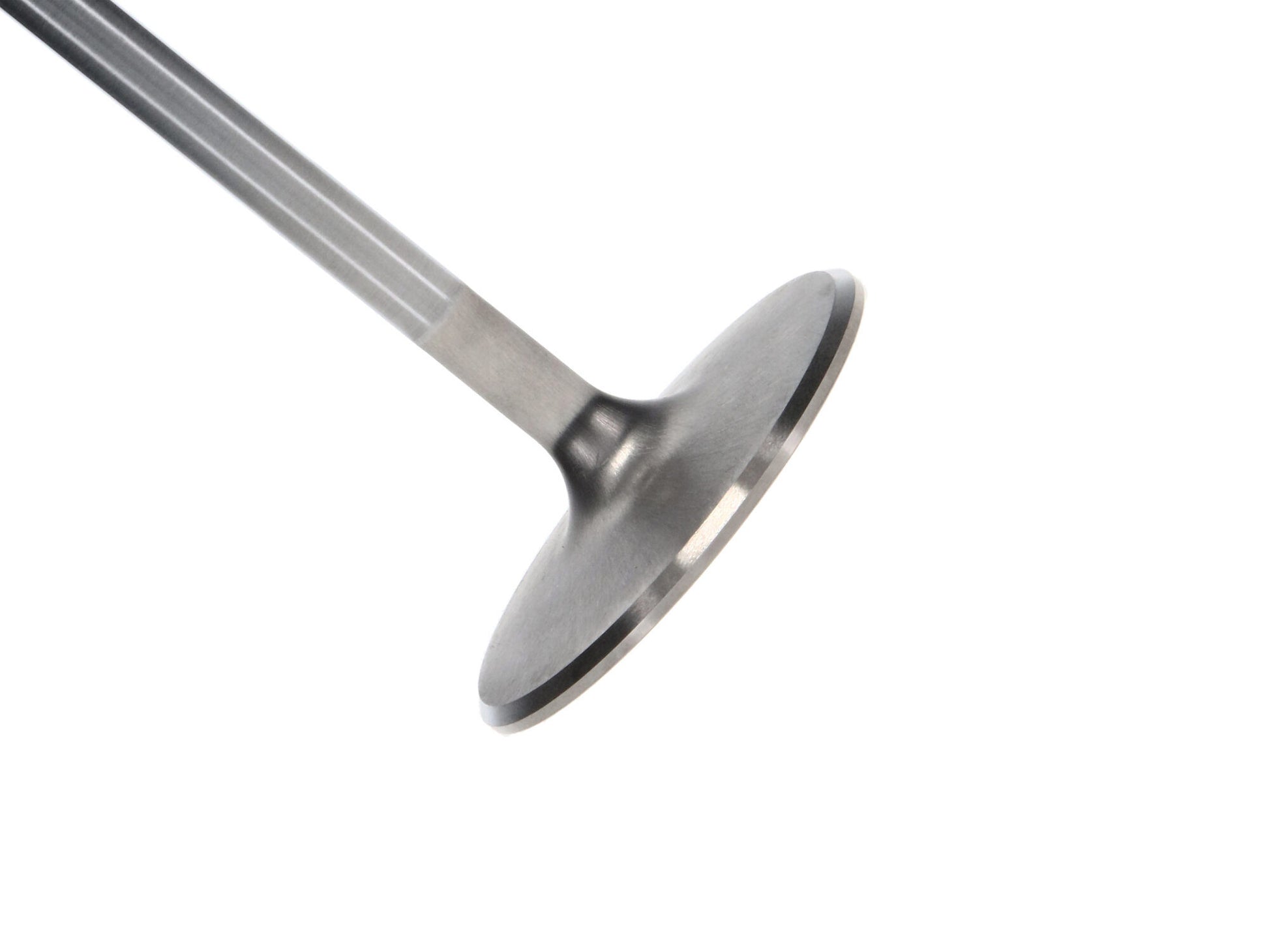

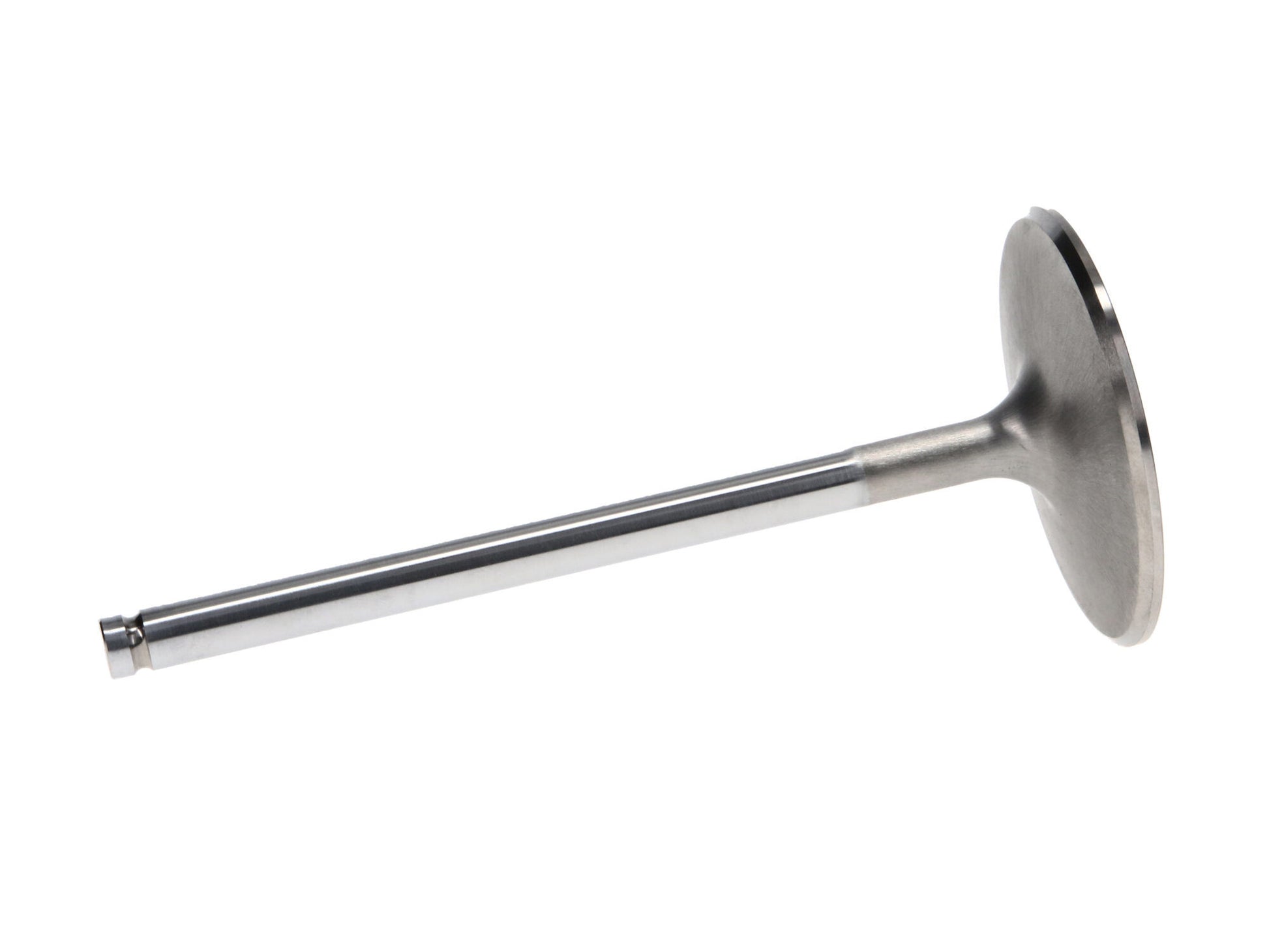

Manley 11610B-1 - Valve - Intake, Valve-FD 6.2L R/M 53.5mm B/L
Manley 11610B-1 - Valve - Intake, Valve-FD 6.2L R/M 53.5mm B/L
SKU: BBPB-11610B-1
Regular price
$0.00 USD
Regular price
$0.00 USD
Sale price
$0.00 USD
Shipping calculated at checkout.
Out of stock
Quantity
Couldn't load pickup availability
Manley 11610B-1 - Valve - Intake, Valve-FD 6.2L R/M 53.5mm B/L
Manley Valve - Intake, Valve-FD 6.2L R/M 53.5mm B/L
Manley Race Series valves are meticulously engineered to meet the rigorous demands of bracket, drag, and oval track racers and are the ultimate choice for engines operating under 8000 RPM.
- Stainless Steel Construction: Both exhaust (XH-426) and intake (NK-842) valves are constructed from high-quality stainless steel for unparalleled durability.
- Chrome Stems and Hard Tips: Chrome stems and hard tips are incorporated for enhanced longevity and wear resistance.
- Swirl Polished and Fully Machined: The valves feature swirl polished under head areas and fully machined combustion faces to optimize airflow and combustion efficiency.
- Variety of Shapes: Choose between Race Master (Straight Stem) and Race Flo shapes to suit your racing engine's specific requirements.
- Recommended for Alcohol Engines: These valves are the recommended choice for exhaust valves in alcohol engines, ensuring reliable performance even in demanding conditions.
Head Diameter: 53.50
Valve Head Diameter: 53.50
Stem Diameter: 0.3122
Valve Stem Diameter: 0.3122
O/A Length: 5.424
Valve Length: 5.424
Valve Tip Length: 0.125
Tip Length: 0.125
Margin Width: 0.050
Seat Width: 0.080
Top of Head: 7 Degree Dish
Valve Head Shape: 7 Degree Dish
Underhead Angle: 12.00
Underhead Radius: 5/16
Valve Series: Race Series
Valve Sub-Series: Race Master
Valve Material: Stainless Steel
Valve Groove Type: Bead Loc?
Valve Type: Intake
Product Type: Engine Intake Valve
Valve Quantity: 1
Engine Valve Quantity: 1
Engine Type: ICE
Make: Ford
Engine: 6.2L Raptor V8
