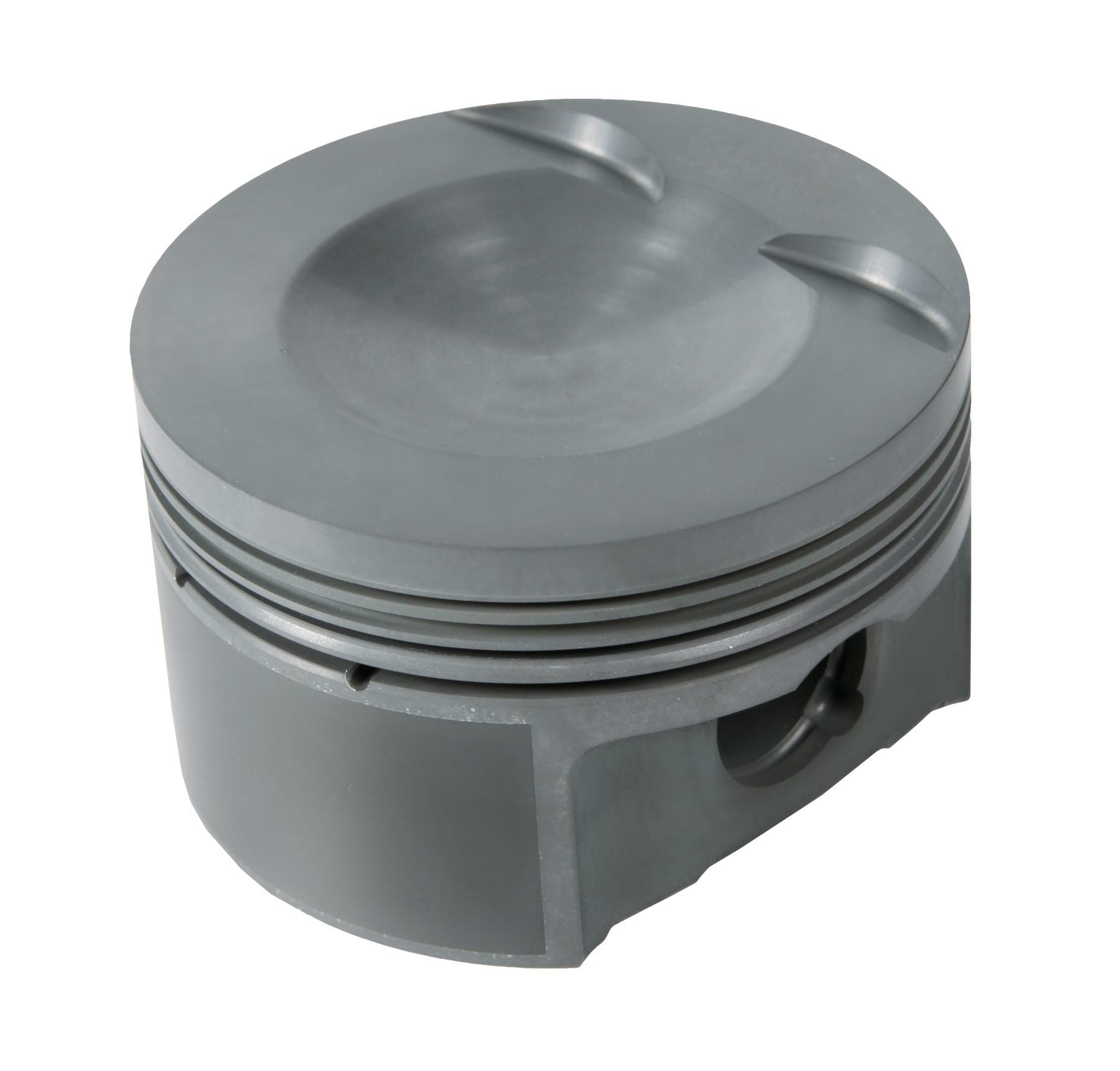

Mahle Motorsport 930286348-1 - Piston (each)
Mahle Motorsport 930286348-1 - Piston (each)
SKU: DGJH-930286348-1
Regular price
$159.99 USD
Regular price
$188.05 USD
Sale price
$159.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Mahle Motorsport 930286348-1 - Piston (each)
Piston (ea) - VOLKSWAGEN TSi EA888 Gen 3 (2015-2018) 2.0L TURBO
82.50mm x 29.6mm CH, 92.8mm stroke,144mm rod,23mm pin,-7.1cc,314g,9.5CR, M142P, SINGLE PISTON
Clip Style: Round Wire
Pin Wall Thickness: 0.187
UCR Material: Steel
UCR Coating: CrN PVD
Rings Included: N
Piston Style: Dish, w/ 2 valve reliefs
Piston Ring Thickness: 1.2mm, 1.5mm, 2.0mm
Piston Material: Forged, M142P
Piston Mass: 314g
Pins Included: N
Pin Style: Floating
Clips Included: N
Pin Material: Steel
Pin Mass: 122g
Pin Length: 57.404mm
Pin Diameter: 23.0mm
Package Quantity: Sold as a set of 1
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.5mm
LCR Material: Cast Iron
LCR Coating: Phosphate
File Fit: N
Crown Volume: -7.1cc
UCR Thickness: 1.2mm
